ABM10-167-12.000MHZ-T3 | ABM10 | 12MHz | ±30ppm | 8pF | -40°C ~ 85°C |
ABM10-166-12.000MHZ-T3 | ABM10 | 12MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10-25.000MHZ-E20-T | ABM10 | 25MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-16.000MHZ-E20-T | ABM10 | 16MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-24.000MHZ-E20-T | ABM10 | 24MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-30.000MHZ-E20-T | ABM10 | 30MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-18.432MHZ-E20-T | ABM10 | 18.432MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-16.384MHZ-E20-T | ABM10 | 16.384MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-19.200MHZ-E20-T | ABM10 | 19.2MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-24.000MHZ-D30-T3 | ABM10 | 24MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-19.200MHZ-D30-T3 | ABM10 | 19.2MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-25.000MHZ-D30-T3 | ABM10 | 25MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-32.000MHZ-D30-T3 | ABM10 | 32MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-18.432MHZ-D30-T3 | ABM10 | 18.432MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-16.384MHZ-D30-T3 | ABM10 | 16.384MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-16.000MHZ-D30-T3 | ABM10 | 16MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-20.000MHZ-D30-T3 | ABM10 | 20MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-27.000MHZ-D30-T3 | ABM10 | 27MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-30.000MHZ-D30-T3 | ABM10 | 30MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-48.000MHZ-D30-T3 | ABM10 | 48MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-26.000MHZ-7-A15-T | ABM10 | 26MHz | ±15ppm | 10pF | -10°C ~ 60°C |
ABM10-24.576MHZ-E20-T | ABM10 | 24.576MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-26.000MHZ-D30-T3 | ABM10 | 26MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-24.000MHZ-8-7-A15-T | ABM10 | 24MHz | ±15ppm | 8pF | -10°C ~ 60°C |
ABM10-40.000MHZ-8-7-A15-T | ABM10 | 40MHz | ±15ppm | 8pF | -10°C ~ 60°C |
ABM10-20.000MHZ-E20-T | ABM10 | 20MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-27.000MHZ-E20-T | ABM10 | 27MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-32.000MHZ-8-7-A15-T | ABM10 | 32MHz | ±15ppm | 8pF | -10°C ~ 60°C |
ABM10-22.1184MHZ-E20-T | ABM10 | 22.1184MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-32.000MHZ-R50-7-D30-T | ABM10 | 32MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-12.000MHZ-8-R150-1-E10-T | ABM10 | 12MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10-16.000MHZ-12-R80-3-D30-T | ABM10 | 16MHz | ±30ppm | 12pF | -40°C ~ 85°C |
ABM10-12.000MHZ-8-R150-1-D30-T | ABM10 | 12MHz | ±30ppm | 8pF | -40°C ~ 85°C |
ABM10-19.200MHZ-12-R80-3-D30-T | ABM10 | 19.2MHz | ±30ppm | 12pF | -40°C ~ 85°C |
ABM10-24.000MHZ-12-R60-3-D30-T | ABM10 | 24MHz | ±30ppm | 12pF | -40°C ~ 85°C |
ABM10-25.000MHZ-R60-7-D30-T | ABM10 | 25MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-19.200MHZ-R80-7-D30-T | ABM10 | 19.2MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-16.384MHZ-R80-7-D30-T | ABM10 | 16.384MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-27.120MHZ-R60-3-D30-T | ABM10 | 27.12MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-20.000MHZ-18-R60-3-E30-T | ABM10 | 20MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-24.000MHZ-18-R60-3-E30-T | ABM10 | 24MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-40.000MHZ-R40-7-D30-T | ABM10 | 40MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-24.000MHZ-R60-1-E10-T | ABM10 | 24MHz | ±10ppm | 10pF | -20°C ~ 70°C |
ABM10-16.000MHZ-R80-1-E10-T | ABM10 | 16MHz | ±10ppm | 10pF | -20°C ~ 70°C |
ABM10-25.000MHZ-R60-7-E20-T | ABM10 | 25MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-48.000MHZ-R40-1-E10-T | ABM10 | 48MHz | ±10ppm | 10pF | -20°C ~ 70°C |
ABM10-25.000MHZ-R60-1-E10-T | ABM10 | 25MHz | ±10ppm | 10pF | -20°C ~ 70°C |
ABM10-32.000MHZ-R50-1-D20-T | ABM10 | 32MHz | ±20ppm | 10pF | -40°C ~ 85°C |
ABM10-12.000MHZ-18-R150-3-E30-T | ABM10 | 12MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-24.000MHZ-R60-7-D30-T | ABM10 | 24MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-16.000MHZ-R80-7-D30-T | ABM10 | 16MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-24.000MHZ-R60-7-E20-T | ABM10 | 24MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-40.000MHZ-D30-T3 | ABM10 | 40MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-28.63636MHZ-8-7A15-T | ABM10 | 28.63636MHz | ±15ppm | 8pF | -10°C ~ 60°C |
ABM10-32.000MHZ-7-A15-T | ABM10 | 32MHz | ±15ppm | 10pF | -10°C ~ 60°C |
ABM10-24.576MHZ-D30-T3 | ABM10 | 24.576MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-27.120MHZ-8-A10-T | ABM10 | 27.12MHz | ±10ppm | 8pF | -10°C ~ 60°C |
ABM10-26.000MHZ-20-R30-D50-T | ABM10 | 26MHz | ±50ppm | 20pF | -40°C ~ 85°C |
ABM10-25.000MHZ-E30-T | ABM10 | 25MHz | ±30ppm | 10pF | -20°C ~ 70°C |
ABM10-25.000MHZ-18-R60-4-D30-T | ABM10 | 25MHz | ±30ppm | 18pF | -40°C ~ 85°C |
ABM10-16.000MHZ-D30-T | ABM10 | 16MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-16.000MHZ-18-E30-T3 | ABM10 | 16MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-24.000MHZ-18-E30-T3 | ABM10 | 24MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-25.000MHZ-18-E30-T3 | ABM10 | 25MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-32.000MHZ-R50-1-E10-T | ABM10 | 32MHz | ±10ppm | 10pF | -20°C ~ 70°C |
ABM10-22.1184MHZ-D30-T3 | ABM10 | 22.1184MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-48.000MHZ-E20-T | ABM10 | 48MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-20.000MHZ-R60-7-D30-T | ABM10 | 20MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-40.000MHZ-E20-T | ABM10 | 40MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-16.3676MHZ-E20-T | ABM10 | 16.3676MHz | ±20ppm | 10pF | -20°C ~ 70°C |
ABM10-16.3676MHZ-D30-T3 | ABM10 | 16.3676MHz | ±30ppm | 10pF | -40°C ~ 85°C |
ABM10-14.31818MHZ-18-E30-T3 | ABM10 | 14.31818MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-20.000MHZ-18-E30-T3 | ABM10 | 20MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-38.400MHZ-18-E30-T3 | ABM10 | 38.4MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-40.000MHZ-18-E30-T3 | ABM10 | 40MHz | ±30ppm | 18pF | -20°C ~ 70°C |
ABM10-48.000MHZ-18-E30-T3 | ABM10 | 48MHz | ±30ppm | 18pF | -20°C ~ 70°C |

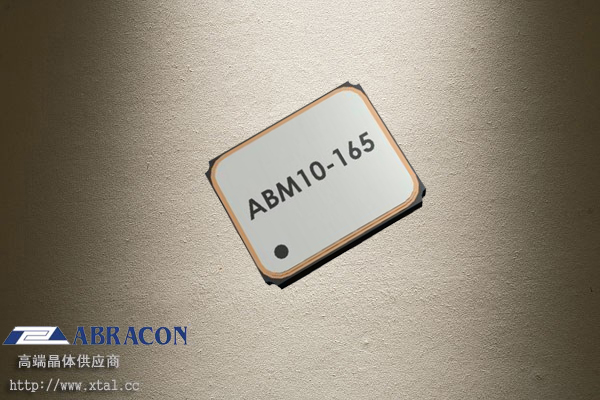

ABM10-165-38.400MHZ-T3 | ABM10-165 | 38.4MHz | -15ppm,+20ppm | 10pF | -30°C ~ 85°C |
ABM10AIG-12.000MHZ-4Z-T3 | ABM10AIG | 12MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-16.000MHZ-4Z-T3 | ABM10AIG | 16MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-32.000MHZ-4Z-T3 | ABM10AIG | 32MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.000MHZ-4Z-T3 | ABM10AIG | 24MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-20.000MHZ-4Z-T3 | ABM10AIG | 20MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-25.000MHZ-4Z-T3 | ABM10AIG | 25MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-26.000MHZ-4Z-T3 | ABM10AIG | 26MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-12.000MHZ-12-N1G-T3 | ABM10AIG | 12MHz | ±15ppm | 12pF | -30°C ~ 85°C |
ABM10AIG-48.000MHZ-4Z-T3 | ABM10AIG | 48MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-30.000MHZ-4Z-T3 | ABM10AIG | 30MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.000MHZ-8-3Z-T3 | ABM10AIG | 24MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10AIG-24.000MHZ-8-N1G-T3 | ABM10AIG | 24MHz | ±15ppm | 8pF | -30°C ~ 85°C |
ABM10AIG-32.000MHZ-8-N1G-T3 | ABM10AIG | 32MHz | ±15ppm | 8pF | -30°C ~ 85°C |
ABM10AIG-25.000MHZ-8-N1G-T3 | ABM10AIG | 25MHz | ±15ppm | 8pF | -30°C ~ 85°C |
ABM10AIG-32.000MHZ-12-N1G-T3 | ABM10AIG | 32MHz | ±15ppm | 12pF | -30°C ~ 85°C |
ABM10AIG-16.000MHZ-12-N1G-T3 | ABM10AIG | 16MHz | ±15ppm | 12pF | -30°C ~ 85°C |
ABM10AIG-16.000MHZ-8-N1G-T3 | ABM10AIG | 16MHz | ±15ppm | 8pF | -30°C ~ 85°C |
ABM10AIG-24.000MHZ-12-N1G-T3 | ABM10AIG | 24MHz | ±15ppm | 12pF | -30°C ~ 85°C |
ABM10AIG-20.000MHZ-8-3Z-T3 | ABM10AIG | 20MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10AIG-27.000MHZ-3Z-T3 | ABM10AIG | 27MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-27.000MHZ-4Z-T3 | ABM10AIG | 27MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-40.000MHZ-7-J1Z-T | ABM10AIG | 40MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10AIG-40.000MHZ-2Z-T | ABM10AIG | 40MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-38.400MHZ-D1Z-T | ABM10AIG | 38.4MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-12.000MHZ-7-D2Z-T | ABM10AIG | 12MHz | ±50ppm | 4pF | -40°C ~ 85°C |
ABM10AIG-12.000MHZ-2Z-T | ABM10AIG | 12MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.000MHZ-2Z-T | ABM10AIG | 24MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-30.000MHZ-4Z-T | ABM10AIG | 30MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.576MHZ-4Z-T3 | ABM10AIG | 24.576MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-16.000MHZ-4-T3 | ABM10AIG | 16MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-12.000MHZ-3Z-T3 | ABM10AIG | 12MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-12.000MHZ-D2Z-T3 | ABM10AIG | 12MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-16.000MHZ-D2Z-T3 | ABM10AIG | 16MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-20.000MHZ-D2Z-T3 | ABM10AIG | 20MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-12.000MHZ-4-T3 | ABM10AIG | 12MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-20.000MHZ-4-T3 | ABM10AIG | 20MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.000MHZ-4-T3 | ABM10AIG | 24MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.576MHZ-4-T3 | ABM10AIG | 24.576MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-25.000MHZ-4-T3 | ABM10AIG | 25MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-26.000MHZ-4-T3 | ABM10AIG | 26MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-27.000MHZ-4-T3 | ABM10AIG | 27MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-30.000MHZ-4-T3 | ABM10AIG | 30MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-32.000MHZ-4-T3 | ABM10AIG | 32MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-40.000MHZ-4-T3 | ABM10AIG | 40MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-48.000MHZ-4-T3 | ABM10AIG | 48MHz | ±100ppm | 10pF | -40°C ~ 125°C |
ABM10AIG-24.000MHZ-D2Z-T3 | ABM10AIG | 24MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-24.576MHZ-D2Z-T3 | ABM10AIG | 24.576MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-25.000MHZ-D2Z-T3 | ABM10AIG | 25MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-26.000MHZ-D2Z-T3 | ABM10AIG | 26MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-37.000MHZ-D2Z-T3 | ABM10AIG | 37MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-30.000MHZ-D2Z-T3 | ABM10AIG | 30MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-32.000MHZ-D2Z-T3 | ABM10AIG | 32MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-40.000MHZ-D2Z-T3 | ABM10AIG | 40MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-48.000MHZ-D2Z-T3 | ABM10AIG | 48MHz | ±50ppm | 10pF | -40°C ~ 85°C |
ABM10AIG-12.000MHZ-J4Z-T3 | ABM10AIG | 12MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-16.000MHZ-J4Z-T3 | ABM10AIG | 16MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-20.000MHZ-J4Z-T3 | ABM10AIG | 20MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-24.000MHZ-J4Z-T3 | ABM10AIG | 24MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-24.576MHZ-J4Z-T3 | ABM10AIG | 24.576MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-25.000MHZ-J4Z-T3 | ABM10AIG | 25MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-26.000MHZ-J4Z-T3 | ABM10AIG | 26MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-27.000MHZ-J4Z-T3 | ABM10AIG | 27MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-30.000MHZ-J4Z-T3 | ABM10AIG | 30MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-32.000MHZ-J4Z-T3 | ABM10AIG | 32MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-40.000MHZ-J4Z-T3 | ABM10AIG | 40MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-48.000MHZ-J4Z-T3 | ABM10AIG | 48MHz | ±50ppm | 10pF | -40°C ~ 105°C |
ABM10AIG-40.000MHZ-4Z-T3 | ABM10AIG | 40MHz | ±50ppm | 10pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-8-B1U-T3 | ABM10W | 40MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-8-B1U-T3 | ABM10W | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-8-J1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-8-K1Z-T3 | ABM10W | 20MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-8-D1X-T3 | ABM10W | 27.12MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-8-D1X-T3 | ABM10W | 38.4MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-8-K1Z-T3 | ABM10W | 25MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-7-D1X-T3 | ABM10W | 25MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-8-B1U-T3 | ABM10W | 32MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-6-B1U-T3 | ABM10W | 24MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-6-B1U-T3 | ABM10W | 25MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-8-D1X-T3 | ABM10W | 25MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-6-D2X-T3 | ABM10W | 24MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-6-B1U-T3 | ABM10W | 38.4MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-4-B1U-T3 | ABM10W | 25MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-4-D1X-T3 | ABM10W | 27.12MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-4-D1X-T3 | ABM10W | 50MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-8-B1U-T3 | ABM10W | 30MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-6-B1U-T3 | ABM10W | 40MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-8-B1U-T3 | ABM10W | 38.4MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-6-D1X-T3 | ABM10W | 30MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-7-B1U-T3 | ABM10W | 32MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-8-D1X-T3 | ABM10W | 30MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-7-D1X-T3 | ABM10W | 30MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-7-B1U-T3 | ABM10W | 40MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-6-D1X-T3 | ABM10W | 38.4MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-6-B1U-T3 | ABM10W | 32MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-6-D1X-T3 | ABM10W | 32MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-7-D1X-T3 | ABM10W | 32MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-8-K1Z-T3 | ABM10W | 16MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-6-D1X-T3 | ABM10W | 24.576MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-6-B1U-T3 | ABM10W | 20MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-7-D1X-T3 | ABM10W | 24.576MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-7-B1U-T3 | ABM10W | 27MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-8-D1X-T3 | ABM10W | 24.576MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-8-B1U-T3 | ABM10W | 27MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-8-B1U-T3 | ABM10W | 25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-7-B1U-T3 | ABM10W | 20MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-7-D1X-T3 | ABM10W | 26MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-7-K1Z-T3 | ABM10W | 25MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-6-B1U-T3 | ABM10W | 26MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-7-B1U-T3 | ABM10W | 26MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-8-B1U-T3 | ABM10W | 27.12MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-6-B1U-T3 | ABM10W | 27MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-6-D1X-T3 | ABM10W | 27MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-6-D1X-T3 | ABM10W | 26MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-7-D1X-T3 | ABM10W | 16MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-6-K1Z-T3 | ABM10W | 16MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-6-K1Z-T3 | ABM10W | 25MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-20.0000MHZ-7-K1Z-T3 | ABM10W | 20MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-6-D1X-T3 | ABM10W | 27.12MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-6-D1X-T3 | ABM10W | 25MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-6-K1Z-T3 | ABM10W | 27MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-8-D1X-T3 | ABM10W | 27MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-8-B1U-T3 | ABM10W | 24.576MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-6-D1X-T3 | ABM10W | 20MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-6-K1Z-T3 | ABM10W | 24MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.0000MHZ-8-D1X-T3 | ABM10W | 16MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-4-B1U-T3 | ABM10W | 26MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-4-B1U-T3 | ABM10W | 30MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-4-B1U-T3 | ABM10W | 20MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.0000MHZ-4-B1U-T3 | ABM10W | 16MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-4-B1U-T3 | ABM10W | 27MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-4-B1U-T3 | ABM10W | 24MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-4-D1X-T3 | ABM10W | 40MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-4-D1X-T3 | ABM10W | 16MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-4-D1X-T3 | ABM10W | 38.4MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-8-R80-D2X-T3 | ABM10W | 16MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-8-R60-D7G-T3 | ABM10W | 20MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-8-R80-D7G-T3 | ABM10W | 16MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-8-D7G-T3 | ABM10W | 48MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-8-R60-D7G-T3 | ABM10W | 25MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-8-R50-D7G-T3 | ABM10W | 32MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-8-R60-D7G-T3 | ABM10W | 24.576MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-8-R60-D7G-T3 | ABM10W | 24MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-8-R60-D7G-T3 | ABM10W | 27MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-8-R50-D7G-T3 | ABM10W | 30MHz | ±15ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-8-R50-B1U-T3 | ABM10W | 30MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-8-N1G-T3 | ABM10W | 40MHz | ±15ppm | 8pF | -30°C ~ 85°C |
ABM10W-16.0000MHZ-4-D2X-T3 | ABM10W | 16MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-8-D2X-T3 | ABM10W | 16MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-8-K1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-8-R60-B1U-T3 | ABM10W | 26MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-8-R50-B1U-T3 | ABM10W | 32MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-8-R60-B1U-T3 | ABM10W | 20MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-16.0000MHZ-8-R80-B1U-T3 | ABM10W | 16MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-8-D1X-T3 | ABM10W | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-7-K1Z-T3 | ABM10W | 48MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-6-D1X-T3 | ABM10W | 19.2MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-7-B1U-T3 | ABM10W | 24MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-8-B1U-T3 | ABM10W | 20MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-8-D1X-T3 | ABM10W | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-6-D1X-T3 | ABM10W | 16MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-4-B1U-T3 | ABM10W | 32MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.2000MHZ-4-D1X-T3 | ABM10W | 19.2MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-4-D1X-T3 | ABM10W | 18.432MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-4-D1X-T3 | ABM10W | 25MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-4-D1X-T3 | ABM10W | 32MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-7-K1Z-T3 | ABM10W | 16MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-7-D1X-T3 | ABM10W | 19.2MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.2000MHZ-8-D1X-T3 | ABM10W | 19.2MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-6-K1Z-T3 | ABM10W | 20MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-20.0000MHZ-7-D1X-T3 | ABM10W | 20MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-8-D1X-T3 | ABM10W | 20MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-6-D1X-T3 | ABM10W | 24MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-7-D1X-T3 | ABM10W | 24MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-7-K1Z-T3 | ABM10W | 24MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.0000MHZ-8-K1Z-T3 | ABM10W | 24MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-6-B1U-T3 | ABM10W | 24.576MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-7-B1U-T3 | ABM10W | 24.576MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-7-B1U-T3 | ABM10W | 25MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-8-B1U-T3 | ABM10W | 26MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-8-D1X-T3 | ABM10W | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-7-D1X-T3 | ABM10W | 27MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-7-K1Z-T3 | ABM10W | 27MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-8-K1Z-T3 | ABM10W | 27MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-6-B1U-T3 | ABM10W | 27.12MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-7-B1U-T3 | ABM10W | 27.12MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-7-D1X-T3 | ABM10W | 27.12MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-4-K1Z-T3 | ABM10W | 40MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-8-K1Z-T3 | ABM10W | 19.2MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-6-B1U-T3 | ABM10W | 30MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-7-B1U-T3 | ABM10W | 30MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-8-D1X-T3 | ABM10W | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-7-B1U-T3 | ABM10W | 38.4MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-7-D1X-T3 | ABM10W | 38.4MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-6-D1X-T3 | ABM10W | 40MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-7-D1X-T3 | ABM10W | 40MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-6-B1U-T3 | ABM10W | 48MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-6-D1X-T3 | ABM10W | 48MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-6-K1Z-T3 | ABM10W | 48MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-48.0000MHZ-7-B1U-T3 | ABM10W | 48MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-7-D1X-T3 | ABM10W | 48MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-8-B1U-T3 | ABM10W | 48MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-8-D1X-T3 | ABM10W | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-8-K1Z-T3 | ABM10W | 48MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-4-B1U-T3 | ABM10W | 19.2MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-4-B1U-T3 | ABM10W | 24.576MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-4-B1U-T3 | ABM10W | 40MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-4-D1X-T3 | ABM10W | 20MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-4-D1X-T3 | ABM10W | 24MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-4-D1X-T3 | ABM10W | 24.576MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-4-D1X-T3 | ABM10W | 26MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-4-D1X-T3 | ABM10W | 27MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-4-D1X-T3 | ABM10W | 30MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-4-B1U-T3 | ABM10W | 48MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-4-B1U-T3 | ABM10W | 50MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-18.0800MHZ-4-K1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-4-K1Z-T3 | ABM10W | 27MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.0000MHZ-8-J1Z-T3 | ABM10W | 16MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-8-D2X-T3 | ABM10W | 16.3676MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-8-K1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-8-D2X-T3 | ABM10W | 19.2MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-8-B2U-T3 | ABM10W | 20MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-8-K2Z-T3 | ABM10W | 20MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-22.5792MHZ-7-B1U-T3 | ABM10W | 22.5792MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-8-D1X-T3 | ABM10W | 22.5792MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-8-D2X-T3 | ABM10W | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-8-D1X-T3 | ABM10W | 24.305MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-8-D2X-T3 | ABM10W | 24.305MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-7-B2U-T3 | ABM10W | 25MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-8-D2X-T3 | ABM10W | 25MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-8-K2Z-T3 | ABM10W | 26MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-7-K1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-7-K2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.0000MHZ-8-N1G-T3 | ABM10W | 16MHz | ±15ppm | 8pF | -30°C ~ 85°C |
ABM10W-32.0000MHZ-8-B2U-T3 | ABM10W | 32MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-8-D2X-T3 | ABM10W | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-6-D2X-T3 | ABM10W | 37.4MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-6-K1Z-T3 | ABM10W | 37.4MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-8-B1U-T3 | ABM10W | 39MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-7-D2X-T3 | ABM10W | 50MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-8-B1U-T3 | ABM10W | 50MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-18.7500MHZ-4-D2X-T3 | ABM10W | 18.75MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-4-D2X-T3 | ABM10W | 19.7079MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.0000MHZ-4-B1U-T3 | ABM10W | 22MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-4-B2U-T3 | ABM10W | 22.1184MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-4-D1X-T3 | ABM10W | 48MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-4-K1Z-T3 | ABM10W | 24MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-4-K1Z-T3 | ABM10W | 25MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.0000MHZ-4-B2U-T3 | ABM10W | 16MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.0000MHZ-4-J1Z-T3 | ABM10W | 16MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-4-J2Z-T3 | ABM10W | 16MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-6-D2X-T3 | ABM10W | 16MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-6-J1Z-T3 | ABM10W | 16MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-6-J2Z-T3 | ABM10W | 16MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-6-K2Z-T3 | ABM10W | 16MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.0000MHZ-7-D2X-T3 | ABM10W | 16MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.0000MHZ-7-J1Z-T3 | ABM10W | 16MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-7-J2Z-T3 | ABM10W | 16MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-7-K2Z-T3 | ABM10W | 16MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.0000MHZ-8-J2Z-T3 | ABM10W | 16MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.0000MHZ-8-K2Z-T3 | ABM10W | 16MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.0132MHZ-4-B1U-T3 | ABM10W | 16.0132MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.0132MHZ-4-B2U-T3 | ABM10W | 16.0132MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.0132MHZ-4-D1X-T3 | ABM10W | 16.0132MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-4-D2X-T3 | ABM10W | 16.0132MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-4-J1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-4-J2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-6-D1X-T3 | ABM10W | 16.0132MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-6-D2X-T3 | ABM10W | 16.0132MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-6-J1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-6-J2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-6-K1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.0132MHZ-6-K2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.0132MHZ-7-D1X-T3 | ABM10W | 16.0132MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-7-D2X-T3 | ABM10W | 16.0132MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-7-J1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-7-J2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-7-K1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.0132MHZ-7-K2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.0132MHZ-8-D1X-T3 | ABM10W | 16.0132MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-8-D2X-T3 | ABM10W | 16.0132MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.0132MHZ-8-J1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-8-J2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.0132MHZ-8-K1Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.0132MHZ-8-K2Z-T3 | ABM10W | 16.0132MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.3676MHZ-4-B1U-T3 | ABM10W | 16.3676MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.3676MHZ-4-B2U-T3 | ABM10W | 16.3676MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.3676MHZ-4-D1X-T3 | ABM10W | 16.3676MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-4-D2X-T3 | ABM10W | 16.3676MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-4-J1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-4-J2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-6-D1X-T3 | ABM10W | 16.3676MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-6-D2X-T3 | ABM10W | 16.3676MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-6-J1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-6-J2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-6-K1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.3676MHZ-6-K2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.3676MHZ-7-D1X-T3 | ABM10W | 16.3676MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-7-D2X-T3 | ABM10W | 16.3676MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-7-J1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-7-J2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-7-K1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.3676MHZ-7-K2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.3676MHZ-8-D1X-T3 | ABM10W | 16.3676MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.3676MHZ-8-J1Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-8-J2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.3676MHZ-8-K2Z-T3 | ABM10W | 16.3676MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.3840MHZ-4-B1U-T3 | ABM10W | 16.384MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.3840MHZ-4-B2U-T3 | ABM10W | 16.384MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-16.3840MHZ-4-D1X-T3 | ABM10W | 16.384MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-4-D2X-T3 | ABM10W | 16.384MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-4-J1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-4-J2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-6-D1X-T3 | ABM10W | 16.384MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-6-D2X-T3 | ABM10W | 16.384MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-6-J1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-6-J2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-6-K1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.3840MHZ-6-K2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.3840MHZ-7-D1X-T3 | ABM10W | 16.384MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-7-D2X-T3 | ABM10W | 16.384MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-7-J1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-7-J2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-7-K1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.3840MHZ-7-K2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.3840MHZ-8-D1X-T3 | ABM10W | 16.384MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-8-D2X-T3 | ABM10W | 16.384MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.3840MHZ-8-J1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-8-J2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.3840MHZ-8-K1Z-T3 | ABM10W | 16.384MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.3840MHZ-8-K2Z-T3 | ABM10W | 16.384MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-4-D1X-T3 | ABM10W | 16.6667MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-4-D2X-T3 | ABM10W | 16.6667MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-4-J1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-4-J2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-4-K1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-4-K2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-6-D1X-T3 | ABM10W | 16.6667MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-6-D2X-T3 | ABM10W | 16.6667MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-6-J1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-6-J2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-6-K1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-6-K2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-7-D1X-T3 | ABM10W | 16.6667MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-7-D2X-T3 | ABM10W | 16.6667MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-7-J1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-7-J2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-7-K1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-7-K2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-8-D1X-T3 | ABM10W | 16.6667MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-8-D2X-T3 | ABM10W | 16.6667MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.6667MHZ-8-J1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-8-J2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.6667MHZ-8-K1Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.6667MHZ-8-K2Z-T3 | ABM10W | 16.6667MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-4-D1X-T3 | ABM10W | 16.8MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-4-D2X-T3 | ABM10W | 16.8MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-4-J1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-4-J2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-4-K1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-4-K2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-6-D1X-T3 | ABM10W | 16.8MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-6-D2X-T3 | ABM10W | 16.8MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-6-J1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-6-J2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-6-K1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-6-K2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-7-D1X-T3 | ABM10W | 16.8MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-7-D2X-T3 | ABM10W | 16.8MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-7-J1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-7-J2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-7-K1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-7-K2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-8-D1X-T3 | ABM10W | 16.8MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-8-D2X-T3 | ABM10W | 16.8MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.8000MHZ-8-J1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-8-J2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.8000MHZ-8-K1Z-T3 | ABM10W | 16.8MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.8000MHZ-8-K2Z-T3 | ABM10W | 16.8MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-4-D1X-T3 | ABM10W | 16.934MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-4-D2X-T3 | ABM10W | 16.934MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-4-J1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-4-J2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-4-K1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-4-K2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-6-D1X-T3 | ABM10W | 16.934MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-6-D2X-T3 | ABM10W | 16.934MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-6-J1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-6-J2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-6-K1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-6-K2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-7-D1X-T3 | ABM10W | 16.934MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-7-D2X-T3 | ABM10W | 16.934MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-7-J1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-7-J2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-7-K1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-7-K2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-8-D1X-T3 | ABM10W | 16.934MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-8-D2X-T3 | ABM10W | 16.934MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.9340MHZ-8-J1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-8-J2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.9340MHZ-8-K1Z-T3 | ABM10W | 16.934MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.9340MHZ-8-K2Z-T3 | ABM10W | 16.934MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-4-D1X-T3 | ABM10W | 16.9344MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-4-D2X-T3 | ABM10W | 16.9344MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-4-J1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-4-J2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-4-K1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-4-K2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-6-D1X-T3 | ABM10W | 16.9344MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-6-D2X-T3 | ABM10W | 16.9344MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-6-J1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-6-J2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-6-K1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-6-K2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-7-D1X-T3 | ABM10W | 16.9344MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-7-D2X-T3 | ABM10W | 16.9344MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-7-J1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-7-J2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-7-K1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-7-K2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-8-D1X-T3 | ABM10W | 16.9344MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-8-D2X-T3 | ABM10W | 16.9344MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-16.9344MHZ-8-J1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-8-J2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-16.9344MHZ-8-K1Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-16.9344MHZ-8-K2Z-T3 | ABM10W | 16.9344MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-4-D1X-T3 | ABM10W | 18MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-4-D2X-T3 | ABM10W | 18MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-4-J1Z-T3 | ABM10W | 18MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-4-J2Z-T3 | ABM10W | 18MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-4-K1Z-T3 | ABM10W | 18MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-4-K2Z-T3 | ABM10W | 18MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-6-D1X-T3 | ABM10W | 18MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-6-D2X-T3 | ABM10W | 18MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-6-J1Z-T3 | ABM10W | 18MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-6-J2Z-T3 | ABM10W | 18MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-6-K1Z-T3 | ABM10W | 18MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-6-K2Z-T3 | ABM10W | 18MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-7-D1X-T3 | ABM10W | 18MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-7-D2X-T3 | ABM10W | 18MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-7-J1Z-T3 | ABM10W | 18MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-7-J2Z-T3 | ABM10W | 18MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-7-K1Z-T3 | ABM10W | 18MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-7-K2Z-T3 | ABM10W | 18MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-8-D1X-T3 | ABM10W | 18MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-8-D2X-T3 | ABM10W | 18MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.0000MHZ-8-J1Z-T3 | ABM10W | 18MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-8-J2Z-T3 | ABM10W | 18MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.0000MHZ-8-K1Z-T3 | ABM10W | 18MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.0000MHZ-8-K2Z-T3 | ABM10W | 18MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-4-D1X-T3 | ABM10W | 18.08MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-4-D2X-T3 | ABM10W | 18.08MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-4-J1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-4-J2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-4-K2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-6-D1X-T3 | ABM10W | 18.08MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-6-D2X-T3 | ABM10W | 18.08MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-6-J1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-6-J2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-6-K1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-6-K2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-7-D1X-T3 | ABM10W | 18.08MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-7-D2X-T3 | ABM10W | 18.08MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-7-J1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-7-J2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-7-K1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-7-K2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-8-D1X-T3 | ABM10W | 18.08MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-8-D2X-T3 | ABM10W | 18.08MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.0800MHZ-8-J1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-8-J2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.0800MHZ-8-K1Z-T3 | ABM10W | 18.08MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.0800MHZ-8-K2Z-T3 | ABM10W | 18.08MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-4-D1X-T3 | ABM10W | 18.0896MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-4-D2X-T3 | ABM10W | 18.0896MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-4-J1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-4-J2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-4-K1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-4-K2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-6-D1X-T3 | ABM10W | 18.0896MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-6-D2X-T3 | ABM10W | 18.0896MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-6-J1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-6-J2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-6-K1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-6-K2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-7-D1X-T3 | ABM10W | 18.0896MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-7-D2X-T3 | ABM10W | 18.0896MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-7-J1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-7-J2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-7-K1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-7-K2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-8-D1X-T3 | ABM10W | 18.0896MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-8-D2X-T3 | ABM10W | 18.0896MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.0896MHZ-8-J1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-8-J2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.0896MHZ-8-K1Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.0896MHZ-8-K2Z-T3 | ABM10W | 18.0896MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-4-D2X-T3 | ABM10W | 18.432MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-4-J1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-4-J2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-4-K1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-4-K2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-6-D1X-T3 | ABM10W | 18.432MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-6-D2X-T3 | ABM10W | 18.432MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-6-J1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-6-J2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-6-K1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-6-K2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-7-D1X-T3 | ABM10W | 18.432MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-7-D2X-T3 | ABM10W | 18.432MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-7-J1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-7-J2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-7-K1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-7-K2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-8-D1X-T3 | ABM10W | 18.432MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-8-D2X-T3 | ABM10W | 18.432MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-18.4320MHZ-8-J1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-8-J2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-18.4320MHZ-8-K1Z-T3 | ABM10W | 18.432MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.4320MHZ-8-K2Z-T3 | ABM10W | 18.432MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-18.7500MHZ-4-D1X-T3 | ABM10W | 18.75MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-18.7500MHZ-4-J1Z-T3 | ABM10W | 18.75MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.7500MHZ-4-J2Z-T3 | ABM10W | 18.75MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-18.7500MHZ-4-K1Z-T3 | ABM10W | 18.75MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-18.7500MHZ-4-K2Z-T3 | ABM10W | 18.75MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-19.0625MHZ-4-B1U-T3 | ABM10W | 19.0625MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.0625MHZ-4-B2U-T3 | ABM10W | 19.0625MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.0625MHZ-4-D1X-T3 | ABM10W | 19.0625MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.0625MHZ-4-D2X-T3 | ABM10W | 19.0625MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.2000MHZ-4-B2U-T3 | ABM10W | 19.2MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.2000MHZ-4-D2X-T3 | ABM10W | 19.2MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.2000MHZ-6-D2X-T3 | ABM10W | 19.2MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.2000MHZ-6-J1Z-T3 | ABM10W | 19.2MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.2000MHZ-6-J2Z-T3 | ABM10W | 19.2MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.2000MHZ-6-K1Z-T3 | ABM10W | 19.2MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-6-K2Z-T3 | ABM10W | 19.2MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-7-D2X-T3 | ABM10W | 19.2MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.2000MHZ-7-J1Z-T3 | ABM10W | 19.2MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.2000MHZ-7-J2Z-T3 | ABM10W | 19.2MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.2000MHZ-7-K1Z-T3 | ABM10W | 19.2MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-7-K2Z-T3 | ABM10W | 19.2MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.2000MHZ-8-J1Z-T3 | ABM10W | 19.2MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.2000MHZ-8-J2Z-T3 | ABM10W | 19.2MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.2000MHZ-8-K2Z-T3 | ABM10W | 19.2MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.2800MHZ-4-B1U-T3 | ABM10W | 19.28MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.2800MHZ-4-B2U-T3 | ABM10W | 19.28MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.2800MHZ-4-D1X-T3 | ABM10W | 19.28MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-4-D2X-T3 | ABM10W | 19.28MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-6-D1X-T3 | ABM10W | 19.28MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-6-D2X-T3 | ABM10W | 19.28MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-6-J1Z-T3 | ABM10W | 19.28MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.2800MHZ-6-J2Z-T3 | ABM10W | 19.28MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.2800MHZ-6-K1Z-T3 | ABM10W | 19.28MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.2800MHZ-6-K2Z-T3 | ABM10W | 19.28MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.2800MHZ-7-D1X-T3 | ABM10W | 19.28MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-7-D2X-T3 | ABM10W | 19.28MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-7-J1Z-T3 | ABM10W | 19.28MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.2800MHZ-7-J2Z-T3 | ABM10W | 19.28MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.2800MHZ-7-K1Z-T3 | ABM10W | 19.28MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.2800MHZ-7-K2Z-T3 | ABM10W | 19.28MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.2800MHZ-8-D1X-T3 | ABM10W | 19.28MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-8-D2X-T3 | ABM10W | 19.28MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.2800MHZ-8-J1Z-T3 | ABM10W | 19.28MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.2800MHZ-8-J2Z-T3 | ABM10W | 19.28MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.2800MHZ-8-K1Z-T3 | ABM10W | 19.28MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.2800MHZ-8-K2Z-T3 | ABM10W | 19.28MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.4400MHZ-4-B1U-T3 | ABM10W | 19.44MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.4400MHZ-4-B2U-T3 | ABM10W | 19.44MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.4400MHZ-4-D1X-T3 | ABM10W | 19.44MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-4-D2X-T3 | ABM10W | 19.44MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-6-D1X-T3 | ABM10W | 19.44MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-6-D2X-T3 | ABM10W | 19.44MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-6-J1Z-T3 | ABM10W | 19.44MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.4400MHZ-6-J2Z-T3 | ABM10W | 19.44MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.4400MHZ-6-K1Z-T3 | ABM10W | 19.44MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.4400MHZ-6-K2Z-T3 | ABM10W | 19.44MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.4400MHZ-7-D1X-T3 | ABM10W | 19.44MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-7-D2X-T3 | ABM10W | 19.44MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-7-J1Z-T3 | ABM10W | 19.44MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.4400MHZ-7-J2Z-T3 | ABM10W | 19.44MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.4400MHZ-7-K1Z-T3 | ABM10W | 19.44MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.4400MHZ-7-K2Z-T3 | ABM10W | 19.44MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.4400MHZ-8-D1X-T3 | ABM10W | 19.44MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-8-D2X-T3 | ABM10W | 19.44MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.4400MHZ-8-J1Z-T3 | ABM10W | 19.44MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.4400MHZ-8-J2Z-T3 | ABM10W | 19.44MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.4400MHZ-8-K1Z-T3 | ABM10W | 19.44MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.4400MHZ-8-K2Z-T3 | ABM10W | 19.44MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.6608MHZ-4-B1U-T3 | ABM10W | 19.6608MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.6608MHZ-4-B2U-T3 | ABM10W | 19.6608MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.6608MHZ-4-D1X-T3 | ABM10W | 19.6608MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-4-D2X-T3 | ABM10W | 19.6608MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-6-D1X-T3 | ABM10W | 19.6608MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-6-D2X-T3 | ABM10W | 19.6608MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-6-J1Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.6608MHZ-6-J2Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.6608MHZ-6-K1Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.6608MHZ-6-K2Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.6608MHZ-7-D1X-T3 | ABM10W | 19.6608MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-7-D2X-T3 | ABM10W | 19.6608MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-7-J1Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.6608MHZ-7-J2Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.6608MHZ-7-K1Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.6608MHZ-7-K2Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.6608MHZ-8-D1X-T3 | ABM10W | 19.6608MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-8-D2X-T3 | ABM10W | 19.6608MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.6608MHZ-8-J1Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.6608MHZ-8-J2Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.6608MHZ-8-K1Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.6608MHZ-8-K2Z-T3 | ABM10W | 19.6608MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.6800MHZ-4-B1U-T3 | ABM10W | 19.68MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.6800MHZ-4-B2U-T3 | ABM10W | 19.68MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.6800MHZ-4-D1X-T3 | ABM10W | 19.68MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-4-D2X-T3 | ABM10W | 19.68MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-6-D1X-T3 | ABM10W | 19.68MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-6-D2X-T3 | ABM10W | 19.68MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-6-J1Z-T3 | ABM10W | 19.68MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.6800MHZ-6-J2Z-T3 | ABM10W | 19.68MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.6800MHZ-6-K1Z-T3 | ABM10W | 19.68MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.6800MHZ-6-K2Z-T3 | ABM10W | 19.68MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.6800MHZ-7-D1X-T3 | ABM10W | 19.68MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-7-D2X-T3 | ABM10W | 19.68MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-7-J1Z-T3 | ABM10W | 19.68MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.6800MHZ-7-J2Z-T3 | ABM10W | 19.68MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.6800MHZ-7-K1Z-T3 | ABM10W | 19.68MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.6800MHZ-7-K2Z-T3 | ABM10W | 19.68MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.6800MHZ-8-D1X-T3 | ABM10W | 19.68MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-8-D2X-T3 | ABM10W | 19.68MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.6800MHZ-8-J1Z-T3 | ABM10W | 19.68MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.6800MHZ-8-J2Z-T3 | ABM10W | 19.68MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.6800MHZ-8-K1Z-T3 | ABM10W | 19.68MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.6800MHZ-8-K2Z-T3 | ABM10W | 19.68MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.6875MHZ-4-B1U-T3 | ABM10W | 19.6875MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.6875MHZ-4-B2U-T3 | ABM10W | 19.6875MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.6875MHZ-4-D1X-T3 | ABM10W | 19.6875MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-4-D2X-T3 | ABM10W | 19.6875MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-6-D1X-T3 | ABM10W | 19.6875MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-6-D2X-T3 | ABM10W | 19.6875MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-6-J1Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.6875MHZ-6-J2Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.6875MHZ-6-K1Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.6875MHZ-6-K2Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.6875MHZ-7-D1X-T3 | ABM10W | 19.6875MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-7-D2X-T3 | ABM10W | 19.6875MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-7-J1Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.6875MHZ-7-J2Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.6875MHZ-7-K1Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.6875MHZ-7-K2Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.6875MHZ-8-D1X-T3 | ABM10W | 19.6875MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-8-D2X-T3 | ABM10W | 19.6875MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.6875MHZ-8-J1Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.6875MHZ-8-J2Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.6875MHZ-8-K1Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.6875MHZ-8-K2Z-T3 | ABM10W | 19.6875MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.7079MHZ-4-B1U-T3 | ABM10W | 19.7079MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.7079MHZ-4-B2U-T3 | ABM10W | 19.7079MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.7079MHZ-4-D1X-T3 | ABM10W | 19.7079MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-6-D1X-T3 | ABM10W | 19.7079MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-6-D2X-T3 | ABM10W | 19.7079MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-6-J1Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.7079MHZ-6-J2Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.7079MHZ-6-K1Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.7079MHZ-6-K2Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.7079MHZ-7-D1X-T3 | ABM10W | 19.7079MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-7-D2X-T3 | ABM10W | 19.7079MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-7-J1Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.7079MHZ-7-J2Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.7079MHZ-7-K1Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.7079MHZ-7-K2Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.7079MHZ-8-D1X-T3 | ABM10W | 19.7079MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-8-D2X-T3 | ABM10W | 19.7079MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.7079MHZ-8-J1Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.7079MHZ-8-J2Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.7079MHZ-8-K1Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.7079MHZ-8-K2Z-T3 | ABM10W | 19.7079MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.8000MHZ-4-B1U-T3 | ABM10W | 19.8MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.8000MHZ-4-B2U-T3 | ABM10W | 19.8MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.8000MHZ-4-D1X-T3 | ABM10W | 19.8MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.8000MHZ-4-D2X-T3 | ABM10W | 19.8MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-4-B1U-T3 | ABM10W | 19.968MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-4-B2U-T3 | ABM10W | 19.968MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-4-D1X-T3 | ABM10W | 19.968MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-4-D2X-T3 | ABM10W | 19.968MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-4-J1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-4-J2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-6-B1U-T3 | ABM10W | 19.968MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-6-B2U-T3 | ABM10W | 19.968MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-6-D1X-T3 | ABM10W | 19.968MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-6-D2X-T3 | ABM10W | 19.968MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-6-J1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-6-J2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-6-K1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.9680MHZ-6-K2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-19.9680MHZ-7-B1U-T3 | ABM10W | 19.968MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-7-B2U-T3 | ABM10W | 19.968MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-7-D1X-T3 | ABM10W | 19.968MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-7-D2X-T3 | ABM10W | 19.968MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-7-J1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-7-J2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-7-K1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.9680MHZ-7-K2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-19.9680MHZ-8-B1U-T3 | ABM10W | 19.968MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-8-B2U-T3 | ABM10W | 19.968MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-19.9680MHZ-8-D1X-T3 | ABM10W | 19.968MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-8-D2X-T3 | ABM10W | 19.968MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-19.9680MHZ-8-J1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-8-J2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-19.9680MHZ-8-K1Z-T3 | ABM10W | 19.968MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-19.9680MHZ-8-K2Z-T3 | ABM10W | 19.968MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-20.0000MHZ-4-B2U-T3 | ABM10W | 20MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-4-D2X-T3 | ABM10W | 20MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-4-J1Z-T3 | ABM10W | 20MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-4-J2Z-T3 | ABM10W | 20MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-6-B2U-T3 | ABM10W | 20MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-6-D2X-T3 | ABM10W | 20MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-6-J1Z-T3 | ABM10W | 20MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-6-J2Z-T3 | ABM10W | 20MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-6-K2Z-T3 | ABM10W | 20MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-20.0000MHZ-7-B2U-T3 | ABM10W | 20MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-20.0000MHZ-7-D2X-T3 | ABM10W | 20MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-7-J1Z-T3 | ABM10W | 20MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-7-J2Z-T3 | ABM10W | 20MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-7-K2Z-T3 | ABM10W | 20MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-20.0000MHZ-8-D2X-T3 | ABM10W | 20MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-20.0000MHZ-8-J1Z-T3 | ABM10W | 20MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-20.0000MHZ-8-J2Z-T3 | ABM10W | 20MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-4-B1U-T3 | ABM10W | 20.48MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-4-B2U-T3 | ABM10W | 20.48MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-4-D1X-T3 | ABM10W | 20.48MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-4-D2X-T3 | ABM10W | 20.48MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-4-J1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-4-J2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-6-B1U-T3 | ABM10W | 20.48MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-6-B2U-T3 | ABM10W | 20.48MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-6-D1X-T3 | ABM10W | 20.48MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-6-D2X-T3 | ABM10W | 20.48MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-6-J1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-6-J2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-6-K1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-20.4800MHZ-6-K2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-20.4800MHZ-7-B1U-T3 | ABM10W | 20.48MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-7-B2U-T3 | ABM10W | 20.48MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-7-D1X-T3 | ABM10W | 20.48MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-7-D2X-T3 | ABM10W | 20.48MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-7-J1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-7-J2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-7-K1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-20.4800MHZ-7-K2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-20.4800MHZ-8-B1U-T3 | ABM10W | 20.48MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-8-B2U-T3 | ABM10W | 20.48MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-20.4800MHZ-8-D1X-T3 | ABM10W | 20.48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-8-D2X-T3 | ABM10W | 20.48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-20.4800MHZ-8-J1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-8-J2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-20.4800MHZ-8-K1Z-T3 | ABM10W | 20.48MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-20.4800MHZ-8-K2Z-T3 | ABM10W | 20.48MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-20.7360MHZ-4-B1U-T3 | ABM10W | 20.736MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.7360MHZ-4-B2U-T3 | ABM10W | 20.736MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-20.7360MHZ-4-D1X-T3 | ABM10W | 20.736MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-20.7360MHZ-4-D2X-T3 | ABM10W | 20.736MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-20.7360MHZ-4-J1Z-T3 | ABM10W | 20.736MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-20.7360MHZ-4-J2Z-T3 | ABM10W | 20.736MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-21.9487MHZ-4-B1U-T3 | ABM10W | 21.9487MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-21.9487MHZ-4-B2U-T3 | ABM10W | 21.9487MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-21.9487MHZ-4-D1X-T3 | ABM10W | 21.9487MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-21.9487MHZ-4-D2X-T3 | ABM10W | 21.9487MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-21.9487MHZ-4-J1Z-T3 | ABM10W | 21.9487MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-21.9487MHZ-4-J2Z-T3 | ABM10W | 21.9487MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.0000MHZ-4-B2U-T3 | ABM10W | 22MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.0000MHZ-4-D1X-T3 | ABM10W | 22MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.0000MHZ-4-D2X-T3 | ABM10W | 22MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.0000MHZ-4-J1Z-T3 | ABM10W | 22MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.0000MHZ-4-J2Z-T3 | ABM10W | 22MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-4-B1U-T3 | ABM10W | 22.1184MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-4-D1X-T3 | ABM10W | 22.1184MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-4-D2X-T3 | ABM10W | 22.1184MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-4-J1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-4-J2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-6-B1U-T3 | ABM10W | 22.1184MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-6-B2U-T3 | ABM10W | 22.1184MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-6-D1X-T3 | ABM10W | 22.1184MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-6-D2X-T3 | ABM10W | 22.1184MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-6-J1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-6-J2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-6-K1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-22.1184MHZ-6-K2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-22.1184MHZ-7-B1U-T3 | ABM10W | 22.1184MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-7-B2U-T3 | ABM10W | 22.1184MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-7-D1X-T3 | ABM10W | 22.1184MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-7-D2X-T3 | ABM10W | 22.1184MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-7-J1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-7-J2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-7-K1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-22.1184MHZ-7-K2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-22.1184MHZ-8-B1U-T3 | ABM10W | 22.1184MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-8-B2U-T3 | ABM10W | 22.1184MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-22.1184MHZ-8-D1X-T3 | ABM10W | 22.1184MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-8-D2X-T3 | ABM10W | 22.1184MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-22.1184MHZ-8-J1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-8-J2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-22.1184MHZ-8-K1Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-22.1184MHZ-8-K2Z-T3 | ABM10W | 22.1184MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-22.5792MHZ-4-B1U-T3 | ABM10W | 22.5792MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-4-B2U-T3 | ABM10W | 22.5792MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-4-D1X-T3 | ABM10W | 22.5792MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-4-D2X-T3 | ABM10W | 22.5792MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-4-J1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-4-J2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-6-B1U-T3 | ABM10W | 22.5792MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-6-B2U-T3 | ABM10W | 22.5792MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-6-D1X-T3 | ABM10W | 22.5792MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-6-D2X-T3 | ABM10W | 22.5792MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-6-J1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-6-J2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-6-K1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-22.5792MHZ-6-K2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-22.5792MHZ-7-B2U-T3 | ABM10W | 22.5792MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-7-D1X-T3 | ABM10W | 22.5792MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-7-D2X-T3 | ABM10W | 22.5792MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-7-J1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-7-J2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-7-K1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-22.5792MHZ-7-K2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-22.5792MHZ-8-B1U-T3 | ABM10W | 22.5792MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-8-B2U-T3 | ABM10W | 22.5792MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-22.5792MHZ-8-D2X-T3 | ABM10W | 22.5792MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-22.5792MHZ-8-J1Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-8-J2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-22.5792MHZ-8-K2Z-T3 | ABM10W | 22.5792MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-22.6600MHZ-4-B1U-T3 | ABM10W | 22.66MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-4-B2U-T3 | ABM10W | 22.66MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-4-D1X-T3 | ABM10W | 22.66MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.6600MHZ-4-D2X-T3 | ABM10W | 22.66MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-22.6600MHZ-4-J1Z-T3 | ABM10W | 22.66MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.6600MHZ-4-J2Z-T3 | ABM10W | 22.66MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-22.6600MHZ-6-B1U-T3 | ABM10W | 22.66MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-6-B2U-T3 | ABM10W | 22.66MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-7-B1U-T3 | ABM10W | 22.66MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-7-B2U-T3 | ABM10W | 22.66MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-8-B1U-T3 | ABM10W | 22.66MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-22.6600MHZ-8-B2U-T3 | ABM10W | 22.66MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-4-B1U-T3 | ABM10W | 23.512MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-4-B2U-T3 | ABM10W | 23.512MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-4-D1X-T3 | ABM10W | 23.512MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-23.5120MHZ-4-D2X-T3 | ABM10W | 23.512MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-23.5120MHZ-4-J1Z-T3 | ABM10W | 23.512MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-23.5120MHZ-4-J2Z-T3 | ABM10W | 23.512MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-23.5120MHZ-4-K1Z-T3 | ABM10W | 23.512MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-23.5120MHZ-4-K2Z-T3 | ABM10W | 23.512MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-23.5120MHZ-6-B1U-T3 | ABM10W | 23.512MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-6-B2U-T3 | ABM10W | 23.512MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-7-B1U-T3 | ABM10W | 23.512MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-7-B2U-T3 | ABM10W | 23.512MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-8-B1U-T3 | ABM10W | 23.512MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-23.5120MHZ-8-B2U-T3 | ABM10W | 23.512MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-4-B2U-T3 | ABM10W | 24MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-4-D2X-T3 | ABM10W | 24MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-4-J1Z-T3 | ABM10W | 24MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-4-J2Z-T3 | ABM10W | 24MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-4-K2Z-T3 | ABM10W | 24MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.0000MHZ-6-B2U-T3 | ABM10W | 24MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-6-J1Z-T3 | ABM10W | 24MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-6-J2Z-T3 | ABM10W | 24MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-6-K2Z-T3 | ABM10W | 24MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.0000MHZ-7-B2U-T3 | ABM10W | 24MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-7-D2X-T3 | ABM10W | 24MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.0000MHZ-7-J1Z-T3 | ABM10W | 24MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-7-J2Z-T3 | ABM10W | 24MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-7-K2Z-T3 | ABM10W | 24MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.0000MHZ-8-B2U-T3 | ABM10W | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.0000MHZ-8-J1Z-T3 | ABM10W | 24MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-8-J2Z-T3 | ABM10W | 24MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.0000MHZ-8-K2Z-T3 | ABM10W | 24MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-4-B1U-T3 | ABM10W | 24.305MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-4-B2U-T3 | ABM10W | 24.305MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-4-D1X-T3 | ABM10W | 24.305MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-4-D2X-T3 | ABM10W | 24.305MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-4-J1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-4-J2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-4-K1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-4-K2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-6-B1U-T3 | ABM10W | 24.305MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-6-B2U-T3 | ABM10W | 24.305MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-6-D1X-T3 | ABM10W | 24.305MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-6-D2X-T3 | ABM10W | 24.305MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-6-J1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-6-J2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-6-K1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-6-K2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-7-B1U-T3 | ABM10W | 24.305MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-7-B2U-T3 | ABM10W | 24.305MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-7-D1X-T3 | ABM10W | 24.305MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-7-D2X-T3 | ABM10W | 24.305MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.3050MHZ-7-J1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-7-J2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-7-K1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-7-K2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-8-B1U-T3 | ABM10W | 24.305MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-8-B2U-T3 | ABM10W | 24.305MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.3050MHZ-8-J2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.3050MHZ-8-K1Z-T3 | ABM10W | 24.305MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.3050MHZ-8-K2Z-T3 | ABM10W | 24.305MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-4-B1U-T3 | ABM10W | 24.5454MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-4-B2U-T3 | ABM10W | 24.5454MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-4-D1X-T3 | ABM10W | 24.5454MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-4-D2X-T3 | ABM10W | 24.5454MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-4-J1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-4-J2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-4-K1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-4-K2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-6-B1U-T3 | ABM10W | 24.5454MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-6-B2U-T3 | ABM10W | 24.5454MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-6-D1X-T3 | ABM10W | 24.5454MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-6-D2X-T3 | ABM10W | 24.5454MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-6-J1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-6-J2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-6-K1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-6-K2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-7-B1U-T3 | ABM10W | 24.5454MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-7-B2U-T3 | ABM10W | 24.5454MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-7-D1X-T3 | ABM10W | 24.5454MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-7-D2X-T3 | ABM10W | 24.5454MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-7-J1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-7-J2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-7-K1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-7-K2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-8-B1U-T3 | ABM10W | 24.5454MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-8-B2U-T3 | ABM10W | 24.5454MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5454MHZ-8-D1X-T3 | ABM10W | 24.5454MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-8-D2X-T3 | ABM10W | 24.5454MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5454MHZ-8-J1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-8-J2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5454MHZ-8-K1Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5454MHZ-8-K2Z-T3 | ABM10W | 24.5454MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-4-B1U-T3 | ABM10W | 24.5455MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-4-B2U-T3 | ABM10W | 24.5455MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-4-D1X-T3 | ABM10W | 24.5455MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-4-D2X-T3 | ABM10W | 24.5455MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-4-J1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-4-J2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-4-K1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-4-K2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-6-B1U-T3 | ABM10W | 24.5455MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-6-B2U-T3 | ABM10W | 24.5455MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-6-D1X-T3 | ABM10W | 24.5455MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-6-D2X-T3 | ABM10W | 24.5455MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-6-J1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-6-J2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-6-K1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-6-K2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-7-B1U-T3 | ABM10W | 24.5455MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-7-B2U-T3 | ABM10W | 24.5455MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-7-D1X-T3 | ABM10W | 24.5455MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-7-D2X-T3 | ABM10W | 24.5455MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-7-J1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-7-J2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-7-K1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-7-K2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-8-B1U-T3 | ABM10W | 24.5455MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-8-B2U-T3 | ABM10W | 24.5455MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5455MHZ-8-D1X-T3 | ABM10W | 24.5455MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-8-D2X-T3 | ABM10W | 24.5455MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5455MHZ-8-J1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-8-J2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5455MHZ-8-K1Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5455MHZ-8-K2Z-T3 | ABM10W | 24.5455MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-4-B1U-T3 | ABM10W | 24.5535MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-4-B2U-T3 | ABM10W | 24.5535MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-4-D1X-T3 | ABM10W | 24.5535MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-4-D2X-T3 | ABM10W | 24.5535MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-4-J1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-4-J2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-4-K1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-4-K2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-6-B1U-T3 | ABM10W | 24.5535MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-6-B2U-T3 | ABM10W | 24.5535MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-6-D1X-T3 | ABM10W | 24.5535MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-6-D2X-T3 | ABM10W | 24.5535MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-6-J1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-6-J2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-6-K1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-6-K2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-7-B1U-T3 | ABM10W | 24.5535MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-7-B2U-T3 | ABM10W | 24.5535MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-7-D1X-T3 | ABM10W | 24.5535MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-7-D2X-T3 | ABM10W | 24.5535MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-7-J1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-7-J2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-7-K1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-7-K2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-8-B1U-T3 | ABM10W | 24.5535MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-8-B2U-T3 | ABM10W | 24.5535MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5535MHZ-8-D1X-T3 | ABM10W | 24.5535MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-8-D2X-T3 | ABM10W | 24.5535MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5535MHZ-8-J1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-8-J2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5535MHZ-8-K1Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5535MHZ-8-K2Z-T3 | ABM10W | 24.5535MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-4-B1U-T3 | ABM10W | 24.5727MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-4-B2U-T3 | ABM10W | 24.5727MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-4-D1X-T3 | ABM10W | 24.5727MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-4-D2X-T3 | ABM10W | 24.5727MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-4-J1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-4-J2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-4-K1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-4-K2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-6-B1U-T3 | ABM10W | 24.5727MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-6-B2U-T3 | ABM10W | 24.5727MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-6-D1X-T3 | ABM10W | 24.5727MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-6-D2X-T3 | ABM10W | 24.5727MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-6-J1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-6-J2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-6-K1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-6-K2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-7-B1U-T3 | ABM10W | 24.5727MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-7-B2U-T3 | ABM10W | 24.5727MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-7-D1X-T3 | ABM10W | 24.5727MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-7-D2X-T3 | ABM10W | 24.5727MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-7-J1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-7-J2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-7-K1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-7-K2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-8-B1U-T3 | ABM10W | 24.5727MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-8-B2U-T3 | ABM10W | 24.5727MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5727MHZ-8-D1X-T3 | ABM10W | 24.5727MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-8-D2X-T3 | ABM10W | 24.5727MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5727MHZ-8-J1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-8-J2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5727MHZ-8-K1Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5727MHZ-8-K2Z-T3 | ABM10W | 24.5727MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-4-B2U-T3 | ABM10W | 24.576MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-4-D2X-T3 | ABM10W | 24.576MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-4-J1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-4-J2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-4-K1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-4-K2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-6-B2U-T3 | ABM10W | 24.576MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-6-D2X-T3 | ABM10W | 24.576MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-6-J1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-6-J2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-6-K1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-6-K2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-7-B2U-T3 | ABM10W | 24.576MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-7-D2X-T3 | ABM10W | 24.576MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-7-J1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-7-J2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-7-K1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-7-K2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-8-B2U-T3 | ABM10W | 24.576MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.5760MHZ-8-D2X-T3 | ABM10W | 24.576MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.5760MHZ-8-J1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-8-J2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.5760MHZ-8-K1Z-T3 | ABM10W | 24.576MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.5760MHZ-8-K2Z-T3 | ABM10W | 24.576MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-4-B1U-T3 | ABM10W | 24.9231MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-4-B2U-T3 | ABM10W | 24.9231MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-4-D1X-T3 | ABM10W | 24.9231MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-4-D2X-T3 | ABM10W | 24.9231MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-4-J1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-4-J2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-4-K1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-4-K2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-6-B1U-T3 | ABM10W | 24.9231MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-6-B2U-T3 | ABM10W | 24.9231MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-6-D1X-T3 | ABM10W | 24.9231MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-6-D2X-T3 | ABM10W | 24.9231MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-6-J1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-6-J2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-6-K1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-6-K2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-7-B1U-T3 | ABM10W | 24.9231MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-7-B2U-T3 | ABM10W | 24.9231MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-7-D1X-T3 | ABM10W | 24.9231MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-7-D2X-T3 | ABM10W | 24.9231MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-7-J1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-7-J2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-7-K1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-7-K2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-8-B1U-T3 | ABM10W | 24.9231MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-8-B2U-T3 | ABM10W | 24.9231MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-24.9231MHZ-8-D1X-T3 | ABM10W | 24.9231MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-8-D2X-T3 | ABM10W | 24.9231MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-24.9231MHZ-8-J1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-8-J2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-24.9231MHZ-8-K1Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-24.9231MHZ-8-K2Z-T3 | ABM10W | 24.9231MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-4-B2U-T3 | ABM10W | 25MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-4-D2X-T3 | ABM10W | 25MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-4-J1Z-T3 | ABM10W | 25MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-4-J2Z-T3 | ABM10W | 25MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-4-K2Z-T3 | ABM10W | 25MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-6-B2U-T3 | ABM10W | 25MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-6-D2X-T3 | ABM10W | 25MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-6-J1Z-T3 | ABM10W | 25MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-6-J2Z-T3 | ABM10W | 25MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-6-K2Z-T3 | ABM10W | 25MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-7-D2X-T3 | ABM10W | 25MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-25.0000MHZ-7-J1Z-T3 | ABM10W | 25MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-7-J2Z-T3 | ABM10W | 25MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-7-K2Z-T3 | ABM10W | 25MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-25.0000MHZ-8-B2U-T3 | ABM10W | 25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-25.0000MHZ-8-J1Z-T3 | ABM10W | 25MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-8-J2Z-T3 | ABM10W | 25MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-25.0000MHZ-8-K2Z-T3 | ABM10W | 25MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-4-B2U-T3 | ABM10W | 26MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-4-D2X-T3 | ABM10W | 26MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-4-J1Z-T3 | ABM10W | 26MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-4-J2Z-T3 | ABM10W | 26MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-4-K1Z-T3 | ABM10W | 26MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-4-K2Z-T3 | ABM10W | 26MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-6-B2U-T3 | ABM10W | 26MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-6-D2X-T3 | ABM10W | 26MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-6-J1Z-T3 | ABM10W | 26MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-6-J2Z-T3 | ABM10W | 26MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-6-K1Z-T3 | ABM10W | 26MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-6-K2Z-T3 | ABM10W | 26MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-7-B2U-T3 | ABM10W | 26MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-7-D2X-T3 | ABM10W | 26MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-7-J1Z-T3 | ABM10W | 26MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-7-J2Z-T3 | ABM10W | 26MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-7-K1Z-T3 | ABM10W | 26MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-7-K2Z-T3 | ABM10W | 26MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-26.0000MHZ-8-B2U-T3 | ABM10W | 26MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-26.0000MHZ-8-D2X-T3 | ABM10W | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-26.0000MHZ-8-J1Z-T3 | ABM10W | 26MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-8-J2Z-T3 | ABM10W | 26MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-26.0000MHZ-8-K1Z-T3 | ABM10W | 26MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-4-B1U-T3 | ABM10W | 26.041MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-4-B2U-T3 | ABM10W | 26.041MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-4-D1X-T3 | ABM10W | 26.041MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-4-D2X-T3 | ABM10W | 26.041MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-4-J1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-4-J2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-4-K1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-4-K2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-6-B1U-T3 | ABM10W | 26.041MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-6-B2U-T3 | ABM10W | 26.041MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-6-D1X-T3 | ABM10W | 26.041MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-6-D2X-T3 | ABM10W | 26.041MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-6-J1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-6-J2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-6-K1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-6-K2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-7-B1U-T3 | ABM10W | 26.041MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-7-B2U-T3 | ABM10W | 26.041MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-7-D1X-T3 | ABM10W | 26.041MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-7-D2X-T3 | ABM10W | 26.041MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-7-J1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-7-J2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-7-K1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-7-K2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-8-B1U-T3 | ABM10W | 26.041MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-8-B2U-T3 | ABM10W | 26.041MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-26.0410MHZ-8-D1X-T3 | ABM10W | 26.041MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-8-D2X-T3 | ABM10W | 26.041MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-26.0410MHZ-8-J1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-8-J2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-26.0410MHZ-8-K1Z-T3 | ABM10W | 26.041MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-26.0410MHZ-8-K2Z-T3 | ABM10W | 26.041MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-4-B2U-T3 | ABM10W | 27MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-4-D2X-T3 | ABM10W | 27MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-4-J1Z-T3 | ABM10W | 27MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-4-J2Z-T3 | ABM10W | 27MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-4-K2Z-T3 | ABM10W | 27MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-6-B2U-T3 | ABM10W | 27MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-6-D2X-T3 | ABM10W | 27MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-6-J1Z-T3 | ABM10W | 27MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-6-J2Z-T3 | ABM10W | 27MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-6-K2Z-T3 | ABM10W | 27MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-7-B2U-T3 | ABM10W | 27MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-7-D2X-T3 | ABM10W | 27MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-7-J1Z-T3 | ABM10W | 27MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-7-J2Z-T3 | ABM10W | 27MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-7-K2Z-T3 | ABM10W | 27MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-27.0000MHZ-8-B2U-T3 | ABM10W | 27MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-27.0000MHZ-8-D2X-T3 | ABM10W | 27MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-27.0000MHZ-8-J1Z-T3 | ABM10W | 27MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-8-J2Z-T3 | ABM10W | 27MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-27.0000MHZ-8-K2Z-T3 | ABM10W | 27MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-4-B1U-T3 | ABM10W | 27.12MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-4-B2U-T3 | ABM10W | 27.12MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-4-D2X-T3 | ABM10W | 27.12MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-27.1200MHZ-4-J1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-4-J2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-4-K1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-4-K2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-6-B2U-T3 | ABM10W | 27.12MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-6-D2X-T3 | ABM10W | 27.12MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-27.1200MHZ-6-J1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-6-J2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-6-K1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-6-K2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-7-B2U-T3 | ABM10W | 27.12MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-7-D2X-T3 | ABM10W | 27.12MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-27.1200MHZ-7-J1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-7-J2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-8-B2U-T3 | ABM10W | 27.12MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-27.1200MHZ-8-D2X-T3 | ABM10W | 27.12MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-27.1200MHZ-8-J1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-8-J2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-27.1200MHZ-8-K1Z-T3 | ABM10W | 27.12MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-27.1200MHZ-8-K2Z-T3 | ABM10W | 27.12MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-4-B1U-T3 | ABM10W | 28.224MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-4-B2U-T3 | ABM10W | 28.224MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-4-D1X-T3 | ABM10W | 28.224MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-4-D2X-T3 | ABM10W | 28.224MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-4-J1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-4-J2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-4-K1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-4-K2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-6-B1U-T3 | ABM10W | 28.224MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-6-B2U-T3 | ABM10W | 28.224MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-6-D1X-T3 | ABM10W | 28.224MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-6-D2X-T3 | ABM10W | 28.224MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-6-J1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-6-J2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-6-K1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-6-K2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-7-B1U-T3 | ABM10W | 28.224MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-7-B2U-T3 | ABM10W | 28.224MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-7-D1X-T3 | ABM10W | 28.224MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-7-D2X-T3 | ABM10W | 28.224MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-7-J1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-7-J2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-7-K1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-7-K2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-8-B1U-T3 | ABM10W | 28.224MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-8-B2U-T3 | ABM10W | 28.224MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-28.2240MHZ-8-D1X-T3 | ABM10W | 28.224MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-8-D2X-T3 | ABM10W | 28.224MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-28.2240MHZ-8-J1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-8-J2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-28.2240MHZ-8-K1Z-T3 | ABM10W | 28.224MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-28.2240MHZ-8-K2Z-T3 | ABM10W | 28.224MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-4-B1U-T3 | ABM10W | 28.322MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-4-B2U-T3 | ABM10W | 28.322MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-4-D1X-T3 | ABM10W | 28.322MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-4-D2X-T3 | ABM10W | 28.322MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-4-J1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-4-J2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-4-K1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-4-K2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-6-B1U-T3 | ABM10W | 28.322MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-6-B2U-T3 | ABM10W | 28.322MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-6-D1X-T3 | ABM10W | 28.322MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-6-D2X-T3 | ABM10W | 28.322MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-6-J1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-6-J2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-6-K1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-6-K2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-7-B1U-T3 | ABM10W | 28.322MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-7-B2U-T3 | ABM10W | 28.322MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-7-D1X-T3 | ABM10W | 28.322MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-7-D2X-T3 | ABM10W | 28.322MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-7-J1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-7-J2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-7-K1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-7-K2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-8-B1U-T3 | ABM10W | 28.322MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-8-B2U-T3 | ABM10W | 28.322MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-28.3220MHZ-8-D1X-T3 | ABM10W | 28.322MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-8-D2X-T3 | ABM10W | 28.322MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-28.3220MHZ-8-J1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-8-J2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-28.3220MHZ-8-K1Z-T3 | ABM10W | 28.322MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-28.3220MHZ-8-K2Z-T3 | ABM10W | 28.322MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-4-B1U-T3 | ABM10W | 28.6364MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-4-B2U-T3 | ABM10W | 28.6364MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-4-D1X-T3 | ABM10W | 28.6364MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-4-D2X-T3 | ABM10W | 28.6364MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-4-J1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-4-J2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-4-K1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-4-K2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-6-B1U-T3 | ABM10W | 28.6364MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-6-B2U-T3 | ABM10W | 28.6364MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-6-D1X-T3 | ABM10W | 28.6364MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-6-D2X-T3 | ABM10W | 28.6364MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-6-J1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-6-J2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-6-K1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-6-K2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-7-B1U-T3 | ABM10W | 28.6364MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-7-B2U-T3 | ABM10W | 28.6364MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-7-D1X-T3 | ABM10W | 28.6364MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-7-D2X-T3 | ABM10W | 28.6364MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-7-J1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-7-J2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-7-K1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-7-K2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-8-B1U-T3 | ABM10W | 28.6364MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-8-B2U-T3 | ABM10W | 28.6364MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-28.6364MHZ-8-D1X-T3 | ABM10W | 28.6364MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-8-D2X-T3 | ABM10W | 28.6364MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-28.6364MHZ-8-J1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-8-J2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-28.6364MHZ-8-K1Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-28.6364MHZ-8-K2Z-T3 | ABM10W | 28.6364MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-4-B1U-T3 | ABM10W | 29.4912MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-4-B2U-T3 | ABM10W | 29.4912MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-4-D1X-T3 | ABM10W | 29.4912MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-4-D2X-T3 | ABM10W | 29.4912MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-4-J1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-4-J2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-4-K1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-4-K2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-6-B1U-T3 | ABM10W | 29.4912MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-6-B2U-T3 | ABM10W | 29.4912MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-6-D1X-T3 | ABM10W | 29.4912MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-6-D2X-T3 | ABM10W | 29.4912MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-6-J1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-6-J2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-6-K1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-6-K2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-7-B1U-T3 | ABM10W | 29.4912MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-7-B2U-T3 | ABM10W | 29.4912MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-7-D1X-T3 | ABM10W | 29.4912MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-7-D2X-T3 | ABM10W | 29.4912MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-7-J1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-7-J2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-7-K1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-7-K2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-8-B1U-T3 | ABM10W | 29.4912MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-8-B2U-T3 | ABM10W | 29.4912MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-29.4912MHZ-8-D1X-T3 | ABM10W | 29.4912MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-8-D2X-T3 | ABM10W | 29.4912MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-29.4912MHZ-8-J1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-8-J2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-29.4912MHZ-8-K1Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-29.4912MHZ-8-K2Z-T3 | ABM10W | 29.4912MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-4-B2U-T3 | ABM10W | 30MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-4-D2X-T3 | ABM10W | 30MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-4-J1Z-T3 | ABM10W | 30MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-4-J2Z-T3 | ABM10W | 30MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-6-B2U-T3 | ABM10W | 30MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-6-D2X-T3 | ABM10W | 30MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-6-J1Z-T3 | ABM10W | 30MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-6-J2Z-T3 | ABM10W | 30MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-6-K1Z-T3 | ABM10W | 30MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-6-K2Z-T3 | ABM10W | 30MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-7-B2U-T3 | ABM10W | 30MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-7-D2X-T3 | ABM10W | 30MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-7-J1Z-T3 | ABM10W | 30MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-7-J2Z-T3 | ABM10W | 30MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-7-K1Z-T3 | ABM10W | 30MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-7-K2Z-T3 | ABM10W | 30MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-8-B2U-T3 | ABM10W | 30MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.0000MHZ-8-D2X-T3 | ABM10W | 30MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.0000MHZ-8-J1Z-T3 | ABM10W | 30MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-8-J2Z-T3 | ABM10W | 30MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.0000MHZ-8-K1Z-T3 | ABM10W | 30MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.0000MHZ-8-K2Z-T3 | ABM10W | 30MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.3200MHZ-4-B1U-T3 | ABM10W | 30.32MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-4-B2U-T3 | ABM10W | 30.32MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-4-D1X-T3 | ABM10W | 30.32MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-4-D2X-T3 | ABM10W | 30.32MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-4-J1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-4-J2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-6-B1U-T3 | ABM10W | 30.32MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-6-B2U-T3 | ABM10W | 30.32MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-6-D1X-T3 | ABM10W | 30.32MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-6-D2X-T3 | ABM10W | 30.32MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-6-J1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-6-J2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-6-K1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.3200MHZ-6-K2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.3200MHZ-7-B1U-T3 | ABM10W | 30.32MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-7-B2U-T3 | ABM10W | 30.32MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-7-D1X-T3 | ABM10W | 30.32MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-7-D2X-T3 | ABM10W | 30.32MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-7-J1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-7-J2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-7-K1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.3200MHZ-7-K2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.3200MHZ-8-B1U-T3 | ABM10W | 30.32MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-8-B2U-T3 | ABM10W | 30.32MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.3200MHZ-8-D1X-T3 | ABM10W | 30.32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-8-D2X-T3 | ABM10W | 30.32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.3200MHZ-8-J1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-8-J2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.3200MHZ-8-K1Z-T3 | ABM10W | 30.32MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.3200MHZ-8-K2Z-T3 | ABM10W | 30.32MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.4000MHZ-4-B1U-T3 | ABM10W | 30.4MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-4-B2U-T3 | ABM10W | 30.4MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-4-D1X-T3 | ABM10W | 30.4MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-4-D2X-T3 | ABM10W | 30.4MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-4-J1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-4-J2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-6-B1U-T3 | ABM10W | 30.4MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-6-B2U-T3 | ABM10W | 30.4MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-6-D1X-T3 | ABM10W | 30.4MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-6-D2X-T3 | ABM10W | 30.4MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-6-J1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-6-J2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-6-K1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.4000MHZ-6-K2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.4000MHZ-7-B1U-T3 | ABM10W | 30.4MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-7-B2U-T3 | ABM10W | 30.4MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-7-D1X-T3 | ABM10W | 30.4MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-7-D2X-T3 | ABM10W | 30.4MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-7-J1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-7-J2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-7-K1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.4000MHZ-7-K2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.4000MHZ-8-B1U-T3 | ABM10W | 30.4MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-8-B2U-T3 | ABM10W | 30.4MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.4000MHZ-8-D1X-T3 | ABM10W | 30.4MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-8-D2X-T3 | ABM10W | 30.4MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.4000MHZ-8-J1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-8-J2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.4000MHZ-8-K1Z-T3 | ABM10W | 30.4MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.4000MHZ-8-K2Z-T3 | ABM10W | 30.4MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.7200MHZ-4-B1U-T3 | ABM10W | 30.72MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-4-B2U-T3 | ABM10W | 30.72MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-4-D1X-T3 | ABM10W | 30.72MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-4-D2X-T3 | ABM10W | 30.72MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-4-J1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-4-J2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-6-B1U-T3 | ABM10W | 30.72MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-6-B2U-T3 | ABM10W | 30.72MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-6-D1X-T3 | ABM10W | 30.72MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-6-D2X-T3 | ABM10W | 30.72MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-6-J1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-6-J2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-6-K1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.7200MHZ-6-K2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-30.7200MHZ-7-B1U-T3 | ABM10W | 30.72MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-7-B2U-T3 | ABM10W | 30.72MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-7-D1X-T3 | ABM10W | 30.72MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-7-D2X-T3 | ABM10W | 30.72MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-7-J1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-7-J2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-7-K1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.7200MHZ-7-K2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-30.7200MHZ-8-B1U-T3 | ABM10W | 30.72MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-8-B2U-T3 | ABM10W | 30.72MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-30.7200MHZ-8-D1X-T3 | ABM10W | 30.72MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-8-D2X-T3 | ABM10W | 30.72MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-30.7200MHZ-8-J1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-8-J2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-30.7200MHZ-8-K1Z-T3 | ABM10W | 30.72MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-30.7200MHZ-8-K2Z-T3 | ABM10W | 30.72MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-31.2500MHZ-4-B1U-T3 | ABM10W | 31.25MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-4-B2U-T3 | ABM10W | 31.25MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-4-D1X-T3 | ABM10W | 31.25MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-4-D2X-T3 | ABM10W | 31.25MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-4-J1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-4-J2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-6-B1U-T3 | ABM10W | 31.25MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-6-B2U-T3 | ABM10W | 31.25MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-6-D1X-T3 | ABM10W | 31.25MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-6-D2X-T3 | ABM10W | 31.25MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-6-J1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-6-J2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-6-K1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-31.2500MHZ-6-K2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-31.2500MHZ-7-B1U-T3 | ABM10W | 31.25MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-7-B2U-T3 | ABM10W | 31.25MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-7-D1X-T3 | ABM10W | 31.25MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-7-D2X-T3 | ABM10W | 31.25MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-7-J1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-7-J2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-7-K1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-31.2500MHZ-7-K2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-31.2500MHZ-8-B1U-T3 | ABM10W | 31.25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-8-B2U-T3 | ABM10W | 31.25MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-31.2500MHZ-8-D1X-T3 | ABM10W | 31.25MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-8-D2X-T3 | ABM10W | 31.25MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-31.2500MHZ-8-J1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-8-J2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-31.2500MHZ-8-K1Z-T3 | ABM10W | 31.25MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-31.2500MHZ-8-K2Z-T3 | ABM10W | 31.25MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-32.0000MHZ-4-B2U-T3 | ABM10W | 32MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-4-D2X-T3 | ABM10W | 32MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-4-J1Z-T3 | ABM10W | 32MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-4-J2Z-T3 | ABM10W | 32MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-6-B2U-T3 | ABM10W | 32MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-6-D2X-T3 | ABM10W | 32MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-6-J1Z-T3 | ABM10W | 32MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-6-J2Z-T3 | ABM10W | 32MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-6-K1Z-T3 | ABM10W | 32MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-32.0000MHZ-6-K2Z-T3 | ABM10W | 32MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-32.0000MHZ-7-B2U-T3 | ABM10W | 32MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-32.0000MHZ-7-D2X-T3 | ABM10W | 32MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-32.0000MHZ-7-J1Z-T3 | ABM10W | 32MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-7-J2Z-T3 | ABM10W | 32MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-7-K1Z-T3 | ABM10W | 32MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-32.0000MHZ-7-K2Z-T3 | ABM10W | 32MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-32.0000MHZ-8-J1Z-T3 | ABM10W | 32MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-8-J2Z-T3 | ABM10W | 32MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-32.0000MHZ-8-K1Z-T3 | ABM10W | 32MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-32.0000MHZ-8-K2Z-T3 | ABM10W | 32MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.0000MHZ-4-B1U-T3 | ABM10W | 33MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-4-B2U-T3 | ABM10W | 33MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-4-D1X-T3 | ABM10W | 33MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-4-D2X-T3 | ABM10W | 33MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-4-J1Z-T3 | ABM10W | 33MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-4-J2Z-T3 | ABM10W | 33MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-6-B1U-T3 | ABM10W | 33MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-6-B2U-T3 | ABM10W | 33MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-6-D1X-T3 | ABM10W | 33MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-6-D2X-T3 | ABM10W | 33MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-6-J1Z-T3 | ABM10W | 33MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-6-J2Z-T3 | ABM10W | 33MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-6-K1Z-T3 | ABM10W | 33MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.0000MHZ-6-K2Z-T3 | ABM10W | 33MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.0000MHZ-7-B1U-T3 | ABM10W | 33MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-7-B2U-T3 | ABM10W | 33MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-7-D1X-T3 | ABM10W | 33MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-7-D2X-T3 | ABM10W | 33MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-7-J1Z-T3 | ABM10W | 33MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-7-J2Z-T3 | ABM10W | 33MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-7-K1Z-T3 | ABM10W | 33MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.0000MHZ-7-K2Z-T3 | ABM10W | 33MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.0000MHZ-8-B1U-T3 | ABM10W | 33MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-8-B2U-T3 | ABM10W | 33MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.0000MHZ-8-D1X-T3 | ABM10W | 33MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-8-D2X-T3 | ABM10W | 33MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.0000MHZ-8-J1Z-T3 | ABM10W | 33MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-8-J2Z-T3 | ABM10W | 33MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.0000MHZ-8-K1Z-T3 | ABM10W | 33MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.0000MHZ-8-K2Z-T3 | ABM10W | 33MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.3300MHZ-4-B1U-T3 | ABM10W | 33.33MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-4-B2U-T3 | ABM10W | 33.33MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-4-D1X-T3 | ABM10W | 33.33MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-4-D2X-T3 | ABM10W | 33.33MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-4-J1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-4-J2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-6-B1U-T3 | ABM10W | 33.33MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-6-B2U-T3 | ABM10W | 33.33MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-6-D1X-T3 | ABM10W | 33.33MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-6-D2X-T3 | ABM10W | 33.33MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-6-J1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-6-J2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-6-K1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.3300MHZ-6-K2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.3300MHZ-7-B1U-T3 | ABM10W | 33.33MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-7-B2U-T3 | ABM10W | 33.33MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-7-D1X-T3 | ABM10W | 33.33MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-7-D2X-T3 | ABM10W | 33.33MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-7-J1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-7-J2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-7-K1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.3300MHZ-7-K2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.3300MHZ-8-B1U-T3 | ABM10W | 33.33MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-8-B2U-T3 | ABM10W | 33.33MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.3300MHZ-8-D1X-T3 | ABM10W | 33.33MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-8-D2X-T3 | ABM10W | 33.33MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.3300MHZ-8-J1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-8-J2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.3300MHZ-8-K1Z-T3 | ABM10W | 33.33MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.3300MHZ-8-K2Z-T3 | ABM10W | 33.33MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.3330MHZ-4-B1U-T3 | ABM10W | 33.333MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-4-B2U-T3 | ABM10W | 33.333MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-4-D1X-T3 | ABM10W | 33.333MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-4-D2X-T3 | ABM10W | 33.333MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-4-J1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-4-J2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-6-B1U-T3 | ABM10W | 33.333MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-6-B2U-T3 | ABM10W | 33.333MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-6-D1X-T3 | ABM10W | 33.333MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-6-D2X-T3 | ABM10W | 33.333MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-6-J1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-6-J2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-6-K1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.3330MHZ-6-K2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.3330MHZ-7-B1U-T3 | ABM10W | 33.333MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-7-B2U-T3 | ABM10W | 33.333MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-7-D1X-T3 | ABM10W | 33.333MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-7-D2X-T3 | ABM10W | 33.333MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-7-J1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-7-J2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-7-K1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.3330MHZ-7-K2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.3330MHZ-8-B1U-T3 | ABM10W | 33.333MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-8-B2U-T3 | ABM10W | 33.333MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.3330MHZ-8-D1X-T3 | ABM10W | 33.333MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-8-D2X-T3 | ABM10W | 33.333MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.3330MHZ-8-J1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-8-J2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.3330MHZ-8-K1Z-T3 | ABM10W | 33.333MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.3330MHZ-8-K2Z-T3 | ABM10W | 33.333MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.3333MHZ-4-B1U-T3 | ABM10W | 33.3333MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-4-B2U-T3 | ABM10W | 33.3333MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-4-D1X-T3 | ABM10W | 33.3333MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-4-D2X-T3 | ABM10W | 33.3333MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-6-B1U-T3 | ABM10W | 33.3333MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-6-B2U-T3 | ABM10W | 33.3333MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-6-D1X-T3 | ABM10W | 33.3333MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-6-D2X-T3 | ABM10W | 33.3333MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-6-J1Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.3333MHZ-6-J2Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.3333MHZ-6-K1Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.3333MHZ-6-K2Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.3333MHZ-7-B1U-T3 | ABM10W | 33.3333MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-7-B2U-T3 | ABM10W | 33.3333MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-7-D1X-T3 | ABM10W | 33.3333MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-7-D2X-T3 | ABM10W | 33.3333MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-7-J1Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.3333MHZ-7-J2Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.3333MHZ-7-K1Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.3333MHZ-7-K2Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.3333MHZ-8-B1U-T3 | ABM10W | 33.3333MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-8-B2U-T3 | ABM10W | 33.3333MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.3333MHZ-8-D1X-T3 | ABM10W | 33.3333MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-8-D2X-T3 | ABM10W | 33.3333MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.3333MHZ-8-J1Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.3333MHZ-8-J2Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.3333MHZ-8-K1Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.3333MHZ-8-K2Z-T3 | ABM10W | 33.3333MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.8680MHZ-4-B1U-T3 | ABM10W | 33.868MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-4-B2U-T3 | ABM10W | 33.868MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-4-D1X-T3 | ABM10W | 33.868MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-4-D2X-T3 | ABM10W | 33.868MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-6-B1U-T3 | ABM10W | 33.868MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-6-B2U-T3 | ABM10W | 33.868MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-6-D1X-T3 | ABM10W | 33.868MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-6-D2X-T3 | ABM10W | 33.868MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-6-J1Z-T3 | ABM10W | 33.868MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.8680MHZ-6-J2Z-T3 | ABM10W | 33.868MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.8680MHZ-6-K1Z-T3 | ABM10W | 33.868MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.8680MHZ-6-K2Z-T3 | ABM10W | 33.868MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.8680MHZ-7-B1U-T3 | ABM10W | 33.868MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-7-B2U-T3 | ABM10W | 33.868MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-7-D1X-T3 | ABM10W | 33.868MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-7-D2X-T3 | ABM10W | 33.868MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-7-J1Z-T3 | ABM10W | 33.868MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.8680MHZ-7-J2Z-T3 | ABM10W | 33.868MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.8680MHZ-7-K1Z-T3 | ABM10W | 33.868MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.8680MHZ-7-K2Z-T3 | ABM10W | 33.868MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.8680MHZ-8-B1U-T3 | ABM10W | 33.868MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-8-B2U-T3 | ABM10W | 33.868MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.8680MHZ-8-D1X-T3 | ABM10W | 33.868MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-8-D2X-T3 | ABM10W | 33.868MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.8680MHZ-8-J1Z-T3 | ABM10W | 33.868MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.8680MHZ-8-J2Z-T3 | ABM10W | 33.868MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.8680MHZ-8-K1Z-T3 | ABM10W | 33.868MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.8680MHZ-8-K2Z-T3 | ABM10W | 33.868MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.8688MHZ-4-B1U-T3 | ABM10W | 33.8688MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-4-B2U-T3 | ABM10W | 33.8688MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-4-D1X-T3 | ABM10W | 33.8688MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-4-D2X-T3 | ABM10W | 33.8688MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-6-B1U-T3 | ABM10W | 33.8688MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-6-B2U-T3 | ABM10W | 33.8688MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-6-D1X-T3 | ABM10W | 33.8688MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-6-D2X-T3 | ABM10W | 33.8688MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-6-J1Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.8688MHZ-6-J2Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-33.8688MHZ-6-K1Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.8688MHZ-6-K2Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-33.8688MHZ-7-B1U-T3 | ABM10W | 33.8688MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-7-B2U-T3 | ABM10W | 33.8688MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-7-D1X-T3 | ABM10W | 33.8688MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-7-D2X-T3 | ABM10W | 33.8688MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-7-J1Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.8688MHZ-7-J2Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-33.8688MHZ-7-K1Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.8688MHZ-7-K2Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-33.8688MHZ-8-B1U-T3 | ABM10W | 33.8688MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-8-B2U-T3 | ABM10W | 33.8688MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-33.8688MHZ-8-D1X-T3 | ABM10W | 33.8688MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-8-D2X-T3 | ABM10W | 33.8688MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-33.8688MHZ-8-J1Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.8688MHZ-8-J2Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-33.8688MHZ-8-K1Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-33.8688MHZ-8-K2Z-T3 | ABM10W | 33.8688MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-35.4160MHZ-4-B1U-T3 | ABM10W | 35.416MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-4-B2U-T3 | ABM10W | 35.416MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-4-D1X-T3 | ABM10W | 35.416MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-4-D2X-T3 | ABM10W | 35.416MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-6-B1U-T3 | ABM10W | 35.416MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-6-B2U-T3 | ABM10W | 35.416MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-6-D1X-T3 | ABM10W | 35.416MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-6-D2X-T3 | ABM10W | 35.416MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-6-J1Z-T3 | ABM10W | 35.416MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-35.4160MHZ-6-J2Z-T3 | ABM10W | 35.416MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-35.4160MHZ-6-K1Z-T3 | ABM10W | 35.416MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-35.4160MHZ-6-K2Z-T3 | ABM10W | 35.416MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-35.4160MHZ-7-B1U-T3 | ABM10W | 35.416MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-7-B2U-T3 | ABM10W | 35.416MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-7-D1X-T3 | ABM10W | 35.416MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-7-D2X-T3 | ABM10W | 35.416MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-7-J1Z-T3 | ABM10W | 35.416MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-35.4160MHZ-7-J2Z-T3 | ABM10W | 35.416MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-35.4160MHZ-7-K1Z-T3 | ABM10W | 35.416MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-35.4160MHZ-7-K2Z-T3 | ABM10W | 35.416MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-35.4160MHZ-8-B1U-T3 | ABM10W | 35.416MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-8-B2U-T3 | ABM10W | 35.416MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-35.4160MHZ-8-D1X-T3 | ABM10W | 35.416MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-8-D2X-T3 | ABM10W | 35.416MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-35.4160MHZ-8-J1Z-T3 | ABM10W | 35.416MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-35.4160MHZ-8-J2Z-T3 | ABM10W | 35.416MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-35.4160MHZ-8-K1Z-T3 | ABM10W | 35.416MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-35.4160MHZ-8-K2Z-T3 | ABM10W | 35.416MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-36.0000MHZ-4-B1U-T3 | ABM10W | 36MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-4-B2U-T3 | ABM10W | 36MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-4-D1X-T3 | ABM10W | 36MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-4-D2X-T3 | ABM10W | 36MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-6-B1U-T3 | ABM10W | 36MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-6-B2U-T3 | ABM10W | 36MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-6-D1X-T3 | ABM10W | 36MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-6-D2X-T3 | ABM10W | 36MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-6-J1Z-T3 | ABM10W | 36MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-36.0000MHZ-6-J2Z-T3 | ABM10W | 36MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-36.0000MHZ-6-K1Z-T3 | ABM10W | 36MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-36.0000MHZ-6-K2Z-T3 | ABM10W | 36MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-36.0000MHZ-7-B1U-T3 | ABM10W | 36MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-7-B2U-T3 | ABM10W | 36MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-7-D1X-T3 | ABM10W | 36MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-7-D2X-T3 | ABM10W | 36MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-7-J1Z-T3 | ABM10W | 36MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-36.0000MHZ-7-J2Z-T3 | ABM10W | 36MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-36.0000MHZ-7-K1Z-T3 | ABM10W | 36MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-36.0000MHZ-7-K2Z-T3 | ABM10W | 36MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-36.0000MHZ-8-B1U-T3 | ABM10W | 36MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-8-B2U-T3 | ABM10W | 36MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-36.0000MHZ-8-D1X-T3 | ABM10W | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-8-D2X-T3 | ABM10W | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-36.0000MHZ-8-J1Z-T3 | ABM10W | 36MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-36.0000MHZ-8-J2Z-T3 | ABM10W | 36MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-36.0000MHZ-8-K1Z-T3 | ABM10W | 36MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-36.0000MHZ-8-K2Z-T3 | ABM10W | 36MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-37.0000MHZ-4-B1U-T3 | ABM10W | 37MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-4-B2U-T3 | ABM10W | 37MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-4-D1X-T3 | ABM10W | 37MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-4-D2X-T3 | ABM10W | 37MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-6-B1U-T3 | ABM10W | 37MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-6-B2U-T3 | ABM10W | 37MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-6-D1X-T3 | ABM10W | 37MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-6-D2X-T3 | ABM10W | 37MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-6-J1Z-T3 | ABM10W | 37MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-37.0000MHZ-6-J2Z-T3 | ABM10W | 37MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-37.0000MHZ-6-K1Z-T3 | ABM10W | 37MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-37.0000MHZ-6-K2Z-T3 | ABM10W | 37MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-37.0000MHZ-7-B1U-T3 | ABM10W | 37MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-7-B2U-T3 | ABM10W | 37MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-7-D1X-T3 | ABM10W | 37MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-7-D2X-T3 | ABM10W | 37MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-7-J1Z-T3 | ABM10W | 37MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-37.0000MHZ-7-J2Z-T3 | ABM10W | 37MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-37.0000MHZ-7-K1Z-T3 | ABM10W | 37MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-37.0000MHZ-7-K2Z-T3 | ABM10W | 37MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-37.0000MHZ-8-B1U-T3 | ABM10W | 37MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-8-B2U-T3 | ABM10W | 37MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-37.0000MHZ-8-D1X-T3 | ABM10W | 37MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-8-D2X-T3 | ABM10W | 37MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.0000MHZ-8-J1Z-T3 | ABM10W | 37MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-37.0000MHZ-8-J2Z-T3 | ABM10W | 37MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-37.0000MHZ-8-K1Z-T3 | ABM10W | 37MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-37.0000MHZ-8-K2Z-T3 | ABM10W | 37MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-37.0500MHZ-4-B1U-T3 | ABM10W | 37.05MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-4-B2U-T3 | ABM10W | 37.05MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-4-D1X-T3 | ABM10W | 37.05MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-4-D2X-T3 | ABM10W | 37.05MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-6-B1U-T3 | ABM10W | 37.05MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-6-B2U-T3 | ABM10W | 37.05MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-6-D1X-T3 | ABM10W | 37.05MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-6-D2X-T3 | ABM10W | 37.05MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-6-J1Z-T3 | ABM10W | 37.05MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-37.0500MHZ-6-J2Z-T3 | ABM10W | 37.05MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-37.0500MHZ-6-K1Z-T3 | ABM10W | 37.05MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-37.0500MHZ-6-K2Z-T3 | ABM10W | 37.05MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-37.0500MHZ-7-B1U-T3 | ABM10W | 37.05MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-7-B2U-T3 | ABM10W | 37.05MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-7-D1X-T3 | ABM10W | 37.05MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-7-D2X-T3 | ABM10W | 37.05MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-7-J1Z-T3 | ABM10W | 37.05MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-37.0500MHZ-7-J2Z-T3 | ABM10W | 37.05MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-37.0500MHZ-7-K1Z-T3 | ABM10W | 37.05MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-37.0500MHZ-7-K2Z-T3 | ABM10W | 37.05MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-37.0500MHZ-8-B1U-T3 | ABM10W | 37.05MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-8-B2U-T3 | ABM10W | 37.05MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-37.0500MHZ-8-D1X-T3 | ABM10W | 37.05MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-8-D2X-T3 | ABM10W | 37.05MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.0500MHZ-8-J1Z-T3 | ABM10W | 37.05MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-37.0500MHZ-8-J2Z-T3 | ABM10W | 37.05MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-37.0500MHZ-8-K1Z-T3 | ABM10W | 37.05MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-37.0500MHZ-8-K2Z-T3 | ABM10W | 37.05MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-37.4000MHZ-4-B1U-T3 | ABM10W | 37.4MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-4-B2U-T3 | ABM10W | 37.4MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-4-D1X-T3 | ABM10W | 37.4MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-4-D2X-T3 | ABM10W | 37.4MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-6-B1U-T3 | ABM10W | 37.4MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-6-B2U-T3 | ABM10W | 37.4MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-6-D1X-T3 | ABM10W | 37.4MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-6-J1Z-T3 | ABM10W | 37.4MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-37.4000MHZ-6-J2Z-T3 | ABM10W | 37.4MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-37.4000MHZ-6-K2Z-T3 | ABM10W | 37.4MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-37.4000MHZ-7-B1U-T3 | ABM10W | 37.4MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-7-B2U-T3 | ABM10W | 37.4MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-7-D1X-T3 | ABM10W | 37.4MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-7-D2X-T3 | ABM10W | 37.4MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-7-J1Z-T3 | ABM10W | 37.4MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-37.4000MHZ-7-J2Z-T3 | ABM10W | 37.4MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-37.4000MHZ-7-K1Z-T3 | ABM10W | 37.4MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-37.4000MHZ-7-K2Z-T3 | ABM10W | 37.4MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-37.4000MHZ-8-B1U-T3 | ABM10W | 37.4MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-8-B2U-T3 | ABM10W | 37.4MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-37.4000MHZ-8-D1X-T3 | ABM10W | 37.4MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-8-D2X-T3 | ABM10W | 37.4MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-37.4000MHZ-8-J1Z-T3 | ABM10W | 37.4MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-37.4000MHZ-8-J2Z-T3 | ABM10W | 37.4MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-37.4000MHZ-8-K1Z-T3 | ABM10W | 37.4MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-37.4000MHZ-8-K2Z-T3 | ABM10W | 37.4MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-38.0000MHZ-4-B1U-T3 | ABM10W | 38MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-4-B2U-T3 | ABM10W | 38MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-4-D1X-T3 | ABM10W | 38MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-4-D2X-T3 | ABM10W | 38MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-6-B1U-T3 | ABM10W | 38MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-6-B2U-T3 | ABM10W | 38MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-6-D1X-T3 | ABM10W | 38MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-6-D2X-T3 | ABM10W | 38MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-6-J1Z-T3 | ABM10W | 38MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-38.0000MHZ-6-J2Z-T3 | ABM10W | 38MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-38.0000MHZ-6-K1Z-T3 | ABM10W | 38MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-38.0000MHZ-6-K2Z-T3 | ABM10W | 38MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-38.0000MHZ-7-B1U-T3 | ABM10W | 38MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-7-B2U-T3 | ABM10W | 38MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-7-D1X-T3 | ABM10W | 38MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-7-D2X-T3 | ABM10W | 38MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-7-J1Z-T3 | ABM10W | 38MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-38.0000MHZ-7-J2Z-T3 | ABM10W | 38MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-38.0000MHZ-7-K1Z-T3 | ABM10W | 38MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-38.0000MHZ-7-K2Z-T3 | ABM10W | 38MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-38.0000MHZ-8-B1U-T3 | ABM10W | 38MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-8-B2U-T3 | ABM10W | 38MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-38.0000MHZ-8-D1X-T3 | ABM10W | 38MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-8-D2X-T3 | ABM10W | 38MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.0000MHZ-8-J1Z-T3 | ABM10W | 38MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-38.0000MHZ-8-J2Z-T3 | ABM10W | 38MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-38.0000MHZ-8-K1Z-T3 | ABM10W | 38MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-38.0000MHZ-8-K2Z-T3 | ABM10W | 38MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-4-B1U-T3 | ABM10W | 38.4MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-4-B2U-T3 | ABM10W | 38.4MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-4-D2X-T3 | ABM10W | 38.4MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-4-J1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-4-J2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-4-K1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-4-K2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-6-B2U-T3 | ABM10W | 38.4MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-6-D2X-T3 | ABM10W | 38.4MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-6-J1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-6-J2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-6-K1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-6-K2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-7-B2U-T3 | ABM10W | 38.4MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-7-D2X-T3 | ABM10W | 38.4MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-7-J1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-7-J2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-7-K1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-7-K2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-8-B2U-T3 | ABM10W | 38.4MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-38.4000MHZ-8-D2X-T3 | ABM10W | 38.4MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.4000MHZ-8-J1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-8-J2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-38.4000MHZ-8-K1Z-T3 | ABM10W | 38.4MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-38.4000MHZ-8-K2Z-T3 | ABM10W | 38.4MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-4-B1U-T3 | ABM10W | 38.88MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-4-B2U-T3 | ABM10W | 38.88MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-4-D1X-T3 | ABM10W | 38.88MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-4-D2X-T3 | ABM10W | 38.88MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-4-J1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-4-J2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-4-K1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-4-K2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-6-B1U-T3 | ABM10W | 38.88MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-6-B2U-T3 | ABM10W | 38.88MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-6-D1X-T3 | ABM10W | 38.88MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-6-D2X-T3 | ABM10W | 38.88MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-6-J1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-6-J2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-6-K1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-6-K2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-7-B1U-T3 | ABM10W | 38.88MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-7-B2U-T3 | ABM10W | 38.88MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-7-D1X-T3 | ABM10W | 38.88MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-7-D2X-T3 | ABM10W | 38.88MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-7-J1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-7-J2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-7-K1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-7-K2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-8-B1U-T3 | ABM10W | 38.88MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-8-B2U-T3 | ABM10W | 38.88MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-38.8800MHZ-8-D1X-T3 | ABM10W | 38.88MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-8-D2X-T3 | ABM10W | 38.88MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-38.8800MHZ-8-J1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-8-J2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-38.8800MHZ-8-K1Z-T3 | ABM10W | 38.88MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-38.8800MHZ-8-K2Z-T3 | ABM10W | 38.88MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-4-B1U-T3 | ABM10W | 39MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-4-B2U-T3 | ABM10W | 39MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-4-D1X-T3 | ABM10W | 39MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-4-D2X-T3 | ABM10W | 39MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-4-J1Z-T3 | ABM10W | 39MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-4-J2Z-T3 | ABM10W | 39MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-4-K1Z-T3 | ABM10W | 39MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-4-K2Z-T3 | ABM10W | 39MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-6-B1U-T3 | ABM10W | 39MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-6-B2U-T3 | ABM10W | 39MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-6-D1X-T3 | ABM10W | 39MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-6-D2X-T3 | ABM10W | 39MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-6-J1Z-T3 | ABM10W | 39MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-6-J2Z-T3 | ABM10W | 39MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-6-K1Z-T3 | ABM10W | 39MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-6-K2Z-T3 | ABM10W | 39MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-7-B1U-T3 | ABM10W | 39MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-7-B2U-T3 | ABM10W | 39MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-7-D1X-T3 | ABM10W | 39MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-7-D2X-T3 | ABM10W | 39MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-7-J1Z-T3 | ABM10W | 39MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-7-J2Z-T3 | ABM10W | 39MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-7-K1Z-T3 | ABM10W | 39MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-7-K2Z-T3 | ABM10W | 39MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-8-B2U-T3 | ABM10W | 39MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-39.0000MHZ-8-D1X-T3 | ABM10W | 39MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-8-D2X-T3 | ABM10W | 39MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-39.0000MHZ-8-J1Z-T3 | ABM10W | 39MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-8-J2Z-T3 | ABM10W | 39MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-39.0000MHZ-8-K1Z-T3 | ABM10W | 39MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-39.0000MHZ-8-K2Z-T3 | ABM10W | 39MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-4-B2U-T3 | ABM10W | 40MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-4-D2X-T3 | ABM10W | 40MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-4-J1Z-T3 | ABM10W | 40MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-4-J2Z-T3 | ABM10W | 40MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-4-K2Z-T3 | ABM10W | 40MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-6-B2U-T3 | ABM10W | 40MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-6-D2X-T3 | ABM10W | 40MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-6-J1Z-T3 | ABM10W | 40MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-6-J2Z-T3 | ABM10W | 40MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-6-K1Z-T3 | ABM10W | 40MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-6-K2Z-T3 | ABM10W | 40MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-7-B2U-T3 | ABM10W | 40MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-7-D2X-T3 | ABM10W | 40MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-7-J1Z-T3 | ABM10W | 40MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-7-J2Z-T3 | ABM10W | 40MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-7-K1Z-T3 | ABM10W | 40MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-7-K2Z-T3 | ABM10W | 40MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-8-B2U-T3 | ABM10W | 40MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.0000MHZ-8-D2X-T3 | ABM10W | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-40.0000MHZ-8-J1Z-T3 | ABM10W | 40MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-8-J2Z-T3 | ABM10W | 40MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-40.0000MHZ-8-K1Z-T3 | ABM10W | 40MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-40.0000MHZ-8-K2Z-T3 | ABM10W | 40MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-4-B1U-T3 | ABM10W | 40.61MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-4-B2U-T3 | ABM10W | 40.61MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-4-D1X-T3 | ABM10W | 40.61MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-4-D2X-T3 | ABM10W | 40.61MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-4-J1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-4-J2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-4-K1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-4-K2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-6-B1U-T3 | ABM10W | 40.61MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-6-B2U-T3 | ABM10W | 40.61MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-6-D1X-T3 | ABM10W | 40.61MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-6-D2X-T3 | ABM10W | 40.61MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-6-J1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-6-J2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-6-K1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-6-K2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-7-B1U-T3 | ABM10W | 40.61MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-7-B2U-T3 | ABM10W | 40.61MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-7-D1X-T3 | ABM10W | 40.61MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-7-D2X-T3 | ABM10W | 40.61MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-7-J1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-7-J2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-7-K1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-7-K2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-8-B1U-T3 | ABM10W | 40.61MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-8-B2U-T3 | ABM10W | 40.61MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.6100MHZ-8-D1X-T3 | ABM10W | 40.61MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-8-D2X-T3 | ABM10W | 40.61MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-40.6100MHZ-8-J1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-8-J2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-40.6100MHZ-8-K1Z-T3 | ABM10W | 40.61MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-40.6100MHZ-8-K2Z-T3 | ABM10W | 40.61MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-4-B1U-T3 | ABM10W | 40.96MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-4-B2U-T3 | ABM10W | 40.96MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-4-D1X-T3 | ABM10W | 40.96MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-4-D2X-T3 | ABM10W | 40.96MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-4-J1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-4-J2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-4-K1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-4-K2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-6-B1U-T3 | ABM10W | 40.96MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-6-B2U-T3 | ABM10W | 40.96MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-6-D1X-T3 | ABM10W | 40.96MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-6-D2X-T3 | ABM10W | 40.96MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-6-J1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-6-J2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-6-K1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-6-K2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-7-B1U-T3 | ABM10W | 40.96MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-7-B2U-T3 | ABM10W | 40.96MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-7-D1X-T3 | ABM10W | 40.96MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-7-D2X-T3 | ABM10W | 40.96MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-7-J1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-7-J2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-7-K1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-7-K2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-8-B1U-T3 | ABM10W | 40.96MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-8-B2U-T3 | ABM10W | 40.96MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-40.9600MHZ-8-D1X-T3 | ABM10W | 40.96MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-8-D2X-T3 | ABM10W | 40.96MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-40.9600MHZ-8-J1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-8-J2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-40.9600MHZ-8-K1Z-T3 | ABM10W | 40.96MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-40.9600MHZ-8-K2Z-T3 | ABM10W | 40.96MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-4-B1U-T3 | ABM10W | 41.6MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-4-B2U-T3 | ABM10W | 41.6MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-4-D1X-T3 | ABM10W | 41.6MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-4-D2X-T3 | ABM10W | 41.6MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-4-J1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-4-J2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-4-K1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-4-K2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-6-B1U-T3 | ABM10W | 41.6MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-6-B2U-T3 | ABM10W | 41.6MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-6-D1X-T3 | ABM10W | 41.6MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-6-D2X-T3 | ABM10W | 41.6MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-6-J1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-6-J2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-6-K1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-6-K2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-7-B1U-T3 | ABM10W | 41.6MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-7-B2U-T3 | ABM10W | 41.6MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-7-D1X-T3 | ABM10W | 41.6MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-7-D2X-T3 | ABM10W | 41.6MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-7-J1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-7-J2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-7-K1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-7-K2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-8-B1U-T3 | ABM10W | 41.6MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-8-B2U-T3 | ABM10W | 41.6MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-41.6000MHZ-8-D1X-T3 | ABM10W | 41.6MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-8-D2X-T3 | ABM10W | 41.6MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-41.6000MHZ-8-J1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-8-J2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-41.6000MHZ-8-K1Z-T3 | ABM10W | 41.6MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-41.6000MHZ-8-K2Z-T3 | ABM10W | 41.6MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-4-B1U-T3 | ABM10W | 42MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-4-B2U-T3 | ABM10W | 42MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-4-D1X-T3 | ABM10W | 42MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-4-D2X-T3 | ABM10W | 42MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-4-J1Z-T3 | ABM10W | 42MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-4-J2Z-T3 | ABM10W | 42MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-4-K1Z-T3 | ABM10W | 42MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-4-K2Z-T3 | ABM10W | 42MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-6-B1U-T3 | ABM10W | 42MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-6-B2U-T3 | ABM10W | 42MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-6-D1X-T3 | ABM10W | 42MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-6-D2X-T3 | ABM10W | 42MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-6-J1Z-T3 | ABM10W | 42MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-6-J2Z-T3 | ABM10W | 42MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-6-K1Z-T3 | ABM10W | 42MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-6-K2Z-T3 | ABM10W | 42MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-7-B1U-T3 | ABM10W | 42MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-7-B2U-T3 | ABM10W | 42MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-7-D1X-T3 | ABM10W | 42MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-7-D2X-T3 | ABM10W | 42MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-7-J1Z-T3 | ABM10W | 42MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-7-J2Z-T3 | ABM10W | 42MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-7-K1Z-T3 | ABM10W | 42MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-7-K2Z-T3 | ABM10W | 42MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-8-B1U-T3 | ABM10W | 42MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-8-B2U-T3 | ABM10W | 42MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-42.0000MHZ-8-D1X-T3 | ABM10W | 42MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-8-D2X-T3 | ABM10W | 42MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-42.0000MHZ-8-J1Z-T3 | ABM10W | 42MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-8-J2Z-T3 | ABM10W | 42MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-42.0000MHZ-8-K1Z-T3 | ABM10W | 42MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-42.0000MHZ-8-K2Z-T3 | ABM10W | 42MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-4-B1U-T3 | ABM10W | 44MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-4-B2U-T3 | ABM10W | 44MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-4-D1X-T3 | ABM10W | 44MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-4-D2X-T3 | ABM10W | 44MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-4-J1Z-T3 | ABM10W | 44MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-4-J2Z-T3 | ABM10W | 44MHz | ±50ppm | 4pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-4-K1Z-T3 | ABM10W | 44MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-4-K2Z-T3 | ABM10W | 44MHz | ±50ppm | 4pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-6-B1U-T3 | ABM10W | 44MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-6-B2U-T3 | ABM10W | 44MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-6-D1X-T3 | ABM10W | 44MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-6-D2X-T3 | ABM10W | 44MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-6-J1Z-T3 | ABM10W | 44MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-6-J2Z-T3 | ABM10W | 44MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-6-K1Z-T3 | ABM10W | 44MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-6-K2Z-T3 | ABM10W | 44MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-7-B1U-T3 | ABM10W | 44MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-7-B2U-T3 | ABM10W | 44MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-7-D1X-T3 | ABM10W | 44MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-7-D2X-T3 | ABM10W | 44MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-7-J1Z-T3 | ABM10W | 44MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-7-J2Z-T3 | ABM10W | 44MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-7-K1Z-T3 | ABM10W | 44MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-7-K2Z-T3 | ABM10W | 44MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-8-B1U-T3 | ABM10W | 44MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-8-B2U-T3 | ABM10W | 44MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-44.0000MHZ-8-D1X-T3 | ABM10W | 44MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-8-D2X-T3 | ABM10W | 44MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-44.0000MHZ-8-J1Z-T3 | ABM10W | 44MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-8-J2Z-T3 | ABM10W | 44MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-44.0000MHZ-8-K1Z-T3 | ABM10W | 44MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-44.0000MHZ-8-K2Z-T3 | ABM10W | 44MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-45.0000MHZ-4-B1U-T3 | ABM10W | 45MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-4-B2U-T3 | ABM10W | 45MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-4-D1X-T3 | ABM10W | 45MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-4-D2X-T3 | ABM10W | 45MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-6-B1U-T3 | ABM10W | 45MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-6-B2U-T3 | ABM10W | 45MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-6-D1X-T3 | ABM10W | 45MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-6-D2X-T3 | ABM10W | 45MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-6-J1Z-T3 | ABM10W | 45MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-45.0000MHZ-6-J2Z-T3 | ABM10W | 45MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-45.0000MHZ-6-K1Z-T3 | ABM10W | 45MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-45.0000MHZ-6-K2Z-T3 | ABM10W | 45MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-45.0000MHZ-7-B1U-T3 | ABM10W | 45MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-7-B2U-T3 | ABM10W | 45MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-7-D1X-T3 | ABM10W | 45MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-7-D2X-T3 | ABM10W | 45MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-7-J1Z-T3 | ABM10W | 45MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-45.0000MHZ-7-J2Z-T3 | ABM10W | 45MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-45.0000MHZ-7-K1Z-T3 | ABM10W | 45MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-45.0000MHZ-7-K2Z-T3 | ABM10W | 45MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-45.0000MHZ-8-B1U-T3 | ABM10W | 45MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-8-B2U-T3 | ABM10W | 45MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-45.0000MHZ-8-D1X-T3 | ABM10W | 45MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-8-D2X-T3 | ABM10W | 45MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-45.0000MHZ-8-J1Z-T3 | ABM10W | 45MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-45.0000MHZ-8-J2Z-T3 | ABM10W | 45MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-45.0000MHZ-8-K1Z-T3 | ABM10W | 45MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-45.0000MHZ-8-K2Z-T3 | ABM10W | 45MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-48.0000MHZ-4-B2U-T3 | ABM10W | 48MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-4-D2X-T3 | ABM10W | 48MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-6-B2U-T3 | ABM10W | 48MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-6-D2X-T3 | ABM10W | 48MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-6-J1Z-T3 | ABM10W | 48MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-48.0000MHZ-6-J2Z-T3 | ABM10W | 48MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-48.0000MHZ-6-K2Z-T3 | ABM10W | 48MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-48.0000MHZ-7-B2U-T3 | ABM10W | 48MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-7-D2X-T3 | ABM10W | 48MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-7-J1Z-T3 | ABM10W | 48MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-48.0000MHZ-7-J2Z-T3 | ABM10W | 48MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-48.0000MHZ-7-K2Z-T3 | ABM10W | 48MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-48.0000MHZ-8-B2U-T3 | ABM10W | 48MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-48.0000MHZ-8-D2X-T3 | ABM10W | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-48.0000MHZ-8-J1Z-T3 | ABM10W | 48MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-48.0000MHZ-8-J2Z-T3 | ABM10W | 48MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-48.0000MHZ-8-K2Z-T3 | ABM10W | 48MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-49.1520MHZ-4-B1U-T3 | ABM10W | 49.152MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-4-B2U-T3 | ABM10W | 49.152MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-4-D1X-T3 | ABM10W | 49.152MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-4-D2X-T3 | ABM10W | 49.152MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-6-B1U-T3 | ABM10W | 49.152MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-6-B2U-T3 | ABM10W | 49.152MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-6-D1X-T3 | ABM10W | 49.152MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-6-D2X-T3 | ABM10W | 49.152MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-6-J1Z-T3 | ABM10W | 49.152MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-49.1520MHZ-6-J2Z-T3 | ABM10W | 49.152MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-49.1520MHZ-6-K1Z-T3 | ABM10W | 49.152MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-49.1520MHZ-6-K2Z-T3 | ABM10W | 49.152MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-49.1520MHZ-7-B1U-T3 | ABM10W | 49.152MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-7-B2U-T3 | ABM10W | 49.152MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-7-D1X-T3 | ABM10W | 49.152MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-7-D2X-T3 | ABM10W | 49.152MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-7-J1Z-T3 | ABM10W | 49.152MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-49.1520MHZ-7-J2Z-T3 | ABM10W | 49.152MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-49.1520MHZ-7-K1Z-T3 | ABM10W | 49.152MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-49.1520MHZ-7-K2Z-T3 | ABM10W | 49.152MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-49.1520MHZ-8-B1U-T3 | ABM10W | 49.152MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-8-B2U-T3 | ABM10W | 49.152MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-49.1520MHZ-8-D1X-T3 | ABM10W | 49.152MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-8-D2X-T3 | ABM10W | 49.152MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-49.1520MHZ-8-J1Z-T3 | ABM10W | 49.152MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-49.1520MHZ-8-J2Z-T3 | ABM10W | 49.152MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-49.1520MHZ-8-K1Z-T3 | ABM10W | 49.152MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-49.1520MHZ-8-K2Z-T3 | ABM10W | 49.152MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-50.0000MHZ-4-B2U-T3 | ABM10W | 50MHz | ±10ppm | 4pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-4-D2X-T3 | ABM10W | 50MHz | ±20ppm | 4pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-6-B1U-T3 | ABM10W | 50MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-6-B2U-T3 | ABM10W | 50MHz | ±10ppm | 6pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-6-D1X-T3 | ABM10W | 50MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-6-D2X-T3 | ABM10W | 50MHz | ±20ppm | 6pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-6-J1Z-T3 | ABM10W | 50MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-50.0000MHZ-6-J2Z-T3 | ABM10W | 50MHz | ±50ppm | 6pF | -40°C ~ 105°C |
ABM10W-50.0000MHZ-6-K1Z-T3 | ABM10W | 50MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-50.0000MHZ-6-K2Z-T3 | ABM10W | 50MHz | ±50ppm | 6pF | -40°C ~ 125°C |
ABM10W-50.0000MHZ-7-B1U-T3 | ABM10W | 50MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-7-B2U-T3 | ABM10W | 50MHz | ±10ppm | 7pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-7-D1X-T3 | ABM10W | 50MHz | ±20ppm | 7pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-7-J1Z-T3 | ABM10W | 50MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-50.0000MHZ-7-J2Z-T3 | ABM10W | 50MHz | ±50ppm | 7pF | -40°C ~ 105°C |
ABM10W-50.0000MHZ-7-K1Z-T3 | ABM10W | 50MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-50.0000MHZ-7-K2Z-T3 | ABM10W | 50MHz | ±50ppm | 7pF | -40°C ~ 125°C |
ABM10W-50.0000MHZ-8-B2U-T3 | ABM10W | 50MHz | ±10ppm | 8pF | -20°C ~ 70°C |
ABM10W-50.0000MHZ-8-D1X-T3 | ABM10W | 50MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-8-D2X-T3 | ABM10W | 50MHz | ±20ppm | 8pF | -40°C ~ 85°C |
ABM10W-50.0000MHZ-8-J1Z-T3 | ABM10W | 50MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-50.0000MHZ-8-J2Z-T3 | ABM10W | 50MHz | ±50ppm | 8pF | -40°C ~ 105°C |
ABM10W-50.0000MHZ-8-K1Z-T3 | ABM10W | 50MHz | ±50ppm | 8pF | -40°C ~ 125°C |
ABM10W-50.0000MHZ-8-K2Z-T3 | ABM10W | 50MHz | ±50ppm | 8pF | -40°C ~ 125°C |
Abracon是全球领先的无源和机电定时、同步、电源、连接和射频解决方案制造商。Abracon拥有广泛的石英晶体、晶体和MEMS振荡器、实时时钟、功率感应器、物联网天线等产品组合,帮助工程师将他们的想法转化为满足未来机遇的产品。公司通过ISO9001-2015认证。Abracon专注于客户服务、支持、创新、质量和准时交付,每年为超过25000名活跃客户提供支持,并交付超过25亿个组件。我们在德克萨斯、加利福尼亚、中国大陆、台湾、新加坡、苏格兰和德国设有销售办事处。Abracon的产品通过其全球分销网络提供,官网请访问:www.xtal.cc
深圳市加科电子有限公司
联系人:黄河 15602443498
座机:0755-33533774
邮箱:jiakedz@163.com
QQ:3080074590
地址:深圳市宝安区13区宝民一路白金大厦13F
* 联系人: | 请填写您的真实姓名 |
* 手机号码: | 请填写您的联系电话 |
电子邮件: | |
* 采购意向描述: | |
请填写采购的产品数量和产品描述,方便我们进行统一备货。 | |
验证码: | |
我要评论: | |
内 容: |
(内容最多500个汉字,1000个字符) |
验证码: | 看不清?! |
传真:0755-33533774
QQ:3080074590
邮箱:jiakedz@163.com
地址:深圳市宝安区宝民一路123号3号楼13F
共有-条评论【我要评论】
