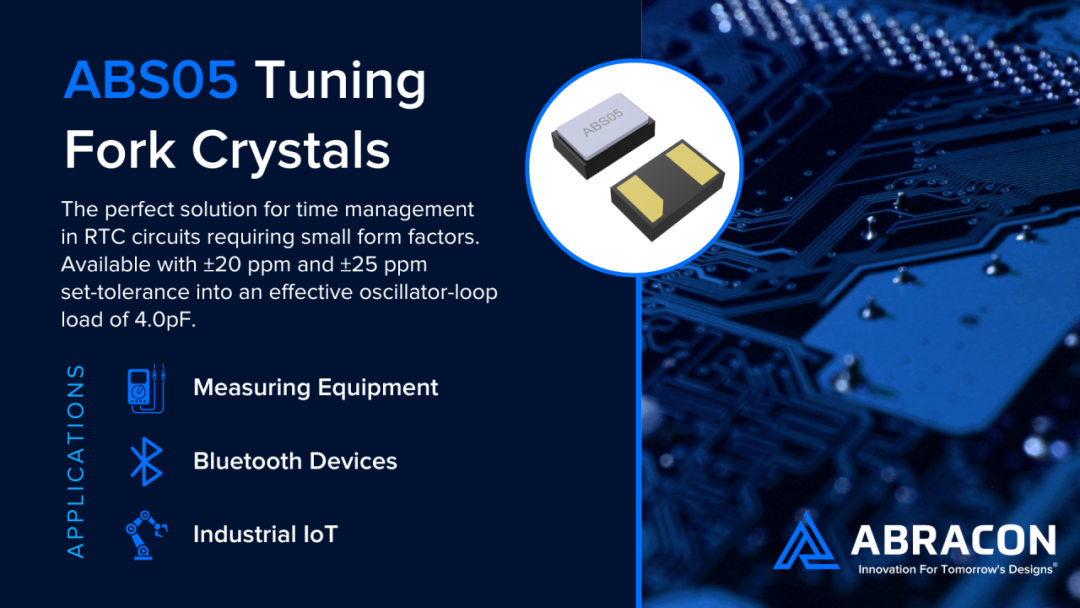

近两年来32.768K晶振行业最为常用的3215封装和2012封装的音叉石英晶振在时钟模块领域面临着巨大挑战,供应这些尺寸且具有低负载电容的产品变得异常复杂,然而Abracon面临在这场挑战面前退缩,他们推出的更小尺寸1.6x1.0x0.5mm的ABS05进口晶振系列不但可以轻松替换当前设计中较大尺寸的ABS06和ABS07晶振系列还能保持卓越性能表现,而且不给设计增加任何压力,而且它还有一个隐形优势那就是可以进一步节省设计所需空间,ABS05贴片进口晶振系列采用最先进的调试技术,现在可提供±20ppm和±25ppm的设定容差,并可以将负载电容降低到仅为4.0pF,这种4.0pF电镀选项将使任何电路的功耗降低并显著提高其启动速度。
| 料号 | 型号 | 频率 | 频率容差 | 负载电容 | 工作温度 |
| ABS05-32.768KHZ-7-T | ABS05 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| ABS05-32.768KHZ-6-T | ABS05 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| ABS05-32.768KHZ-X-T5 | ABS05 | 32.768kHz | ±20ppm | 4pF | -40°C ~ 85°C |
| ABS05-32.768KHZ-T | ABS05 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS05-32.768KHZ-9-T | ABS05 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| ABS05-32.768KHZ-X-3-T3 | ABS05 | 32.768kHz | ±25ppm | 4pF | -40°C ~ 85°C |
| ABS05W-32.768KHZ-K-2-T | ABS05W | 32.768kHz | ±20ppm | 4pF | -40°C ~ 125°C |
| ABS05W-32.768KHZ-D-2-T | ABS05W | 32.768kHz | ±20ppm | 4pF | -40°C ~ 85°C |
| ABS05W-32.768KHZ-J-2-T | ABS05W | 32.768kHz | ±20ppm | 4pF | -40°C ~ 105°C |
| ABS06-32.768KHZ-6-T | ABS06 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-9-T | ABS06 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-1-T | ABS06 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C |
| ABS06-107-32.768KHZ-T | ABS06 | 32.768kHz | ±20ppm | 4pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-9-1-T | ABS06 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-7-T | ABS06 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| ABS06-127-32.768KHZ-T | ABS06 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-T | ABS06 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-6-1-T | ABS06 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 85°C |
| ABS06-32.768KHZ-7-1-T | ABS06 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C |
| ABS06L-32.768KHZ | ABS06 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS06L-32.768KHZ-9 | ABS06 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| ABS06L-32.768KHZ-T | ABS06L | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS06L-32.768KHZ-9-T | ABS06L | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| ABS06W-32.768KHZ-D-2-T | ABS06W | 32.768kHz | ±20ppm | 3pF | -40°C ~ 85°C |
| ABS06W-32.768KHZ-J-2-T | ABS06W | 32.768kHz | ±20ppm | 3pF | -40°C ~ 105°C |
| ABS06W-32.768KHZ-K-2-T | ABS06W | 32.768kHz | ±20ppm | 3pF | -40°C ~ 125°C |
| ABS06W-32.768KHZ-D-1-T | ABS06W | 32.768kHz | ±10ppm | 3pF | -40°C ~ 85°C |
| ABS06W-32.768KHZ-J-1-T | ABS06W | 32.768kHz | ±10ppm | 3pF | -40°C ~ 105°C |
| ABS06W-32.768KHZ-K-1-T | ABS06W | 32.768kHz | ±10ppm | 3pF | -40°C ~ 125°C |
| ABS07-32.768KHZ-6-T | ABS07 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| ABS07-166-32.768KHZ-T | ABS07 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-T | ABS07 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-9-T | ABS07 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-7-T | ABS07 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| ABS07-120-32.768KHZ-T | ABS07 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-9-4-T | ABS07 | 32.768kHz | ±30ppm | 9pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-4-T | ABS07 | 32.768kHz | ±30ppm | 4pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-9-H-T | ABS07 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-6-4-T | ABS07 | 32.768kHz | ±30ppm | 6pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-1-T | ABS07 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-7-1-T | ABS07 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C |
| ABS07-32.768KHZ-9-1-T | ABS07 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C |
| ABS07-157 | ABS07 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| ABS07-157-32.768kHz-T | ABS07 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
与此同时经过优化处理的ABS05系列还能够保持ESR最大为90 kΩ的阈值,使其在与最新的节能型微控制器和其他节能芯片组配合使用时运行更为稳健,Abracon晶振家的ABS05系列广泛应用,工业电子,医疗电子,还是消费类物联网电子产品,都离不开它们的帮助,这些音叉晶体可以在需要时间管理的小型RTC电路中使用,而ABS05进口晶振系列相比其他型号,功耗更低,能够保持更长久的电池寿命,由于采用了气密金属陶瓷无缝封装,ABS05系列具备极高的耐热性和环境适应度,在通信,测量设备以及无线通信,PDA,智能手机等商业和工业应用中,都有着广泛的运用。
总而言之不管是在工业环境中,还是作为物联网设备的一部分,美国ABRACON晶振艾博康进口音叉石英晶体绝对是您即将进行的设计中最佳的选择,ABS05系列超薄进口晶振是当前时钟模块中的热门产品,其优异的性能和空间节约特点让众多客户趋之若鹜,美国Abracon艾博康晶振以其卓越的技术实力和过硬的产品质量闻名于业界,在动荡不断的市场竞争中,美国Abracon艾博康晶振坚持为客户提供安全可靠的解决方案,以满足各类设计需求,无论您是追求高性能还是追求节能环保,我们都有符合您需求的完美解决方案Abracon艾博康晶振是您不二之选。
