石英振荡器

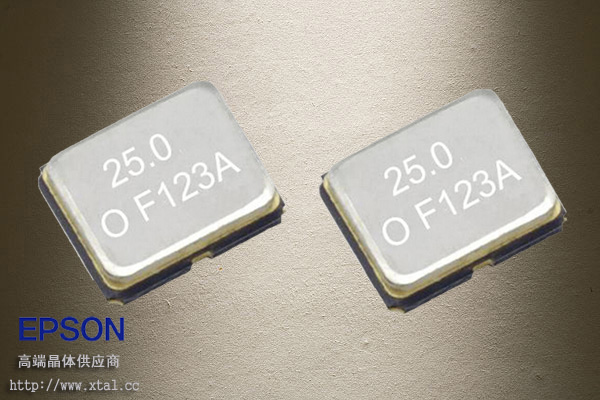

SG-210STF

产品分类: EPSON晶振
    频率范围:1MHz to 75MHz
    电源电压:1.6V to 3.6V
    功能:Standby(ST)
    外部尺寸规格:2.5 × 2.0 × 0.8mm
    工作温度范围:-40°C to +105°C
    订购热线:0755-33533774

      SG-210STF晶振规格书

      SG-210STF晶振规格书

      SG-210STF晶振规格书

      产品代号:型号
      频率温度范围电压精度PPM负载电容PF
      X1G0041710002SG-210STF33.300000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710005SG-210STF1.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710006SG-210STF1.843200MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710007SG-210STF2.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710008SG-210STF3.686400MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710009SG-210STF4.000000MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710010SG-210STF4.096000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710011SG-210STF5.000000MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710012SG-210STF6.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710013SG-210STF6.144000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710014SG-210STF7.372800MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710015SG-210STF8.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710016SG-210STF10.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710017SG-210STF11.289600MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710018SG-210STF12.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710019SG-210STF12.288000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710021SG-210STF13.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710023SG-210STF13.560000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710024SG-210STF14.318180MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710025SG-210STF14.745600MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710027SG-210STF16.000000MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710028SG-210STF19.200000MHx-40+85°C1.6to3.6V50PPM15
      X1G0041710029SG-210STF20.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710030SG-210STF22.579200MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710031SG-210STF24.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710032SG-210STF24.576000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710033SG-210STF25.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710034SG-210STF26.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710035SG-210STF27.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710036SG-210STF27.120000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710037SG-210STF28.636360MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710038SG-210STF29.491200MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710039SG-210STF30.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710040SG-210STF32.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710041SG-210STF33.333000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710042SG-210STF36.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710043SG-210STF37.400000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710044SG-210STF38.400000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710045SG-210STF40.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710046SG-210STF48.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710047SG-210STF50.000000MHz
      -40+85°C1.6to3.6V50PPM15
      X1G0041710048SG-210STF52.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710049SG-210STF54.000000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710052SG-210STF8.192000MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710077SG-210STF25.000000MHz-20+70°C1.6to3.6V25PPM15
      X1G0041710078SG-210STF48.000000MHz-20+70°C1.6to3.6V25PPM15
      X1G0041710079SG-210STF50.000000MHz
      -20+70°C1.6to3.6V25PPM15
      X1G0041710080SG-210STF66.666700MHz-40+85°C1.6to3.6V50PPM15
      X1G0041710081SG-210STF75.000000MHz-40+85°C1.6to3.6V50PPM15

      爱普生晶振简介:

       爱普生(中国)有限公司成立于1998年,总部设在北京,负责统括爱普生在中国的投资和业务拓展。2004年5月,爱普生(中国)有限公司经中国商务部批准,成为中国首家获得“地区总部”资格认定的外商独资企业。目前,爱普生在华累计投资已超过8.22亿美元(约合50亿元人民币),共有14家制造、销售及服务等机构,员工逾18,000人。

      爱普生在中国开展的业务主要有打印机、扫描仪、投影机等信息关联产品业务,电子元器件业务以及工业自动化设备业务。其产品以卓越的品质和节能环保的特点,赢得了中国消费者的厚爱。立足于中国市场,爱普生始终本着“挑战与创新”理念,不断将一系列先进技术及应用方案引入中国,从而使中国消费者能够与世界同步,享受创新科技带来的完美体验。爱普生不断贡献于中国的环保和教育事业,作为一名优秀的中国企业公民而倍感自豪。企业官网请访问:http://www.xtal.cc
