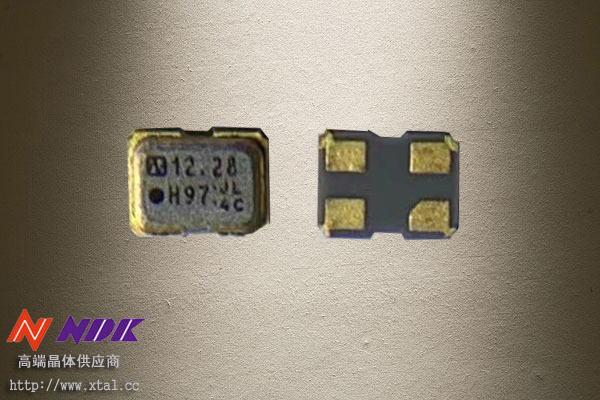

NZ2016SH

产品分类： NDK晶振

用途:车载导航,车载音响设备,车载摄像头智能手机,平板电脑,笔记本电脑,PC卡等音频设备,无线模块通信用途设备,SDH/SONET, WiMAX, LTE等基站特征:可对应 -40 to +125℃的宽温范围尺寸2.0×1.6mm, 高度0.7mm, 重量0.01g, 超小型,量轻可对应同样尺寸的晶体谐振器难以实现的低频（从6.5MHz起）低相位抖动 : Typ. 100fs (频率偏移：12kHz to 20MHz)@80MHz, 3.3V 缠带包装方式可对应自动搭载及IR回流焊接（无铅对应）为无铅产品符合AEC-Q100/Q200标准。

订购热线：0755-33533774

跟此产品相关的产品

: NZ2016SHA; 用途:车载导航/车载音响设备/车载摄像头特征:可对应 -40 to +125°C的宽温范围尺寸2.0×1.6mm,高度0.7mm,重量0.01g,超小型量轻起振时间可短于音叉型晶体谐振器为无铅产品符合AEC-Q200标准。

: NZ2016SHB; 用途:车载导航/车载音响设备/车载摄像头特征:可对应 -40 to +125°C的宽温范围尺寸2.0×1.6mm,高度0.7mm,重量0.01g,超小型量轻起振时间可短于音叉型晶体谐振器为无铅产品符合AEC-Q200标准。

: NZ2016SH 12.000MHz NSC5022A

产品详情




料号	型号	频率	电压	精度	工作温度
NZ2016SH-1.500000M-NSC5025D	NZ2016SH	1.5MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-1.625000M-NSC5021A	NZ2016SH	1.625MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-1.625000M-NSC5021D	NZ2016SH	1.625MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-1.625000M-NSC5025D	NZ2016SH	1.625MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-1.687500M-NSC5021A	NZ2016SH	1.6875MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-1.875000M-NSC5025D	NZ2016SH	1.875MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-11.640000M-NSC5025D	NZ2016SH	11.64MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-12.000000M-NSC5021A	NZ2016SH	12MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-12.000000M-NSC5021D	NZ2016SH	12MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-12.000000M-NSC5025D	NZ2016SH	12MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-12.500000M-NSC5019D	NZ2016SH	12.5MHz	3.3V	100PPM	-40°C ~ 105°C
NZ2016SH-13.000000M-NSC5021D	NZ2016SH	13MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-13.500000M-NSC5021A	NZ2016SH	13.5MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-13.500000M-NSC5021D	NZ2016SH	13.5MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-15.000000M-NSC5025D	NZ2016SH	15MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-16.000000M-NSC5021A	NZ2016SH	16MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-16.000M-NSC5022A	NZ2016SH	16MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH-19.660800M-NSC5021A	NZ2016SH	19.6608MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-19.660800M-NSC5021D	NZ2016SH	19.6608MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-2.000000M-NSC5021D	NZ2016SH	2MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-2.457600M-NSC5021D	NZ2016SH	2.4576MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-2.500000M-NSC5021D	NZ2016SH	2.5MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-2.910000M-NSC5021D	NZ2016SH	2.91MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-20.000000M-NSC5021A	NZ2016SH	20MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-20.000000M-NSC5021D	NZ2016SH	20MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-23.280000M-NSC5021A	NZ2016SH	23.28MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-23.280000M-NSC5021D	NZ2016SH	23.28MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-23.280000M-NSC5025D	NZ2016SH	23.28MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-24.000000M-NSC5021A	NZ2016SH	24MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-24.000000M-NSC5025D	NZ2016SH	24MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-25.000000M-NSC5021A	NZ2016SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-25.000000M-NSC5021D	NZ2016SH	25MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-26.000000M-NSC5021A	NZ2016SH	26MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-26.000000M-NSC5025D	NZ2016SH	26MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-27.000000M-NSC5021D	NZ2016SH	27MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-3.125000M-NSC5019D	NZ2016SH	3.125MHz	3.3V	100PPM	-40°C ~ 105°C
NZ2016SH-3.125000M-NSC5025D	NZ2016SH	3.125MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-3.250000M-NSC5021A	NZ2016SH	3.25MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-3.250000M-NSC5025D	NZ2016SH	3.25MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-3.375000M-NSC5021A	NZ2016SH	3.375MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-3.375000M-NSC5021D	NZ2016SH	3.375MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-30.000000M-NSC5025D	NZ2016SH	30MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-32.000000M-NSC5021D	NZ2016SH	32MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-32.768K-NSC5026D	NZ2016SH	32.768KHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH-32.768K-NSC5028D	NZ2016SH	32.768KHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-32.768K-NSC5031A	NZ2016SH	32.768KHz	1.8V	30PPM	-40°C ~ 85°C
NZ2016SH-32.768K-NSC5031D	NZ2016SH	32.768KHz	3.3V	30PPM	-40°C ~ 85°C
NZ2016SH-32M-NSC5021D	NZ2016SH	32MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-38.400000M-NSC5025D	NZ2016SH	38.4MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-4.000000M-NSC5021D	NZ2016SH	4MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-4.915200M-NSC5021A	NZ2016SH	4.9152MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-4.915200M-NSC5021D	NZ2016SH	4.9152MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-40.000000M-NSC5021A	NZ2016SH	40MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-40.000000M-NSC5021D	NZ2016SH	40MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-40M-NSC5021D	NZ2016SH	40MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-46.560000M-NSC5021D	NZ2016SH	46.56MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-46.560000M-NSC5025D	NZ2016SH	46.56MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-48.000000M-NSC5021A	NZ2016SH	48MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-48.000000M-NSC5021D	NZ2016SH	48MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-5.820000M-NSC5021D	NZ2016SH	5.82MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-5.820000M-NSC5025D	NZ2016SH	5.82MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-50.000000M-NSC5021D	NZ2016SH	50MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-53.200000M-NSC5021D	NZ2016SH	53.2MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-53.507100M-NSC5021D	NZ2016SH	53.5071MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-54.000000M-NSC5021A	NZ2016SH	54MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-6.000000M-NSC5021D	NZ2016SH	6MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-6.250000M-NSC5019D	NZ2016SH	6.25MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH-6.250000M-NSC5025D	NZ2016SH	6.25MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-6.750000M-NSC5021A	NZ2016SH	6.75MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-6.750000M-NSC5021D	NZ2016SH	6.75MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-7.500000M-NSC5025D	NZ2016SH	7.5MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-8.000000M-NSC5021A	NZ2016SH	8MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-8.000000M-NSC5021D	NZ2016SH	8MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-9.600000M-NSC5025D	NZ2016SH	9.6MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-9.830400M-NSC5021D	NZ2016SH	9.8304MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021A-20M	NZ2016SH	20MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-22.5792M	NZ2016SH	22.5792MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-24.576M	NZ2016SH	24.576MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-24M	NZ2016SH	24MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-25M	NZ2016SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-27M	NZ2016SH	27MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-32M	NZ2016SH	32MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-33.3333M	NZ2016SH	33.3333MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-40M	NZ2016SH	40MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-45.1584M	NZ2016SH	45.1584MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-48M	NZ2016SH	48MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-49.152M	NZ2016SH	49.152MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-50M	NZ2016SH	50MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-80M	NZ2016SH	80MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021D-20M	NZ2016SH	20MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-22.5792M	NZ2016SH	22.5792MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-24.576M	NZ2016SH	24.576MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-24M	NZ2016SH	24MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-25M	NZ2016SH	25MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-27M	NZ2016SH	27MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-32M	NZ2016SH	32MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-33.3333M	NZ2016SH	33.3333MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-40M	NZ2016SH	40MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-45.1584M	NZ2016SH	45.1584MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-48M	NZ2016SH	48MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-49.152M	NZ2016SH	49.152MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-50M	NZ2016SH	50MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021D-80M	NZ2016SH	80MHz	3.3V	50PPM	-40°C ~ 105°C
NSC5021A-25M	NZ2016SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5021A-27M	NZ2016SH	27MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 12.000MHz NSC5019A	NZ2016SH	12MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 12.000MHz NSC5019B	NZ2016SH	12MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 12.000MHz NSC5019C	NZ2016SH	12MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 12.000MHz NSC5019D	NZ2016SH	12MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 12.000MHz NSC5021A	NZ2016SH	12MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 12.000MHz NSC5021B	NZ2016SH	12MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 12.000MHz NSC5021C	NZ2016SH	12MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 12.000MHz NSC5021D	NZ2016SH	12MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 12.000MHz NSC5022A	NZ2016SH	12MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 12.000MHz NSC5022B	NZ2016SH	12MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 12.000MHz NSC5022C	NZ2016SH	12MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 12.000MHz NSC5022D	NZ2016SH	12MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 12.000MHz NSC5024A	NZ2016SH	12MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 12.000MHz NSC5024B	NZ2016SH	12MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 12.000MHz NSC5024C	NZ2016SH	12MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 12.000MHz NSC5024D	NZ2016SH	12MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 12.000MHz NSC5025A	NZ2016SH	12MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 12.000MHz NSC5025B	NZ2016SH	12MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 12.000MHz NSC5025C	NZ2016SH	12MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 12.000MHz NSC5025D	NZ2016SH	12MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 13.330MHz NSC5019A	NZ2016SH	13.33MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 13.330MHz NSC5019B	NZ2016SH	13.33MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 13.330MHz NSC5019C	NZ2016SH	13.33MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 13.330MHz NSC5019D	NZ2016SH	13.33MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 13.330MHz NSC5021A	NZ2016SH	13.33MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 13.330MHz NSC5021B	NZ2016SH	13.33MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 13.330MHz NSC5021C	NZ2016SH	13.33MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 13.330MHz NSC5021D	NZ2016SH	13.33MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 13.330MHz NSC5022A	NZ2016SH	13.33MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 13.330MHz NSC5022B	NZ2016SH	13.33MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 13.330MHz NSC5022C	NZ2016SH	13.33MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 13.330MHz NSC5022D	NZ2016SH	13.33MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 13.330MHz NSC5024A	NZ2016SH	13.33MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 13.330MHz NSC5024B	NZ2016SH	13.33MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 13.330MHz NSC5024C	NZ2016SH	13.33MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 13.330MHz NSC5024D	NZ2016SH	13.33MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 13.330MHz NSC5025A	NZ2016SH	13.33MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 13.330MHz NSC5025B	NZ2016SH	13.33MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 13.330MHz NSC5025C	NZ2016SH	13.33MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 13.330MHz NSC5025D	NZ2016SH	13.33MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 18.432MHz NSC5019A	NZ2016SH	18.432MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 18.432MHz NSC5019B	NZ2016SH	18.432MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 18.432MHz NSC5019C	NZ2016SH	18.432MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 18.432MHz NSC5019D	NZ2016SH	18.432MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 18.432MHz NSC5021A	NZ2016SH	18.432MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 18.432MHz NSC5021B	NZ2016SH	18.432MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 18.432MHz NSC5021C	NZ2016SH	18.432MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 18.432MHz NSC5021D	NZ2016SH	18.432MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 18.432MHz NSC5022A	NZ2016SH	18.432MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 18.432MHz NSC5022B	NZ2016SH	18.432MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 18.432MHz NSC5022C	NZ2016SH	18.432MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 18.432MHz NSC5022D	NZ2016SH	18.432MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 18.432MHz NSC5024A	NZ2016SH	18.432MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 18.432MHz NSC5024B	NZ2016SH	18.432MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 18.432MHz NSC5024C	NZ2016SH	18.432MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 18.432MHz NSC5024D	NZ2016SH	18.432MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 18.432MHz NSC5025A	NZ2016SH	18.432MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 18.432MHz NSC5025B	NZ2016SH	18.432MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 18.432MHz NSC5025C	NZ2016SH	18.432MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 18.432MHz NSC5025D	NZ2016SH	18.432MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 24.000MHz NSC5019A	NZ2016SH	24MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 24.000MHz NSC5019B	NZ2016SH	24MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 24.000MHz NSC5019C	NZ2016SH	24MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 24.000MHz NSC5019D	NZ2016SH	24MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 24.000MHz NSC5021A	NZ2016SH	24MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 24.000MHz NSC5021B	NZ2016SH	24MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 24.000MHz NSC5021C	NZ2016SH	24MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 24.000MHz NSC5021D	NZ2016SH	24MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 24.000MHz NSC5022A	NZ2016SH	24MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 24.000MHz NSC5022B	NZ2016SH	24MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 24.000MHz NSC5022C	NZ2016SH	24MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 24.000MHz NSC5022D	NZ2016SH	24MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 24.000MHz NSC5024A	NZ2016SH	24MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 24.000MHz NSC5024B	NZ2016SH	24MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 24.000MHz NSC5024C	NZ2016SH	24MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 24.000MHz NSC5024D	NZ2016SH	24MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 24.000MHz NSC5025A	NZ2016SH	24MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 24.000MHz NSC5025B	NZ2016SH	24MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 24.000MHz NSC5025C	NZ2016SH	24MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 24.000MHz NSC5025D	NZ2016SH	24MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 24.576MHz NSC5019A	NZ2016SH	24.576MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 24.576MHz NSC5019B	NZ2016SH	24.576MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 24.576MHz NSC5019C	NZ2016SH	24.576MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 24.576MHz NSC5019D	NZ2016SH	24.576MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 24.576MHz NSC5021A	NZ2016SH	24.576MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 24.576MHz NSC5021B	NZ2016SH	24.576MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 24.576MHz NSC5021C	NZ2016SH	24.576MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 24.576MHz NSC5021D	NZ2016SH	24.576MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 24.576MHz NSC5022A	NZ2016SH	24.576MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 24.576MHz NSC5022B	NZ2016SH	24.576MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 24.576MHz NSC5022C	NZ2016SH	24.576MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 24.576MHz NSC5022D	NZ2016SH	24.576MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 24.576MHz NSC5024A	NZ2016SH	24.576MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 24.576MHz NSC5024B	NZ2016SH	24.576MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 24.576MHz NSC5024C	NZ2016SH	24.576MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 24.576MHz NSC5024D	NZ2016SH	24.576MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 24.576MHz NSC5025A	NZ2016SH	24.576MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 24.576MHz NSC5025B	NZ2016SH	24.576MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 24.576MHz NSC5025C	NZ2016SH	24.576MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 24.576MHz NSC5025D	NZ2016SH	24.576MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 25.000MHz NSC5019A	NZ2016SH	25MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 25.000MHz NSC5019B	NZ2016SH	25MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 25.000MHz NSC5019C	NZ2016SH	25MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 25.000MHz NSC5019D	NZ2016SH	25MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 25.000MHz NSC5021A	NZ2016SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 25.000MHz NSC5021B	NZ2016SH	25MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 25.000MHz NSC5021C	NZ2016SH	25MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 25.000MHz NSC5021D	NZ2016SH	25MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 25.000MHz NSC5022A	NZ2016SH	25MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 25.000MHz NSC5022B	NZ2016SH	25MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 25.000MHz NSC5022C	NZ2016SH	25MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 25.000MHz NSC5022D	NZ2016SH	25MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 25.000MHz NSC5024A	NZ2016SH	25MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 25.000MHz NSC5024B	NZ2016SH	25MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 25.000MHz NSC5024C	NZ2016SH	25MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 25.000MHz NSC5024D	NZ2016SH	25MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 25.000MHz NSC5025A	NZ2016SH	25MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 25.000MHz NSC5025B	NZ2016SH	25MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 25.000MHz NSC5025C	NZ2016SH	25MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 25.000MHz NSC5025D	NZ2016SH	25MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 26.000MHz NSC5019A	NZ2016SH	26MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 26.000MHz NSC5019B	NZ2016SH	26MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 26.000MHz NSC5019C	NZ2016SH	26MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 26.000MHz NSC5019D	NZ2016SH	26MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 26.000MHz NSC5021A	NZ2016SH	26MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 26.000MHz NSC5021B	NZ2016SH	26MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 26.000MHz NSC5021C	NZ2016SH	26MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 26.000MHz NSC5021D	NZ2016SH	26MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 26.000MHz NSC5022A	NZ2016SH	26MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 26.000MHz NSC5022B	NZ2016SH	26MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 26.000MHz NSC5022C	NZ2016SH	26MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 26.000MHz NSC5022D	NZ2016SH	26MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 26.000MHz NSC5024A	NZ2016SH	26MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 26.000MHz NSC5024B	NZ2016SH	26MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 26.000MHz NSC5024C	NZ2016SH	26MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 26.000MHz NSC5024D	NZ2016SH	26MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 26.000MHz NSC5025A	NZ2016SH	26MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 26.000MHz NSC5025B	NZ2016SH	26MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 26.000MHz NSC5025C	NZ2016SH	26MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 26.000MHz NSC5025D	NZ2016SH	26MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 27.000MHz NSC5019A	NZ2016SH	27MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 27.000MHz NSC5019B	NZ2016SH	27MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 27.000MHz NSC5019C	NZ2016SH	27MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 27.000MHz NSC5019D	NZ2016SH	27MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 27.000MHz NSC5021A	NZ2016SH	27MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 27.000MHz NSC5021B	NZ2016SH	27MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 27.000MHz NSC5021C	NZ2016SH	27MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 27.000MHz NSC5021D	NZ2016SH	27MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 27.000MHz NSC5022A	NZ2016SH	27MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 27.000MHz NSC5022B	NZ2016SH	27MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 27.000MHz NSC5022C	NZ2016SH	27MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 27.000MHz NSC5022D	NZ2016SH	27MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 27.000MHz NSC5024A	NZ2016SH	27MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 27.000MHz NSC5024B	NZ2016SH	27MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 27.000MHz NSC5024C	NZ2016SH	27MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 27.000MHz NSC5024D	NZ2016SH	27MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 27.000MHz NSC5025A	NZ2016SH	27MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 27.000MHz NSC5025B	NZ2016SH	27MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 27.000MHz NSC5025C	NZ2016SH	27MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 27.000MHz NSC5025D	NZ2016SH	27MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 30.000MHz NSC5019A	NZ2016SH	30MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 30.000MHz NSC5019B	NZ2016SH	30MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 30.000MHz NSC5019C	NZ2016SH	30MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 30.000MHz NSC5019D	NZ2016SH	30MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 30.000MHz NSC5021A	NZ2016SH	30MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 30.000MHz NSC5021B	NZ2016SH	30MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 30.000MHz NSC5021C	NZ2016SH	30MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 30.000MHz NSC5021D	NZ2016SH	30MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 30.000MHz NSC5022A	NZ2016SH	30MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 30.000MHz NSC5022B	NZ2016SH	30MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 30.000MHz NSC5022C	NZ2016SH	30MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 30.000MHz NSC5022D	NZ2016SH	30MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 30.000MHz NSC5024A	NZ2016SH	30MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 30.000MHz NSC5024B	NZ2016SH	30MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 30.000MHz NSC5024C	NZ2016SH	30MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 30.000MHz NSC5024D	NZ2016SH	30MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 30.000MHz NSC5025A	NZ2016SH	30MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 30.000MHz NSC5025B	NZ2016SH	30MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 30.000MHz NSC5025C	NZ2016SH	30MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 30.000MHz NSC5025D	NZ2016SH	30MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 31.500MHz NSC5019A	NZ2016SH	31.5MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 31.500MHz NSC5019B	NZ2016SH	31.5MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 31.500MHz NSC5019C	NZ2016SH	31.5MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 31.500MHz NSC5019D	NZ2016SH	31.5MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 31.500MHz NSC5021A	NZ2016SH	31.5MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 31.500MHz NSC5021B	NZ2016SH	31.5MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 31.500MHz NSC5021C	NZ2016SH	31.5MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 31.500MHz NSC5021D	NZ2016SH	31.5MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 31.500MHz NSC5022A	NZ2016SH	31.5MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 31.500MHz NSC5022B	NZ2016SH	31.5MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 31.500MHz NSC5022C	NZ2016SH	31.5MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 31.500MHz NSC5022D	NZ2016SH	31.5MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 31.500MHz NSC5024A	NZ2016SH	31.5MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 31.500MHz NSC5024B	NZ2016SH	31.5MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 31.500MHz NSC5024C	NZ2016SH	31.5MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 31.500MHz NSC5024D	NZ2016SH	31.5MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 31.500MHz NSC5025A	NZ2016SH	31.5MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 31.500MHz NSC5025B	NZ2016SH	31.5MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 31.500MHz NSC5025C	NZ2016SH	31.5MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 31.500MHz NSC5025D	NZ2016SH	31.5MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 33.330MHz NSC5019A	NZ2016SH	33.33MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 33.330MHz NSC5019B	NZ2016SH	33.33MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 33.330MHz NSC5019C	NZ2016SH	33.33MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 33.330MHz NSC5019D	NZ2016SH	33.33MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 33.330MHz NSC5021A	NZ2016SH	33.33MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 33.330MHz NSC5021B	NZ2016SH	33.33MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 33.330MHz NSC5021C	NZ2016SH	33.33MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 33.330MHz NSC5021D	NZ2016SH	33.33MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 33.330MHz NSC5022A	NZ2016SH	33.33MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 33.330MHz NSC5022B	NZ2016SH	33.33MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 33.330MHz NSC5022C	NZ2016SH	33.33MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 33.330MHz NSC5022D	NZ2016SH	33.33MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 33.330MHz NSC5024A	NZ2016SH	33.33MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 33.330MHz NSC5024B	NZ2016SH	33.33MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 33.330MHz NSC5024C	NZ2016SH	33.33MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 33.330MHz NSC5024D	NZ2016SH	33.33MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 33.330MHz NSC5025A	NZ2016SH	33.33MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 33.330MHz NSC5025B	NZ2016SH	33.33MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 33.330MHz NSC5025C	NZ2016SH	33.33MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 33.330MHz NSC5025D	NZ2016SH	33.33MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 40.000MHz NSC5019A	NZ2016SH	40MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 40.000MHz NSC5019B	NZ2016SH	40MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 40.000MHz NSC5019C	NZ2016SH	40MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 40.000MHz NSC5019D	NZ2016SH	40MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 40.000MHz NSC5021A	NZ2016SH	40MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 40.000MHz NSC5021B	NZ2016SH	40MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 40.000MHz NSC5021C	NZ2016SH	40MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 40.000MHz NSC5021D	NZ2016SH	40MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 40.000MHz NSC5022A	NZ2016SH	40MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 40.000MHz NSC5022B	NZ2016SH	40MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 40.000MHz NSC5022C	NZ2016SH	40MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 40.000MHz NSC5022D	NZ2016SH	40MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 40.000MHz NSC5024A	NZ2016SH	40MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 40.000MHz NSC5024B	NZ2016SH	40MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 40.000MHz NSC5024C	NZ2016SH	40MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 40.000MHz NSC5024D	NZ2016SH	40MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 40.000MHz NSC5025A	NZ2016SH	40MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 40.000MHz NSC5025B	NZ2016SH	40MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 40.000MHz NSC5025C	NZ2016SH	40MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 40.000MHz NSC5025D	NZ2016SH	40MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 42.000MHz NSC5019A	NZ2016SH	42MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 42.000MHz NSC5019B	NZ2016SH	42MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 42.000MHz NSC5019C	NZ2016SH	42MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 42.000MHz NSC5019D	NZ2016SH	42MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 42.000MHz NSC5021A	NZ2016SH	42MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 42.000MHz NSC5021B	NZ2016SH	42MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 42.000MHz NSC5021C	NZ2016SH	42MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 42.000MHz NSC5021D	NZ2016SH	42MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 42.000MHz NSC5022A	NZ2016SH	42MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 42.000MHz NSC5022B	NZ2016SH	42MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 42.000MHz NSC5022C	NZ2016SH	42MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 42.000MHz NSC5022D	NZ2016SH	42MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 42.000MHz NSC5024A	NZ2016SH	42MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 42.000MHz NSC5024B	NZ2016SH	42MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 42.000MHz NSC5024C	NZ2016SH	42MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 42.000MHz NSC5024D	NZ2016SH	42MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 42.000MHz NSC5025A	NZ2016SH	42MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 42.000MHz NSC5025B	NZ2016SH	42MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 42.000MHz NSC5025C	NZ2016SH	42MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 42.000MHz NSC5025D	NZ2016SH	42MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 48.000MHz NSC5019A	NZ2016SH	48MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 48.000MHz NSC5019B	NZ2016SH	48MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 48.000MHz NSC5019C	NZ2016SH	48MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 48.000MHz NSC5019D	NZ2016SH	48MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 48.000MHz NSC5021A	NZ2016SH	48MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 48.000MHz NSC5021B	NZ2016SH	48MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 48.000MHz NSC5021C	NZ2016SH	48MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 48.000MHz NSC5021D	NZ2016SH	48MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 48.000MHz NSC5022A	NZ2016SH	48MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 48.000MHz NSC5022B	NZ2016SH	48MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 48.000MHz NSC5022C	NZ2016SH	48MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 48.000MHz NSC5022D	NZ2016SH	48MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 48.000MHz NSC5024A	NZ2016SH	48MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 48.000MHz NSC5024B	NZ2016SH	48MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 48.000MHz NSC5024C	NZ2016SH	48MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 48.000MHz NSC5024D	NZ2016SH	48MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 48.000MHz NSC5025A	NZ2016SH	48MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 48.000MHz NSC5025B	NZ2016SH	48MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 48.000MHz NSC5025C	NZ2016SH	48MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 48.000MHz NSC5025D	NZ2016SH	48MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 50.000MHz NSC5019A	NZ2016SH	50MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 50.000MHz NSC5019B	NZ2016SH	50MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 50.000MHz NSC5019C	NZ2016SH	50MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 50.000MHz NSC5019D	NZ2016SH	50MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 50.000MHz NSC5021A	NZ2016SH	50MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 50.000MHz NSC5021B	NZ2016SH	50MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 50.000MHz NSC5021C	NZ2016SH	50MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 50.000MHz NSC5021D	NZ2016SH	50MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 50.000MHz NSC5022A	NZ2016SH	50MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 50.000MHz NSC5022B	NZ2016SH	50MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 50.000MHz NSC5022C	NZ2016SH	50MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 50.000MHz NSC5022D	NZ2016SH	50MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 50.000MHz NSC5024A	NZ2016SH	50MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 50.000MHz NSC5024B	NZ2016SH	50MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 50.000MHz NSC5024C	NZ2016SH	50MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 50.000MHz NSC5024D	NZ2016SH	50MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 50.000MHz NSC5025A	NZ2016SH	50MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 50.000MHz NSC5025B	NZ2016SH	50MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 50.000MHz NSC5025C	NZ2016SH	50MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 50.000MHz NSC5025D	NZ2016SH	50MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 60.000MHz NSC5019A	NZ2016SH	60MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 60.000MHz NSC5019B	NZ2016SH	60MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 60.000MHz NSC5019C	NZ2016SH	60MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 60.000MHz NSC5019D	NZ2016SH	60MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 60.000MHz NSC5021A	NZ2016SH	60MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 60.000MHz NSC5021B	NZ2016SH	60MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 60.000MHz NSC5021C	NZ2016SH	60MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 60.000MHz NSC5021D	NZ2016SH	60MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 60.000MHz NSC5022A	NZ2016SH	60MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 60.000MHz NSC5022B	NZ2016SH	60MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 60.000MHz NSC5022C	NZ2016SH	60MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 60.000MHz NSC5022D	NZ2016SH	60MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 60.000MHz NSC5024A	NZ2016SH	60MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 60.000MHz NSC5024B	NZ2016SH	60MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 60.000MHz NSC5024C	NZ2016SH	60MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 60.000MHz NSC5024D	NZ2016SH	60MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 60.000MHz NSC5025A	NZ2016SH	60MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 60.000MHz NSC5025B	NZ2016SH	60MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 60.000MHz NSC5025C	NZ2016SH	60MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 60.000MHz NSC5025D	NZ2016SH	60MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 63.750MHz NSC5019A	NZ2016SH	63.75MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 63.750MHz NSC5019B	NZ2016SH	63.75MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 63.750MHz NSC5019C	NZ2016SH	63.75MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 63.750MHz NSC5019D	NZ2016SH	63.75MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 63.750MHz NSC5021A	NZ2016SH	63.75MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 63.750MHz NSC5021B	NZ2016SH	63.75MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 63.750MHz NSC5021C	NZ2016SH	63.75MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 63.750MHz NSC5021D	NZ2016SH	63.75MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 63.750MHz NSC5022A	NZ2016SH	63.75MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 63.750MHz NSC5022B	NZ2016SH	63.75MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 63.750MHz NSC5022C	NZ2016SH	63.75MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 63.750MHz NSC5022D	NZ2016SH	63.75MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 63.750MHz NSC5024A	NZ2016SH	63.75MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 63.750MHz NSC5024B	NZ2016SH	63.75MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 63.750MHz NSC5024C	NZ2016SH	63.75MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 63.750MHz NSC5024D	NZ2016SH	63.75MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 63.750MHz NSC5025A	NZ2016SH	63.75MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 63.750MHz NSC5025B	NZ2016SH	63.75MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 63.750MHz NSC5025C	NZ2016SH	63.75MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 63.750MHz NSC5025D	NZ2016SH	63.75MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 64.000MHz NSC5019A	NZ2016SH	64MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 64.000MHz NSC5019B	NZ2016SH	64MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 64.000MHz NSC5019C	NZ2016SH	64MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 64.000MHz NSC5019D	NZ2016SH	64MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 64.000MHz NSC5021A	NZ2016SH	64MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 64.000MHz NSC5021B	NZ2016SH	64MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 64.000MHz NSC5021C	NZ2016SH	64MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 64.000MHz NSC5021D	NZ2016SH	64MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 64.000MHz NSC5022A	NZ2016SH	64MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 64.000MHz NSC5022B	NZ2016SH	64MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 64.000MHz NSC5022C	NZ2016SH	64MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 64.000MHz NSC5022D	NZ2016SH	64MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 64.000MHz NSC5024A	NZ2016SH	64MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 64.000MHz NSC5024B	NZ2016SH	64MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 64.000MHz NSC5024C	NZ2016SH	64MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 64.000MHz NSC5024D	NZ2016SH	64MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 64.000MHz NSC5025A	NZ2016SH	64MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 64.000MHz NSC5025B	NZ2016SH	64MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 64.000MHz NSC5025C	NZ2016SH	64MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 64.000MHz NSC5025D	NZ2016SH	64MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 74.250MHz NSC5019A	NZ2016SH	74.25MHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH 74.250MHz NSC5019B	NZ2016SH	74.25MHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH 74.250MHz NSC5019C	NZ2016SH	74.25MHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH 74.250MHz NSC5019D	NZ2016SH	74.25MHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH 74.250MHz NSC5021A	NZ2016SH	74.25MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH 74.250MHz NSC5021B	NZ2016SH	74.25MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH 74.250MHz NSC5021C	NZ2016SH	74.25MHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH 74.250MHz NSC5021D	NZ2016SH	74.25MHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH 74.250MHz NSC5022A	NZ2016SH	74.25MHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH 74.250MHz NSC5022B	NZ2016SH	74.25MHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH 74.250MHz NSC5022C	NZ2016SH	74.25MHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH 74.250MHz NSC5022D	NZ2016SH	74.25MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH 74.250MHz NSC5024A	NZ2016SH	74.25MHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH 74.250MHz NSC5024B	NZ2016SH	74.25MHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH 74.250MHz NSC5024C	NZ2016SH	74.25MHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH 74.250MHz NSC5024D	NZ2016SH	74.25MHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH 74.250MHz NSC5025A	NZ2016SH	74.25MHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH 74.250MHz NSC5025B	NZ2016SH	74.25MHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH 74.250MHz NSC5025C	NZ2016SH	74.25MHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH 74.250MHz NSC5025D	NZ2016SH	74.25MHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH-1.500MHZ-NSC5019A	NZ2016SH	1.5MHZHz	1.8V	100PPM	-40°C ~ 125°C
NZ2016SH-1.500MHZ-NSC5019B	NZ2016SH	1.5MHZHz	2.5V	100PPM	-40°C ~ 125°C
NZ2016SH-1.500MHZ-NSC5019C	NZ2016SH	1.5MHZHz	3V	100PPM	-40°C ~ 125°C
NZ2016SH-1.500MHZ-NSC5019D	NZ2016SH	1.5MHZHz	3.3V	100PPM	-40°C ~ 125°C
NZ2016SH-1.500MHZ-NSC5021A	NZ2016SH	1.5MHZHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-1.500MHZ-NSC5021B	NZ2016SH	1.5MHZHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH-1.500MHZ-NSC5021C	NZ2016SH	1.5MHZHz	3V	50PPM	-40°C ~ 105°C
NZ2016SH-1.500MHZ-NSC5021D	NZ2016SH	1.5MHZHz	3.3V	50PPM	-40°C ~ 105°C
NZ2016SH-1.500MHZ-NSC5022A	NZ2016SH	1.5MHZHz	1.8V	50PPM	-40°C ~ 85°C
NZ2016SH-1.500MHZ-NSC5022B	NZ2016SH	1.5MHZHz	2.5V	50PPM	-40°C ~ 85°C
NZ2016SH-1.500MHZ-NSC5022C	NZ2016SH	1.5MHZHz	3V	50PPM	-40°C ~ 85°C
NZ2016SH-1.500MHZ-NSC5022D	NZ2016SH	1.5MHZHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH-1.500MHZ-NSC5024A	NZ2016SH	1.5MHZHz	1.8V	30PPM	-10°C ~ 70°C
NZ2016SH-1.500MHZ-NSC5024B	NZ2016SH	1.5MHZHz	2.5V	30PPM	-10°C ~ 70°C
NZ2016SH-1.500MHZ-NSC5024C	NZ2016SH	1.5MHZHz	3V	30PPM	-10°C ~ 70°C
NZ2016SH-1.500MHZ-NSC5024D	NZ2016SH	1.5MHZHz	3.3V	30PPM	-10°C ~ 70°C
NZ2016SH-1.500MHZ-NSC5025A	NZ2016SH	1.5MHZHz	1.8V	20PPM	-10°C ~ 60°C
NZ2016SH-1.500MHZ-NSC5025B	NZ2016SH	1.5MHZHz	2.5V	20PPM	-10°C ~ 60°C
NZ2016SH-1.500MHZ-NSC5025C	NZ2016SH	1.5MHZHz	3V	20PPM	-10°C ~ 60°C
NZ2016SH-1.500MHZ-NSC5025D	NZ2016SH	1.5MHZHz	3.3V	20PPM	-10°C ~ 60°C
NZ2016SH 13.33MHZ EKS00A-RNA5001A	NZ2016SH	13.33MHz
NZ2016SH-32.768000M-NSC5031C	NZ2016SH	32.768MHz	3.3V	30PPM	-40°C ~ 85°C
NZ2016SH-80.000000M-NSC5021B	NZ2016SH	80MHz	2.5V	50PPM	-40°C ~ 105°C
NZ2016SH-80.000000M-NSC5022D	NZ2016SH	80MHz	3.3V	50PPM	-40°C ~ 85°C
NZ2016SH-80.000MHZ-NSC5021A	NZ2016SH	80MHz	1.8V	50PPM	-40°C ~ 105°C
NZ2016SH-80.000MHZ-NSC5022C	NZ2016SH	80MHz	3.3V	50PPM	-40°C ~ 85°C

02
2025-01
ABS06-32.768KHZ-T晶振高精度与低功耗的完美结合
ABS06-32.768KHZ-T晶振是由艾博康Abracon晶振公司生产的一款高性能无源晶振,ABS06-32.768KHZ-T晶振的频率为32.768kHz,频率稳定性±20ppm,负载电容12.5PF,等效串联电阻（ESR）为90 kOhms,尺寸2.0x1.2x0.6mm,ABS06-32.768KHZ-T晶振能够提供高精度的时钟信号,适用于需要精确计时的应用,另外ABS06-32.768KHZ-T进口晶振的功耗非常低,适用于电池供电的设备有助于延长设备的使用时间。
02
2025-01
ABMM-25.000MHZ-D2X-T晶振电子设备的匠心之选
ABMM-25.000MHZ-D2X-T晶振是由艾博康Abracon晶振公司推出的高品质无源晶振,专为需要高精度和高稳定性电子设备的应用而设计,该ABMM-25.000MHZ-D2X-T贴片晶振以其出色的性能参数和广泛的应用领域,在通信设备,计算机,消费电子等多个行业中得到了广泛的应用,ABMM-25.000MHZ-D2X-T晶振的标称频率为25MHz,频率稳定度高达±20ppm,频率容差为±20ppm,这种高精度的频率输出确保了系统的准确性和稳定性对于需要高精度电子设备应用至关重要。
31
2024-12
ABM8W-12.0000MHZ-8-D1X-T3晶振革新物联网与可穿戴设备
美国ABM8W-12.0000MHZ-8-D1X-T3艾博康ABRACON晶振是一款小体积,高频率稳定性的无源3225贴片进口晶振,尺寸仅为3.2x2.5x0.75mm,其频率高达12MHz,频率稳定度达到了±20ppm,频率容差为±10ppm,这些参数均能满足各种高精度应用的需求,此外ABM8W-12.0000MHZ-8-D1X-T3该晶振的负载电容为8pF,等效串联电阻（ESR）为100Ω,工作温度范围为-40°C至+85°C,这些特性使其在各种恶劣环境下都能保持稳定的性能。
31
2024-12
ABM3B-8.000MHZ-10-1-U-T晶振精密与稳定的完美融合
在电子设备不断向小型化,轻量化发展的今天内部组件的尺寸也成为了制约产品设计的关键因素之一,ABM3B-8.000MHZ-10-1-U-T艾博康ABRACON晶振采用了超小尺寸的封装工艺,在保证性能的前提下,最大限度地减小了晶振的体积,ABM3B-8.000MHZ-10-1-U-T晶振凭借其卓越的性能优势在多个领域展现出了广阔的市场前景,在物联网领域数以亿计的物联网设备需要稳定,低功耗的晶振来实现精准的时间同步和高效的数据采集与传输,ABM3B-8.000MHZ-10-1-U-T晶振的出现,正好满足了物联网产业对晶振的迫切需求,将有力推动物联网设备的普及和应用。
31
2024-12
ABM13W-32.0000MHZ-8-D1X-T5晶振高效能驱动蓝牙模块
美国艾博康ABRACON晶振公司旗下的ABM13W-32.0000MHZ-8-D1X-T5进口晶振以其卓越的性能和广泛的应用领域,在电子行业中发挥着重要作用,其高精度,高稳定性和宽广的工作温度范围,使得ABM13W-32.0000MHZ-8-D1X-T5进口晶振成为多种电子设备中的理想时钟信号源,随着物联网5G通信,工业自动化等技术的不断发展和普及,ABM13W-32.0000MHZ-8-D1X-T5晶振的市场前景将更加广阔,在当今高度信息化的时代,电子设备的稳定运行离不开精确的时间基准和频率控制,晶振作为电子设备中的关键组件,承担着产生稳定频率信号的重任,在众多晶振产品中ABM13W-32.0000MHZ-8-D1X-T5晶振以其卓越的性能和广泛的应用领域,成为了众多电子工程师和制造商的首选。
30
2024-12
ABM12W-48.0000MHZ-6-D2X-T3晶振音频设备的“信赖之选”
随着物联网技术的不断发展,越来越多的智能设备将接入网络,这些设备需要稳定的时钟信号来确保数据的准确传输和处理,ABM12W-48.0000MHZ-6-D2X-T3晶振的高精度和高稳定性使其成为物联网设备的理想选择,ABM12W-48.0000MHZ-6-D2X-T3晶振凭借其出色的性能和稳定性,赢得了市场的广泛认可,ABM12W-48.0000MHZ-6-D2X-T3晶振由知名晶振制造商ABRACON艾博康晶振公司推出。
26
2024-12
ABM11W-32.0000MHZ-8-D1X-T3 晶振精准心跳为电子设备注入稳定脉搏
随着物联网,5G通信等技术的不断发展和普及,晶振市场将迎来更加广阔的发展前景,ABM11W-32.0000MHZ-8-D1X-T3晶振作为一款性能卓越,稳定性高的产品特别是在物联网,智能家居,可穿戴设备等领域,这为艾博康ABRACON晶振制造商提供了巨大的市场机遇,ABM11W-32.0000MHZ-8-D1X-T3晶振作为Abracon晶振公司的一款明星产品,凭借其出色的性能和稳定性,在市场中赢得了广泛的认可。
26
2024-12
ABM10W-16.0000MHZ-8-D2X-T3晶振让电子设备更精准运行
ABM10W-16.0000MHZ-8-D2X-T3 晶振是一款由ABRACON艾博康晶振公司生产的高性能无源晶振,其以出色的频率稳定性和可靠的工作性能,在通信,计算机,消费电子等多个领域得到了广泛应用,该晶振的频率为16MHz,频率稳定性±20ppm,频率容差,±20ppm,负载电容为8pF,ESR（等效串联电阻）70 Ohms,此款ABM10W-16.0000MHZ-8-D2X-T3晶振具有极高的频率稳定度和精度,同时其工作温度范围广泛能够在-40℃至+85℃的环境下稳定工作满足各种恶劣环境下的应用需求。

NDK晶振简介

NDK晶振产品性能特点包括高精度,低抖动,低噪声,以及卓越的温度稳定性和环境适应性,其产品能在极端温度和震动条件下保持稳定工作,符合环保标准,支持无铅焊料回流成形,并广泛应用于多个市场领域,此外NDK晶振还具备小型化低功耗等特点,为电子产品提供高效的频率控制解决方案,请浏览我们的网站http://www.xtal.cc

^{深圳市加科电子有限公司}

联系人：黄河 _15602443498

座机：_{0755-33533774}

邮箱：_{jiakedz@163.com}

QQ：_3080074590

_地址：_{深圳市宝安区13区宝民一路白金大厦13F}

_网址：_{https://www.xtal.cc}

NZ2016SH NDK晶振 NZ2016SH 13.33MHZ EKS00A-RNA5001A NZ2016SH 25.000MHz NSC5022D

* 表示必填采购：NZ2016SH

* 联系人：	请填写您的真实姓名
公司名称：	请填写您的公司名称
联系电话：
* 手机号码：	请填写您的联系电话
电子邮件：
联系地址：
* 采购意向描述：
	请填写采购的产品数量和产品描述，方便我们进行统一备货。
验证码：

跟此产品相关的产品

: NZ2016SHA; 用途:车载导航/车载音响设备/车载摄像头特征:可对应 -40 to +125°C的宽温范围尺寸2.0×1.6mm,高度0.7mm,重量0.01g,超小型量轻起振时间可短于音叉型晶体谐振器为无铅产品符合AEC-Q200标准。

: NZ2016SHB; 用途:车载导航/车载音响设备/车载摄像头特征:可对应 -40 to +125°C的宽温范围尺寸2.0×1.6mm,高度0.7mm,重量0.01g,超小型量轻起振时间可短于音叉型晶体谐振器为无铅产品符合AEC-Q200标准。

: NZ2016SH 12.000MHz NSC5022A

共有-条评论【我要评论】

查看全部评论

我要评论:
内容：	（内容最多500个汉字，1000个字符）
验证码：	看不清？！

联系加科电子Contact

咨询热线：0755-33533774

传真：0755-33533774

QQ：3080074590

邮箱：jiakedz@163.com

地址：深圳市宝安区宝民一路123号3号楼13F

加科电子 全球高端晶体品牌供应商小型化 高”晶“准

NZ2016SH

ABS06-32.768KHZ-T晶振高精度与低功耗的完美结合

ABMM-25.000MHZ-D2X-T晶振电子设备的匠心之选

ABM8W-12.0000MHZ-8-D1X-T3晶振革新物联网与可穿戴设备

ABM3B-8.000MHZ-10-1-U-T晶振精密与稳定的完美融合

ABM13W-32.0000MHZ-8-D1X-T5晶振高效能驱动蓝牙模块

ABM12W-48.0000MHZ-6-D2X-T3晶振音频设备的“信赖之选”

ABM11W-32.0000MHZ-8-D1X-T3晶振精准心跳为电子设备注入稳定脉搏

RIVER大河晶振掀起全球高端设备热销狂潮

ECS-.327-12.5-34B-TR晶振以微小身躯驱动时钟“心跳”

X2B026000B91H-HU加高晶振重新定义电子设备的“心跳”

XXDGHHPANF-20.000000泰艺晶振赢得车载市场青睐

CSTCR4M00G55B-R0村田晶振在车载领域展现非凡的实力

CM315D32768DZFT西铁城晶振卓越性能掀起小型化设备市场革命！

ABM14N晶振引领电子产业新风尚

HOSONIC鸿星晶振引领智能设备行业新潮流

1XXB26000MAA温补晶振高科技领域的璀璨明星

RX8130CE时钟模块以高精度低功耗引领新时代

ABS06-32.768KHZ-1-T晶振小身材大能量助力时钟产业飞速发展

XRCGB26M000F1H08R0晶振从通信设备到车载设备,无处不在的‘守护者’！”

KT2016K26000CCW18ZBN温补晶振GPS模块中不可替代的一部分

Q22FA1280009218晶振蓝牙模块中的关键角色

NDK晶振型号大揭秘

A308000003晶振车载设备稳定运行的关键动力

CM9V-T1A晶振物联网设备长续航的秘诀

32.768KHz晶振电子设备中不可或缺的地位

Micro微晶晶振全球领先制造厂商

KYOCERA京瓷晶振数字设备的主动力

EPSON爱普生晶振引领电子设备新一轮浪潮

共有-条评论【我要评论】

联系加科电子Contact

加科电子全球高端晶体品牌供应商小型化高”晶“准

ABM11W-32.0000MHZ-8-D1X-T3 晶振精准心跳为电子设备注入稳定脉搏

KYOCERA 京瓷晶振数字设备的主动力
