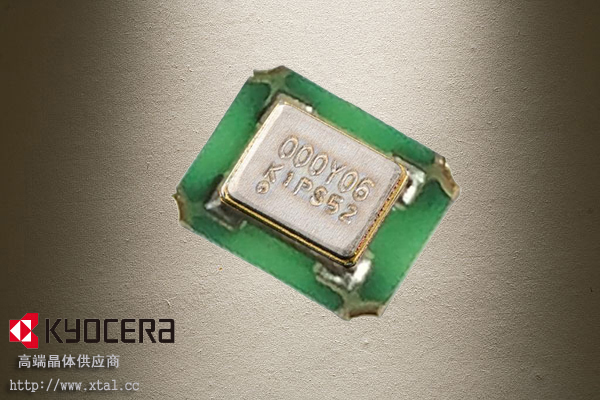

KC3225Z

产品分类：京瓷晶振

特征：频率范围0.5至170 MHz,CMOS输出交付周期短,耐热性高达+125°C应用：消费者/网络/工业/娱乐。

订购热线：0755-33533774

跟此产品相关的产品

: KC3225Z60.0000C15XXK 3.6864MHz有源晶振 1.71V ~ 3.63V ±30ppm kyocera晶振

: KC3225Z60.0000C1KX00 60MHz有源晶振 1.71V ~ 3.63V ±20ppm kyocera晶振

: 100MHz有源晶振 KC3225Z100.000C1KX00 1.71V ~ 3.63V ±20ppm 3225京瓷晶振

产品详情

KC2016Z

料号	型号	频率	最低温度	最高温度	精度	电压
KC3225Z1.84320C15XXK	KC3225Z	1.8432MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z1.84320C1KX00	KC3225Z	1.8432MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z10.0000C15XXK	KC3225Z	10MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z10.0000C1KX00	KC3225Z	10MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z11.2896C15XXK	KC3225Z	11.2896MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z11.2896C1KX00	KC3225Z	11.2896MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z12.0000C15XXK	KC3225Z	12MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z12.0000C1GX00	KC3225Z	12MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z12.0000C1KX00	KC3225Z	12MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z12.2880C15XXK	KC3225Z	12.288MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z12.2880C1KX00	KC3225Z	12.288MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z125.000C1GX00	KC3225Z	125MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z13.5600C15XXK	KC3225Z	13.56MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z13.5600C1KX00	KC3225Z	13.56MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z14.3182C15XXK	KC3225Z	14.3182MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z14.3182C1KX00	KC3225Z	14.3182MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z14.7456C15XXK	KC3225Z	14.7456MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z16.0000C15XXK	KC3225Z	16MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z16.0000C1KX00	KC3225Z	16MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z18.4320C15XXK	KC3225Z	18.432MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z18.4320C1KX00	KC3225Z	18.432MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z2.04800C15XXK	KC3225Z	2.048MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z2.04800C1KX00	KC3225Z	2.048MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z22.5792C15XXK	KC3225Z	22.5792MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z22.5792C1KX00	KC3225Z	22.5792MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C14Y00	KC3225Z	24MHz	-40	105	±20ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C15Y00	KC3225Z	24MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C16Y00	KC3225Z	24MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1GY00	KC3225Z	24MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1HY00	KC3225Z	24MHz	-40	85	±30ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1JY00	KC3225Z	24MHz	-40	85	±25ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1KX00	KC3225Z	24MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1KY00	KC3225Z	24MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1LY00	KC3225Z	24MHz	-40	85	±15ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1SY00	KC3225Z	24MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1UY00	KC3225Z	24MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1WY00	KC3225Z	24MHz	-10	70	±20ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1XY00	KC3225Z	24MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
KC3225Z24.0000C1ZY00	KC3225Z	24MHz	-40	125	±50ppm	1.8V,2.5V,3.3V
KC3225Z24.5760C15XXK	KC3225Z	24.576MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C14Y00	KC3225Z	25MHz	-40	105	±20ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C15XXK	KC3225Z	25MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C15Y00	KC3225Z	25MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C16Y00	KC3225Z	25MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1GX00	KC3225Z	25MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1GY00	KC3225Z	25MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1HY00	KC3225Z	25MHz	-40	85	±30ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1JX00	KC3225Z	25MHz	-40	85	±25ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1JY00	KC3225Z	25MHz	-40	85	±25ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1KY00	KC3225Z	25MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1LY00	KC3225Z	25MHz	-40	85	±15ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1SY00	KC3225Z	25MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1UY00	KC3225Z	25MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1WY00	KC3225Z	25MHz	-10	70	±20ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1XY00	KC3225Z	25MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
KC3225Z25.0000C1ZY00	KC3225Z	25MHz	-40	125	±50ppm	1.8V,2.5V,3.3V
KC3225Z26.0000C15XXK	KC3225Z	26MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z26.0000C1KX00	KC3225Z	26MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z27.0000C15XXK	KC3225Z	27MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z27.0000C1GX00	KC3225Z	27MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z27.0000C1KX00	KC3225Z	27MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z28.6364C15XXK	KC3225Z	28.6364MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z28.6364C1KX00	KC3225Z	28.6364MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z3.68640C1KX00	KC3225Z	3.6864MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z32.0000C15XXK	KC3225Z	32MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z32.0000C1KX00	KC3225Z	32MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z32.7680C15XXK	KC3225Z	32.768MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z33.0000C15XXK	KC3225Z	33MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z33.0000C1KX00	KC3225Z	33MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z33.3333C15XXK	KC3225Z	33.3333MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z40.0000C15XXK	KC3225Z	40MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z40.0000C1KX00	KC3225Z	40MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z48.0000C15XXK	KC3225Z	48MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z48.0000C1GX00	KC3225Z	48MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z48.0000C1KX00	KC3225Z	48MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C14Y00	KC3225Z	50MHz	-40	105	±20ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C15XXK	KC3225Z	50MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C15Y00	KC3225Z	50MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C16Y00	KC3225Z	50MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1GX00	KC3225Z	50MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1GY00	KC3225Z	50MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1HY00	KC3225Z	50MHz	-40	85	±30ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1JY00	KC3225Z	50MHz	-40	85	±25ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1KX00	KC3225Z	50MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1KY00	KC3225Z	50MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1LY00	KC3225Z	50MHz	-40	85	±15ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1SY00	KC3225Z	50MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1UY00	KC3225Z	50MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1WY00	KC3225Z	50MHz	-10	70	±20ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1XY00	KC3225Z	50MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
KC3225Z50.0000C1ZY00	KC3225Z	50MHz	-40	125	±50ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C14Y00	KC3225Z	60MHz	-40	105	±20ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C15XXK	KC3225Z	60MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C15Y00	KC3225Z	60MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C16Y00	KC3225Z	60MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1GY00	KC3225Z	60MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1HY00	KC3225Z	60MHz	-40	85	±30ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1JY00	KC3225Z	60MHz	-40	85	±25ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1KX00	KC3225Z	60MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1KY00	KC3225Z	60MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1LY00	KC3225Z	60MHz	-40	85	±15ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1SY00	KC3225Z	60MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1UY00	KC3225Z	60MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1WY00	KC3225Z	60MHz	-10	70	±20ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1XY00	KC3225Z	60MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
KC3225Z60.0000C1ZY00	KC3225Z	60MHz	-40	125	±50ppm	1.8V,2.5V,3.3V
KC3225Z66.6667C15XXK	KC3225Z	66.6667MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z66.6667C1KX00	KC3225Z	66.6667MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z7.37280C15XXK	KC3225Z	7.3728MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z75.0000C15XXK	KC3225Z	75MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z75.0000C1KX00	KC3225Z	75MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z8.00000C15XXK	KC3225Z	8MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z8.00000C1KX00	KC3225Z	8MHz	-40	85	±20ppm	1.8V,2.5V,3.3V
KC3225Z80.0000C15XXK	KC3225Z	80MHz	-40	105	±30ppm	1.8V,2.5V,3.3V
KC3225Z80.0000C1KX00	KC3225Z	80MHz	-40	85	±20ppm	1.8V,2.5V,3.3V

京瓷晶振简介：

京瓷晶振,全称日本KYOCERA京瓷晶振株式会社成立于1959年由稻盛和夫创办,是一家有着悠久发展历史的知名品牌晶振公司,该公司专注于研发生产石英晶体,有源晶振,温补晶振,差分晶振,压控晶振等元件,是业内领先的制造商之一,京瓷晶振始终如一地开发和制造晶体振荡器和晶体振荡器等产品,这些产品应用了人造石英的栽培特性,同时京瓷晶振向全球市场供应大量水晶产品,为即将到来的智能物联网时代的发展做出贡献。官网请访问http://www.xtal.cc
