ABM8G晶振,ABM8G-16.000MHZ-B4Y-T,Abracon晶振

当前位置:首页 » 加科电子产品中心 » 进口晶振 » ABM8G

prevnext

查看全部大图

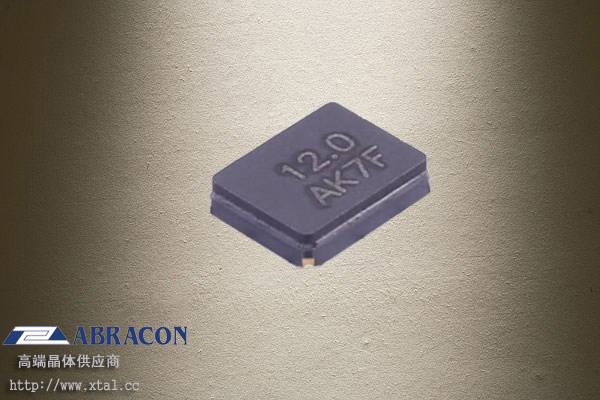

ABM8G

产品分类：进口晶振

特点：高密度应用。调制解调器、通信和测试设备,PMCIA，无线应用高度低；适用于薄设备玻璃密封包装确保高可靠性以及高温操作精密公差和稳定性红外回流低成本版本的ABM8晶体高密度，应用,调制解调器通信和测试设备。PMCIA，无线应用.

订购热线：0755-33533774

跟此产品相关的产品

: ABM4BAIG-8.000MHZ-10-R40-J-T,8MHz晶振,ABRACON晶振,艾博康晶振,7050晶振

: TCXO晶振,TXC晶振,19.2MHz温补晶振,7Q19203002,3225晶振,2.8V,0.5PPM,-30~+85℃

: TCXO晶振,TXC晶振,7Q26000001,26MHz温补晶振,3225晶振,2.8V,0.5PPM,-30~+85℃

产品详情

ABM8G晶振规格书

ABM8G-12.000MHZ-4Y-T3	12 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-25.000MHZ-4Y-T3	25 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-16.000MHZ-4Y-T3	16 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-14.7456MHZ-4Y-T3	14.7456 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-24.576MHZ-4Y-T3	24.576 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-12.288MHZ-4Y-T3	12.288 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-20.000MHZ-4Y-T3	20 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-27.000MHZ-4Y-T3	27 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-12.000MHZ-18-D2Y-T	12 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-24.000MHZ-18-D2Y-T	24 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-16.000MHZ-18-D2Y-T	16 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-28.63636MHZ-4Y-T3	28.63636 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-16.000MHZ-18-D2Y-T3	16 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-25.000MHZ-B4Y-T3	25 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-20.000MHZ-18-D2Y-T	20 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-25.000MHZ-B4Y-T	25 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-12.000MHZ-B4Y-T	12 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-27.000MHZ-18-D2Y-T	27 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-13.560MHZ-18-D2Y-T	13.56 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-14.7456MHZ-18-D2Y-T	14.7456 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-48.000MHZ-18-D2Y-T	48 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-24.000MHZ-B4Y-T	24 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-24.576MHZ-18-D2Y-T	24.576 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-12.000MHZ-18-D2Y-T3	12 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-32.000MHZ-B4Y-T	32 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-26.000MHZ-18-D2Y-T	26 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-25.000MHZ-18-D2Y-T3	25 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-13.560MHZ-4Y-T3	13.56 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-16.384MHZ-B4Y-T	16.384 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-16.000MHZ-B4Y-T	16 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-18.432MHZ-B4Y-T	18.432 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-48.000MHZ-B4Y-T	48 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-27.000MHZ-B4Y-T	27 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-12.288MHZ-18-D2Y-T	12.288 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-14.31818MHZ-B4Y-T	14.31818 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-28.63636MHZ-18-D2Y-T	28.63636 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-40.000MHZ-18-D2Y-T	40 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-30.000MHZ-18-D2Y-T	30 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-16.384MHZ-4Y-T3	16.384 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-26.000MHZ-B4Y-T	26 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-14.31818MHZ-18-D2Y-T	14.31818 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-19.6608MHZ-18-D2Y-T	19.6608 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-22.1184MHZ-18-D2Y-T	22.1184 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-16.384MHZ-18-D2Y-T	16.384 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-30.000MHZ-4Y-T3	30 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-40.000MHZ-4Y-T3	40 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-18.432MHZ-4Y-T3	18.432 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-16.384MHZ-12-B4Y-T	16.384 MHz	±30ppm	12pF	-20°C ~ 70°C
ABM8G-18.432MHZ-18-D2Y-T	18.432 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-48.000MHZ-4Y-T3	48 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-22.1184MHZ-4Y-T3	22.1184 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-33.000MHZ-4Y-T3	33 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-28.63636MHZ-B4Y-T	28.63636 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-13.560MHZ-B4Y-T	13.56 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-13.000MHZ-18-D2Y-T	13 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-12.000MHZ-18-D4W-T3	12 MHz	±25ppm	18pF	-40°C ~ 85°C
ABM8G-24.000MHZ-4Y-T3	24 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-25.000MHZ-18-D2Y-T	25 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-24.576MHZ-B4Y-T	24.576 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-40.000MHZ-B4Y-T	40 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-12.288MHZ-B4Y-T	12.288 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-30.000MHZ-B4Y-T	30 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-16.000MHZ-8-D2Y-T	16 MHz	±30ppm	8pF	-40°C ~ 85°C
ABM8G-12.000MHZ-8-B2X-T	12 MHz	±20ppm	8pF	-20°C ~ 70°C
ABM8G-25.000MHZ-10-R50-B4Y-T	25 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-24.000MHZ-4Y-T	24 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-14.31818MHZ-D2Y-T	14.31818 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-106-12.000MHZ-T	12 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-14.31818MHZ-4Y-T3	14.31818 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-26.000MHZ-4Y-T3	26 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-14.7456MHZ-B4Y-T	14.7456 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-19.6608MHZ-B4Y-T	19.6608 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-20.000MHZ-B4Y-T	20 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-33.000MHZ-18-D2Y-T	33 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-26.000MHZ-10-D4Y-T3	26 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-24.000MHZ-12-B4Y-T	24 MHz	±30ppm	12pF	-20°C ~ 70°C
ABM8G-24.000MHZ-D4Y-T	24 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-12.000MHZ-D2Y-T	12 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-25.000MHZ-D4Y-T	25 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-12.000MHZ-D4Y-T	12 MHz	±30ppm	10pF	-40°C ~ 85°C
ABM8G-13.000MHZ-4Y-T3	13 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-27.120MHZ-10-D1-T	27.12 MHz	±50ppm	10pF	-40°C ~ 85°C
ABM8G-12.000MHZ-B4Y-T3	12 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-12.288MHZ-B4Y-T3	12.288 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-13.560MHZ-B4Y-T3	13.56 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-16.000MHZ-B4Y-T3	16 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-16.384MHZ-B4Y-T3	16.384 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-18.432MHZ-B4Y-T3	18.432 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-24.000MHZ-B4Y-T3	24 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-33.000MHZ-B4Y-T3	33 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-40.000MHZ-B4Y-T3	40 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-48.000MHZ-B4Y-T3	48 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-13.000MHZ-B4Y-T	13 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-22.1184MHZ-B4Y-T	22.1184 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-33.000MHZ-B4Y-T	33 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-12.288MHZ-18-D2Y-T3	12.288 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-13.560MHZ-18-D2Y-T3	13.56 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-14.7456MHZ-18-D2Y-T3	14.7456 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-16.384MHZ-18-D2Y-T3	16.384 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-18.432MHZ-18-D2Y-T3	18.432 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-19.6608MHZ-18-D2Y-T3	19.6608 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-20.000MHZ-18-D2Y-T3	20 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-22.1184MHZ-18-D2Y-T3	22.1184 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-24.000MHZ-18-D2Y-T3	24 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-24.576MHZ-18-D2Y-T3	24.576 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-26.000MHZ-18-D2Y-T3	26 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-27.000MHZ-18-D2Y-T3	27 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-30.000MHZ-18-D2Y-T3	30 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-33.000MHZ-18-D2Y-T3	33 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-40.000MHZ-18-D2Y-T3	40 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-48.000MHZ-18-D2Y-T3	48 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-24.500MHZ-18-D4Y-T	24.5 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-10.000MHZ-4Y-T3	10 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-11.0592MHZ-4Y-T3	11.0592 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-19.6608MHZ-4Y-T3	19.6608 MHz	±30ppm	10pF	-10°C ~ 60°C
ABM8G-13.000MHZ-18-D2Y-T3	13 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-14.31818MHZ-18-D2Y-T3	14.31818 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-28.63636MHZ-18-D2Y-T3	28.63636 MHz	±30ppm	18pF	-40°C ~ 85°C
ABM8G-13.000MHZ-B4Y-T3	13 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-14.31818MHZ-B4Y-T3	14.31818 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-14.7456MHZ-B4Y-T3	14.7456 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-19.6608MHZ-B4Y-T3	19.6608 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-20.000MHZ-B4Y-T3	20 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-22.1184MHZ-B4Y-T3	22.1184 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-24.576MHZ-B4Y-T3	24.576 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-26.000MHZ-B4Y-T3	26 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-27.000MHZ-B4Y-T3	27 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-28.63636MHZ-B4Y-T3	28.63636 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-30.000MHZ-B4Y-T3	30 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8G-32.000MHZ-B4Y-T3	32 MHz	±30ppm	10pF	-20°C ~ 70°C
ABM8GAIG-12.288MHZ-8-2Z-T3	12.288 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-25.000MHZ-8-7Z-T3	25 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-20.000MHZ-8-7Z-T3	20 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-16.000MHZ-8-7Z-T3	16 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-12.000MHZ-8-7Z-T3	12 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-18.432MHZ-8-2Z-T3	18.432 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-12.000MHZ-8-7Z-T	12 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-12.288MHZ-8-2Z-T	12.288 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-16.000MHZ-8-7Z-T	16 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-18.432MHZ-8-2Z-T	18.432 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-20.000MHZ-8-7Z-T	20 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-25.000MHZ-8-7Z-T	25 MHz	±50ppm	8pF	-40°C ~ 125°C
ABM8GAIG-28.63636MHZ-8-4Z-T	28.63636 MHz	±50ppm	8pF	-40°C ~ 125°C

_{ABRACON晶振}_简介

_{Abracon是全球领先的无源和机电定时、同步、电源、连接和射频解决方案制造商。Abracon拥有广泛的石英晶体、晶体和MEMS振荡器、实时时钟、功率感应器、物联网天线等产品组合，帮助工程师将他们的想法转化为满足未来机遇的产品。公司通过ISO9001-2015认证。Abracon专注于客户服务、支持、创新、质量和准时交付，每年为超过25000名活跃客户提供支持，并交付超过25亿个组件。我们在德克萨斯、加利福尼亚、中国大陆、台湾、新加坡、苏格兰和德国设有销售办事处。Abracon的产品通过其全球分销网络提供,官网请访问：www.xtal.cc}

^{深圳市加科电子有限公司}

联系人：黄河 _15602443498

座机：_{0755-33533774}

邮箱：_{jiakedz@163.com}

QQ：_3080074590

_地址：_{深圳市宝安区13区宝民一路白金大厦13F}

_网址：_{https://www.xtal.cc}

ABM8G晶振 3225晶振 Abracon晶振
