2725T
prevnext
查看全部大图

2725T

产品分类： NDK晶振
    特征：
    是综合频率允许偏差为 ±50×10-6 、可驱动3.3V的产品。
    可对应频率范围：2.5 ~ 125MHz
    缠带包装方式可对应自动搭载及IR回流焊接（无铅对应）。
    为无铅产品。
    尺寸5.0×3.2mm、高度1.0mm、重量0.06g，超小型、量轻。
    订购热线：0755-33533774
    跟此产品相关的产品
    产品详情

      2725T jpg 拷贝.jpg.jpg

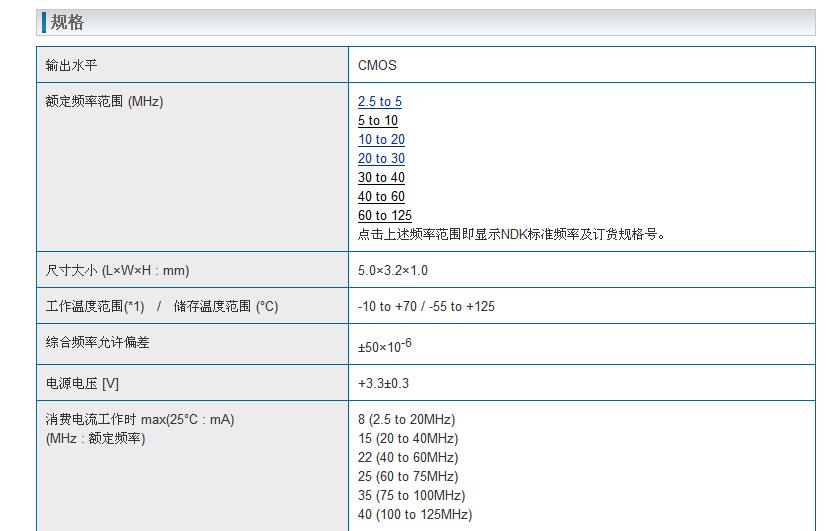

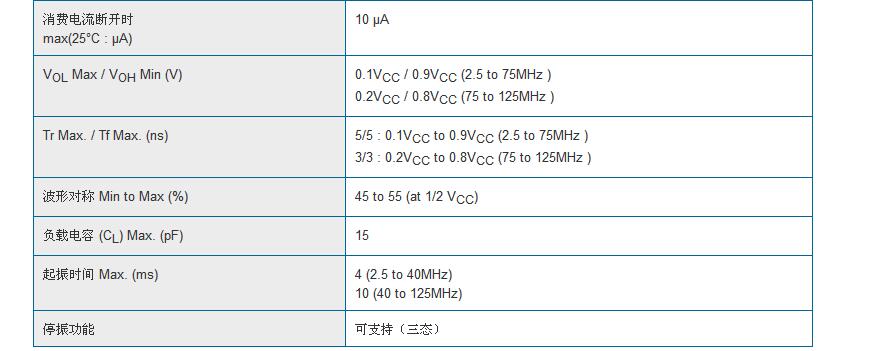

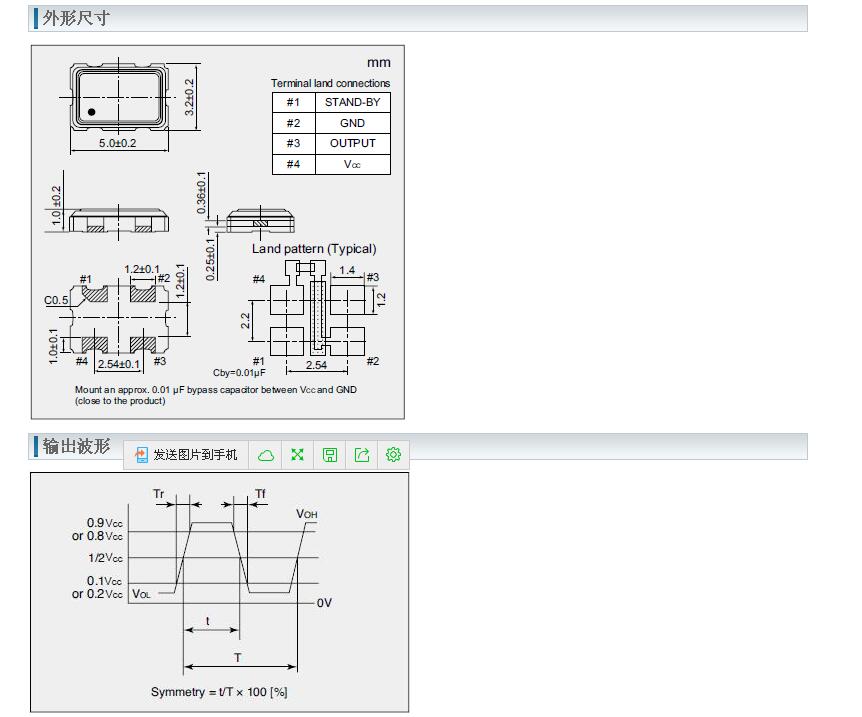

      2725T晶振规格书

      2725T晶振规格书

      2725T晶振规格书

      料号型号频率电压精度工作温度
      2725T-133MHZ-ENA4643A2725T133MHz---
      2725T-10.0000000M-NSA6293B2725T10MHz3.3V50PPM-10~+70℃
      2725T-10.000000M-NSA6293A2725T10MHz3.3V50PPM-40~+85℃
      2725T-10.000000M-NSA6293A2725T10MHz3.3V100PPM-20~+70℃
      2725T-10.000000M-NSA6293C2725T10MHz3.3V30PPM-10~+70℃
      2725T-10.000000M-NSA6293D2725T10MHz3.3V100PPM-40~+85℃
      2725T-10.000000M-NSA6293E2725T10MHz3.3V50PPM-40~+85℃
      2725T-10.000000M-NSA6293F2725T10MHz3.3V100PPM-40~+105℃
      2725T-100.000000M-NSA6293A2725T100MHz3.3V100PPM-20~+70℃
      2725T-100.000000M-NSA6293B2725T100MHz3.3V50PPM-10~+70℃
      2725T-12.000000M-NSA6293A2725T12MHz3.3V100PPM-20~+70℃
      2725T-12.000000M-NSA6293B2725T12MHz3.3V50PPM-10~+70℃
      2725T-12.000000M-NSA6293C2725T12MHz3.3V30PPM-10~+70℃
      2725T-12.000000M-NSA6293D2725T12MHz3.3V100PPM-40~+85℃
      2725T-12.000000M-NSA6293E2725T12MHz3.3V50PPM-40~+85℃
      2725T-12.000000M-NSA6293F2725T12MHz3.3V100PPM-40?`+105
      2725T-12.500000M-NSA6293A2725T12.5MHz3.3V100PPM-20~+70℃
      2725T-12.500000M-NSA6293B2725T12.5MHz3.3V50PPM-10~+70℃
      2725T-12.500000M-NSA6293C2725T12.5MHz3.3V30PPM-10~+70℃
      2725T-12.500000M-NSA6293C2725T12.5MHz3.3V30PPM-10~+70℃
      2725T-12.500000M-NSA6293D2725T12.5MHz3.3V100PPM-40~+85℃
      2725T-12.500000M-NSA6293E2725T12.5MHz3.3V50PPM-40~+85℃
      2725T-12.500000M-NSA6293F2725T12.5MHz3.3V100PPM-40~+105℃
      2725T-125.000000M-NSA6293A2725T125MHz3.3V100PPM-20~+70℃
      2725T-125.000000M-NSA6293B2725T125MHz3.3V50PPM-10~+70℃
      2725T-14.318000M-NSA6293D2725T14.318MHz3.3V100PPM-40~+85℃
      2725T-14.745600M-NSA6293A2725T14.7456MHz3.3V100PPM-20~+70℃
      2725T-15.897600M-NSA6293D2725T15.8976MHz3.3V100PPM-40~+85℃
      2725T-16.000000M-NSA6293A2725T16MHz3.3V100PPM-20~+70℃
      2725T-16.000000M-NSA6293B2725T16MHz3.3V50PPM-10~+70℃
      2725T-16.000000M-NSA6293C2725T16MHz3.3V30PPM-10~+70℃
      2725T-16.000000M-NSA6293D2725T16MHz3.3V100PPM-40~+85℃
      2725T-16.000000M-NSA6293E2725T16MHz3.3V50PPM-40~+85℃
      2725T-16.000000M-NSA6293F2725T16MHz3.3V100PPM-40~+105℃
      2725T-16.666650M-NSA6293D2725T16.66665MHz3.3V100PPM-40~+85℃
      2725T-2.5000000M-NSA6293D2725T2.5MHz3.3V100PPM-40~+85℃
      2725T-2.880000M-NSA6293D2725T2.88MHz3.3V100PPM-40~+85℃
      2725T-20.000000M-NSA6293A2725T20MHz3.3V100PPM-20~+70℃
      2725T-22.000000M-NSA6046A2725T22MHz3.3V25PPM-10~+70℃
      2725T-24.000000M-NSA6293A2725T24MHz3.3V100PPM-20~+70℃
      2725T-24.000000M-NSA6293B2725T24MHz3.3V50PPM-10~+70℃
      2725T-24.000000M-NSA6293C2725T24MHz3.3V30PPM-10~+70℃
      2725T-24.000000M-NSA6293D2725T24MHz3.3V100PPM-40~+85℃
      2725T-24.000000M-NSA6293E2725T24MHz3.3V50PPM-40~+85℃
      2725T-24.000000M-NSA6293F2725T24MHz3.3V100PPM-40~+105℃
      2725T-25.000000M-NSA6293A2725T25MHz3.3V100PPM-20~+70℃
      2725T-25.000000M-NSA6293B2725T25MHz3.3V50PPM-10~+70℃
      2725T-25.000000M-NSA6293B2725T25MHz3.3V50PPM-10~+70℃
      2725T-25.000000M-NSA6293C2725T25MHz3.3V30PPM-10~+70℃
      2725T-25.000000M-NSA6293D2725T25MHz3.3V100PPM-40~+85℃
      2725T-25.000000M-NSA6293E2725T25MHz3.3V50PPM-40~+85℃
      2725T-25.000000M-NSA6293F2725T25MHz3.3V100PPM-40~+105℃
      2725T-25.000325M-NSA6293D2725T25.000325MHz3.3V100PPM-40~+85℃
      2725T-27.000000M-NSA6293A2725T27MHz3.3V100PPM-20~+70℃
      2725T-3.068175M-NSA6293D2725T3.068175MHz3.3V100PPM-40~+85℃
      2725T-3.072000M-NSA6293D2725T3.072MHz3.3V100PPM-40~+85℃
      2725T-3.150000M-NSA6293D2725T3.15MHz3.3V100PPM-40~+85℃
      2725T-3.250000M-NSA6293D2725T3.25MHz3.3V100PPM-40~+85℃
      2725T-3.276800M-NSA6293D2725T3.2768MHz3.3V100PPM-40~+85℃
      2725T-3.325000M-NSA6293D2725T3.325MHz3.3V100PPM-40~+85℃
      2725T-3.332500M-NSA6293D2725T3.3325MHz3.3V100PPM-40~+85℃
      2725T-3.571200M-NSA6293D2725T3.5712MHz3.3V100PPM-40~+85℃
      2725T-30.000000M-NSA6293A2725T30MHz3.3V100PPM-20~+70℃
      2725T-33.000000M-NSA6293A2725T33MHz3.3V100PPM-20~+70℃
      2725T-33.000000M-NSA6293A2725T33MHz3.3V100PPM-20~+70℃
      2725T-33.000000M-NSA6293B2725T33MHz3.3V50PPM-10~+70℃
      2725T-33.000000M-NSA6293C2725T33MHz3.3V30PPM-10~+70℃
      2725T-33.000000M-NSA6293D2725T33MHz3.3V100PPM-40~+85℃
      2725T-33.000000M-NSA6293E2725T33MHz3.3V50PPM-40~+85℃
      2725T-33.000000M-NSA6293F2725T33MHz3.3V100PPM-40~+105℃
      2725T-33.333300M-NSA6293A2725T33.3333MHz3.3V100PPM-20~+70℃
      2725T-38.352000M-NSA6293D2725T38.352MHz3.3V100PPM-40~+85℃
      2725T-4.0960000M-NSA6293C2725T4.096MHz3.3V30PPM-10~+70℃
      2725T-4.0960000M-NSA6293E2725T4.096MHz3.3V50PPM-40~+85℃
      2725T-4.096000M-NSA6293A2725T4.096MHz3.3V100PPM-20~+70℃
      2725T-4.096000M-NSA6293B2725T4.096MHz3.3V50PPM-10~+70℃
      2725T-4.096000M-NSA6293D2725T4.096MHz3.3V100PPM-40~+85℃
      2725T-4.096000M-NSA6293F2725T4.096MHz3.3V100PPM-40~+105℃
      2725T-4.157500M-NSA6293D2725T4.1575MHz3.3V100PPM-40~+85℃
      2725T-4.166875M-NSA6293D2725T4.166875MHz3.3V100PPM-40~+85℃
      2725T-4.800000M-NSA6293D2725T4.8MHz3.3V100PPM-40~+85℃
      2725T-4.860000M-NSA6293D2725T4.86MHz3.3V100PPM-40~+85℃
      2725T-40.000000M-NSA6045A2725T40MHz3.3V25PPM-10~+70℃
      2725T-40.000000M-NSA6293A2725T40MHz3.3V100PPM-20~+70℃
      2725T-40.960000M-NSA6293D2725T40.96MHz3.3V100PPM-40~+85℃
      2725T-44.000000M-NSA6044A2725T44MHz3.3V25PPM-10~+70℃
      2725T-48.000000M-NSA6293A2725T48MHz3.3V100PPM-20~+70℃
      2725T-48.000000M-NSA6293D2725T48MHz3.3V100PPM-40~+85℃
      2725T-48.000000M-NSA6293F2725T48MHz3.3V100PPM-40~+85℃
      2725T-4MHZ-NSA6293E2725T4MHz3.3V50PPM-40~+85℃
      2725T-5.000000M-NSA6293D2725T5MHz3.3V100PPM-40~+85℃
      2725T-5.120000M-NSA6293D2725T5.12MHz3.3V100PPM-40~+85℃
      2725T-5.644800M-NSA6293D2725T6.6448MHz3.3V100PPM-40~+85℃
      2725T-5.760000M-NSA6293D2725T5.76MHz3.3V100PPM-40~+85℃
      2725T-50.000000M-NSA6293A2725T50MHz3.3V100PPM-20~+70℃
      2725T-50.000000M-NSA6293A2725T50MHz3.3V100PPM-20~+70℃
      2725T-50.000000M-NSA6293B2725T50MHz3.3V50PPM-10~+70℃
      2725T-50.000000M-NSA6293C2725T50MHz3.3V30PPM-10~+70℃
      2725T-50.000000M-NSA6293D2725T50MHz3.3V100PPM-40~+85℃
      2725T-50.000000M-NSA6293E2725T50MHz3.3V50PPM-40~+85℃
      2725T-50.000000M-NSA6293F2725T50MHz3.3V100PPM-40~+105℃
      2725T-50MHZ-ENE3224A2725T50MHz3.3V50PPM-40~+85℃
      2725T-6.000000M-NSA6293D2725T6MHz3.3V100PPM-40~+85℃
      2725T-6.144000M-NSA6293D2725T6.144MHz3.3V100PPM-40~+85℃
      2725T-6.225000M-NSA6293D2725T6.225MHz3.3V100PPM-40~+85℃
      2725T-6.250000M-NSA6293D2725T6.25MHz3.3V100PPM-40~+85℃
      2725T-6.250081M-NSA6293D2725T6.250081MHz3.3V100PPM-40~+85℃
      2725T-6.665000M-NSA6293D2725T6.665MHz3.3V100PPM-40~+85℃
      2725T-66.000000M-NSA6293A2725T66MHz3.3V100PPM-20~+70℃
      2725T-66.660000M-NSA6293A2725T66.66MHz3.3V100PPM-20~+70℃
      2725T-66.660000M-NSA6293B2725T66.66MHz3.3V50PPM-10~+70℃
      2725T-66.660000M-NSA6293C2725T66.66MHz3.3V30PPM-10~+70℃
      2725T-66.660000M-NSA6293D2725T66.66MHz3.3V100PPM-40~+85℃
      2725T-66.660000M-NSA6293E2725T66.66MHz3.3V50PPM-40~+85℃
      2725T-66.660000M-NSA6293F2725T66.66MHz3.3V100PPM-40~+105℃
      2725T-66.666600M-NSA6293A2725T66.6666MHz3.3V100PPM-20~+70℃
      2725T-7.080500M-NSA6293D2725T7.0805MHz3.3V100PPM-40~+85℃
      2725T-7.142400M-NSA6293D2725T7.1424MHz3.3V100PPM-40~+85℃
      2725T-7.500000M-NSA6293D2725T7.5MHz3.3V100PPM-40~+85℃
      2725T-74.250000M-NSA6293A2725T74.25MHz3.3V100PPM-20~+70℃
      2725T-74.250000M-NSA6293B2725T74.25MHz3.3V50PPM-10~+70℃
      2725T-74.250000M-NSA6293C2725T74.25MHz3.3V30PPM-10~+70℃
      2725T-74.250000M-NSA6293D2725T74.25MHz3.3V100PPM-40~+85℃
      2725T-74.250000M-NSA6293E2725T74.25MHz3.3V50PPM-40~+85℃
      2725T-74.250000M-NSA6293F2725T74.25MHz3.3V100PPM-40~+105℃
      2725T-8.000000M-NSA6293D2725T8MHz3.3V100PPM-40~+85℃
      2725T-8.192000M-NSA6293D2725T8.192MHz3.3V100PPM-40~+85℃
      2725T-8.239750M-NSA6293D2725T8.239750MHz3.3V100PPM-40~+85℃
      2725T-8.333300M-NSA6293D2725T8.3333MHz3.3V100PPM-40~+85℃
      2725T-8.402095M-NSA6293D2725T8.402095MHz3.3V100PPM-40~+85℃
      2725T-8.832000M-NSA6293D2725T8.832MHz3.3V100PPM-40~+85℃
      2725T-9.216000M-NSA6293D2725T9.216MHz3.3V100PPM-40~+85℃
      2725T-9.588000M-NSA6293D2725T9.588MHz3.3V100PPM-40~+85℃
      2725T-9.720000M-NSA6293D2725T9.72MHz3.3V100PPM-40~+85℃

      NDK晶振简介：

      企业理念

      要认识到作为世界一流厂家的使命和责任，要始终在行业中起带头作用。

      抢先取得社会需求，为客户提供高质量的服务。

      追求使用更方便、更稳定的发振源，创造更高的附加价值。

      不畏失败，向困难挑战，努力培养出能自我开发的人才。

      通过工作发扬人格。

      尊重个人，努力提高员工的生活水平。

      以与关系公司、供应商及包括地区社会在内的共同繁荣来回报投资者。

      致力于保护地球环境，担负起责任。官网请访问：http://www.xtal.cc
