石英振荡器

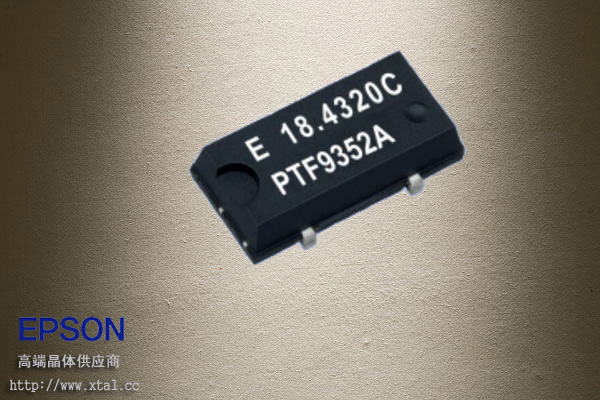

Q33636F31019300,16MHz有源晶振,SG-636PTF,EPSON晶振,4.5V-5.5V

产品分类: 晶振规格书
    特征:频率范围:2.21675 MHz ~ 40 MHz,电源电压:2.5V Typ.功能:使能(OE),外部尺寸规格:10.5 × 5.8 × 2.7mm (t: Max.)
    订购热线:0755-33533774

      型号料号尺寸电压频率
      SG-636PTFQ33636F3203630010.5 x 5.8x2.7mm4.5V-5.5V3.4MHz
      SG-636PTFQ33636F3201120010.5 x 5.8x2.7mm4.5V-5.5V20.48MHz
      SG-636PTFQ33636F3200550010.5 x 5.8x2.7mm4.5V-5.5V12.5MHz
      SG-636PTFQ33636F3200420010.5 x 5.8x2.7mm4.5V-5.5V5MHz
      SG-636PTFQ33636F3200400010.5 x 5.8x2.7mm4.5V-5.5V4.096MHz
      SG-636PTFQ33636F3200270010.5 x 5.8x2.7mm4.5V-5.5V6MHz
      SG-636PTFQ33636F3200170010.5 x 5.8x2.7mm4.5V-5.5V25MHz
      SG-636PTFQ33636F3200100010.5 x 5.8x2.7mm4.5V-5.5V12MHz
      SG-636PTFQ33636F3200090010.5 x 5.8x2.7mm4.5V-5.5V11.0592MHz
      SG-636PTFQ33636F3200020010.5 x 5.8x2.7mm4.5V-5.5V4MHz
      SG-636PTFQ33636F3200010010.5 x 5.8x2.7mm4.5V-5.5V40MHz
      SG-636PTFQ33636F3103660010.5 x 5.8x2.7mm4.5V-5.5V16.58MHz
      SG-636PTFQ33636F3103650010.5 x 5.8x2.7mm4.5V-5.5V15.9744MHz
      SG-636PTFQ33636F3103640010.5 x 5.8x2.7mm4.5V-5.5V3.5712MHz
      SG-636PTFQ33636F3103620010.5 x 5.8x2.7mm4.5V-5.5V9.74MHz
      SG-636PTFQ33636F3103580010.5 x 5.8x2.7mm4.5V-5.5V22.118MHz
      SG-636PTFQ33636F3103480010.5 x 5.8x2.7mm4.5V-5.5V37MHz
      SG-636PTFQ33636F3103420010.5 x 5.8x2.7mm4.5V-5.5V32MHz
      SG-636PTFQ33636F3103340010.5 x 5.8x2.7mm4.5V-5.5V18MHz
      SG-636PTFQ33636F3103330010.5 x 5.8x2.7mm4.5V-5.5V3.904MHz
      SG-636PTFQ33636F3103280010.5 x 5.8x2.7mm4.5V-5.5V23.688MHz
      SG-636PTFQ33636F3103260010.5 x 5.8x2.7mm4.5V-5.5V4.1924MHz
      SG-636PTFQ33636F3103150010.5 x 5.8x2.7mm4.5V-5.5V25.8048MHz
      SG-636PTFQ33636F3103120010.5 x 5.8x2.7mm4.5V-5.5V20MHz
      SG-636PTFQ33636F3102890010.5 x 5.8x2.7mm4.5V-5.5V25.18MHz
      SG-636PTFQ33636F3102160010.5 x 5.8x2.7mm4.5V-5.5V3.2MHz
      SG-636PTFQ33636F3102130010.5 x 5.8x2.7mm4.5V-5.5V8MHz
      SG-636PTFQ33636F3102120010.5 x 5.8x2.7mm4.5V-5.5V10MHz
      SG-636PTFQ33636F3102070010.5 x 5.8x2.7mm4.5V-5.5V32MHz
      SG-636PTFQ33636F3101930010.5 x 5.8x2.7mm4.5V-5.5V16MHz
      SG-636PTFQ33636F3101900010.5 x 5.8x2.7mm4.5V-5.5V28.6363MHz
      SG-636PTFQ33636F3101890010.5 x 5.8x2.7mm4.5V-5.5V28.375MHz
      SG-636PTFQ33636F3101860010.5 x 5.8x2.7mm4.5V-5.5V30MHz
      SG-636PTFQ33636F3101840010.5 x 5.8x2.7mm4.5V-5.5V24.576MHz
      SG-636PTFQ33636F3101780010.5 x 5.8x2.7mm4.5V-5.5V14.318MHz
      SG-636PTFQ33636F3101740010.5 x 5.8x2.7mm4.5V-5.5V8.3328MHz
      SG-636PTFQ33636F3101730010.5 x 5.8x2.7mm4.5V-5.5V7.0656MHz
      SG-636PTFQ33636F3101720010.5 x 5.8x2.7mm4.5V-5.5V7MHz
      SG-636PTFQ33636F3101530010.5 x 5.8x2.7mm4.5V-5.5V32MHz
      SG-636PTFQ33636F3101520010.5 x 5.8x2.7mm4.5V-5.5V26.772MHz
      SG-636PTFQ33636F3101510010.5 x 5.8x2.7mm4.5V-5.5V28.5568MHz
      SG-636PTFQ33636F3101500010.5 x 5.8x2.7mm4.5V-5.5V35.696MHz
      SG-636PTFQ33636F3101400010.5 x 5.8x2.7mm4.5V-5.5V33.33333MHz
      SG-636PTFQ33636F3101350010.5 x 5.8x2.7mm4.5V-5.5V28.5696MHz
      SG-636PTFQ33636F3101340010.5 x 5.8x2.7mm4.5V-5.5V30.72MHz
      SG-636PTFQ33636F3101260010.5 x 5.8x2.7mm4.5V-5.5V16.9344MHz
      SG-636PTFQ33636F3101190010.5 x 5.8x2.7mm4.5V-5.5V16.66666MHz
      SG-636PTFQ33636F3101110010.5 x 5.8x2.7mm4.5V-5.5V39.662MHz
      SG-636PTFQ33636F3101040010.5 x 5.8x2.7mm4.5V-5.5V35MHz
      SG-636PTFQ33636F3100990010.5 x 5.8x2.7mm4.5V-5.5V17.5MHz
      SG-636PTFQ33636F3100980010.5 x 5.8x2.7mm4.5V-5.5V22.22MHz
      SG-636PTFQ33636F3100960010.5 x 5.8x2.7mm4.5V-5.5V36.864MHz
      SG-636PTFQ33636F3100690010.5 x 5.8x2.7mm4.5V-5.5V16.67MHz
      SG-636PTFQ33636F3100670010.5 x 5.8x2.7mm4.5V-5.5V12.352MHz
      SG-636PTFQ33636F3100650010.5 x 5.8x2.7mm4.5V-5.5V16.588MHz
      SG-636PTFQ33636F3100620010.5 x 5.8x2.7mm4.5V-5.5V33.33MHz
      SG-636PTFQ33636F3100610010.5 x 5.8x2.7mm4.5V-5.5V19.2MHz
      SG-636PTFQ33636F3100590010.5 x 5.8x2.7mm4.5V-5.5V6.144MHz
      SG-636PTFQ33636F3100570010.5 x 5.8x2.7mm4.5V-5.5V7.68MHz
      SG-636PTFQ33636F3100540010.5 x 5.8x2.7mm4.5V-5.5V16.384MHz
      SG-636PTFQ33636F3100510010.5 x 5.8x2.7mm4.5V-5.5V27MHz
      SG-636PTFQ33636F3100490010.5 x 5.8x2.7mm4.5V-5.5V22.1184MHz
      SG-636PTFQ33636F3100460010.5 x 5.8x2.7mm4.5V-5.5V15MHz
      SG-636PTFQ33636F3100450010.5 x 5.8x2.7mm4.5V-5.5V9.216MHz
      SG-636PTFQ33636F3100440010.5 x 5.8x2.7mm4.5V-5.5V8.192MHz
      SG-636PTFQ33636F3100410010.5 x 5.8x2.7mm4.5V-5.5V4.194304MHz
      SG-636PTFQ33636F3100390010.5 x 5.8x2.7mm4.5V-5.5V3.579545MHz
      SG-636PTFQ33636F3100380010.5 x 5.8x2.7mm4.5V-5.5V3.072MHz
      SG-636PTFQ33636F3100370010.5 x 5.8x2.7mm4.5V-5.5V2.4576MHz
      SG-636PTFQ33636F3100350010.5 x 5.8x2.7mm4.5V-5.5V33.3333MHz
      SG-636PTFQ33636F3100330010.5 x 5.8x2.7mm4.5V-5.5V19.6608MHz
      SG-636PTFQ33636F3100300010.5 x 5.8x2.7mm4.5V-5.5V28.63636MHz
      SG-636PTFQ33636F3100290010.5 x 5.8x2.7mm4.5V-5.5V29.4912MHz
      SG-636PTFQ33636F3100230010.5 x 5.8x2.7mm4.5V-5.5V2.5MHz
      SG-636PTFQ33636F3100210010.5 x 5.8x2.7mm4.5V-5.5V33MHz
      SG-636PTFQ33636F3100200010.5 x 5.8x2.7mm4.5V-5.5V36MHz
      SG-636PTFQ33636F3100180010.5 x 5.8x2.7mm4.5V-5.5V25.175MHz
      SG-636PTFQ33636F3100140010.5 x 5.8x2.7mm4.5V-5.5V18.432MHz
      SG-636PTFQ33636F3100120010.5 x 5.8x2.7mm4.5V-5.5V14.31818MHz
      SG-636PTFQ33636F3100110010.5 x 5.8x2.7mm4.5V-5.5V12.288MHz
      SG-636PTFQ33636F3100070010.5 x 5.8x2.7mm4.5V-5.5V9.8304MHz
      SG-636PTFQ33636F3100050010.5 x 5.8x2.7mm4.5V-5.5V7.3728MHz
      SG-636PTFQ33636F3100040010.5 x 5.8x2.7mm4.5V-5.5V4.9152MHz
      SG-636PTFQ33636F3100030010.5 x 5.8x2.7mm4.5V-5.5V3.6864MHz
