当前位置:首页 » 加科电子产品中心 » 晶振规格书 » NX5032GA-8.000M-STD-CSK-7
NX5032GA-8.000M-STD-CSK-7
prevnext
查看全部大图

NX5032GA-8.000M-STD-CSK-7

产品分类： 晶振规格书
    订购热线：0755-33533774
    跟此产品相关的产品
    产品详情

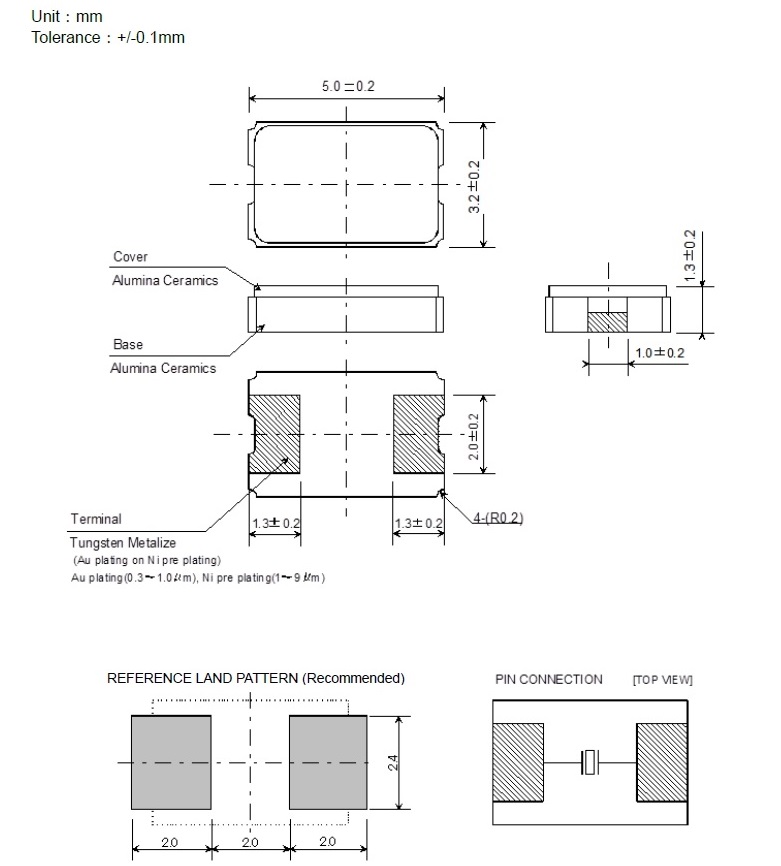

      NX5032GA 0.jpg

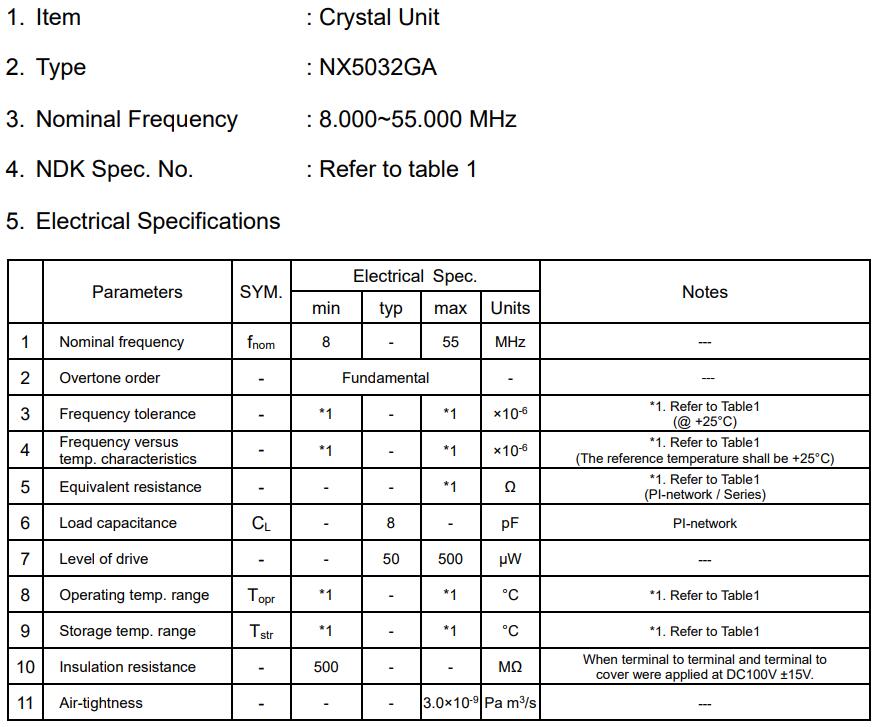

      NX5032GA 1.jpg


      型号频率负载电容精度工作温度
      NX5032GA-8.000M-STD-CSK-38MHz8PF20PPM-10~+70℃
      NX5032GA-8.192M-STD-CSK-38.192MHz8PF20PPM-10~+70℃
      NX5032GA-9.000M-STD-CSK-39MHz8PF20PPM-10~+70℃
      NX5032GA-9.216M-STD-CSK-39.216MHz8PF20PPM-10~+70℃
      NX5032GA-9.519M-STD-CSK-39.519MHz8PF20PPM-10~+70℃
      NX5032GA-9.600M-STD-CSK-39.6MHz8PF20PPM-10~+70℃
      NX5032GA-9.830M-STD-CSK-39.83MHz8PF20PPM-10~+70℃
      NX5032GA-9.844M-STD-CSK-39.844MHz8PF20PPM-10~+70℃
      NX5032GA-10.000M-STD-CSK-310MHz8PF20PPM-10~+70℃
      NX5032GA-10.178M-STD-CSK-310.178MHz8PF20PPM-10~+70℃
      NX5032GA-11.059M-STD-CSK-411.059MHz8PF20PPM-10~+70℃
      NX5032GA-11.290M-STD-CSK-411.29MHz8PF20PPM-10~+70℃
      NX5032GA-12.000M-STD-CSK-412MHz8PF20PPM-10~+70℃
      NX5032GA-12.288M-STD-CSK-412.288MHz8PF20PPM-10~+70℃
      NX5032GA-12.500M-STD-CSK-412.5MHz8PF20PPM-10~+70℃
      NX5032GA-12.580M-STD-CSK-412.58MHz8PF20PPM-10~+70℃
      NX5032GA-12.732M-STD-CSK-412.732MHz8PF20PPM-10~+70℃
      NX5032GA-12.750M-STD-CSK-412.75MHz8PF20PPM-10~+70℃
      NX5032GA-13.000M-STD-CSK-413MHz8PF20PPM-10~+70℃
      NX5032GA-13.081M-STD-CSK-413.081MHz8PF20PPM-10~+70℃
      NX5032GA-13.226M-STD-CSK-413.226MHz8PF20PPM-10~+70℃
      NX5032GA-13.400M-STD-CSK-413.4MHz8PF20PPM-10~+70℃
      NX5032GA-13.440M-STD-CSK-413.44MHz8PF20PPM-10~+70℃
      NX5032GA-13.500M-STD-CSK-413.5MHz8PF20PPM-10~+70℃
      NX5032GA-13.560M-STD-CSK-413.56MHz8PF20PPM-10~+70℃
      NX5032GA-13.824M-STD-CSK-413.824MHz8PF20PPM-10~+70℃
      NX5032GA-14.000M-STD-CSK-414MHz8PF20PPM-10~+70℃
      NX5032GA-14.188M-STD-CSK-414.188MHz8PF20PPM-10~+70℃
      NX5032GA-14.297M-STD-CSK-414.297MHz8PF20PPM-10~+70℃
      NX5032GA-14.300M-STD-CSK-414.3MHz8PF20PPM-10~+70℃
      NX5032GA-14.318M-STD-CSK-414.318MHz8PF20PPM-10~+70℃
      NX5032GA-14.400M-STD-CSK-414.4MHz8PF20PPM-10~+70℃
      NX5032GA-14.500M-STD-CSK-414.5MHz8PF20PPM-10~+70℃
      NX5032GA-14.746M-STD-CSK-414.7456MHz8PF20PPM-10~+70℃
      NX5032GA-15.000M-STD-CSK-415MHz8PF20PPM-10~+70℃
      NX5032GA-15.360M-STD-CSK-415.36MHz8PF20PPM-10~+70℃
      NX5032GA-15.968M-STD-CSK-415.968MHz8PF20PPM-10~+70℃
      NX5032GA-15.974M-STD-CSK-415.974MHz8PF20PPM-10~+70℃
      NX5032GA-15.978M-STD-CSK-415.978MHz8PF20PPM-10~+70℃
      NX5032GA-16.000M-STD-CSK-416MHz8PF20PPM-10~+70℃
      NX5032GA-16.013M-STD-CSK-416.013MHz8PF20PPM-10~+70℃
      NX5032GA-16.384M-STD-CSK-416.384MHz8PF20PPM-10~+70℃
      NX5032GA-16.500M-STD-CSK-416.5MHz8PF20PPM-10~+70℃
      NX5032GA-16.589M-STD-CSK-416.589MHz8PF20PPM-10~+70℃
      NX5032GA-16.600M-STD-CSK-416MHz8PF20PPM-10~+70℃
      NX5032GA-16.667M-STD-CSK-416.667MHz8PF20PPM-10~+70℃
      NX5032GA-16.670M-STD-CSK-416.670MHz8PF20PPM-10~+70℃
      NX5032GA-16.700M-STD-CSK-416.7MHz8PF20PPM-10~+70℃
      NX5032GA-16.777M-STD-CSK-416.777MHz8PF20PPM-10~+70℃
      NX5032GA-16.900M-STD-CSK-416.9MHz8PF20PPM-10~+70℃
      NX5032GA-16.920M-STD-CSK-416.92MHz8PF20PPM-10~+70℃
      NX5032GA-16.934M-STD-CSK-416.934MHz8PF20PPM-10~+70℃
      NX5032GA-17.328M-STD-CSK-417.328MHz8PF20PPM-10~+70℃
      NX5032GA-17.581M-STD-CSK-417.571MHz8PF20PPM-10~+70℃
      NX5032GA-17.734M-STD-CSK-417.734MHz8PF20PPM-10~+70℃
      NX5032GA-18.000M-STD-CSK-418MHz8PF20PPM-10~+70℃
      NX5032GA-18.432M-STD-CSK-418.432MHz8PF20PPM-10~+70℃
      NX5032GA-19.000M-STD-CSK-419MHz8PF20PPM-10~+70℃
      NX5032GA-19.070M-STD-CSK-419.07MHz8PF20PPM-10~+70℃
      NX5032GA-19.200M-STD-CSK-419.2MHz8PF20PPM-10~+70℃
      NX5032GA-19.312M-STD-CSK-419.312MHz8PF20PPM-10~+70℃
      NX5032GA-19.313M-STD-CSK-419.313MHz8PF20PPM-10~+70℃
      NX5032GA-19.661M-STD-CSK-419.661MHz8PF20PPM-10~+70℃
      NX5032GA-20.000M-STD-CSK-420MHz8PF20PPM-10~+70℃
      NX5032GA-20.250M-STD-CSK-420.25MHz8PF20PPM-10~+70℃
      NX5032GA-20.480M-STD-CSK-420.48MHz8PF20PPM-10~+70℃
      NX5032GA-20.500M-STD-CSK-420.5MHz8PF20PPM-10~+70℃
      NX5032GA-20.945M-STD-CSK-420.945MHz8PF20PPM-10~+70℃
      NX5032GA-22.000M-STD-CSK-422MHz8PF20PPM-10~+70℃
      NX5032GA-22.118M-STD-CSK-422.118MHz8PF20PPM-10~+70℃
      NX5032GA-22.579M-STD-CSK-422.579MHz8PF20PPM-10~+70℃
      NX5032GA-22.580M-STD-CSK-422.58MHz8PF20PPM-10~+70℃
      NX5032GA-24.000M-STD-CSK-424MHz8PF20PPM-10~+70℃
      NX5032GA-24.191M-STD-CSK-424.191MHz8PF20PPM-10~+70℃
      NX5032GA-24.288M-STD-CSK-424.288MHz8PF20PPM-10~+70℃
      NX5032GA-24.305M-STD-CSK-424.305MHz8PF20PPM-10~+70℃
      NX5032GA-24.504M-STD-CSK-424.504MHz8PF20PPM-10~+70℃
      NX5032GA-24.545M-STD-CSK-424.545MHz8PF20PPM-10~+70℃
      NX5032GA-24.576M-STD-CSK-424.576MHz8PF20PPM-10~+70℃
      NX5032GA-25.000M-STD-CSK-425MHz8PF20PPM-10~+70℃
      NX5032GA-25.100M-STD-CSK-425.1MHz8PF20PPM-10~+70℃
      NX5032GA-25.140M-STD-CSK-425.140MHz8PF20PPM-10~+70℃
      NX5032GA-25.400M-STD-CSK-425.4MHz8PF20PPM-10~+70℃
      NX5032GA-26.000M-STD-CSK-426MHz8PF20PPM-10~+70℃
      NX5032GA-26.973M-STD-CSK-426.973MHz8PF20PPM-10~+70℃
      NX5032GA-27.000M-STD-CSK-427MHz8PF20PPM-10~+70℃
      NX5032GA-27.120M-STD-CSK-427.12MHz8PF20PPM-10~+70℃
      NX5032GA-27.821M-STD-CSK-427.821MHz8PF20PPM-10~+70℃
      NX5032GA-28.224M-STD-CSK-428.224MHz8PF20PPM-10~+70℃
      NX5032GA-28.322M-STD-CSK-428.322MHz8PF20PPM-10~+70℃
      NX5032GA-28.375M-STD-CSK-428.375MHz8PF20PPM-10~+70℃
      NX5032GA-28.500M-STD-CSK-428.5MHz8PF20PPM-10~+70℃
      NX5032GA-28.594M-STD-CSK-428.594MHz8PF20PPM-10~+70℃
      NX5032GA-28.636M-STD-CSK-428.636MHz8PF20PPM-10~+70℃
      NX5032GA-29.491M-STD-CSK-429.491MHz8PF20PPM-10~+70℃
      NX5032GA-29.499M-STD-CSK-429.499MHz8PF20PPM-10~+70℃
      NX5032GA-30.000M-STD-CSK-430MHz8PF20PPM-10~+70℃
      NX5032GA-30.080M-STD-CSK-430.08MHz8PF20PPM-10~+70℃
      NX5032GA-30.400M-STD-CSK-430.4MHz8PF20PPM-10~+70℃
      NX5032GA-32.000M-STD-CSK-432MHz8PF20PPM-10~+70℃
      NX5032GA-32.110M-STD-CSK-432.11MHz8PF20PPM-10~+70℃
      NX5032GA-32.720M-STD-CSK-432.72MHz8PF20PPM-10~+70℃
      NX5032GA-32.768M-STD-CSK-432.768MHz8PF20PPM-10~+70℃
      NX5032GA-33.000M-STD-CSK-433MHz8PF20PPM-10~+70℃
      NX5032GA-33.231M-STD-CSK-433.231MHz8PF20PPM-10~+70℃
      NX5032GA-33.330M-STD-CSK-433.33MHz8PF20PPM-10~+70℃
      NX5032GA-33.333M-STD-CSK-433.333MHz8PF20PPM-10~+70℃
      NX5032GA-33.750M-STD-CSK-433.75MHz8PF20PPM-10~+70℃
      NX5032GA-33.869M-STD-CSK-433.869MHz8PF20PPM-10~+70℃
      NX5032GA-35.000M-STD-CSK-435MHz8PF20PPM-10~+70℃
      NX5032GA-35.280M-STD-CSK-435.28MHz8PF20PPM-10~+70℃
      NX5032GA-35.469M-STD-CSK-435.469MHz8PF20PPM-10~+70℃
      NX5032GA-36.000M-STD-CSK-436MHz8PF20PPM-10~+70℃
      NX5032GA-36.444M-STD-CSK-436.444MHz8PF20PPM-10~+70℃
      NX5032GA-36.864M-STD-CSK-436.864MHz8PF20PPM-10~+70℃
      NX5032GA-37.000M-STD-CSK-437MHz8PF20PPM-10~+70℃
      NX5032GA-37.050M-STD-CSK-437.05MHz8PF20PPM-10~+70℃
      NX5032GA-37.125M-STD-CSK-437.125MHz8PF20PPM-10~+70℃
      NX5032GA-37.500M-STD-CSK-437.5MHz8PF20PPM-10~+70℃
      NX5032GA-38.000M-STD-CSK-438MHz8PF20PPM-10~+70℃
      NX5032GA-38.035M-STD-CSK-438.035MHz8PF20PPM-10~+70℃
      NX5032GA-38.400M-STD-CSK-438.4MHz8PF20PPM-10~+70℃
      NX5032GA-40.000M-STD-CSK-440MHz8PF20PPM-10~+70℃
      NX5032GA-40.500M-STD-CSK-440.5MHz8PF20PPM-10~+70℃
      NX5032GA-41.600M-STD-CSK-441.6MHz8PF20PPM-10~+70℃
      NX5032GA-41.850M-STD-CSK-441.85MHz8PF20PPM-10~+70℃
      NX5032GA-42.000M-STD-CSK-442MHz8PF20PPM-10~+70℃
      NX5032GA-43.200M-STD-CSK-443.2MHz8PF20PPM-10~+70℃
      NX5032GA-44.000M-STD-CSK-444MHz8PF20PPM-10~+70℃
      NX5032GA-45.000M-STD-CSK-445MHz8PF20PPM-10~+70℃
      NX5032GA-45.158M-STD-CSK-445.158MHz8PF20PPM-10~+70℃
      NX5032GA-48.000M-STD-CSK-448MHz8PF20PPM-10~+70℃
      NX5032GA-49.091M-STD-CSK-449.091MHz8PF20PPM-10~+70℃
      NX5032GA-49.152M-STD-CSK-449.152MHz8PF20PPM-10~+70℃
      NX5032GA-50.000M-STD-CKW-350MHz8PF20PPM-10~+70℃
      NX5032GA-52.903M-STD-CKW-352.903MHz8PF20PPM-10~+70℃
      NX5032GA-54.000M-STD-CKW-354MHz8PF20PPM-10~+70℃
      NX5032GA-8.000M-STD-CSK-78MHz8PF30PPM-40~+85℃
      NX5032GA-8.192M-STD-CSK-78.192MHz8PF30PPM-40~+85℃
      NX5032GA-9.000M-STD-CSK-79MHz8PF30PPM-40~+85℃
      NX5032GA-9.216M-STD-CSK-79.216MHz8PF30PPM-40~+85℃
      NX5032GA-9.844M-STD-CSK-79.844MHz8PF30PPM-40~+85℃
      NX5032GA-10.000M-STD-CSK-710MHz8PF30PPM-40~+85℃
      NX5032GA-10.178M-STD-CSK-710.178MHz8PF30PPM-40~+85℃
      NX5032GA-10.240M-STD-CSK-710.24MHz8PF30PPM-40~+85℃
      NX5032GA-11.059M-STD-CSK-811.059MHz8PF30PPM-40~+85℃
      NX5032GA-12.000M-STD-CSK-812MHz8PF30PPM-40~+85℃
      NX5032GA-12.288M-STD-CSK-812.288MHz8PF30PPM-40~+85℃
      NX5032GA-13.56M-STD-CSK-813.56MHz8PF30PPM-40~+85℃
      NX5032GA-14.318M-STD-CSK-814.318MHz8PF30PPM-40~+85℃
      NX5032GA-14.746M-STD-CSK-814.7456MHz8PF30PPM-40~+85℃
      NX5032GA-15.000M-STD-CSK-815MHz8PF30PPM-40~+85℃
      NX5032GA-16.000M-STD-CSK-816MHz8PF30PPM-40~+85℃
      NX5032GA-16.384M-STD-CSK-816.384MHz8PF30PPM-40~+85℃
      NX5032GA-18.000M-STD-CSK-818MHz8PF30PPM-40~+85℃
      NX5032GA-18.432M-STD-CSK-818.432MHz8PF30PPM-40~+85℃
      NX5032GA-20.000M-STD-CSK-820MHz8PF30PPM-40~+85℃
      NX5032GA-24.000M-STD-CSK-824MHz8PF30PPM-40~+85℃
      NX5032GA-24.576M-STD-CSK-824.576MHz8PF30PPM-40~+85℃
      NX5032GA-25.000M-STD-CSK-825MHz8PF30PPM-40~+85℃
      NX5032GA-27.000M-STD-CSK-827MHz8PF30PPM-40~+85℃
      NX5032GA-27.120M-STD-CSK-827.12MHz8PF30PPM-40~+85℃
      NX5032GA-30.000M-STD-CSK-830MHz8PF30PPM-40~+85℃
      NX5032GA-40.000M-STD-CSK-840MHz8PF30PPM-40~+85℃
      NX5032GA-48.000M-STD-CSK-848MHz8PF30PPM-40~+85℃
      NX5032GA-8.000M-STD-CSU-18MHz8PF50PPM-40~+150℃
      NX5032GA-8.192M-STD-CSU-18.192MHz8PF50PPM-40~+150℃
      NX5032GA-9.844M-STD-CSU-19.844MHz8PF50PPM-40~+150℃
      NX5032GA-10.000M-STD-CSU-110MHz8PF50PPM-40~+150℃
      NX5032GA-12.000M-STD-CSU-212MHz8PF50PPM-40~+150℃
      NX5032GA-13.560M-STD-CSU-213.56MHz8PF50PPM-40~+150℃
      NX5032GA-14.000M-STD-CSU-214MHz8PF50PPM-40~+150℃
      NX5032GA-15.000M-STD-CSU-215MHz8PF50PPM-40~+150℃
      NX5032GA-16.000M-STD-CSU-216MHz8PF50PPM-40~+150℃
      NX5032GA-18.000M-STD-CSU-218MHz8PF50PPM-40~+150℃
      NX5032GA-19.661M-STD-CSU-219.661MHz8PF50PPM-40~+150℃
      NX5032GA-20.000M-STD-CSU-220MHz8PF50PPM-40~+150℃
      NX5032GA-24.000M-STD-CSU-224MHz8PF50PPM-40~+150℃
      NX5032GA-24.740M-STD-CSU-227.74MHz8PF50PPM-40~+150℃
      NX5032GA-25.000M-STD-CSU-225MHz8PF50PPM-40~+150℃
      NX5032GA-30.000M-STD-CSU-230MHz8PF50PPM-40~+150℃
      NX5032GA-40.000M-STD-CSU-240MHz8PF50PPM-40~+150℃

      NDK晶振简介

      NDK晶振产品广泛应用于交换机和路由器,光纤通信系统,卫星通信,雷达,导航和传感等领域,在交换机和路由器中,NDK进口晶振凭借其卓越的性能和广泛的应用领域,成为了电子领域中不可或缺的重要元件,为现代通信和物联网技术的发展提供了有力支持,随着未来通信技术的不断进步和应用领域的拓展,NDK晶振的需求和应用前景将更加广阔,在其它领域如电子设备的时钟源,微处理器的频率参考等,也有着广泛的应用,总的来说,NDK晶振以其卓越的性能和广泛的应用领域,成为了电子领域中不可或缺的重要元件。
