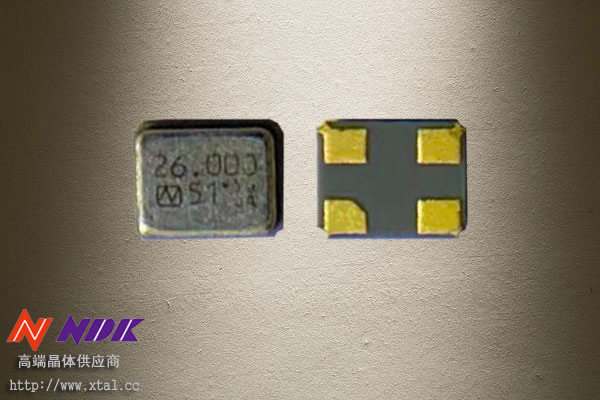

特征：小型薄型晶体谐振器。超小型薄型 (2.0×1.6×0.45mm) 具有优良的耐环境特性，如耐热性、耐冲击性。在办公自动化、家电相关电器领域及Bluetooth、Wireless LAN等短距离无线通信领域可发挥优良的电气特性。满足无铅焊接的回流温度曲线要求。
| NX2016SA-16.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-24.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-24.305M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-24.576M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-24.9231M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-25.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-26.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-27.120M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-28.63636M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-32.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-40.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-48.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-50.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-52.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-55.46667M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-60.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-80.000M-STD-CZS-7 | 8PF | -30°C+85°C | NDK晶振 |
| NX2016SA-16MHZ-EXS00A-CS07826 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-16MHZ-EXS00A-CS06655 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-24.305MHZ-EXS00A-CS08560 | 7PF | -40°C+125°C | NDK晶振 |
| NX2016SA-24.576M-EXS00A-CS08743 | 8PF | - | NDK晶振 |
| NX2016SA-24.9231M-CHP-CZS-9 | 8PF | -40°C+110°C | NDK晶振 |
| NX2016SA-24M-EXS00A-CS08891 | 6PF | - | NDK晶振 |
| NX2016SA-24MHZ-EXS00A-CS10820 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-24MHZ-EXS00A-CS07859 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-24MHZ-EXS00A-CS11335 | 6PF | -30°C+85°C | NDK晶振 |
| NX2016SA-24MHZ-EXS00A-CS07553 | 7PF | -40°C+125°C | NDK晶振 |
| NX2016SA-24MHZ-EXS00A-CS08664 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-25M-EXS00A-CS08742 | 20PF | - | NDK晶振 |
| NX2016SA-25MHZ-EXS00A-CS10694 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-25MHZ-EXS00A-CS11365 | 6PF | -30°C+85°C | NDK晶振 |
| NX2016SA-25MHZ-EXS00A-CS11321 | 6PF | -40°C+125°C | NDK晶振 |
| NX2016SA-25.000M-STD-CZS-1 | 8PF | -10°C+75°C | NDK晶振 |
| NX2016SA-25.000M-STD-CZS-2 | 8PF | -10°C+75°C | NDK晶振 |
| NX2016SA-26.000M-STD-CZS-2 | 8PF | -10°C+75°C | NDK晶振 |
| NX2016SA-26MHZ-EXS00A-CS08144 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-26MHZ-EXS00A-CS09818 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-26MHZ-EXS00A-CS07225 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-26M-STD-CZS-1 | 8PF | -10°C+75°C | NDK晶振 |
| NX2016SA-26MHZ-EXS00A-CS06025 | 8PF | -20°C+70°C | NDK晶振 |
| NX2016SA-27.12MHZ-EXS00A-CS11337 | 6PF | -30°C+85°C | NDK晶振 |
| NX2016SA-27.12MHZ-EXS00A-CS01188 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-27.12MHZ-EXS00A-CS06346 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-28.63636M-EXS00A-CS08741 | 30PF | - | NDK晶振 |
| NX2016SA-32MHZ-EXS00A-CS11336 | 8PF | -20°C+70°C | NDK晶振 |
| NX2016SA-32MHZ-EXS00A-CS11213 | 6PF | -40°C+125°C | NDK晶振 |
| NX2016SA-32MHZ-EXS00A-CS10925 | 6PF | -40°C+125°C | NDK晶振 |
| NX2016SA-32MHZ-EXS00A-CS07977 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-32M-EXS00A-CS06465 | 10PF | - | NDK晶振 |
| NX2016SA-32MHZ-EXS00A-CS06654 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-40M-STD-CZS-3 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-48M-EXS00A-CS05517 | 7PF | -40°C+125°C | NDK晶振 |
| NX2016SA-48M-EXS00A-CS08927 | 10PF | - | NDK晶振 |
| NX2016SA-48M-EXS00A-CS08718 | 8PF | - | NDK晶振 |
| NX2016SA-48MHZ-EXS00A-CS08673 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-48MHZ-EXS00A-CS05517 | 7PF | -40°C+125°C | NDK晶振 |
| NX2016SA-50M-STD-CZS-3 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-50M-CHP-CZS-38 | 10PF | -40°C+85°C | NDK晶振 |
| NX2016SA-50MHZ-EXS00A-CS08483 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-52MHZ-EXS00A-CS06016 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-52MHZ-EXS00A-CS07103 | 10PF | -40°C+125°C | NDK晶振 |
| NX2016SA-55.46667MHZ-EXS00A-CS07919 | 9PF | -40°C+125°C | NDK晶振 |
| NX2016SA-60M-STD-CZS-3 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-60MHZ-EXS00A-CS08297 | 8PF | -40°C+125°C | NDK晶振 |
| NX2016SA-80M-STD-CZS-3 | 8PF | -40°C+125°C | NDK晶振 |
