MC2016K

产品分类：京瓷晶振

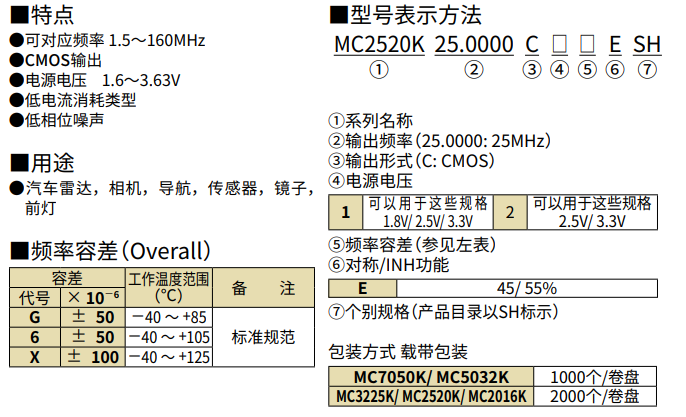

特点：可对应频率1.5-160MHz,CMOS输出电源电压1.6-3.63V,低电流消耗类型低相位噪声,用途：汽车雷达,相机,导航,传感器,镜子,前灯。

订购热线：0755-33533774

跟此产品相关的产品

: 40MHz晶振,MC2016K40.0000C16ESH,京瓷车载专用有源晶振; 特点频率范围1.5至160MHZ,CMOS输出外部电源电压1.6至3.63V（er E2。5 . 三。三。5 . 0V（er N）低电流消耗选项：低相位噪声版本应用汽车雷达/摄像头/导航/传感器/后视镜/前照灯。

产品详情

MC2016K

料号	型号	频率	最低温度	最高温度	精度	电压
MC2016K1.50000C10ESH	MC2016K	1.5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K1.50000C16ESH	MC2016K	1.5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K1.50000C1GESH	MC2016K	1.5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K1.50000C1SESH	MC2016K	1.5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K1.50000C1UESH	MC2016K	1.5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K1.50000C1XESH	MC2016K	1.5MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K1.84320C10ESH	MC2016K	1.8432MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K1.84320C16ESH	MC2016K	1.8432MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K1.84320C1GESH	MC2016K	1.8432MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K1.84320C1SESH	MC2016K	1.8432MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K1.84320C1UESH	MC2016K	1.8432MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K1.84320C1XESH	MC2016K	1.8432MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K10.0000C10ESH	MC2016K	10MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K10.0000C16ESH	MC2016K	10MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K10.0000C1GESH	MC2016K	10MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K10.0000C1SESH	MC2016K	10MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K10.0000C1UESH	MC2016K	10MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K10.0000C1XESH	MC2016K	10MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K10.2400C10ESH	MC2016K	10.24MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K10.2400C16ESH	MC2016K	10.24MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K10.2400C1GESH	MC2016K	10.24MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K10.2400C1SESH	MC2016K	10.24MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K10.2400C1UESH	MC2016K	10.24MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K10.2400C1XESH	MC2016K	10.24MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K10.5554C10ESH	MC2016K	10.5554MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K10.5554C16ESH	MC2016K	10.5554MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K10.5554C1GESH	MC2016K	10.5554MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K10.5554C1SESH	MC2016K	10.5554MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K10.5554C1UESH	MC2016K	10.5554MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K10.5554C1XESH	MC2016K	10.5554MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K100.000C10ESH	MC2016K	100MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K100.000C16ESH	MC2016K	100MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K100.000C1GESH	MC2016K	100MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K100.000C1SESH	MC2016K	100MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K100.000C1UESH	MC2016K	100MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K100.000C1XESH	MC2016K	100MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K11.2896C10ESH	MC2016K	11.2896MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K11.2896C16ESH	MC2016K	11.2896MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K11.2896C1GESH	MC2016K	11.2896MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K11.2896C1SESH	MC2016K	11.2896MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K11.2896C1UESH	MC2016K	11.2896MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K11.2896C1XESH	MC2016K	11.2896MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K12.0000C10ESH	MC2016K	12MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K12.0000C16ESH	MC2016K	12MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K12.0000C1GESH	MC2016K	12MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K12.0000C1SESH	MC2016K	12MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K12.0000C1UESH	MC2016K	12MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K12.0000C1XESH	MC2016K	12MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K12.2880C10ESH	MC2016K	12.288MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K12.2880C16ESH	MC2016K	12.288MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K12.2880C1GESH	MC2016K	12.288MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K12.2880C1SESH	MC2016K	12.288MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K12.2880C1UESH	MC2016K	12.288MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K12.2880C1XESH	MC2016K	12.288MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K12.4560C10ESH	MC2016K	12.456MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K12.4560C16ESH	MC2016K	12.456MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K12.4560C1GESH	MC2016K	12.456MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K12.4560C1SESH	MC2016K	12.456MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K12.4560C1UESH	MC2016K	12.456MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K12.4560C1XESH	MC2016K	12.456MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K12.5000C10ESH	MC2016K	12.5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K12.5000C16ESH	MC2016K	12.5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K12.5000C1GESH	MC2016K	12.5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K12.5000C1SESH	MC2016K	12.5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K12.5000C1UESH	MC2016K	12.5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K12.5000C1XESH	MC2016K	12.5MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K125.000C10ESH	MC2016K	125MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K125.000C16ESH	MC2016K	125MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K125.000C1GESH	MC2016K	125MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K125.000C1SESH	MC2016K	125MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K125.000C1UESH	MC2016K	125MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K125.000C1XESH	MC2016K	125MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K13.5600C10ESH	MC2016K	13.56MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K13.5600C16ESH	MC2016K	13.56MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K13.5600C1GESH	MC2016K	13.56MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K13.5600C1SESH	MC2016K	13.56MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K13.5600C1UESH	MC2016K	13.56MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K13.5600C1XESH	MC2016K	13.56MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K14.3182C10ESH	MC2016K	14.3182MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K14.3182C16ESH	MC2016K	14.3182MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K14.3182C1GESH	MC2016K	14.3182MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K14.3182C1SESH	MC2016K	14.3182MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K14.3182C1UESH	MC2016K	14.3182MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K14.3182C1XESH	MC2016K	14.3182MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K14.7456C10ESH	MC2016K	14.7456MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K14.7456C16ESH	MC2016K	14.7456MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K14.7456C1GESH	MC2016K	14.7456MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K14.7456C1SESH	MC2016K	14.7456MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K14.7456C1UESH	MC2016K	14.7456MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K14.7456C1XESH	MC2016K	14.7456MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K15.0000C10ESH	MC2016K	15MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K15.0000C16ESH	MC2016K	15MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K15.0000C1GESH	MC2016K	15MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K15.0000C1SESH	MC2016K	15MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K15.0000C1UESH	MC2016K	15MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K15.0000C1XESH	MC2016K	15MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K156.250C20ESH	MC2016K	156.25MHz	-10	70	±50ppm	2.5,3.3
MC2016K156.250C26ESH	MC2016K	156.25MHz	-40	105	±50ppm	2.5,3.3
MC2016K156.250C2GESH	MC2016K	156.25MHz	-40	85	±50ppm	2.5,3.3
MC2016K156.250C2SESH	MC2016K	156.25MHz	-10	70	±30ppm	2.5,3.3
MC2016K156.250C2UESH	MC2016K	156.25MHz	-10	70	±25ppm	2.5,3.3
MC2016K156.250C2XESH	MC2016K	156.25MHz	-40	125	±100ppm	2.5,3.3
MC2016K16.0000C10ESH	MC2016K	16MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K16.0000C16ESH	MC2016K	16MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K16.0000C1GESH	MC2016K	16MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K16.0000C1SESH	MC2016K	16MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K16.0000C1UESH	MC2016K	16MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K16.0000C1XESH	MC2016K	16MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K16.3840C10ESH	MC2016K	16.384MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K16.3840C16ESH	MC2016K	16.384MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K16.3840C1GESH	MC2016K	16.384MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K16.3840C1SESH	MC2016K	16.384MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K16.3840C1UESH	MC2016K	16.384MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K16.3840C1XESH	MC2016K	16.384MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K16.6080C10ESH	MC2016K	16.608MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K16.6080C16ESH	MC2016K	16.608MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K16.6080C1GESH	MC2016K	16.608MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K16.6080C1SESH	MC2016K	16.608MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K16.6080C1UESH	MC2016K	16.608MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K16.6080C1XESH	MC2016K	16.608MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K16.6667C10ESH	MC2016K	16.6667MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K16.6667C16ESH	MC2016K	16.6667MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K16.6667C1GESH	MC2016K	16.6667MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K16.6667C1SESH	MC2016K	16.6667MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K16.6667C1UESH	MC2016K	16.6667MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K16.6667C1XESH	MC2016K	16.6667MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K16.9344C10ESH	MC2016K	16.9344MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K16.9344C16ESH	MC2016K	16.9344MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K16.9344C1GESH	MC2016K	16.9344MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K16.9344C1SESH	MC2016K	16.9344MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K16.9344C1UESH	MC2016K	16.9344MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K16.9344C1XESH	MC2016K	16.9344MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K160.000C20ESH	MC2016K	160MHz	-10	70	±50ppm	2.5,3.3
MC2016K160.000C26ESH	MC2016K	160MHz	-40	105	±50ppm	2.5,3.3
MC2016K160.000C2GESH	MC2016K	160MHz	-40	85	±50ppm	2.5,3.3
MC2016K160.000C2SESH	MC2016K	160MHz	-10	70	±30ppm	2.5,3.3
MC2016K160.000C2UESH	MC2016K	160MHz	-10	70	±25ppm	2.5,3.3
MC2016K160.000C2XESH	MC2016K	160MHz	-40	125	±100ppm	2.5,3.3
MC2016K18.4320C10ESH	MC2016K	18.432MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K18.4320C16ESH	MC2016K	18.432MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K18.4320C1GESH	MC2016K	18.432MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K18.4320C1SESH	MC2016K	18.432MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K18.4320C1UESH	MC2016K	18.432MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K18.4320C1XESH	MC2016K	18.432MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K19.2000C10ESH	MC2016K	19.2MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K19.2000C16ESH	MC2016K	19.2MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K19.2000C1GESH	MC2016K	19.2MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K19.2000C1SESH	MC2016K	19.2MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K19.2000C1UESH	MC2016K	19.2MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K19.2000C1XESH	MC2016K	19.2MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K19.4400C10ESH	MC2016K	19.44MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K19.4400C16ESH	MC2016K	19.44MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K19.4400C1GESH	MC2016K	19.44MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K19.4400C1SESH	MC2016K	19.44MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K19.4400C1UESH	MC2016K	19.44MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K19.4400C1XESH	MC2016K	19.44MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K19.4950C10ESH	MC2016K	19.495MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K19.4950C16ESH	MC2016K	19.495MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K19.4950C1GESH	MC2016K	19.495MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K19.4950C1SESH	MC2016K	19.495MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K19.4950C1UESH	MC2016K	19.495MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K19.4950C1XESH	MC2016K	19.495MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K19.6608C10ESH	MC2016K	19.6608MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K19.6608C16ESH	MC2016K	19.6608MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K19.6608C1GESH	MC2016K	19.6608MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K19.6608C1SESH	MC2016K	19.6608MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K19.6608C1UESH	MC2016K	19.6608MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K19.6608C1XESH	MC2016K	19.6608MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K2.04800C10ESH	MC2016K	2.048MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K2.04800C16ESH	MC2016K	2.048MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K2.04800C1GESH	MC2016K	2.048MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K2.04800C1SESH	MC2016K	2.048MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K2.04800C1UESH	MC2016K	2.048MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K2.04800C1XESH	MC2016K	2.048MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K20.0000C10ESH	MC2016K	20MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K20.0000C16ESH	MC2016K	20MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K20.0000C1GESH	MC2016K	20MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K20.0000C1SESH	MC2016K	20MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K20.0000C1UESH	MC2016K	20MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K20.0000C1XESH	MC2016K	20MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K22.5000C10ESH	MC2016K	22.5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K22.5000C16ESH	MC2016K	22.5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K22.5000C1GESH	MC2016K	22.5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K22.5000C1SESH	MC2016K	22.5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K22.5000C1UESH	MC2016K	22.5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K22.5000C1XESH	MC2016K	22.5MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K22.5792C10ESH	MC2016K	22.5792MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K22.5792C16ESH	MC2016K	22.5792MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K22.5792C1GESH	MC2016K	22.5792MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K22.5792C1SESH	MC2016K	22.5792MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K22.5792C1UESH	MC2016K	22.5792MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K22.5792C1XESH	MC2016K	22.5792MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K23.0000C10ESH	MC2016K	23MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K23.0000C16ESH	MC2016K	23MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K23.0000C1GESH	MC2016K	23MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K23.0000C1SESH	MC2016K	23MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K23.0000C1UESH	MC2016K	23MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K23.0000C1XESH	MC2016K	23MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K24.0000C10ESH	MC2016K	24MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K24.0000C16ESH	MC2016K	24MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K24.0000C1GESH	MC2016K	24MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K24.0000C1SESH	MC2016K	24MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K24.0000C1UESH	MC2016K	24MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K24.0000C1XESH	MC2016K	24MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K24.5760C10ESH	MC2016K	24.576MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K24.5760C16ESH	MC2016K	24.576MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K24.5760C1GESH	MC2016K	24.576MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K24.5760C1SESH	MC2016K	24.576MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K24.5760C1UESH	MC2016K	24.576MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K24.5760C1XESH	MC2016K	24.576MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K25.0000C10ESH	MC2016K	25MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K25.0000C16ESH	MC2016K	25MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K25.0000C1GESH	MC2016K	25MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K25.0000C1SESH	MC2016K	25MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K25.0000C1UESH	MC2016K	25MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K25.0000C1XESH	MC2016K	25MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K26.0000C10ESH	MC2016K	26MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K26.0000C16ESH	MC2016K	26MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K26.0000C1GESH	MC2016K	26MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K26.0000C1SESH	MC2016K	26MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K26.0000C1UESH	MC2016K	26MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K26.0000C1XESH	MC2016K	26MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K27.0000C10ESH	MC2016K	27MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K27.0000C16ESH	MC2016K	27MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K27.0000C1GESH	MC2016K	27MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K27.0000C1SESH	MC2016K	27MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K27.0000C1UESH	MC2016K	27MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K27.0000C1XESH	MC2016K	27MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K27.1200C10ESH	MC2016K	27.12MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K27.1200C16ESH	MC2016K	27.12MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K27.1200C1GESH	MC2016K	27.12MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K27.1200C1SESH	MC2016K	27.12MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K27.1200C1UESH	MC2016K	27.12MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K27.1200C1XESH	MC2016K	27.12MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K28.6364C10ESH	MC2016K	28.6364MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K28.6364C16ESH	MC2016K	28.6364MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K28.6364C1GESH	MC2016K	28.6364MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K28.6364C1SESH	MC2016K	28.6364MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K28.6364C1UESH	MC2016K	28.6364MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K28.6364C1XESH	MC2016K	28.6364MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K29.4912C10ESH	MC2016K	29.4912MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K29.4912C16ESH	MC2016K	29.4912MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K29.4912C1GESH	MC2016K	29.4912MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K29.4912C1SESH	MC2016K	29.4912MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K29.4912C1UESH	MC2016K	29.4912MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K29.4912C1XESH	MC2016K	29.4912MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K3.57955C10ESH	MC2016K	3.57955MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K3.57955C16ESH	MC2016K	3.57955MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K3.57955C1GESH	MC2016K	3.57955MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K3.57955C1SESH	MC2016K	3.57955MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K3.57955C1UESH	MC2016K	3.57955MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K3.57955C1XESH	MC2016K	3.57955MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K3.68640C10ESH	MC2016K	3.6864MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K3.68640C16ESH	MC2016K	3.6864MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K3.68640C1GESH	MC2016K	3.6864MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K3.68640C1SESH	MC2016K	3.6864MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K3.68640C1UESH	MC2016K	3.6864MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K3.68640C1XESH	MC2016K	3.6864MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K30.0000C10ESH	MC2016K	30MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K30.0000C16ESH	MC2016K	30MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K30.0000C1GESH	MC2016K	30MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K30.0000C1SESH	MC2016K	30MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K30.0000C1UESH	MC2016K	30MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K30.0000C1XESH	MC2016K	30MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K30.0000C1ZESX	MC2016K	30MHz	-40	125	±50(~105℃),±65(~125℃)ppm	1.8V,2.5V,3.3V
MC2016K32.0000C10ESH	MC2016K	32MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K32.0000C16ESH	MC2016K	32MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K32.0000C1GESH	MC2016K	32MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K32.0000C1SESH	MC2016K	32MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K32.0000C1UESH	MC2016K	32MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K32.0000C1XESH	MC2016K	32MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K32.7680C10ESH	MC2016K	32.768MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K32.7680C16ESH	MC2016K	32.768MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K32.7680C1GESH	MC2016K	32.768MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K32.7680C1SESH	MC2016K	32.768MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K32.7680C1UESH	MC2016K	32.768MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K32.7680C1XESH	MC2016K	32.768MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K33.0000C10ESH	MC2016K	33MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K33.0000C16ESH	MC2016K	33MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K33.0000C1GESH	MC2016K	33MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K33.0000C1SESH	MC2016K	33MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K33.0000C1UESH	MC2016K	33MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K33.0000C1XESH	MC2016K	33MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K33.3333C10ESH	MC2016K	33.3333MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K33.3333C16ESH	MC2016K	33.3333MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K33.3333C1GESH	MC2016K	33.3333MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K33.3333C1SESH	MC2016K	33.3333MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K33.3333C1UESH	MC2016K	33.3333MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K33.3333C1XESH	MC2016K	33.3333MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K33.8688C10ESH	MC2016K	33.8688MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K33.8688C16ESH	MC2016K	33.8688MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K33.8688C1GESH	MC2016K	33.8688MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K33.8688C1SESH	MC2016K	33.8688MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K33.8688C1UESH	MC2016K	33.8688MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K33.8688C1XESH	MC2016K	33.8688MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K35.0000C10ESH	MC2016K	35MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K35.0000C16ESH	MC2016K	35MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K35.0000C1GESH	MC2016K	35MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K35.0000C1SESH	MC2016K	35MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K35.0000C1UESH	MC2016K	35MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K35.0000C1XESH	MC2016K	35MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K36.0000C10ESH	MC2016K	36MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K36.0000C16ESH	MC2016K	36MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K36.0000C1GESH	MC2016K	36MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K36.0000C1SESH	MC2016K	36MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K36.0000C1UESH	MC2016K	36MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K36.0000C1XESH	MC2016K	36MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K36.8640C10ESH	MC2016K	36.864MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K36.8640C16ESH	MC2016K	36.864MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K36.8640C1GESH	MC2016K	36.864MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K36.8640C1SESH	MC2016K	36.864MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K36.8640C1UESH	MC2016K	36.864MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K36.8640C1XESH	MC2016K	36.864MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K37.1250C10ESH	MC2016K	37.125MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K37.1250C16ESH	MC2016K	37.125MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K37.1250C1GESH	MC2016K	37.125MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K37.1250C1SESH	MC2016K	37.125MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K37.1250C1UESH	MC2016K	37.125MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K37.1250C1XESH	MC2016K	37.125MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K38.4000C10ESH	MC2016K	38.4MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K38.4000C16ESH	MC2016K	38.4MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K38.4000C1GESH	MC2016K	38.4MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K38.4000C1SESH	MC2016K	38.4MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K38.4000C1UESH	MC2016K	38.4MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K38.4000C1XESH	MC2016K	38.4MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K38.8800C10ESH	MC2016K	38.88MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K38.8800C16ESH	MC2016K	38.88MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K38.8800C1GESH	MC2016K	38.88MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K38.8800C1SESH	MC2016K	38.88MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K38.8800C1UESH	MC2016K	38.88MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K38.8800C1XESH	MC2016K	38.88MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K4.00000C10ESH	MC2016K	4MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K4.00000C16ESH	MC2016K	4MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K4.00000C1GESH	MC2016K	4MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K4.00000C1SESH	MC2016K	4MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K4.00000C1UESH	MC2016K	4MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K4.00000C1XESH	MC2016K	4MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K4.09600C10ESH	MC2016K	4.096MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K4.09600C16ESH	MC2016K	4.096MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K4.09600C1GESH	MC2016K	4.096MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K4.09600C1SESH	MC2016K	4.096MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K4.09600C1UESH	MC2016K	4.096MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K4.09600C1XESH	MC2016K	4.096MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K40.0000C10ESH	MC2016K	40MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K40.0000C16ESH	MC2016K	40MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K40.0000C1GESH	MC2016K	40MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K40.0000C1SESH	MC2016K	40MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K40.0000C1UESH	MC2016K	40MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K40.0000C1XESH	MC2016K	40MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K44.0000C10ESH	MC2016K	44MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K44.0000C16ESH	MC2016K	44MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K44.0000C1GESH	MC2016K	44MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K44.0000C1SESH	MC2016K	44MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K44.0000C1UESH	MC2016K	44MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K44.0000C1XESH	MC2016K	44MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K45.0000C10ESH	MC2016K	45MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K45.0000C16ESH	MC2016K	45MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K45.0000C1GESH	MC2016K	45MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K45.0000C1SESH	MC2016K	45MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K45.0000C1UESH	MC2016K	45MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K45.0000C1XESH	MC2016K	45MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K45.1584C10ESH	MC2016K	45.1584MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K45.1584C16ESH	MC2016K	45.1584MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K45.1584C1GESH	MC2016K	45.1584MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K45.1584C1SESH	MC2016K	45.1584MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K45.1584C1UESH	MC2016K	45.1584MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K45.1584C1XESH	MC2016K	45.1584MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K48.0000C10ESH	MC2016K	48MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K48.0000C16ESH	MC2016K	48MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K48.0000C1GESH	MC2016K	48MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K48.0000C1SESH	MC2016K	48MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K48.0000C1UESH	MC2016K	48MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K48.0000C1XESH	MC2016K	48MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K49.1520C10ESH	MC2016K	49.152MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K49.1520C16ESH	MC2016K	49.152MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K49.1520C1GESH	MC2016K	49.152MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K49.1520C1SESH	MC2016K	49.152MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K49.1520C1UESH	MC2016K	49.152MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K49.1520C1XESH	MC2016K	49.152MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K49.8240C10ESH	MC2016K	49.824MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K49.8240C16ESH	MC2016K	49.824MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K49.8240C1GESH	MC2016K	49.824MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K49.8240C1SESH	MC2016K	49.824MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K49.8240C1UESH	MC2016K	49.824MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K49.8240C1XESH	MC2016K	49.824MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K5.00000C10ESH	MC2016K	5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K5.00000C16ESH	MC2016K	5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K5.00000C1GESH	MC2016K	5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K5.00000C1SESH	MC2016K	5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K5.00000C1UESH	MC2016K	5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K5.00000C1XESH	MC2016K	5MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K50.0000C10ESH	MC2016K	50MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K50.0000C16ESH	MC2016K	50MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K50.0000C1GESH	MC2016K	50MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K50.0000C1SESH	MC2016K	50MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K50.0000C1UESH	MC2016K	50MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K50.0000C1XESH	MC2016K	50MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K54.0000C10ESH	MC2016K	54MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K54.0000C16ESH	MC2016K	54MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K54.0000C1GESH	MC2016K	54MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K54.0000C1SESH	MC2016K	54MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K54.0000C1UESH	MC2016K	54MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K54.0000C1XESH	MC2016K	54MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K6.00000C10ESH	MC2016K	6MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K6.00000C16ESH	MC2016K	6MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K6.00000C1GESH	MC2016K	6MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K6.00000C1SESH	MC2016K	6MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K6.00000C1UESH	MC2016K	6MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K6.00000C1XESH	MC2016K	6MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K6.14400C10ESH	MC2016K	6.144MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K6.14400C16ESH	MC2016K	6.144MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K6.14400C1GESH	MC2016K	6.144MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K6.14400C1SESH	MC2016K	6.144MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K6.14400C1UESH	MC2016K	6.144MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K6.14400C1XESH	MC2016K	6.144MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K60.0000C10ESH	MC2016K	60MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K60.0000C16ESH	MC2016K	60MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K60.0000C1GESH	MC2016K	60MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K60.0000C1SESH	MC2016K	60MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K60.0000C1UESH	MC2016K	60MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K60.0000C1XESH	MC2016K	60MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K64.0000C10ESH	MC2016K	64MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K64.0000C16ESH	MC2016K	64MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K64.0000C1GESH	MC2016K	64MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K64.0000C1SESH	MC2016K	64MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K64.0000C1UESH	MC2016K	64MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K64.0000C1XESH	MC2016K	64MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K65.0000C10ESH	MC2016K	65MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K65.0000C16ESH	MC2016K	65MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K65.0000C1GESH	MC2016K	65MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K65.0000C1SESH	MC2016K	65MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K65.0000C1UESH	MC2016K	65MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K65.0000C1XESH	MC2016K	65MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K66.0000C10ESH	MC2016K	66MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K66.0000C16ESH	MC2016K	66MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K66.0000C1GESH	MC2016K	66MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K66.0000C1SESH	MC2016K	66MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K66.0000C1UESH	MC2016K	66MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K66.0000C1XESH	MC2016K	66MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K66.6667C10ESH	MC2016K	66.6667MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K66.6667C16ESH	MC2016K	66.6667MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K66.6667C1GESH	MC2016K	66.6667MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K66.6667C1SESH	MC2016K	66.6667MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K66.6667C1UESH	MC2016K	66.6667MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K66.6667C1XESH	MC2016K	66.6667MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K7.15910C10ESH	MC2016K	7.1591MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K7.15910C16ESH	MC2016K	7.1591MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K7.15910C1GESH	MC2016K	7.1591MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K7.15910C1SESH	MC2016K	7.1591MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K7.15910C1UESH	MC2016K	7.1591MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K7.15910C1XESH	MC2016K	7.1591MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K7.37280C10ESH	MC2016K	7.3728MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K7.37280C16ESH	MC2016K	7.3728MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K7.37280C1GESH	MC2016K	7.3728MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K7.37280C1SESH	MC2016K	7.3728MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K7.37280C1UESH	MC2016K	7.3728MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K7.37280C1XESH	MC2016K	7.3728MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K72.0000C10ESH	MC2016K	72MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K72.0000C16ESH	MC2016K	72MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K72.0000C1GESH	MC2016K	72MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K72.0000C1SESH	MC2016K	72MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K72.0000C1UESH	MC2016K	72MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K72.0000C1XESH	MC2016K	72MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K72.6860C10ESH	MC2016K	72.686MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K72.6860C16ESH	MC2016K	72.686MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K72.6860C1GESH	MC2016K	72.686MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K72.6860C1SESH	MC2016K	72.686MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K72.6860C1UESH	MC2016K	72.686MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K72.6860C1XESH	MC2016K	72.686MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K74.1758C10ESH	MC2016K	74.1758MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K74.1758C16ESH	MC2016K	74.1758MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K74.1758C1GESH	MC2016K	74.1758MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K74.1758C1SESH	MC2016K	74.1758MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K74.1758C1UESH	MC2016K	74.1758MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K74.1758C1XESH	MC2016K	74.1758MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K74.2500C10ESH	MC2016K	74.25MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K74.2500C16ESH	MC2016K	74.25MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K74.2500C1GESH	MC2016K	74.25MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K74.2500C1SESH	MC2016K	74.25MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K74.2500C1UESH	MC2016K	74.25MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K74.2500C1XESH	MC2016K	74.25MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K75.0000C10ESH	MC2016K	75MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K75.0000C16ESH	MC2016K	75MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K75.0000C1GESH	MC2016K	75MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K75.0000C1SESH	MC2016K	75MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K75.0000C1UESH	MC2016K	75MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K75.0000C1XESH	MC2016K	75MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K8.00000C10ESH	MC2016K	8MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K8.00000C16ESH	MC2016K	8MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K8.00000C1GESH	MC2016K	8MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K8.00000C1SESH	MC2016K	8MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K8.00000C1UESH	MC2016K	8MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K8.00000C1XESH	MC2016K	8MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K8.19200C10ESH	MC2016K	8.192MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K8.19200C16ESH	MC2016K	8.192MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K8.19200C1GESH	MC2016K	8.192MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K8.19200C1SESH	MC2016K	8.192MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K8.19200C1UESH	MC2016K	8.192MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K8.19200C1XESH	MC2016K	8.192MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K80.0000C10ESH	MC2016K	80MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K80.0000C16ESH	MC2016K	80MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K80.0000C1GESH	MC2016K	80MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K80.0000C1SESH	MC2016K	80MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K80.0000C1UESH	MC2016K	80MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K80.0000C1XESH	MC2016K	80MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K9.21600C10ESH	MC2016K	9.216MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K9.21600C16ESH	MC2016K	9.216MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K9.21600C1GESH	MC2016K	9.216MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K9.21600C1SESH	MC2016K	9.216MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K9.21600C1UESH	MC2016K	9.216MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K9.21600C1XESH	MC2016K	9.216MHz	-40	125	±100ppm	1.8V,2.5V,3.3V
MC2016K9.83040C10ESH	MC2016K	9.8304MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
MC2016K9.83040C16ESH	MC2016K	9.8304MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
MC2016K9.83040C1GESH	MC2016K	9.8304MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
MC2016K9.83040C1SESH	MC2016K	9.8304MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
MC2016K9.83040C1UESH	MC2016K	9.8304MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
MC2016K9.83040C1XESH	MC2016K	9.8304MHz	-40	125	±100ppm	1.8V,2.5V,3.3V

京瓷晶振简介：

京瓷晶振,全称日本KYOCERA京瓷晶振株式会社成立于1959年由稻盛和夫创办,是一家有着悠久发展历史的知名品牌晶振公司,该公司专注于研发生产石英晶体,有源晶振,温补晶振,差分晶振,压控晶振等元件,是业内领先的制造商之一,京瓷晶振始终如一地开发和制造晶体振荡器和晶体振荡器等产品,这些产品应用了人造石英的栽培特性,同时京瓷晶振向全球市场供应大量水晶产品,为即将到来的智能物联网时代的发展做出贡献。官网请访问http://www.xtal.cc

^{深圳市加科电子有限公司}

联系人：黄河 _15602443498

座机：_{0755-33533774}

邮箱：_{jiakedz@163.com}

QQ：_3080074590

_地址：_{深圳市宝安区13区宝民一路白金大厦13F}

_网址：_{https://www.xtal.cc}

* 表示必填采购：MC2016K

* 联系人：	请填写您的真实姓名
公司名称：	请填写您的公司名称
联系电话：
* 手机号码：	请填写您的联系电话
电子邮件：
联系地址：
* 采购意向描述：
	请填写采购的产品数量和产品描述，方便我们进行统一备货。
验证码：

跟此产品相关的产品

: 40MHz晶振,MC2016K40.0000C16ESH,京瓷车载专用有源晶振; 特点频率范围1.5至160MHZ,CMOS输出外部电源电压1.6至3.63V（er E2。5 . 三。三。5 . 0V（er N）低电流消耗选项：低相位噪声版本应用汽车雷达/摄像头/导航/传感器/后视镜/前照灯。

共有-条评论【我要评论】

查看全部评论

我要评论:
内容：	（内容最多500个汉字，1000个字符）
验证码：	看不清？！

联系加科电子Contact

咨询热线：0755-33533774

传真：0755-33533774

QQ：3080074590

邮箱：jiakedz@163.com

地址：深圳市宝安区宝民一路123号3号楼13F

加科电子全球高端晶体品牌供应商小型化高”晶“准

MC2016K

共有-条评论【我要评论】

晶振分类

进口晶振

台系晶振

晶振用途

晶振规格书

联系加科电子Contact

加科电子 全球高端晶体品牌供应商小型化 高”晶“准

MC2016K

共有-条评论【我要评论】

晶振分类

进口晶振

台系晶振

晶振用途

晶振规格书

联系加科电子Contact

加科电子全球高端晶体品牌供应商小型化高”晶“准
