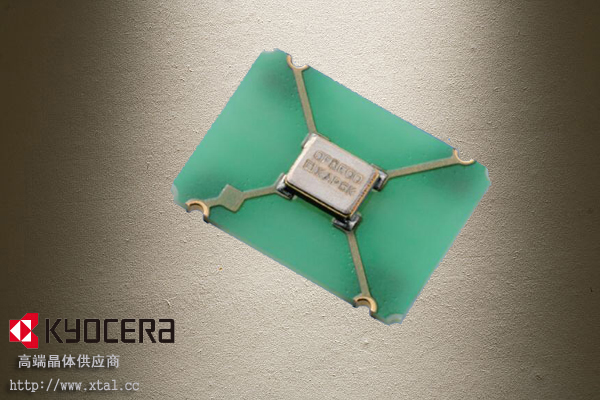

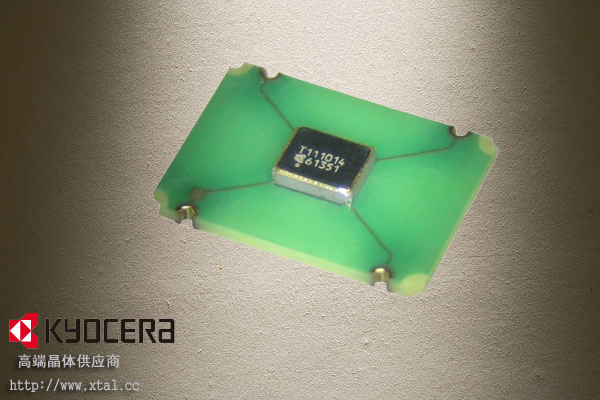

KC7050K

产品分类：京瓷晶振

特征：频率范围1.5至160MHz,CMOS输出宽电源电压1.6至3.63V低电流消耗,低相位噪声应用,消费者/网络/工业/音频编解码器/娱乐。

订购热线：0755-33533774

跟此产品相关的产品

: KC7050K25.0000C1GE00,25MHz,1.6V-3.63V,kyocera京瓷晶振; 特点：频率范围1.5-160MHz,CMOS输出宽电源电压1.6至3.63V（版本。E）2.5.3.3、5。0V（版本。N）低电流消耗选项：低相位噪声版本应用消费者/网络/工业/音频编解码器/娱乐

产品详情

料号	型号	频率	最低温度	最高温度	精度	电压
KC7050K1.50000C10E00	KC7050K	1.5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K1.50000C16E00	KC7050K	1.5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K1.50000C1GE00	KC7050K	1.5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K1.50000C1SE00	KC7050K	1.5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K1.50000C1UE00	KC7050K	1.5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K1.84320C10E00	KC7050K	1.8432MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K1.84320C16E00	KC7050K	1.8432MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K1.84320C1GE00	KC7050K	1.8432MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K1.84320C1SE00	KC7050K	1.8432MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K1.84320C1UE00	KC7050K	1.8432MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K10.0000C10E00	KC7050K	10MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K10.0000C16E00	KC7050K	10MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K10.0000C1GE00	KC7050K	10MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K10.0000C1SE00	KC7050K	10MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K10.0000C1UE00	KC7050K	10MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K10.2400C10E00	KC7050K	10.24MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K10.2400C16E00	KC7050K	10.24MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K10.2400C1GE00	KC7050K	10.24MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K10.2400C1SE00	KC7050K	10.24MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K10.2400C1UE00	KC7050K	10.24MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K10.5554C10E00	KC7050K	10.5554MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K10.5554C16E00	KC7050K	10.5554MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K10.5554C1GE00	KC7050K	10.5554MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K10.5554C1SE00	KC7050K	10.5554MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K10.5554C1UE00	KC7050K	10.5554MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K100.000C10E00	KC7050K	100MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K100.000C16E00	KC7050K	100MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K100.000C1GE00	KC7050K	100MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K100.000C1SE00	KC7050K	100MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K100.000C1UE00	KC7050K	100MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K11.2896C10E00	KC7050K	11.2896MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K11.2896C16E00	KC7050K	11.2896MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K11.2896C1GE00	KC7050K	11.2896MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K11.2896C1SE00	KC7050K	11.2896MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K11.2896C1UE00	KC7050K	11.2896MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K12.0000C10E00	KC7050K	12MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K12.0000C16E00	KC7050K	12MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K12.0000C1GE00	KC7050K	12MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K12.0000C1SE00	KC7050K	12MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K12.0000C1UE00	KC7050K	12MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K12.2880C10E00	KC7050K	12.288MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K12.2880C16E00	KC7050K	12.288MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K12.2880C1GE00	KC7050K	12.288MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K12.2880C1SE00	KC7050K	12.288MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K12.2880C1UE00	KC7050K	12.288MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K12.4560C10E00	KC7050K	12.456MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K12.4560C16E00	KC7050K	12.456MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K12.4560C1GE00	KC7050K	12.456MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K12.4560C1SE00	KC7050K	12.456MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K12.4560C1UE00	KC7050K	12.456MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K12.5000C10E00	KC7050K	12.5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K12.5000C16E00	KC7050K	12.5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K12.5000C1GE00	KC7050K	12.5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K12.5000C1SE00	KC7050K	12.5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K12.5000C1UE00	KC7050K	12.5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K125.000C10E00	KC7050K	125MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K125.000C16E00	KC7050K	125MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K125.000C1GE00	KC7050K	125MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K125.000C1SE00	KC7050K	125MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K125.000C1UE00	KC7050K	125MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K13.5600C10E00	KC7050K	13.56MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K13.5600C16E00	KC7050K	13.56MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K13.5600C1GE00	KC7050K	13.56MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K13.5600C1SE00	KC7050K	13.56MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K13.5600C1UE00	KC7050K	13.56MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K14.3182C10E00	KC7050K	14.3182MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K14.3182C16E00	KC7050K	14.3182MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K14.3182C1GE00	KC7050K	14.3182MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K14.3182C1SE00	KC7050K	14.3182MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K14.3182C1UE00	KC7050K	14.3182MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K14.7456C10E00	KC7050K	14.7456MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K14.7456C16E00	KC7050K	14.7456MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K14.7456C1GE00	KC7050K	14.7456MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K14.7456C1SE00	KC7050K	14.7456MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K14.7456C1UE00	KC7050K	14.7456MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K15.0000C10E00	KC7050K	15MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K15.0000C16E00	KC7050K	15MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K15.0000C1GE00	KC7050K	15MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K15.0000C1SE00	KC7050K	15MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K15.0000C1UE00	KC7050K	15MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K156.250C20E00	KC7050K	156.25MHz	-10	70	±50ppm	2.5V,3.3V
KC7050K156.250C26E00	KC7050K	156.25MHz	-40	105	±50ppm	2.5V,3.3V
KC7050K156.250C2GE00	KC7050K	156.25MHz	-40	85	±50ppm	2.5V,3.3V
KC7050K156.250C2SE00	KC7050K	156.25MHz	-10	70	±30ppm	2.5V,3.3V
KC7050K156.250C2UE00	KC7050K	156.25MHz	-10	70	±25ppm	2.5V,3.3V
KC7050K16.0000C10E00	KC7050K	16MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K16.0000C16E00	KC7050K	16MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K16.0000C1GE00	KC7050K	16MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K16.0000C1SE00	KC7050K	16MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K16.0000C1UE00	KC7050K	16MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K16.3840C10E00	KC7050K	16.384MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K16.3840C16E00	KC7050K	16.384MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K16.3840C1GE00	KC7050K	16.384MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K16.3840C1SE00	KC7050K	16.384MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K16.3840C1UE00	KC7050K	16.384MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K16.6080C10E00	KC7050K	16.608MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K16.6080C16E00	KC7050K	16.608MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K16.6080C1GE00	KC7050K	16.608MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K16.6080C1SE00	KC7050K	16.608MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K16.6080C1UE00	KC7050K	16.608MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K16.6667C10E00	KC7050K	16.6667MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K16.6667C16E00	KC7050K	16.6667MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K16.6667C1GE00	KC7050K	16.6667MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K16.6667C1SE00	KC7050K	16.6667MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K16.6667C1UE00	KC7050K	16.6667MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K16.9344C10E00	KC7050K	16.9344MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K16.9344C16E00	KC7050K	16.9344MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K16.9344C1GE00	KC7050K	16.9344MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K16.9344C1SE00	KC7050K	16.9344MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K16.9344C1UE00	KC7050K	16.9344MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K160.000C20E00	KC7050K	160MHz	-10	70	±50ppm	2.5V,3.3V
KC7050K160.000C26E00	KC7050K	160MHz	-40	105	±50ppm	2.5V,3.3V
KC7050K160.000C2GE00	KC7050K	160MHz	-40	85	±50ppm	2.5V,3.3V
KC7050K160.000C2SE00	KC7050K	160MHz	-10	70	±30ppm	2.5V,3.3V
KC7050K160.000C2UE00	KC7050K	160MHz	-10	70	±25ppm	2.5V,3.3V
KC7050K18.4320C10E00	KC7050K	18.432MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K18.4320C16E00	KC7050K	18.432MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K18.4320C1GE00	KC7050K	18.432MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K18.4320C1SE00	KC7050K	18.432MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K18.4320C1UE00	KC7050K	18.432MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K19.2000C10E00	KC7050K	19.2MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K19.2000C16E00	KC7050K	19.2MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K19.2000C1GE00	KC7050K	19.2MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K19.2000C1SE00	KC7050K	19.2MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K19.2000C1UE00	KC7050K	19.2MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K19.4400C10E00	KC7050K	19.44MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K19.4400C16E00	KC7050K	19.44MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K19.4400C1GE00	KC7050K	19.44MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K19.4400C1SE00	KC7050K	19.44MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K19.4400C1UE00	KC7050K	19.44MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K19.4950C10E00	KC7050K	19.495MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K19.4950C16E00	KC7050K	19.495MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K19.4950C1GE00	KC7050K	19.495MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K19.4950C1SE00	KC7050K	19.495MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K19.4950C1UE00	KC7050K	19.495MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K19.6608C10E00	KC7050K	19.6608MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K19.6608C16E00	KC7050K	19.6608MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K19.6608C1GE00	KC7050K	19.6608MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K19.6608C1SE00	KC7050K	19.6608MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K19.6608C1UE00	KC7050K	19.6608MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K2.04800C10E00	KC7050K	2.048MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K2.04800C16E00	KC7050K	2.048MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K2.04800C1GE00	KC7050K	2.048MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K2.04800C1SE00	KC7050K	2.048MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K2.04800C1UE00	KC7050K	2.048MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K20.0000C10E00	KC7050K	20MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K20.0000C16E00	KC7050K	20MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K20.0000C1GE00	KC7050K	20MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K20.0000C1SE00	KC7050K	20MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K20.0000C1UE00	KC7050K	20MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K22.5000C10E00	KC7050K	22.5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K22.5000C16E00	KC7050K	22.5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K22.5000C1GE00	KC7050K	22.5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K22.5000C1SE00	KC7050K	22.5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K22.5000C1UE00	KC7050K	22.5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K22.5792C10E00	KC7050K	22.5792MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K22.5792C16E00	KC7050K	22.5792MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K22.5792C1GE00	KC7050K	22.5792MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K22.5792C1SE00	KC7050K	22.5792MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K22.5792C1UE00	KC7050K	22.5792MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K23.0000C10E00	KC7050K	23MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K23.0000C16E00	KC7050K	23MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K23.0000C1GE00	KC7050K	23MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K23.0000C1SE00	KC7050K	23MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K23.0000C1UE00	KC7050K	23MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K24.0000C10E00	KC7050K	24MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K24.0000C16E00	KC7050K	24MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K24.0000C1GE00	KC7050K	24MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K24.0000C1SE00	KC7050K	24MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K24.0000C1UE00	KC7050K	24MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K24.5760C10E00	KC7050K	24.576MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K24.5760C16E00	KC7050K	24.576MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K24.5760C1GE00	KC7050K	24.576MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K24.5760C1SE00	KC7050K	24.576MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K24.5760C1UE00	KC7050K	24.576MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K25.0000C10E00	KC7050K	25MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K25.0000C16E00	KC7050K	25MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K25.0000C1GE00	KC7050K	25MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K25.0000C1SE00	KC7050K	25MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K25.0000C1UE00	KC7050K	25MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K26.0000C10E00	KC7050K	26MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K26.0000C16E00	KC7050K	26MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K26.0000C1GE00	KC7050K	26MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K26.0000C1SE00	KC7050K	26MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K26.0000C1UE00	KC7050K	26MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K27.0000C10E00	KC7050K	27MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K27.0000C16E00	KC7050K	27MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K27.0000C1GE00	KC7050K	27MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K27.0000C1SE00	KC7050K	27MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K27.0000C1UE00	KC7050K	27MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K27.1200C10E00	KC7050K	27.12MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K27.1200C16E00	KC7050K	27.12MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K27.1200C1GE00	KC7050K	27.12MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K27.1200C1SE00	KC7050K	27.12MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K27.1200C1UE00	KC7050K	27.12MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K28.6364C10E00	KC7050K	28.6364MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K28.6364C16E00	KC7050K	28.6364MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K28.6364C1GE00	KC7050K	28.6364MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K28.6364C1SE00	KC7050K	28.6364MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K28.6364C1UE00	KC7050K	28.6364MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K29.4912C10E00	KC7050K	29.4912MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K29.4912C16E00	KC7050K	29.4912MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K29.4912C1GE00	KC7050K	29.4912MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K29.4912C1SE00	KC7050K	29.4912MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K29.4912C1UE00	KC7050K	29.4912MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K3.57955C10E00	KC7050K	3.57955MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K3.57955C16E00	KC7050K	3.57955MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K3.57955C1GE00	KC7050K	3.57955MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K3.57955C1SE00	KC7050K	3.57955MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K3.57955C1UE00	KC7050K	3.57955MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K3.68640C10E00	KC7050K	3.6864MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K3.68640C16E00	KC7050K	3.6864MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K3.68640C1GE00	KC7050K	3.6864MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K3.68640C1SE00	KC7050K	3.6864MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K3.68640C1UE00	KC7050K	3.6864MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K30.0000C10E00	KC7050K	30MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K30.0000C16E00	KC7050K	30MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K30.0000C1GE00	KC7050K	30MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K30.0000C1SE00	KC7050K	30MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K30.0000C1UE00	KC7050K	30MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K32.0000C10E00	KC7050K	32MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K32.0000C16E00	KC7050K	32MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K32.0000C1GE00	KC7050K	32MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K32.0000C1SE00	KC7050K	32MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K32.0000C1UE00	KC7050K	32MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K32.7680C10E00	KC7050K	32.768MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K32.7680C16E00	KC7050K	32.768MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K32.7680C1GE00	KC7050K	32.768MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K32.7680C1SE00	KC7050K	32.768MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K32.7680C1UE00	KC7050K	32.768MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K33.0000C10E00	KC7050K	33MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K33.0000C16E00	KC7050K	33MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K33.0000C1GE00	KC7050K	33MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K33.0000C1SE00	KC7050K	33MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K33.0000C1UE00	KC7050K	33MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K33.3333C10E00	KC7050K	33.3333MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K33.3333C16E00	KC7050K	33.3333MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K33.3333C1GE00	KC7050K	33.3333MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K33.3333C1SE00	KC7050K	33.3333MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K33.3333C1UE00	KC7050K	33.3333MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K33.8688C10E00	KC7050K	33.8688MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K33.8688C16E00	KC7050K	33.8688MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K33.8688C1GE00	KC7050K	33.8688MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K33.8688C1SE00	KC7050K	33.8688MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K33.8688C1UE00	KC7050K	33.8688MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K35.0000C10E00	KC7050K	35MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K35.0000C16E00	KC7050K	35MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K35.0000C1GE00	KC7050K	35MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K35.0000C1SE00	KC7050K	35MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K35.0000C1UE00	KC7050K	35MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K36.0000C10E00	KC7050K	36MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K36.0000C16E00	KC7050K	36MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K36.0000C1GE00	KC7050K	36MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K36.0000C1SE00	KC7050K	36MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K36.0000C1UE00	KC7050K	36MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K36.8640C10E00	KC7050K	36.864MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K36.8640C16E00	KC7050K	36.864MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K36.8640C1GE00	KC7050K	36.864MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K36.8640C1SE00	KC7050K	36.864MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K36.8640C1UE00	KC7050K	36.864MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K37.1250C10E00	KC7050K	37.125MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K37.1250C16E00	KC7050K	37.125MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K37.1250C1GE00	KC7050K	37.125MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K37.1250C1SE00	KC7050K	37.125MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K37.1250C1UE00	KC7050K	37.125MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K38.4000C10E00	KC7050K	38.4MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K38.4000C16E00	KC7050K	38.4MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K38.4000C1GE00	KC7050K	38.4MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K38.4000C1SE00	KC7050K	38.4MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K38.4000C1UE00	KC7050K	38.4MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K38.8800C10E00	KC7050K	38.88MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K38.8800C16E00	KC7050K	38.88MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K38.8800C1GE00	KC7050K	38.88MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K38.8800C1SE00	KC7050K	38.88MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K38.8800C1UE00	KC7050K	38.88MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K4.00000C10E00	KC7050K	4MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K4.00000C16E00	KC7050K	4MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K4.00000C1GE00	KC7050K	4MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K4.00000C1SE00	KC7050K	4MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K4.00000C1UE00	KC7050K	4MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K4.09600C10E00	KC7050K	4.096MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K4.09600C16E00	KC7050K	4.096MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K4.09600C1GE00	KC7050K	4.096MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K4.09600C1SE00	KC7050K	4.096MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K4.09600C1UE00	KC7050K	4.096MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K40.0000C10E00	KC7050K	40MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K40.0000C16E00	KC7050K	40MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K40.0000C1GE00	KC7050K	40MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K40.0000C1SE00	KC7050K	40MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K40.0000C1UE00	KC7050K	40MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K44.0000C10E00	KC7050K	44MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K44.0000C16E00	KC7050K	44MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K44.0000C1GE00	KC7050K	44MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K44.0000C1SE00	KC7050K	44MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K44.0000C1UE00	KC7050K	44MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K45.0000C10E00	KC7050K	45MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K45.0000C16E00	KC7050K	45MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K45.0000C1GE00	KC7050K	45MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K45.0000C1SE00	KC7050K	45MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K45.0000C1UE00	KC7050K	45MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K45.1584C10E00	KC7050K	45.1584MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K45.1584C16E00	KC7050K	45.1584MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K45.1584C1GE00	KC7050K	45.1584MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K45.1584C1SE00	KC7050K	45.1584MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K45.1584C1UE00	KC7050K	45.1584MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K48.0000C10E00	KC7050K	48MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K48.0000C16E00	KC7050K	48MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K48.0000C1GE00	KC7050K	48MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K48.0000C1SE00	KC7050K	48MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K48.0000C1UE00	KC7050K	48MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K49.1520C10E00	KC7050K	49.152MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K49.1520C16E00	KC7050K	49.152MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K49.1520C1GE00	KC7050K	49.152MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K49.1520C1SE00	KC7050K	49.152MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K49.1520C1UE00	KC7050K	49.152MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K49.8240C10E00	KC7050K	49.824MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K49.8240C16E00	KC7050K	49.824MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K49.8240C1GE00	KC7050K	49.824MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K49.8240C1SE00	KC7050K	49.824MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K49.8240C1UE00	KC7050K	49.824MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K5.00000C10E00	KC7050K	5MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K5.00000C16E00	KC7050K	5MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K5.00000C1GE00	KC7050K	5MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K5.00000C1SE00	KC7050K	5MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K5.00000C1UE00	KC7050K	5MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K50.0000C10E00	KC7050K	50MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K50.0000C16E00	KC7050K	50MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K50.0000C1GE00	KC7050K	50MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K50.0000C1SE00	KC7050K	50MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K50.0000C1UE00	KC7050K	50MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K54.0000C10E00	KC7050K	54MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K54.0000C16E00	KC7050K	54MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K54.0000C1GE00	KC7050K	54MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K54.0000C1SE00	KC7050K	54MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K54.0000C1UE00	KC7050K	54MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K6.00000C10E00	KC7050K	6MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K6.00000C16E00	KC7050K	6MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K6.00000C1GE00	KC7050K	6MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K6.00000C1SE00	KC7050K	6MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K6.00000C1UE00	KC7050K	6MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K6.14400C10E00	KC7050K	6.144MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K6.14400C16E00	KC7050K	6.144MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K6.14400C1GE00	KC7050K	6.144MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K6.14400C1SE00	KC7050K	6.144MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K6.14400C1UE00	KC7050K	6.144MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K60.0000C10E00	KC7050K	60MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K60.0000C16E00	KC7050K	60MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K60.0000C1GE00	KC7050K	60MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K60.0000C1SE00	KC7050K	60MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K60.0000C1UE00	KC7050K	60MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K64.0000C10E00	KC7050K	64MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K64.0000C16E00	KC7050K	64MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K64.0000C1GE00	KC7050K	64MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K64.0000C1SE00	KC7050K	64MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K64.0000C1UE00	KC7050K	64MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K65.0000C10E00	KC7050K	65MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K65.0000C16E00	KC7050K	65MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K65.0000C1GE00	KC7050K	65MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K65.0000C1SE00	KC7050K	65MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K65.0000C1UE00	KC7050K	65MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K66.0000C10E00	KC7050K	66MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K66.0000C16E00	KC7050K	66MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K66.0000C1GE00	KC7050K	66MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K66.0000C1SE00	KC7050K	66MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K66.0000C1UE00	KC7050K	66MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K66.6667C10E00	KC7050K	66.6667MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K66.6667C16E00	KC7050K	66.6667MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K66.6667C1GE00	KC7050K	66.6667MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K66.6667C1SE00	KC7050K	66.6667MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K66.6667C1UE00	KC7050K	66.6667MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K7.15910C10E00	KC7050K	7.1591MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K7.15910C16E00	KC7050K	7.1591MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K7.15910C1GE00	KC7050K	7.1591MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K7.15910C1SE00	KC7050K	7.1591MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K7.15910C1UE00	KC7050K	7.1591MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K7.37280C10E00	KC7050K	7.3728MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K7.37280C16E00	KC7050K	7.3728MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K7.37280C1GE00	KC7050K	7.3728MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K7.37280C1SE00	KC7050K	7.3728MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K7.37280C1UE00	KC7050K	7.3728MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K72.0000C10E00	KC7050K	72MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K72.0000C16E00	KC7050K	72MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K72.0000C1GE00	KC7050K	72MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K72.0000C1SE00	KC7050K	72MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K72.0000C1UE00	KC7050K	72MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K72.6860C10E00	KC7050K	72.686MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K72.6860C16E00	KC7050K	72.686MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K72.6860C1GE00	KC7050K	72.686MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K72.6860C1SE00	KC7050K	72.686MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K72.6860C1UE00	KC7050K	72.686MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K74.1758C10E00	KC7050K	74.1758MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K74.1758C16E00	KC7050K	74.1758MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K74.1758C1GE00	KC7050K	74.1758MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K74.1758C1SE00	KC7050K	74.1758MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K74.1758C1UE00	KC7050K	74.1758MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K74.2500C10E00	KC7050K	74.25MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K74.2500C16E00	KC7050K	74.25MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K74.2500C1GE00	KC7050K	74.25MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K74.2500C1SE00	KC7050K	74.25MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K74.2500C1UE00	KC7050K	74.25MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K75.0000C10E00	KC7050K	75MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K75.0000C16E00	KC7050K	75MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K75.0000C1GE00	KC7050K	75MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K75.0000C1SE00	KC7050K	75MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K75.0000C1UE00	KC7050K	75MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K8.00000C10E00	KC7050K	8MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K8.00000C16E00	KC7050K	8MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K8.00000C1GE00	KC7050K	8MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K8.00000C1SE00	KC7050K	8MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K8.00000C1UE00	KC7050K	8MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K8.19200C10E00	KC7050K	8.192MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K8.19200C16E00	KC7050K	8.192MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K8.19200C1GE00	KC7050K	8.192MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K8.19200C1SE00	KC7050K	8.192MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K8.19200C1UE00	KC7050K	8.192MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K80.0000C10E00	KC7050K	80MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K80.0000C16E00	KC7050K	80MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K80.0000C1GE00	KC7050K	80MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K80.0000C1SE00	KC7050K	80MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K80.0000C1UE00	KC7050K	80MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K9.21600C10E00	KC7050K	9.216MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K9.21600C16E00	KC7050K	9.216MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K9.21600C1GE00	KC7050K	9.216MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K9.21600C1SE00	KC7050K	9.216MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K9.21600C1UE00	KC7050K	9.216MHz	-10	70	±25ppm	1.8V,2.5V,3.3V
KC7050K9.83040C10E00	KC7050K	9.8304MHz	-10	70	±50ppm	1.8V,2.5V,3.3V
KC7050K9.83040C16E00	KC7050K	9.8304MHz	-40	105	±50ppm	1.8V,2.5V,3.3V
KC7050K9.83040C1GE00	KC7050K	9.8304MHz	-40	85	±50ppm	1.8V,2.5V,3.3V
KC7050K9.83040C1SE00	KC7050K	9.8304MHz	-10	70	±30ppm	1.8V,2.5V,3.3V
KC7050K9.83040C1UE00	KC7050K	9.8304MHz	-10	70	±25ppm	1.8V,2.5V,3.3V

京瓷晶振简介：

京瓷晶振,全称日本KYOCERA京瓷晶振株式会社成立于1959年由稻盛和夫创办,是一家有着悠久发展历史的知名品牌晶振公司,该公司专注于研发生产石英晶体,有源晶振,温补晶振,差分晶振,压控晶振等元件,是业内领先的制造商之一,京瓷晶振始终如一地开发和制造晶体振荡器和晶体振荡器等产品,这些产品应用了人造石英的栽培特性,同时京瓷晶振向全球市场供应大量水晶产品,为即将到来的智能物联网时代的发展做出贡献。官网请访问http://www.xtal.cc

^{深圳市加科电子有限公司}

联系人：黄河 _15602443498

座机：_{0755-33533774}

邮箱：_{jiakedz@163.com}

QQ：_3080074590

_地址：_{深圳市宝安区13区宝民一路白金大厦13F}

_网址：_{https://www.xtal.cc}

* 表示必填采购：KC7050K

* 联系人：	请填写您的真实姓名
公司名称：	请填写您的公司名称
联系电话：
* 手机号码：	请填写您的联系电话
电子邮件：
联系地址：
* 采购意向描述：
	请填写采购的产品数量和产品描述，方便我们进行统一备货。
验证码：

跟此产品相关的产品

: KC7050K25.0000C1GE00,25MHz,1.6V-3.63V,kyocera京瓷晶振; 特点：频率范围1.5-160MHz,CMOS输出宽电源电压1.6至3.63V（版本。E）2.5.3.3、5。0V（版本。N）低电流消耗选项：低相位噪声版本应用消费者/网络/工业/音频编解码器/娱乐

共有-条评论【我要评论】

查看全部评论

我要评论:
内容：	（内容最多500个汉字，1000个字符）
验证码：	看不清？！

联系加科电子Contact

咨询热线：0755-33533774

传真：0755-33533774

QQ：3080074590

邮箱：jiakedz@163.com

地址：深圳市宝安区宝民一路123号3号楼13F

加科电子全球高端晶体品牌供应商小型化高”晶“准

KC7050K

共有-条评论【我要评论】

晶振分类

进口晶振

台系晶振

晶振用途

晶振规格书

联系加科电子Contact

加科电子 全球高端晶体品牌供应商小型化 高”晶“准

KC7050K

共有-条评论【我要评论】

晶振分类

进口晶振

台系晶振

晶振用途

晶振规格书

联系加科电子Contact

加科电子全球高端晶体品牌供应商小型化高”晶“准
