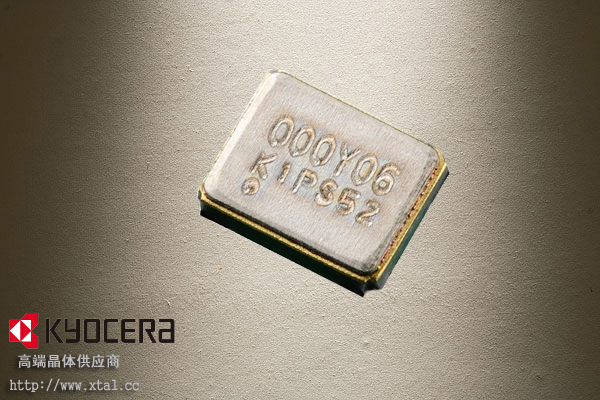

京瓷晶振,24MHz有源晶振,KC2016Z24.0000C1KX00,±20PPM,2016封装

产品分类：晶振规格书

特征：频率范围24至72 MHz,CMOS输出低抖动耐热性高达+125°C应用：消费者/网络/工业/娱乐。

订购热线：0755-33533774

跟此产品相关的产品

产品详情

料号	频率(MHZ)	工作温度	电压	精度
KC2016Z7.37280C1KX00	7.3728MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z18.4320C1KX00	18.432MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z33.0000C1KX00	33MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z1.84320C1KX00	1.8432MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z28.6364C1KX00	28.6364MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z11.2896C1KX00	11.2896MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z24.5760C1KX00	24.576MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z32.7680C1KX00	32.768MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z4.00000C1KX00	4MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z64.0000C1KX00	64MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z32.0000C1KX00	32MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z66.6667C1KX00	66.6667MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z14.3182C1KX00	14.3182MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z3.68640C1KX00	3.6864MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z10.0000C1KX00	10MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z16.3840C1KX00	16.384MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z75.0000C1KX00	75MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z13.5600C1KX00	13.56MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z22.5792C1KX00	22.5792MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z60.0000C1KX00	60MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z80.0000C1KX00	80MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z14.7456C1KX00	14.7456MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z33.3333C1KX00	33.3333MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z20.0000C1KX00	20MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z2.04800C1KX00	2.048MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z12.2880C1KX00	12.288MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z100.000C1KX00	100MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z24.0000C1KX00	24MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z40.0000C1KX00	40MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z125.000C1KX00	125MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z50.0000C1KX00	50MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z12.0000C1KX00	12MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z48.0000C1KX00	48MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z27.0000C1KX00	27MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z16.0000C1KX00	16MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z8.00000C1KX00	8MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z25.0000C1KX00	25MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z26.0000C1KX00	26MHz	40°C+85°C	1.71V-3.63V	±20PPM
KC2016Z25.0000C1JX00	25MHz	40°C+85°C	1.71V-3.63V	±25PPM
KC2016Z25.0000C1GX00	25MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z125.000C1GX00	125MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z48.0000C1GX00	48MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z12.0000C1GX00	12MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z8.00000C1GX00	8MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z50.0000C1GX00	50MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z24.0000C1GX00	24MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z27.0000C1GX00	27MHz	40°C+85°C	1.71V-3.63V	±50PPM
KC2016Z24.0000C15X00	24MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z16.3840C15X00	16.384MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z60.0000C15X00	60MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z18.4320C15X00	18.432MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z12.2880C15X00	12.288MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z3.68640C15X00	3.6864MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z24.5760C15X00	24.576MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z75.0000C15X00	75MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z33.0000C15X00	33MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z13.5600C15X00	13.56MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z14.7456C15X00	14.7456MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z28.6364C15X00	28.6364MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z33.3333C15X00	33.3333MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z14.3182C15X00	14.3182MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z4.00000C15X00	4MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z7.37280C15X00	7.3728MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z2.04800C15X00	2.048MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z32.0000C15X00	32MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z26.0000C15X00	26MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z22.5792C15X00	22.5792MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z40.0000C15X00	40MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z11.2896C15X00	11.2896MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z48.0000C15X00	48MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z20.0000C15X00	20MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z64.0000C15X00	64MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z12.0000C15X00	12MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z80.0000C15X00	80MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z100.000C15X00	100MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z10.0000C15X00	10MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z1.84320C15X00	1.8432MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z32.7680C15X00	32.768MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z8.00000C15X00	8MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z50.0000C15X00	50MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z27.0000C15X00	27MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z16.0000C15X00	16MHz	40°C+105°C	1.71V-3.63V	±30PPM
KC2016Z25.0000C15X00	25MHz	40°C+105°C	1.71V-3.63V	±30PPM
