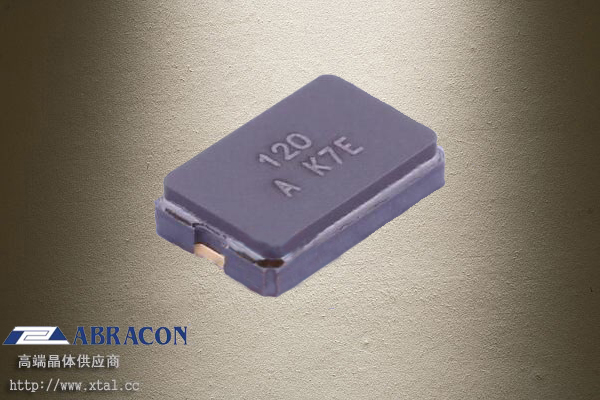

ABM3

产品分类：进口晶振

特点：适用于RoHS回流焊型材可提供紧密稳定性±10的精度,陶瓷封装采用玻璃密封,保证了高精度和高可靠性。应用：移动电话、寻呼机通信和测试设备PCMCIA和无线应用。

订购热线：0755-33533774

跟此产品相关的产品

: 26MHz温补晶振,7P26001001,TCXO晶振,TXC晶振,5032晶振,3.3V,±250ppb,-5~+85℃

: TXC晶振,25MHz有源晶振,7C25000187,5032晶振,5V,30PPM,-10~+70℃

: 7C40000085,40MHz有源晶振,TXC晶振,5032晶振,2.8V,20PPM,-20~+70℃

产品详情

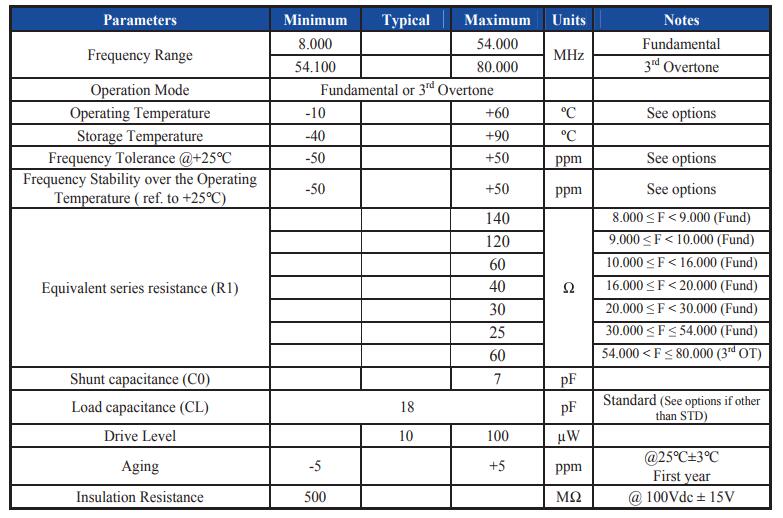

ABM3晶振规格书

ABM3-8.000MHZ-D2Y-T	8MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-12.288MHZ-D2Y-T	12.288MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-10.000MHZ-D2Y-T	10MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-25.000MHZ-B2-T	25MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-25.000MHZ-D2Y-T	25MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-20.000MHZ-B2-T	20MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-24.000MHZ-D2Y-T	24MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-16.000MHZ-D2Y-T	16MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-11.0592MHZ-D2Y-T	11.0592MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-20.000MHZ-D2Y-T	20MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-30.000MHZ-D2Y-T	30MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-27.000MHZ-D2Y-T	27MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-9.8304MHZ-D2Y-T	9.8304MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-24.576MHZ-D2Y-T	24.576MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-32.000MHZ-D2Y-T	32MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-12.000MHZ-B2-T	12MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-16.000MHZ-B2-T	16MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-13.560MHZ-B2-T	13.56MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-24.000MHZ-B2-T	24MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-28.6363MHZ-B2-T	28.6363MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-27.000MHZ-B2-T	27MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-18.432MHZ-B2-T	18.432MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-48.000MHZ-B2-T	48MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-40.000MHZ-B2-T	40MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-8.000MHZ-B4Y-T	8MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-29.4912MHZ-B2-T	29.4912MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-30.000MHZ-B2-T	30MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-22.1184MHZ-D2Y-T	22.1184MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-11.2896MHZ-D2Y-T	11.2896MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-12.000MHZ-D2Y-T	12MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-25.000MHZ-D4Y-T	25MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-14.7456MHZ-D2Y-T	14.7456MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-24.000MHZ-B4Y-T	24MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-11.050MHZ-D2Y-T	11.05MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-13.52313MHZ-10-B4Y-T	13.52313MHz	±30ppm	10pF	-20°C ~ 70°C
ABM3B-25.000MHZ-20-D-4-H-T	25MHz	±35ppm	20pF	-40°C ~ 85°C
ABM3-14.31818MHZ-D2Y-T	14.31818MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-18.432MHZ-D2Y-T	18.432MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-40.000MHZ-D2Y-T	40MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-8.192MHZ-B4Y-T	8.192MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-9.8304MHZ-B4Y-T	9.8304MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-10.000MHZ-B4Y-T	10MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-12.288MHZ-B4Y-T	12.288MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-13.560MHZ-B4Y-T	13.56MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-15.000MHZ-B4Y-T	15MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-16.000MHZ-B4Y-T	16MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-20.000MHZ-B4Y-T	20MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-24.576MHZ-B4Y-T	24.576MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-25.000MHZ-B4Y-T	25MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-26.000MHZ-B4Y-T	26MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-27.000MHZ-B4Y-T	27MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-29.4912MHZ-B4Y-T	29.4912MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-32.000MHZ-B4Y-T	32MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-36.000MHZ-B4Y-T	36MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-48.000MHZ-B4Y-T	48MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-50.000MHZ-D2Y-T	50MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-14.31818MHZ-B2-T	14.31818MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-24.576MHZ-B2-T	24.576MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3-19.6608MHZ-D2Y-T	19.6608MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-33.000MHZ-D2Y-T	33MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-24.000MHZ-J2Y-T	24MHz	±30ppm	18pF	-40°C ~ 105°C
ABM3-8.000MHZ-J4Q-T	8MHz	±100ppm	18pF	-40°C ~ 105°C
ABM3-25.000MHZ-J2Y-T	25MHz	±30ppm	18pF	-40°C ~ 105°C
ABM3-26.973MHZ-12-B2-T	26.973MHz	±50ppm	12pF	-20°C ~ 70°C
ABM3-12.000MHZ-B2H-T	12MHz	±35ppm	18pF	-20°C ~ 70°C
ABM3-33.000MHZ-B2-T	33MHz	±50ppm	18pF	-20°C ~ 70°C
ABM3B-14.7456MHZ-E-4Z-T	14.7456MHz	±50ppm	18pF	0°C ~ 70°C
ABM3-16.384MHZ-B4Y-T	16.384MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-48.000MHZ-D2Y-T	48MHz	±30ppm	18pF	-40°C ~ 85°C
ABM3-11.0592MHZ-B4Y-T	11.0592MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-12.000MHZ-B4Y-T	12MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-13.000MHZ-B4Y-T	13MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-14.31818MHZ-B4Y-T	14.31818MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-14.7456MHZ-B4Y-T	14.7456MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-18.432MHZ-B4Y-T	18.432MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-19.6608MHZ-B4Y-T	19.6608MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-22.1184MHZ-B4Y-T	22.1184MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-30.000MHZ-B4Y-T	30MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-33.000MHZ-B4Y-T	33MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-40.000MHZ-B4Y-T	40MHz	±30ppm	18pF	-20°C ~ 70°C
ABM3-20.000MHZ-D-T	20MHz	±50ppm	18pF	-40°C ~ 85°C
ABM3AIG-12.000MHZ-8-K1Z-T	12MHz	±50ppm	8pF	-40°C ~ 125°C
ABM3AIG-20.000MHZ-8-K1Z-T	20MHz	±50ppm	8pF	-40°C ~ 125°C
ABM3AIG-8.000MHZ-8-K1Z-T	8MHz	±50ppm	8pF	-40°C ~ 125°C
ABM3AIG-12.000MHZ-8-1R-T	12MHz	±150ppm	8pF	-40°C ~ 150°C
ABM3AIG-16.000MHZ-8-1R-T	16MHz	±150ppm	8pF	-40°C ~ 150°C
ABM3AIG-20.000MHZ-8-1R-T	20MHz	±150ppm	8pF	-40°C ~ 150°C
ABM3AIG-25.000MHZ-8-1R-T	25MHz	±150ppm	8pF	-40°C ~ 150°C
ABM3AIG-8.000MHZ-8-1R-T	8MHz	±150ppm	8pF	-40°C ~ 150°C
ABM3AIG-20.000MHZ-8-R-T	20MHz	±150ppm	8pF	-40°C ~ 150°C

_{ABRACON晶振}_简介

_{Abracon是全球领先的无源和机电定时、同步、电源、连接和射频解决方案制造商。Abracon拥有广泛的石英晶体、晶体和MEMS振荡器、实时时钟、功率感应器、物联网天线等产品组合，帮助工程师将他们的想法转化为满足未来机遇的产品。公司通过ISO9001-2015认证。Abracon专注于客户服务、支持、创新、质量和准时交付，每年为超过25000名活跃客户提供支持，并交付超过25亿个组件。我们在德克萨斯、加利福尼亚、中国大陆、台湾、新加坡、苏格兰和德国设有销售办事处。Abracon的产品通过其全球分销网络提供,官网请访问：www.xtal.cc}
