8M晶振,49SMD晶振,HCM498000000ABJT,18PF,西铁城晶振

当前位置:首页 » 加科电子产品中心 » 晶振规格书 » 8M晶振,49SMD晶振,HCM498000000ABJT,18PF,西铁城晶振

prevnext

查看全部大图

8M晶振,49SMD晶振,HCM498000000ABJT,18PF,西铁城晶振

产品分类：晶振规格书

特征频率范围：3.5～50.0MHｚ外形尺寸（mm）长：11.4 x宽：4.7 x高：4.3 应用：消费品

订购热线：0755-33533774

跟此产品相关的产品

产品详情

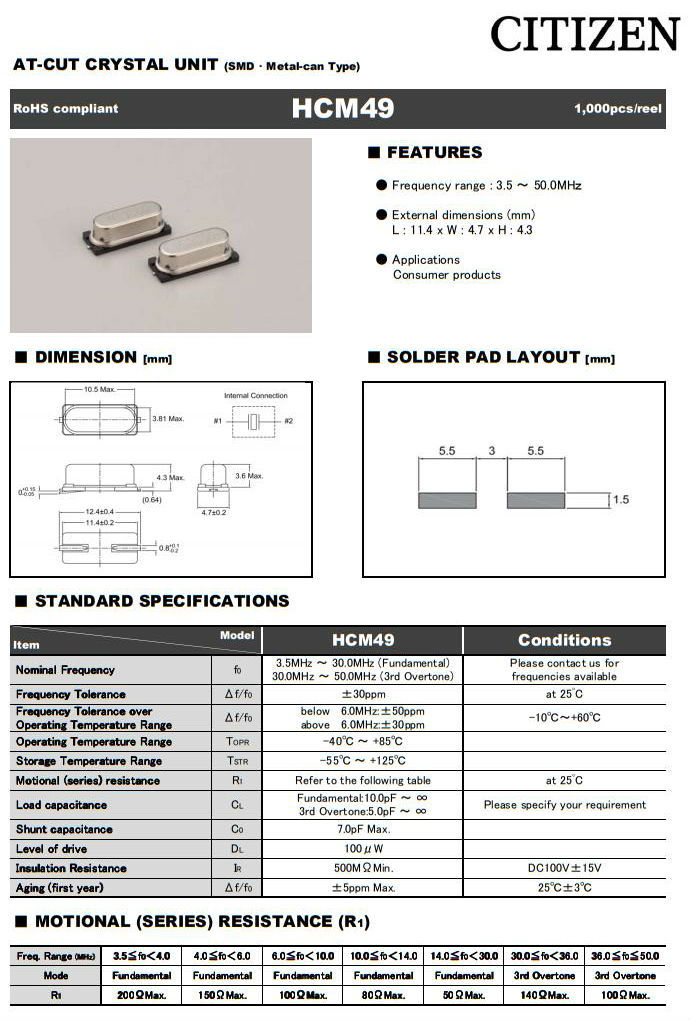

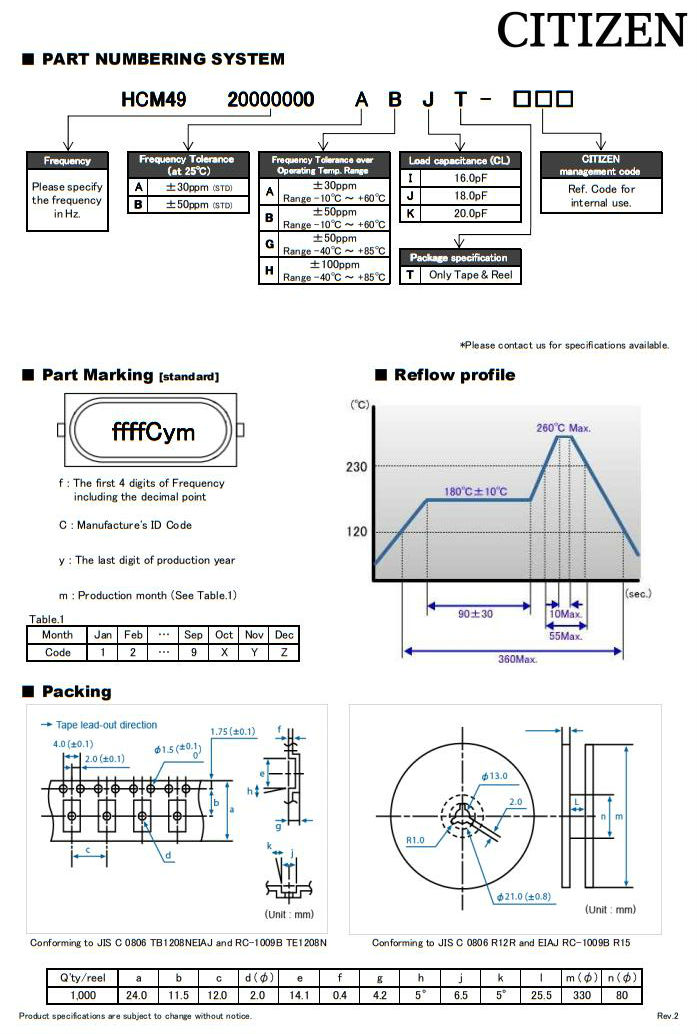

HCM49

料号	频率(MHZ)	工作温度	频率稳定性	频率容差	负载电容
HCM494032000ABJT	4.032MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4916000312ABJT	16.000312MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM495068800ABJT	5.0688MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4922118400ABJT	22.1184MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4933868800ABJT	33.8688MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM496144000ABJT	6.144MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM496000000ABJT	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4911520000ABJT	11.52MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM493686400ABJT	3.6864MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4912000000ABJT	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4918432000ABJT	18.432MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4920000000ABJT	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494915200ABJT	4.9152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM499830400ABJT	9.8304MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM495529600ABJT	5.5296MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4940000000ABJT	40MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4917734475ABJT	17.734475MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4925000000ABJT	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4911059200ABJT	11.0592MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4925175000ABJT	25.175MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4912000393ABJT	12.000393MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4910000000ABJT	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4914745600ABJT	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4927000000ABJT	27MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM497372800ABJT	7.3728MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4949152000ABJT	49.152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4924576000ABJT	24.576MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM497680000ABJT	7.68MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4928636360ABJT	28.63636MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494000000ABJT	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4915360000ABJT	15.36MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4916000000ABJT	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4912288000ABJT	12.288MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4919660800ABJT	19.6608MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4924000000ABJT	24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM498000000ABJT	8MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494194304ABJT	4.194304MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494096000ABJT	4.096MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4918000000ABJT	18MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM499000000ABJT	9MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4914318180ABJT	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM495990400ABJT	5.9904MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4916257000ABJT	16.257MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4948000000ABJT	48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4911000000ABJT	11MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4932000000ABJT	32MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM495529600BBIT	5.5296MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4910240000ABJT	10.24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM497600000ABJT	7.6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM497680000AGJT	7.68MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM4911059200CCNT	11.0592MHz	-10°C ~ 60°C	±100ppm	±100ppm	30pF
HCM4912000000BBET	12MHz	-10°C ~ 60°C	±50ppm	±50ppm	12pF
HCM4916000000ABIT	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4916000000BHJT	16MHz	-40°C ~ 85°C	±100ppm	±50ppm	18pF
HCM493686400AHJT	3.6864MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM495000000AGJT	5MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM4911059200AHKT	11.0592MHz	-40°C ~ 85°C	±100ppm	±30ppm	20pF
HCM4912500000AALT	12.5MHz	-10°C ~ 60°C	±30ppm	±30ppm	22pF
HCM4920000000AHJT	20MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM49-15.000MAGTR	15MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM496500000ABJT	6.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4925000000ABIT	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4930000000ABJT	30MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494000000AHJT	4MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM4918432000AHJT	18.432MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM49-3.6864MAMKB	3.6864MHz	-40°C ~ 85°C	±60ppm	±30ppm	20pF
HCM4925000000BBQT	25MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HCM4919660800ABQT	19.6608MHz	-10°C ~ 60°C	±50ppm	±30ppm	10pF
HCM494915200AHJT	4.9152MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM4912000000AHJT	12MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM4916000000AGJT	16MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM49-28.224MABJ	28.224MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4913500000ABJT	13.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4920000000ABIT	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM496500000ANJT	6.5MHz	-40°C ~ 85°C	±80ppm	±30ppm	18pF
HCM497680000AAIT	7.68MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HCM4912000000AMJT	12MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
HCM49-35.328MABJTR	35.328MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM493686400ABIT	3.6864MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4925000000ABQT	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	10pF
HCM4916000000BBIT	16MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4920480000ABJT	20.48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4925000000ABKT	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4927000000AAJT	27MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HCM495000000BBQT	5MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HCM4910000000BBIT	10MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4914745600BBIT	16MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4920000000BBIT	20MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM497372800ABKT	7.3728MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4916000000ABKT	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM494194304AGJT	4.194304MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM4912000000AAIT	12MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HCM495000000ABJT	5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4916384000ABJT	16.384MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4914745600ABKT	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4925000000AMJT	25MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
HCM4912000000ABIT	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4914318180ABNT	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	30pF
HCM4910000000AGJT	10MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM4925000000BBKT	25MHz	-10°C ~ 60°C	±50ppm	±50ppm	20pF
HCM493686400ABLT	3.6864MHz	-10°C ~ 60°C	±50ppm	±30ppm	22pF
HCM4925000000BAJT	25MHz	-10°C ~ 60°C	±30ppm	±50ppm	18pF
HCM495000000AHJT	5MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM496000000BBIT	6MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM493579545ABJT	3.579545MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494000000ABIT	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM496144000BAJT	6.144MHz	-10°C ~ 60°C	±30ppm	±50ppm	18pF
HCM4928000000ABJT	28 MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4910000000AAJT	10MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HCM4918432000AQJT	18.432MHz	-20°C ~ 70°C	±50ppm	±30ppm	18pF
HCM49-4.032MABKTR	4.032MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4916000000BBIT	16MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4920480000ABJT	20.48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4925000000ABKT	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4927000000AAJT	27MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HCM4912000000ABIT	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4914318180ABNT	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	30pF
HCM4910000000AGJT	10MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM494000000ABKT	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM498192000ABJT	8.192MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4910000000ABKT	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4919660800AGET	19.6608MHz	-40°C ~ 85°C	±50ppm	±30ppm	12pF
HCM495000000BBQT	5MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HCM4910000000BBIT	10MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4914745600BBIT	16MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4920000000BBIT	20MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM497372800ABKT	7.3728MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4916000000ABKT	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM494194304AGJT	4.194304MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM4912000000AAIT	12MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HCM496764380ABJT	6.76438MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4914745600ABIT	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM496000000AHJT	6MHz	-40°C ~ 85°C	±100ppm	±30ppm	18pF
HCM4910000000AAIT	10MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HCM4910000000AMJT	10MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
HCM495000000ABJT	5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4916384000ABJT	16.384MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4914745600ABKT	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4925000000AMJT	25MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
HCM494915200ABAT	4.9152MHz	-10°C ~ 60°C	±50ppm	±30ppm	系列
HCM4911059200ABET	11.0592MHz	-10°C ~ 60°C	±50ppm	±30ppm	12pF
HCM4922118400ABQT	22.1184MHz	-10°C ~ 60°C	±50ppm	±30ppm	10pF
HCM496300000AAJT	6.3MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HCM493686400BBIT	3.6864MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM494096000BBET	4.096MHz	-10°C ~ 60°C	±50ppm	±50ppm	12pF
HCM497680000BBET	7.68MHz	-10°C ~ 60°C	±50ppm	±50ppm	12pF
HCM4911289600ABJT	11.2896MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494000000BHJT	4MHz	-40°C ~ 85°C	±100ppm	±50ppm	18pF
HCM496000000ABIT	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4928322000ABJT	28.322MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4928224000ABJT	28.224MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4929498928ABKT	29.498928MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HCM4916000000AAIT	16MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HCM4928636300AGJT	28.6363MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM49-24.0000MABUTR	24MHz	-10°C ~ 60°C	±50ppm	±30ppm	17pF
HCM494000000BBET	4MHz	-10°C ~ 60°C	±50ppm	±50ppm	12pF
HCM498192000BBIT	8.192MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HCM4950000000ABJT	50MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM494000000ABET	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	12pF
HCM4928636300ABJT	28.6363MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM4925000000AQJT	25MHz	-20°C ~ 70°C	±50ppm	±30ppm	18pF
HCM494000000BHKT	4MHz	-40°C ~ 85°C	±100ppm	±50ppm	20pF
HCM4913560000ABJT	13.56MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HCM497372800AMJT	7.3728MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
HCM498000000AGJT	8MHz	-40°C ~ 85°C	±50ppm	±30ppm	18pF
HCM493686400ABIT	3.6864MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HCM4925000000ABQT	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	10pF
