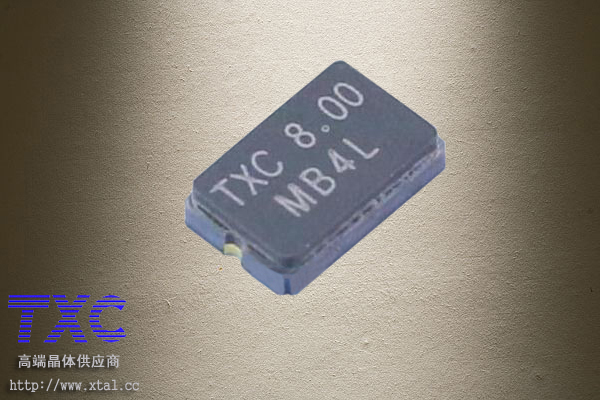

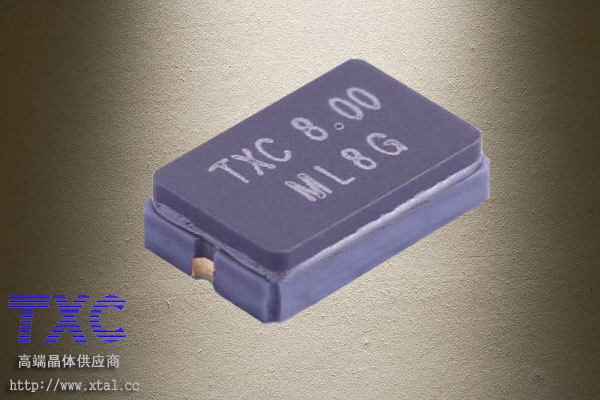

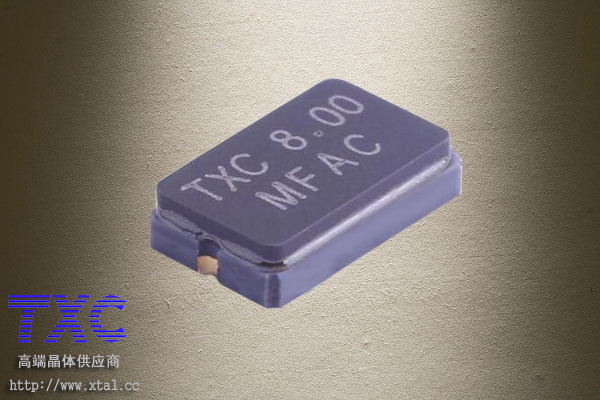

7A08000001 5032封装 8MHz晶振,20PF 20PPM TXC晶振

当前位置:首页 » 加科电子产品中心 » 晶振规格书 » 7A08000001

prevnext

查看全部大图

7A08000001

产品分类：晶振规格书

订购热线：0755-33533774

跟此产品相关的产品

: 8MHz晶振 7A08000001 5032晶振 20PF 20PPM TXC晶振

: 7A08000001 8MHz晶振 ±20ppm 20pF 5032 TXC晶振

: 7A08000001; 特征 2片贴片玻璃密封晶体单元。高可靠的环境性能。公差和稳定部分可用。专为自动安装和回流焊接。合理的成本和良好的交货性能。便携式电脑，PDA，DSC的最佳选择，和USB接口卡。包含铅密封玻璃通过RoHS指令豁免。

产品详情

料号	品牌	系列	频率	频率稳定性	频率容差	负载电容	ESR电阻	工作温度
7A08000001	TXC晶振	7A	8MHz	±20ppm	±20ppm	20pF	80 Ohms	-10°C ~ 70°C
7A08000005	TXC晶振	7A	8MHz	±30ppm	±30ppm	12pF	80 Ohms	-10°C ~ 70°C
7A08000008	TXC晶振	7A	8MHz	±30ppm	±30ppm	20pF	80 Ohms	-40°C ~ 85°C
7A08000015	TXC晶振	7A	8MHz	±30ppm	±20ppm	8pF	80 Ohms	-30°C ~ 85°C
7A08070006	TXC晶振	7A	8MHz	±30ppm	±20ppm	18pF	80 Ohms	-40°C ~ 85°C
7A08070008	TXC晶振	7A	8MHz	±30ppm	±20ppm	18pF	80 Ohms	-40°C ~ 85°C
7A10000046	TXC晶振	7A	10MHz	±50ppm	±50ppm	18pF	80 Ohms	-40°C ~ 85°C
7A11000013	TXC晶振	7A	11.0592MHz	±30ppm	±30ppm	20pF	80 Ohms	-10°C ~ 70°C
7A12000001	TXC晶振	7A	12MHz	±20ppm	±20ppm	16pF	80 Ohms	-30°C ~ 85°C
7A12000007	TXC晶振	7A	12MHz	±30ppm	±20ppm	8pF	80 Ohms	-10°C ~ 70°C
7A12000008	TXC晶振	7A	12MHz	±30ppm	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A12000026	TXC晶振	7A	12MHz	±30ppm	±30ppm	16pF	80 Ohms	-10°C ~ 70°C
7A12000044	TXC晶振	7A	12MHz	±30ppm	±30ppm	20pF	80 Ohms	-10°C ~ 70°C
7A12000062	TXC晶振	7A	12MHz	±20ppm	±20ppm	18pF	80 Ohms	-10°C ~ 70°C
7A12020001	TXC晶振	7A	12MHz	±30ppm	±30ppm	18pF	80 Ohms	-40°C ~ 85°C
7A12070002	TXC晶振	7A	12MHz	±30ppm	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A12070007	TXC晶振	7A	12MHz	±50ppm	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A14300007	TXC晶振	7A	14.31818MHz	±50ppm	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
7A14700010	TXC晶振	7A	14.7456MHz	±30ppm	±30ppm	20pF	50 Ohms	-10°C ~ 70°C
7A16000003	TXC晶振	7A	16MHz	±20ppm	±20ppm	12pF	50 Ohms	-40°C ~ 85°C
7A16000040	TXC晶振	7A	16MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A18400011	TXC晶振	7A	18.432MHz	±30ppm	±25ppm	16pF	50 Ohms	-10°C ~ 70°C
7A18470001	TXC晶振	7A	18.432MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A20000004	TXC晶振	7A	20MHz	±50ppm	±30ppm	8pF	50 Ohms	-40°C ~ 90°C
7A20000012	TXC晶振	7A	20MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A24000012	TXC晶振	7A	24MHz	±30ppm	±30ppm	16pF	50 Ohms	-20°C ~ 85°C
7A24000063	TXC晶振	7A	24MHz	±30ppm	±30ppm	16pF	50 Ohms	-10°C ~ 70°C
7A24000072	TXC晶振	7A	24MHz	±30ppm	±20ppm	8pF	50 Ohms	-10°C ~ 70°C
7A24070001	TXC晶振	7A	24MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A24070006	TXC晶振	7A	24MHz	±20ppm	±20ppm	10pF	50 Ohms	-10°C ~ 70°C
7A24070007	TXC晶振	7A	24MHz	±30ppm	±30ppm	12pF	50 Ohms	-20°C ~ 85°C
7A24080003	TXC晶振	7A	24MHz	±30ppm	±30ppm	10pF	50 Ohms	-20°C ~ 75°C
7A24500120	TXC晶振	7A	24.576MHz	±30ppm	±50ppm	18pF	50 Ohms	-40°C ~ 85°C
7A25000012	TXC晶振	7A	25MHz	±30ppm	±25ppm	20pF	50 Ohms	-10°C ~ 70°C
7A25000018	TXC晶振	7A	25MHz	±15ppm	±15ppm	10pF	50 Ohms	-20°C ~ 85°C
7A25000058	TXC晶振	7A	25MHz	±30ppm	±30ppm	20pF	50 Ohms	-10°C ~ 70°C
7A25000067	TXC晶振	7A	25MHz	±30ppm	±20ppm	20pF	50 Ohms	-20°C ~ 70°C
7A25000165	TXC晶振	7A	25MHz	±30ppm	±30ppm	20pF	50 Ohms	0°C ~ 70°C
7A25000174	TXC晶振	7A	25MHz	±30ppm	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
7A25020003	TXC晶振	7A	25MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A25070002	TXC晶振	7A	25MHz	±15ppm	±10ppm	12pF	50 Ohms	-10°C ~ 70°C
7A25070003	TXC晶振	7A	25MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A25070005	TXC晶振	7A	25MHz	±30ppm	±30ppm	12pF	50 Ohms	-30°C ~ 85°C
7A25070011	TXC晶振	7A	25MHz	±20ppm	±20ppm	10pF	50 Ohms	-10°C ~ 70°C
7A25070017	TXC晶振	7A	25MHz	±20ppm	±10ppm	9pF	50 Ohms	-40°C ~ 85°C
7A25070023	TXC晶振	7A	25MHz	±30ppm	±15ppm	10pF	50 Ohms	-40°C ~ 85°C
7A25077002	TXC晶振	7A	25MHz	±30ppm	±20ppm	8pF	50 Ohms	-40°C ~ 85°C
7A25090002	TXC晶振	7A	25MHz	±15ppm	±15ppm	19pF	50 Ohms	-10°C ~ 70°C
7A26000002	TXC晶振	7A	26MHz	±30ppm	±20ppm	10pF	50 Ohms	-10°C ~ 70°C
7A27000008	TXC晶振	7A	27MHz	±20ppm	±20ppm	18pF	50 Ohms	-20°C ~ 70°C
7A27000118	TXC晶振	7A	27MHz	±20ppm	±15ppm	20pF	50 Ohms	-10°C ~ 85°C
7A27020001	TXC晶振	7A	27MHz	±30ppm	±30ppm	10pF	50 Ohms	-10°C ~ 70°C
7A27070002	TXC晶振	7A	27MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A27170002	TXC晶振	7A	27.12MHz	±30ppm	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A28670001	TXC晶振	7A	28.63636MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A30000005	TXC晶振	7A	30MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A32080002	TXC晶振	7A	32MHz	±50ppm	±50ppm	8pF	50 Ohms	-10°C ~ 85°C
7A33380002	TXC晶振	7A	33.33MHz	±50ppm	±30ppm	10pF	50 Ohms	-10°C ~ 70°C
7A48000047	TXC晶振	7A	48MHz	±30ppm	±30ppm	12pF	50 Ohms	-30°C ~ 85°C
7A48000118	TXC晶振	7A	48MHz	±30ppm	±15ppm	8pF	50 Ohms	-10°C ~ 70°C
7A48070004	TXC晶振	7A	48MHz	±15ppm	±15ppm	10pF	50 Ohms	-30°C ~ 85°C
7A48070006	TXC晶振	7A	48MHz	±30ppm	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A50000001	TXC晶振	7A	50MHz	±18ppm	±17ppm	10pF	50 Ohms	-20°C ~ 85°C
7A50020001	TXC晶振	7A	50MHz	±15ppm	±15ppm	16pF	50 Ohms	-10°C ~ 70°C
7A50020002	TXC晶振	7A	50MHz	±20ppm	±15ppm	16pF	50 Ohms	-20°C ~ 85°C
7A50070002	TXC晶振	7A	50MHz	±15ppm	±15ppm	19pF	50 Ohms	-10°C ~ 70°C
7A54070002	TXC晶振	7A	54MHz	±15ppm	±10ppm	12pF	50 Ohms	-10°C ~ 70°C
7A54070003	TXC晶振	7A	54MHz	-	-	19pF	50 Ohms	-
7A54070007	TXC晶振	7A	54MHz	±15ppm	±15ppm	19pF	50 Ohms	-20°C ~ 85°C
7A54077001	TXC晶振	7A	54MHz	±15ppm	±15ppm	19pF	50 Ohms	-10°C ~ 85°C
