27M晶振,京瓷晶振,3225晶振,CX3225GB27000P0HPQCC

产品分类：晶振规格书

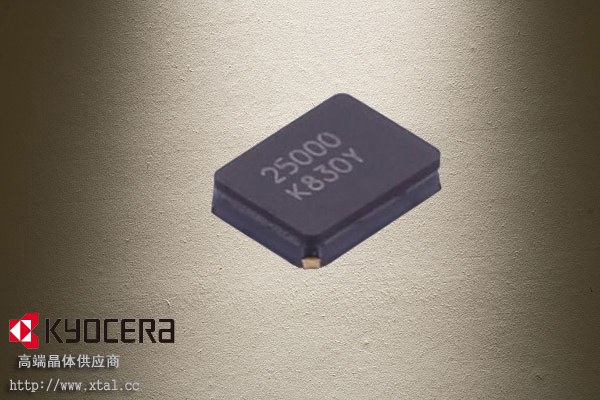

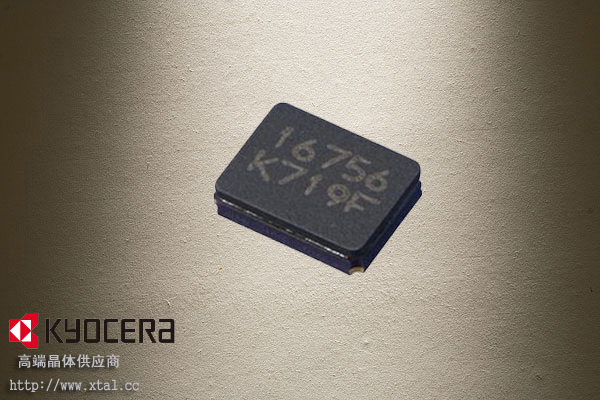

特征用于消费产品的晶体单元小低调0.9毫米最大（3.2×2.5×0.8mm）陶瓷封装回流兼容应用数码电子消费产品

订购热线：0755-33533774

跟此产品相关的产品

: 27MHz晶振 CX3225GB27000P0HPQCC kyocera京瓷晶振 3225晶振 18PF 20PPM晶振

产品详情

料号	频率	频率稳定性	频率容差	负载电容	工作温度
CX3225GB12000P0HPQCC	12MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB18432D0HEQCC	18.432MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB36000P0HPQCC	36MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB33333P0HPQCC	33.333MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB13000P0HPQCC	13MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB49152P0HPQCC	49.152MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB16000D0HEQCC	16MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB25000D0HEQCC	25MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB27000P0HPQCC	27MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB12288P0HPQCC	12.288MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB13560P0HPQCC	13.56MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB12000H0KPSC1	12MHz	±50ppm	±30ppm	12pF	40°C ~ 85°C
CX3225GB24576D0HPQCC	24.576MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB25000D0HPQCC	25MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB19200P0HPQCC	19.2MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB24000P0HPQCC	24MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB24000D0HEQCC	24MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB16384P0HPQCC	16.384MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB27000D0HEQCC	27MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB16000D0HPQCC	16MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB25000P0HPQCC	25MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB16000P0HPQCC	16MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14745P0HPQCC	14.7456MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB27120P0HPQCC	27.12MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB32000D0HEQCC	32MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB12000D0HPQCC	12MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB20000D0HPQCC	20MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB12000D0HEQCC	12MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB22579P0HPQCC	22.5792MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14745D0HPQCC	14.7456MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB32000P0HPQCC	32MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB40000D0HEQCC	40MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB54000D0HEQZ1	54MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB14318D0HEQCC	14.31818MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB30000D0HEQCC	30MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB10000P0HPQCC	10MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB40000P0HPQCC	40MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB33333D0HPQZ1	33.333MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB12288P0HPQZ1	12.288MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB10000D0HPQCC	10MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB18432P0HPQCC	18.432MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB30000P0HPQCC	30MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB38400D0HEQZ1	38.4MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB27120P0HPQZ1	27.12MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB33333P0HPQZ1	33.333MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB27000D0HPQCC	27MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB20000D0HEQZ1	20MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB14745D0HPQZ1	14.7456MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB33333D0HEQZ1	33.333MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB36000P0HPQZ1	36MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB16384P0HPQZ1	16.384MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14318D0HEQZ1	14.31818MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB12000D0HPQZ1	12MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB24576D0HEQZ1	24.576MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB16000P0HPQZ1	16MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB54000D0HEQCC	54MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB10000D0HPQZ1	10MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB32000D0HPQZ1	32MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB13560D0HEQZ1	13.56MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB38400P0HPQZ1	38.4MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14318P0HPQZ1	14.31818MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB19200D0HPQCC	19.2MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB20000P0HPQCC	20MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB19200D0HEQZ1	19.2MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB54000D0HPQZ1	54MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB32000P0HPQZ1	32MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB10000P0HPQZ1	10MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB48000P0HPQCC	48MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB33333D0HPQCC	33.333MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB16000D0HPQZ1	16MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB27000P0HPQZ1	27MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB20000D0HEQCC	20MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB24576P0HPQCC	24.576MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB22579D0HPQCC	22.5792MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB30000D0HPQZ1	30MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB38400D0HEQCC	38.4MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB54000P0HPQCC	54MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB24000D0HPQZ1	24MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB30000D0HEQZ1	30MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB38400D0HPQZ1	38.4MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB13000P0HPQZ1	13MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB30000D0HPQCC	30MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB18432D0HEQZ1	18.432MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB13560P0HPQZ1	13.56MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB10000D0HEQCC	10MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB25000D0HPQZ1	25MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB40000D0HPQZ1	40MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB48000D0HPQCC	48MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB32000D0HEQZ1	32MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB40000D0HEQZ1	40MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB13560D0HPQZ1	13.56MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB18432P0HPQZ1	18.432MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB40000P0HPQZ1	40MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB22579D0HEQZ1	22.5792MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB22579D0HEQCC	22.5792MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB48000D0HEQCC	48MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB14745D0HEQZ1	14.7456MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB24576P0HPQZ1	24.576MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB13560D0HEQCC	13.56MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB40000D0HPQCC	40MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB24576P0HPQZ1	24.576MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB33333D0HEQCC	33.333MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB24000D0HEQZ1	24MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB27000D0HEQZ1	27MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB12000P0HPQZ1	12MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB24576D0HEQCC	24.576MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB14318D0HPQCC	14.31818MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB38400D0HPQCC	38.4MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB25000D0HEQZ1	25MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB20000D0HPQZ1	20MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB22579D0HPQZ1	22.5792MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB13560D0HEQCC	13.56MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB40000D0HPQCC	40MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB54000D0HPQCC	54MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB18432D0HPQZ1	18.432MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB24000P0HPQZ1	24MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB19200P0HPQZ1	19.2MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14318D0HEQCC	14.31818MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB30000D0HEQCC	30MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB10000P0HPQCC	10MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB40000P0HPQCC	40MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB33333D0HPQZ1	33.333MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB12288P0HPQZ1	12.288MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB38400P0HPQCC	38.4MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB48000D0HEQZ1	48MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB48000D0HPQZ1	48MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB19200D0HPQZ1	19.2MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB54000P0HPQZ1	54MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14745P0HPQZ1	14.7456MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB14318P0HPQCC	14.31818MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB13560D0HPQCC	13.56MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB16000D0HEQZ1	16MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB14318D0HPQZ1	14.31818MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB27000D0HPQZ1	27MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB50000P0HPQZ1	50MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB22579P0HPQZ1	22.5792MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB20000D0HEQCC	20MHz	±30ppm	±20ppm	8pF	10°C ~ 70°C
CX3225GB24576P0HPQCC	24.576MHz	±30ppm	±20ppm	18pF	40°C ~ 85°C
CX3225GB22579D0HPQCC	22.5792MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
CX3225GB30000D0HPQZ1	30MHz	±30ppm	±20ppm	8pF	40°C ~ 85°C
