石英振荡器

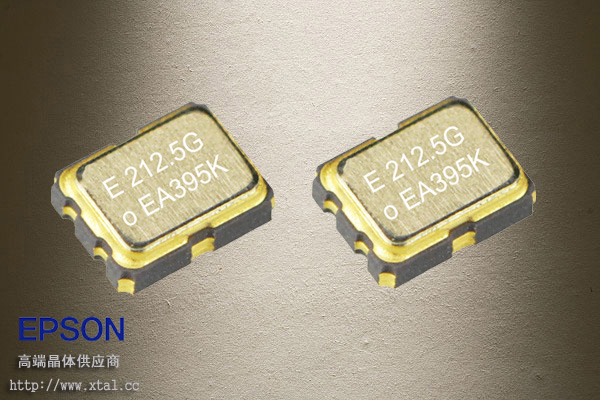

212.5MHz差分晶振,X1G005521000100,SG3225VEN,爱普生晶振

产品分类: 晶振规格书
    特征:频率范围:25MHz-500MHz,电源电压2.5 V典型值/3.3 V(典型值)。功能:输出启用(OE)外形尺寸:3.2 × 2.5× 1.05毫米,输出:LVDS低相位抖动:60 fs(典型值)f0=156.25兆赫) 工作温度:- 40 °C至+105°C。
    订购热线:0755-33533774

      型号料号尺寸电压频率
      SG3225VENX1G0053511021003.2 x 2.5x1.05mm2.375V-2.625V148.5MHz
      SG3225VENX1G0053511020003.2 x 2.5x1.05mm2.375V-2.625V148.351648MHz
      SG3225VENX1G0053511019003.2 x 2.5x1.05mm2.375V-2.625V200MHz
      SG3225VENX1G0053511018003.2 x 2.5x1.05mm2.375V-2.625V156.242187MHz
      SG3225VENX1G0053511016003.2 x 2.5x1.05mm2.375V-2.625V100MHz
      SG3225VENX1G0053511015003.2 x 2.5x1.05mm2.375V-2.625V50MHz
      SG3225VENX1G0053511014003.2 x 2.5x1.05mm2.375V-2.625V50MHz
      SG3225VENX1G0053511013003.2 x 2.5x1.05mm2.375V-2.625V133.333MHz
      SG3225VENX1G0053511012003.2 x 2.5x1.05mm2.375V-2.625V156.25MHz
      SG3225VENX1G0053511011003.2 x 2.5x1.05mm2.375V-2.625V72MHz
      SG3225VENX1G0053511010003.2 x 2.5x1.05mm2.375V-2.625V25MHz
      SG3225VENX1G0053511009003.2 x 2.5x1.05mm2.375V-2.625V125MHz
      SG3225VENX1G0053511008003.2 x 2.5x1.05mm2.375V-2.625V100MHz
      SG3225VENX1G0053511007003.2 x 2.5x1.05mm2.375V-2.625V125MHz
      SG3225VENX1G0053511006003.2 x 2.5x1.05mm2.375V-2.625V156.25MHz
      SG3225VENX1G0053511004003.2 x 2.5x1.05mm2.375V-2.625V100MHz
      SG3225VENX1G0053511002003.2 x 2.5x1.05mm2.375V-2.625V125MHz
      SG3225VENX1G0053510065003.2 x 2.5x1.05mm3.135V-3.465V135MHz
      SG3225VENX1G0053510062003.2 x 2.5x1.05mm3.135V-3.465V50MHz
      SG3225VENX1G0053510061003.2 x 2.5x1.05mm3.135V-3.465V50MHz
      SG3225VENX1G0053510056003.2 x 2.5x1.05mm3.135V-3.465V25MHz
      SG3225VENX1G0053510055003.2 x 2.5x1.05mm3.135V-3.465V70.656MHz
      SG3225VENX1G0053510054003.2 x 2.5x1.05mm3.135V-3.465V130MHz
      SG3225VENX1G0053510052003.2 x 2.5x1.05mm3.135V-3.465V150MHz
      SG3225VENX1G0053510051003.2 x 2.5x1.05mm3.135V-3.465V125MHz
      SG3225VENX1G0053510049003.2 x 2.5x1.05mm3.135V-3.465V48MHz
      SG3225VENX1G0053510048003.2 x 2.5x1.05mm3.135V-3.465V156.253906MHz
      SG3225VENX1G0053510047003.2 x 2.5x1.05mm3.135V-3.465V200MHz
      SG3225VENX1G0053510046003.2 x 2.5x1.05mm3.135V-3.465V160MHz
      SG3225VENX1G0053510045003.2 x 2.5x1.05mm3.135V-3.465V27MHz
      SG3225VENX1G0053510044003.2 x 2.5x1.05mm3.135V-3.465V25MHz
      SG3225VENX1G0053510042003.2 x 2.5x1.05mm3.135V-3.465V200MHz
      SG3225VENX1G0053510041003.2 x 2.5x1.05mm3.135V-3.465V135MHz
      SG3225VENX1G0053510037003.2 x 2.5x1.05mm3.135V-3.465V200MHz
      SG3225VENX1G0053510036003.2 x 2.5x1.05mm3.135V-3.465V156.25MHz
      SG3225VENX1G0053510034003.2 x 2.5x1.05mm3.135V-3.465V182MHz
      SG3225VENX1G0053510033003.2 x 2.5x1.05mm3.135V-3.465V150MHz
      SG3225VENX1G0053510032003.2 x 2.5x1.05mm3.135V-3.465V70.656MHz
      SG3225VENX1G0053510031003.2 x 2.5x1.05mm3.135V-3.465V60MHz
      SG3225VENX1G0053510030003.2 x 2.5x1.05mm3.135V-3.465V54MHz
      SG3225VENX1G0053510029003.2 x 2.5x1.05mm3.135V-3.465V48MHz
      SG3225VENX1G0053510028003.2 x 2.5x1.05mm3.135V-3.465V42MHz
      SG3225VENX1G0053510027003.2 x 2.5x1.05mm3.135V-3.465V36MHz
      SG3225VENX1G0053510026003.2 x 2.5x1.05mm3.135V-3.465V30MHz
      SG3225VENX1G0053510024003.2 x 2.5x1.05mm3.135V-3.465V74.25MHz
      SG3225VENX1G0053510023003.2 x 2.5x1.05mm3.135V-3.465V200MHz
      SG3225VENX1G0053510022003.2 x 2.5x1.05mm3.135V-3.465V148.5MHz
      SG3225VENX1G0053510021003.2 x 2.5x1.05mm3.135V-3.465V148.35164MHz
      SG3225VENX1G0053510020003.2 x 2.5x1.05mm3.135V-3.465V100MHz
      SG3225VENX1G0053510019003.2 x 2.5x1.05mm3.135V-3.465V100MHz
      SG3225VENX1G0053510012003.2 x 2.5x1.05mm3.135V-3.465V125MHz
      SG3225VENX1G0053510011003.2 x 2.5x1.05mm3.135V-3.465V100MHz
      SG3225VENX1G0053510008003.2 x 2.5x1.05mm3.135V-3.465V156.25MHz
      SG3225VENX1G0053510007003.2 x 2.5x1.05mm3.135V-3.465V156.25MHz
      SG3225VENX1G0053510003003.2 x 2.5x1.05mm3.135V-3.465V156.25MHz
      SG3225VENX1G0053510002003.2 x 2.5x1.05mm3.135V-3.465V125MHz
      SG3225VENX1G0053510001003.2 x 2.5x1.05mm2.375V-2.625V72MHz
      SG3225VENX1G0055210009003.2 x 2.5x1.05mm3.135V-3.465V333.33MHz
      SG3225VENX1G0055210005003.2 x 2.5x1.05mm3.135V-3.465V322.2656MHz
      SG3225VENX1G0055210002003.2 x 2.5x1.05mm3.135V-3.465V312.5MHz
      SG3225VENX1G0055210001003.2 x 2.5x1.05mm3.135V-3.465V212.5MHz
