石英振荡器

100MHz晶振,5032晶振,KC5032A100.000C10E00,日本京瓷晶振

产品分类: 晶振规格书
    特征:宽工作电压范围1.6至3.3V, ±25×10?6可获得的高度可靠的缝焊,微型陶瓷包装。
    订购热线:0755-33533774

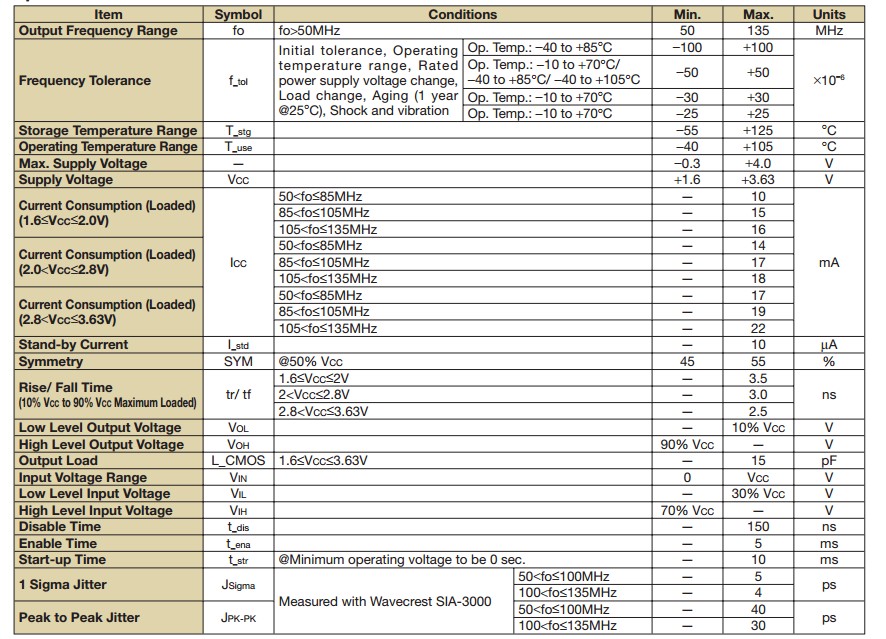

      KC5032A晶振规格书


      料号频率工作温度电压精度
      KC5032A100.000C10E00100MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A64.0000C10E0064MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A80.0000C1GE0080MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A125.000C10E00125MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A64.0000C1GE0064MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A100.000C1GE00100MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A60.0000C1GE0060MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A106.250C1GE00106.25MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A125.000C1GE00125MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A80.0000C10E0080MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A60.0000C10E0060MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A66.6667C10E0066.6667MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A75.0000C1GE0075MHz-40°C ~ 85°C1.6V ~ 3.63V±50ppm
      KC5032A106.250C10E00106.25MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A54.0000C10E0054MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A75.0000C10E0075MHz-10°C ~ 70°C1.6V ~ 3.63V±50ppm
      KC5032A150.000C2GE00150MHz-40°C ~ 85°C2.5V,3.3V±50ppm
      KC5032A150.000C20E00150MHz-10°C ~ 70°C2.5V,3.3V±50ppm
      KC5032A155.520C20E00155.52MHz-10°C ~ 70°C2.5V,3.3V±50ppm
      KC5032A156.250C20E00156.25MHz-10°C ~ 70°C2.5V,3.3V±50ppm
      KC5032A24.5760CMGE0024.576MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A32.7680CMGE0032.768MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A30.0000CMGE0030MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A40.0000CMGE0040MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A4.00000CMGE004MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A30.0000CM0E0030MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A27.0000CMGE0027MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A27.0000CM0E0027MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A3.68640CMGE003.6864MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A10.0000CMGE0010MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A50.0000CMGE0050MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A24.5760CM0E0024.576MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A4.00000CM0E004MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A12.0000CM0E0012MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A25.0000CMGE0025MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A32.7680CM0E0032.768MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A48.0000CM0E0048MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A50.0000CM0E0050MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A40.0000CM0E0040MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A20.0000CMGE0020MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A3.68640CM0E003.6864MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A29.4989CM0E0029.4989MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A20.0000CM0E0020MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A7.37280CMGE007.3728MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A16.0000CM0E0016MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A7.37280CMGE007.3728MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A14.3182CM0E0014.3182MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A32.7680CM0E0032.768MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A48.0000CM0E0048MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A14.3182CMGE0014.3182MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A25.0000CM0E0025MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A19.2000CM0E0019.2MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A32.0000CMGE0032MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A8.00000CM0E008MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A48.0000CMGE0048MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
      KC5032A44.0000CM0E0044MHz-10°C ~ 70°C1.6V ~ 5.5V±50ppm
      KC5032A16.0000CMGE0016MHz-40°C ~ 85°C1.6V ~ 5.5V±50ppm
