kyocera京瓷晶体应用于电子产品，如智能手机，可穿戴设备，以及其他电子产品到工业设备以及所有设备。京瓷采用先进的技术，从人工晶体到成品的培育，,从晶体研发到批量生产，京瓷实现了一站式的开发和生产，为推动物联网的发展做出不懈努力。京瓷晶振公司主打的产品,具有高精度,低负载电容,低功耗,小体积,超薄型,稳定性强等优势.,始终贯彻高质量制造的原则，为电子工业的发展做出贡献。晶体是智能手机、车载设备等产品的重要组成部分。加科晶体电子整理出了京瓷kyocera无源晶振原厂代码大全哦，如果您是一位工程师，该篇文章则是您很好的参考资料。
ST2012SB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| ST2012SB32768H5HPWAA | kyocera | 32.768KHz | 12.5PF | 20PPM | -40°C ~ 85°C | 2.0x1.2x0.5mm |
| ST2012SB32768E0HPWBB | kyocera | 32.768KHz | 9PF | 20PPM | -40°C ~ 85°C | 2.0x1.2x0.5mm |
| ST2012SB32768C0HPWBB | kyocera | 32.768KHz | 7PF | 20PPM | -40°C ~ 85°C | 2.0x1.2x0.5mm |
| ST2012SB32768B0HPWBB | kyocera | 32.768KHz | 6PF | 20PPM | -40°C ~ 85°C | 2.0x1.2x0.5mm |
| ST2012SB32768A0HPWBB | kyocera | 32.768KHz | 5PF | 20PPM | -40°C ~ 85°C | 2.0x1.2x0.5mm |
| ST2012SB32768Z0HPWBB | kyocera | 32.768KHz | 4PF | 20PPM | -40°C ~ 85°C | 2.0x1.2x0.5mm |
ST3215SB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| ST3215SB32768H5HPWAA | kyocera | 32.768KHz | 12.5PF | 20PPM | -40°C ~ 85°C | 3.2x1.5x0.8mm |
| ST3215SB32768E0HPWBB | kyocera | 32.768KHz | 9 | 20PPM | -40°C ~ 85°C | 3.2x1.5x0.8mm |
| ST3215SB32768C0HPWBB | kyocera | 32.768KHz | 7 | 20PPM | -40°C ~ 85°C | 3.2x1.5x0.8mm |
| ST3215SB32768B0HPWB3 | kyocera | 32.768KHz | 6 | 20PPM | -40°C ~ 85°C | 3.2x1.5x0.8mm |
| ST2012SB32768Z0HPWB4 | kyocera | 32.768KHz | 4 | 20PPM | -40°C ~ 85°C | 3.2x1.5x0.8mm |
CT1612DB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CT1612DB38400C0FLHA1 | kyocera | 38.4MHz | 7PF | 10PPM | -30°C ~ 105°C | 1.6x1.2x0.65mm |
CT2016DB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CT2016DB19200C0FLHA1 | kyocera | 19.2MHz | 7PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.9mm |
| CT2016DB38400C0FLHA2 | kyocera | 38.4MHz | 7PF | 10PPM | -30°C ~ 105°C | 2.0x1.6x0.9mm |
CT2520DB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CT2520DB19200C0FLHAF | kyocera | 19.2MHz | 7PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.95mm |
| CT2520DB26000C0FZZA1 | kyocera | 26MHz | 7PF | 10PPM | -25°C ~ 85°C | 2.5x2.0x0.95mm |
CX1612DB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX1612DB26000D0FLJC1 | kyocera | 26MHz | 8PF | 15PPM | -30°C ~ 85°C | 1.6x1.2x0.4mm |
| CX1612DB48000D0FPJC1 | kyocera | 48MHz | 8PF | 15PPM | -40°C ~ 85°C | 1.6x1.2x0.4mm |
| CX1612DB52000D0FLJC1 | kyocera | 52MHz | 8PF | 15PPM | -30°C ~ 85°C | 1.6x1.2x0.4mm |
CX2016DB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX2016DB16000D0WZRC1 | kyocera | 16MHz | 8PF | 25PPM | -25°C ~ 75°C | 2.0x1.6x0.4mm |
| CX2016DB16000D0GPSC1 | kyocera | 16MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB16000D0FLJCC | kyocera | 16MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB16000H0FLJC1 | kyocera | 16MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB19200D0GPSC1 | kyocera | 19.2MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB19200D0FLJC1 | kyocera | 19.2MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB19200H0FLJC2 | kyocera | 19.2MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB19200H0KFQC1 | kyocera | 19.2MHz | 12PF | 30PPM | -20°C ~ 70°C | 2.0x1.6x0.4mm |
| CX2016DB20000D0FLJCC | kyocera | 20MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB20000D0GPSC1 | kyocera | 20MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB20000H0FLJC1 | kyocera | 20MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB24000D0FLJC6 | kyocera | 24MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB24000D0GEJZ1 | kyocera | 24MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.0x1.6x0.4mm |
| CX2016DB24000D0GPSC2 | kyocera | 24MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB24000H0FLJC4 | kyocera | 24MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB24576D0FLJC1 | kyocera | 24.576MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB24576D0GEJCC | kyocera | 24.576MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.0x1.6x0.4mm |
| CX2016DB24576H0FLJC1 | kyocera | 24.576MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB25000D0FLJC2 | kyocera | 25MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB25000D0GPSC1 | kyocera | 25MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB25000H0FLJC1 | kyocera | 25MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB26000D0FLJC4 | kyocera | 26MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB26000D0FLJCC | kyocera | 26MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB26000H0FLJC2 | kyocera | 26MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB27000D0FLJC1 | kyocera | 27MHz | 10PF | 8PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB27000D0GPSC1 | kyocera | 27MHz | 15PF | 8PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB27000D0GEJCC | kyocera | 27MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.0x1.6x0.4mm |
| CX2016DB27000H0FLFC1 | kyocera | 27MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB27120D0FLJZ1 | kyocera | 27.12MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB30000D0FLJC1 | kyocera | 30MHz | 10PF | 8PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB30000D0GPSC1 | kyocera | 30MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB30000H0FLJC1 | kyocera | 30MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB32000D0FLJCC | kyocera | 32MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB32000D0GPSC1 | kyocera | 32MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB32000D0WZRC1 | kyocera | 32MHz | 8PF | 25PPM | -25°C ~ 75°C | 2.0x1.6x0.4mm |
| CX2016DB32000H0FLJC1 | kyocera | 32MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB38400C0WPLA2 | kyocera | 38.4MHz | 7PF | 20PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB38400D0FLJCC | kyocera | 38.4MHz | 8PF | 15PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB38400D0GPSC1 | kyocera | 38.4MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB38400H0FLJC1 | kyocera | 38.4MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB40000D0FLJCC | kyocera | 40MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB40000D0GPSC1 | kyocera | 40MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB40000H0FLJC1 | kyocera | 40MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB48000C0WLLA1 | kyocera | 48MHz | 7PF | 20PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB48000C0WPLA2 | kyocera | 48MHz | 7PF | 20PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB48000D0FLJC1 | kyocera | 48MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB48000D0GPSC1 | kyocera | 48MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB48000E0DLFA1 | kyocera | 48MHz | 9PF | 8PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB48000H0FLJC1 | kyocera | 48MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.0x1.6x0.4mm |
| CX2016DB50000D0KJSC1 | kyocera | 50MHz | 8PF | 30PPM | -30°C ~ 75°C | 2.0x1.6x0.4mm |
CX2520DB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX2520DB12000C0WLSC1 | kyocera | 12MHz | 7PF | 50PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB12000D0FLJC1 | kyocera | 12MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB12000D0GPSC1 | kyocera | 12MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB12000H0FLJC1 | kyocera | 12MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB13560D0FLJC2 | kyocera | 13.56MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB13560D0GPSC1 | kyocera | 13.56MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB13560H0FLJC1 | kyocera | 13.56MHz | 12PF | 10PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB16000D0FLJCC | kyocera | 16MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB16000D0GEJZ1 | kyocera | 16MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB16000D0GPSC1 | kyocera | 16MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB16000D0WZRC1 | kyocera | 16MHz | 8PF | 25PPM | -25°C ~ 75°C | 2.5x2.0x0.5mm |
| CX2520DB16000H0FLJC1 | kyocera | 16MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB19200D0FLJC2 | kyocera | 19.2MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB19200D0GPSC1 | kyocera | 19.2MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB19200H0FLJC1 | kyocera | 19.2MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB19200H0KFQC2 | kyocera | 19.2MHz | 12PF | 30PPM | -20°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB20000D0FLJCC | kyocera | 20MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB20000D0GPSC1 | kyocera | 20MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB20000H0FLJC1 | kyocera | 20MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB24000C0FLJA1 | kyocera | 24MHz | 7PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB24000D0FLJCC | kyocera | 24MHz | 8PF | 15PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB24000D0GEJCC | kyocera | 24MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB24000D0GPSC1 | kyocera | 24MHz | 8PF | 15PPM | -0°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB24576D0FLJC1 | kyocera | 24.576MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB24576D0GEJCC | kyocera | 24.576MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB24576D0GPSC1 | kyocera | 24.576MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB24576H0FLJC1 | kyocera | 24.576MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB25000D0FLJC1 | kyocera | 25MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB25000D0GPSC1 | kyocera | 25MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB25000H0FLJC1 | kyocera | 25MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB26000D0FLJCC | kyocera | 26MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB26000D0GPSC1 | kyocera | 26MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB26000H0FLJC2 | kyocera | 26MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB27000B0FLHA1 | kyocera | 27MHz | 6PF | 12PPM | -10°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB27000D0FLJC1 | kyocera | 27MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB27000D0GPSC1 | kyocera | 27MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB27000H0FLJC1 | kyocera | 27MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB27000H0KLSA1 | kyocera | 27MHz | 12PF | 30PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB30000D0FLJC1 | kyocera | 30MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB30000D0GEJCC | kyocera | 30MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB30000D0GPSC1 | kyocera | 30MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB30000H0FLJC1 | kyocera | 30MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB32000D0FLJCC | kyocera | 32MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB32000D0GEJZ1 | kyocera | 32MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB32000D0GPSC1 | kyocera | 32MHz | 8PF | 15PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB32000D0GPSC1 | kyocera | 32MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB32000D0WZRC1 | kyocera | 32MHz | 8PF | 25PPM | -25°C ~ 75°C | 2.5x2.0x0.5mm |
| CX2520DB32000H0FLJC1 | kyocera | 32MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB38400D0FZGC1 | kyocera | 38.4MHz | 8PF | 10PPM | -25°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB38400D0FLJCC | kyocera | 38.4MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB38400D0GPSC1 | kyocera | 38.4MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB38400H0FLJC1 | kyocera | 38.4MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB40000D0FLJZ1 | kyocera | 40MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB40000D0GPSC1 | kyocera | 40MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB40000H0FLJC3 | kyocera | 40MHz | 12PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB48000D0FLJC2 | kyocera | 48MHz | 8PF | 10PPM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB48000D0GEJCC | kyocera | 48MHz | 8PF | 15PPM | -10°C ~ 70°C | 2.5x2.0x0.5mm |
| CX2520DB48000D0GPSC1 | kyocera | 48MHz | 8PF | 15PPM | -40°C ~ 85°C | 2.5x2.0x0.5mm |
| CX2520DB48000H0FLJC1 | kyocera | 48MHz | 12PF | 10PPMM | -30°C ~ 85°C | 2.5x2.0x0.5mm |
CX3225GB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX3225GB12000D0HEQCC | kyocera | 12MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB12000D0HPQCC | kyocera | 12MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB12000P0HPQCC | kyocera | 12MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB12288P0HPQCC | kyocera | 12.288MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB13000P0HPQCC | kyocera | 13MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB13560D0HEQCC | kyocera | 13.56MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB13560D0HPQZ1 | kyocera | 13.56MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB13560P0HPQCC | kyocera | 13.56MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB14318D0HEQCC | kyocera | 14.318MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB14318D0HPQCC | kyocera | 14.318MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB14318P0HPQCC | kyocera | 14.318MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB14745D0HEQCC | kyocera | 14.7456MHz | 8PF | 10PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB14745D0HPQCC | kyocera | 14.7456MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB14745D0HPQCC | kyocera | 14.7456MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB16000D0HEQCC | kyocera | 16MHz | 8PF | 10PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB16000D0HPQCC | kyocera | 16MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB16000P0HPQCC | kyocera | 16MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB16384P0HPQCC | kyocera | 16.384MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB18432D0HEQZ1 | kyocera | 18.432MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB18432D0HPQZ1 | kyocera | 18.432MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB18432P0HPQCC | kyocera | 18.432MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB19200D0HEQZ1 | kyocera | 19.2MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB19200D0HPQZ1 | kyocera | 19.2MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB19200P0HPQCC | kyocera | 19.2MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB20000D0HEQZ1 | kyocera | 20MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB20000D0HPQZ1 | kyocera | 20MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB20000P0HPQCC | kyocera | 20MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB22579D0HEQCC | kyocera | 22.5792MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB22579D0HEQCC | kyocera | 22.5792MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB22579D0HPQCC | kyocera | 22.5792MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB22579D0HEQCC | kyocera | 22.5792MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB24000D0HEQCC | kyocera | 24MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB24000D0HPQZ1 | kyocera | 24MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB24000P0HPQZ1 | kyocera | 24MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB24576D0HEQCC | kyocera | 24.576MHz | 8PF | 10PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB24576D0HPQCC | kyocera | 24.576MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB24576P0HPQCC | kyocera | 24.576MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB25000D0HEQCC | kyocera | 25MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB25000D0HPQCC | kyocera | 25MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB25000P0HPQCC | kyocera | 25MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB27000D0HEQCC | kyocera | 27MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB27000D0HPQCC | kyocera | 27MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB27000P0HPQCC | kyocera | 27MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB27120P0HPQCC | kyocera | 27.12MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB30000D0HEQZ1 | kyocera | 30MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB30000D0HPQZ1 | kyocera | 30MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB30000P0HPQZ1 | kyocera | 30MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB32000D0HEQCC | kyocera | 32MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB32000D0HPQCC | kyocera | 32MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB32000P0HPQZ1 | kyocera | 32MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB33333D0HEQCC | kyocera | 33.333MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB33333D0HPQCC | kyocera | 33.333MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB33333P0HPQCC | kyocera | 33.333MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB38400D0HEQCC | kyocera | 38.4MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB38400D0HPQCC | kyocera | 38.4MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB38400P0HPQCC | kyocera | 38.4MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB40000D0HEQZ1 | kyocera | 40MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB40000D0HPQZ1 | kyocera | 40MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB40000P0HPQZ1 | kyocera | 40MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB48000D0HEQCC | kyocera | 48MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB48000D0HPQCC | kyocera | 48MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB48000P0HPQCC | kyocera | 48MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB49152P0HPQCC | kyocera | 49.152MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB50000P0HPQCC | kyocera | 50MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB54000D0HEQZ1 | kyocera | 54MHz | 8PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.8mm |
| CX3225GB54000D0HPQZ1 | kyocera | 54MHz | 8PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
| CX3225GB54000P0HPQCC | kyocera | 54MHz | 18PF | 20PPM | -40°C ~ 85°C | 3.2x2.5x0.8mm |
CX3225SB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX3225SB12000D0FFJCC | kyocera | 12MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB12000D0FLJCC | kyocera | 12MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB12000D0FPNCC | kyocera | 12MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB12000D0GZJC1 | kyocera | 12MHz | 8PF | 15PPM | -25°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB12000H0FLJCC | kyocera | 12MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB12000H0PSTC1 | kyocera | 12MHz | 12PF | 50PPM | -40°C ~ 125°C | 3.2x2.5x0.6mm |
| CX3225SB12288D0FLJCC | kyocera | 12.288MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB12288D0GPSCC | kyocera | 12.288MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB12288H0FLJCC | kyocera | 12.288MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB13560D0FLJCC | kyocera | 13.56MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB13560D0FPLCC | kyocera | 13.56MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB13560D0GPSCC | kyocera | 13.56MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB13560H0FLJCC | kyocera | 13.56MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB14745H0KPQCC | kyocera | 14.7456MHz | 12PF | 30PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB16000D0FFJCC | kyocera | 16MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB16000D0FLJCC | kyocera | 16MHz | 8PF | 15PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB16000D0FPLCC | kyocera | 16MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB16000D0GZJC1 | kyocera | 16MHz | 8PF | 15PPM | -25°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB16000D0GPSCC | kyocera | 16MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB16000E0FPZ25 | kyocera | 16MHz | 9PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB16000H0PSTC1 | kyocera | 16MHz | 12PF | 50PPM | -40°C ~ 125°C | 3.2x2.5x0.6mm |
| CX3225SB19200D0FLJCC | kyocera | 16MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB19200D0FPLCC | kyocera | 19.2MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB19200H0FLJCC | kyocera | 19.2MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB20000D0FLJCC | kyocera | 20MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB20000D0FPLCC | kyocera | 20MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB20000D0GPSCC | kyocera | 20MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB20000H0FLJCC | kyocera | 20MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB20000H0PSTC2 | kyocera | 20MHz | 12PF | 50PPM | -40°C ~ 125°C | 3.2x2.5x0.6mm |
| CX3225SB24000D0FFJCC | kyocera | 24MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB24000D0FLJCC | kyocera | 24MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24000D0FPLCC | kyocera | 24MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24000D0GPSCC | kyocera | 24MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24000H0FLJCC | kyocera | 24MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24000H0PSTC1 | kyocera | 24MHz | 12PF | 50PPM | -40°C ~ 125°C | 3.2x2.5x0.6mm |
| CX3225SB24576D0FLJCC | kyocera | 24.576MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24576D0GPSCC | kyocera | 24.576MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24576H0FLJCC | kyocera | 24.576MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB24576H0KESZZ | kyocera | 24.576MHz | 12PF | 30PPM | -10°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB25000D0FFFCC | kyocera | 25MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB25000D0FLJCC | kyocera | 25MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB25000D0FPLCC | kyocera | 25MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB25000D0GPSCC | kyocera | 25MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB25000H0FLJCC | kyocera | 25MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB26000D0FFFCC | kyocera | 26MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB26000D0FLJCC | kyocera | 26MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB26000H0FLJCC | kyocera | 26MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB27000D0FFFCC | kyocera | 27MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB27000D0FLJCC | kyocera | 27MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB27000D0FPLCC | kyocera | 27MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB27000D0GPSCC | kyocera | 27MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB27000H0FLJCC | kyocera | 27MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB30000D0FLJCC | kyocera | 30MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB30000D0FPLCC | kyocera | 30MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB30000H0FLJCC | kyocera | 30MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB32000D0FFFCC | kyocera | 32MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB32000D0FLJCC | kyocera | 32MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB32000D0FPLCC | kyocera | 32MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB32000D0GPSCC | kyocera | 32MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB32000D0PSTC1 | kyocera | 32MHz | 8PF | 50PPM | -40°C ~ 125°C | 3.2x2.5x0.6mm |
| CX3225SB32000H0FLJCC | kyocera | 32MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB38400D0FFFCC | kyocera | 38.4MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB38400D0FLJCC | kyocera | 38.4MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB38400D0FPLCC | kyocera | 38.4MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB38400H0FLJCC | kyocera | 38.4MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB40000D0FFFCC | kyocera | 40MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB40000D0FLJCC | kyocera | 40MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB40000D0FPLCC | kyocera | 40MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB40000D0GPSCC | kyocera | 40MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX101F-040.000-H0445 | kyocera | 40MHz | 12PF | 10PPM | -0°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB48000D0FFFCC | kyocera | 48MHz | 8PF | 10PPM | -20°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB48000D0FLJCC | kyocera | 48MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB48000D0FPLCC | kyocera | 48MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB48000D0WPSC2 | kyocera | 48MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB48000H0FLJCC | kyocera | 48MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB49152D0FLJCC | kyocera | 49.152MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB49152D0GPSCC | kyocera | 49.152MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB49152F0HELC1 | kyocera | 49.152MHz | 10PF | 20PPM | -10°C ~ 70°C | 3.2x2.5x0.6mm |
| CX3225SB49152H0FLJCC | kyocera | 49.152MHz | 12PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB54000D0FLJCC | kyocera | 54MHz | 8PF | 10PPM | -30°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB54000D0WPSC1 | kyocera | 54MHz | 8PF | 15PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB54000D0FPJC1 | kyocera | 54MHz | 8PF | 10PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
| CX3225SB54000D0WPSC3 | kyocera | 54MHz | 8PF | 50PPM | -40°C ~ 85°C | 3.2x2.5x0.6mm |
CX5032GA晶振
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX5032GA08000D0QEQZ1 | kyocera | 8MHz | 8PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA08000H0QEQZ1 | kyocera | 8MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA10000H0QEQZ1 | kyocera | 10MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA12000D0QEQZ1 | kyocera | 12MHz | 8PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA12000H0QEQZ1 | kyocera | 12MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA13000H0QEQZ1 | kyocera | 13MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA13560H0QEQZ1 | kyocera | 13.56MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA14745H0QEQZ1 | kyocera | 14.7456MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA16000H0QEQZ1 | kyocera | 16MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA16384H0QEQZ1 | kyocera | 16.384MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA20000H0QEQZ1 | kyocera | 20MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA22118H0QEQZ1 | kyocera | 22.1184MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA22579H0QEQZ1 | kyocera | 22.5792MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA24000H0QEQZ1 | kyocera | 24MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA24576H0QEQZ1 | kyocera | 24.576MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA25000H0QEQZ1 | kyocera | 25MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA26000H0QEQZ1 | kyocera | 26MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA27000H0QEQZ1 | kyocera | 27MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA27120H0QEQZ1 | kyocera | 27.12MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA28636H0QEQZ1 | kyocera | 28.63636MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA30000H0QEQZ1 | kyocera | 30MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
| CX5032GA40000H0QEQZ1 | kyocera | 40MHz | 12PF | 20PPM | -10°C ~ 70°C | 5.0x3.2x1.5mm |
CX5032SB
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX5032SB09843D0FFFZ1 | kyocera | 9.84375MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB09843D0FLJZ1 | kyocera | 9.84375MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB09843D0GFFZ1 | kyocera | 9.84375MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB09843D0GLJZ1 | kyocera | 9.84375MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB09843F0FFFZ1 | kyocera | 9.84375MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB09843F0FLJZ1 | kyocera | 9.84375MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB09843F0GFFZ1 | kyocera | 9.84375MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB09843F0GLJZ1 | kyocera | 9.84375MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB09843H0FFFZ1 | kyocera | 9.84375MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB09843H0FLJZ1 | kyocera | 9.84375MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB09843H0GFFZ1 | kyocera | 9.84375MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB09843H0GLJZ1 | kyocera | 9.84375MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB10000D0FFFZ1 | kyocera | 10MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB10000D0FLJZ1 | kyocera | 10MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB10000D0GFFZ1 | kyocera | 10MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB10000D0GLJZ1 | kyocera | 10MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB10000F0FFFZ1 | kyocera | 10MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB10000F0FLJZ1 | kyocera | 10MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB10000F0GFFZ1 | kyocera | 10MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB10000F0GLJZ1 | kyocera | 10MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB01000H0FFFZ1 | kyocera | 10MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB10000H0FLJZ1 | kyocera | 10MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB10000H0GFFZ1 | kyocera | 10MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB10000H0GLJZ1 | kyocera | 10MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB11059D0FFFZ1 | kyocera | 11.0592MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB11059D0FLJZ1 | kyocera | 11.0592MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB11059D0GFFZ1 | kyocera | 11.0592MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB11059D0GLJZ1 | kyocera | 11.0592MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB11059F0FFFZ1 | kyocera | 11.0592MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB11059F0FLJZ1 | kyocera | 11.0592MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB11059F0GFFZ1 | kyocera | 11.0592MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB11059F0GLJZ1 | kyocera | 11.0592MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB11059H0FFFZ1 | kyocera | 11.0592MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB11059H0FLJZ1 | kyocera | 11.0592MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB11059H0GFFZ1 | kyocera | 11.0592MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB11059H0GLJZ1 | kyocera | 11.0592MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12000D0FFFZ1 | kyocera | 12MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12000D0FLJZ1 | kyocera | 12MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12000D0GFFZ1 | kyocera | 12MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12000D0GLJZ1 | kyocera | 12MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12000F0FFFZ1 | kyocera | 12MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12000F0FLJZ1 | kyocera | 12MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12000F0GFFZ1 | kyocera | 12MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12000F0GLJZ1 | kyocera | 12MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB01200H0FFFZ1 | kyocera | 12MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12000H0FLJZ1 | kyocera | 12MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12000H0GFFZ1 | kyocera | 12MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12000H0GLJZ1 | kyocera | 12MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12800D0FFFZ1 | kyocera | 12.8MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12800D0FLJZ1 | kyocera | 12.8MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12800D0GFFZ1 | kyocera | 12.8MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12800D0GLJZ1 | kyocera | 12.8MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12800F0FFFZ1 | kyocera | 12.8MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12800F0FLJZ1 | kyocera | 12.8MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12800F0GFFZ1 | kyocera | 12.8MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12800F0GLJZ1 | kyocera | 12.8MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB01280H0FFFZ1 | kyocera | 12.8MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12800H0FLJZ1 | kyocera | 12.8MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB12800H0GFFZ1 | kyocera | 12.8MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB12800H0GLJZ1 | kyocera | 12.8MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13000D0FFFZ1 | kyocera | 13MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13000D0FLJZ1 | kyocera | 13MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13000D0GFFZ1 | kyocera | 13MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13000D0GLJZ1 | kyocera | 13MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13000F0FFFZ1 | kyocera | 13MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13000F0FLJZ1 | kyocera | 13MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13000F0GFFZ1 | kyocera | 13MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13000F0GLJZ1 | kyocera | 13MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB01300H0FFFZ1 | kyocera | 13MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13000H0FLJZ1 | kyocera | 13MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13000H0GFFZ1 | kyocera | 13MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13000H0GLJZ1 | kyocera | 13MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13560D0FFFZ1 | kyocera | 13.56MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13560D0FLJZ1 | kyocera | 13.56MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13560D0GFFZ1 | kyocera | 13.56MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13560D0GLJZ1 | kyocera | 13.56MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13560F0FFFZ1 | kyocera | 13.56MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13560F0FLJZ1 | kyocera | 13.56MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13560F0GFFZ1 | kyocera | 13.56MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13560F0GLJZ1 | kyocera | 13.56MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13560H0FFFZ1 | kyocera | 13.56MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13560H0FLJZ1 | kyocera | 13.56MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB13560H0GFFZ1 | kyocera | 13.56MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB13560H0GLJZ1 | kyocera | 13.56MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14318D0FFFZ1 | kyocera | 14.318MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14318D0FLJZ1 | kyocera | 14.318MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14318D0GFFZ1 | kyocera | 14.318MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14318D0GLJZ1 | kyocera | 14.318MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14318F0FFFZ1 | kyocera | 14.318MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14318F0FLJZ1 | kyocera | 14.318MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14318F0GFFZ1 | kyocera | 14.318MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14318F0GLJZ1 | kyocera | 14.318MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14318H0FFFZ1 | kyocera | 14.318MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14318H0FLJZ1 | kyocera | 14.318MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14318H0GFFZ1 | kyocera | 14.318MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745D0FFFZ1 | kyocera | 14.7456MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745D0FLJZ1 | kyocera | 14.7456MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14745D0GFFZ1 | kyocera | 14.7456MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745D0GLJZ1 | kyocera | 14.7456MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14745F0FFFZ1 | kyocera | 14.7456MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745F0FLJZ1 | kyocera | 14.7456MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14745F0GFFZ1 | kyocera | 14.7456MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745F0GLJZ1 | kyocera | 14.7456MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14745H0FFFZ1 | kyocera | 14.7456MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745H0FLJZ1 | kyocera | 14.7456MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB14745H0GFFZ1 | kyocera | 14.7456MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB14745H0GLJZ1 | kyocera | 14.7456MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16000D0FFFZ1 | kyocera | 16MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16000D0FLJZ1 | kyocera | 16MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16000D0GFFZ1 | kyocera | 16MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16000D0GLJZ1 | kyocera | 16MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16000F0FFFZ1 | kyocera | 16MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16000F0FLJZ1 | kyocera | 16MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16000F0GFFZ1 | kyocera | 16MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16000F0GLJZ1 | kyocera | 16MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16000H0FFFZ1 | kyocera | 16MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16000H0FLJZ1 | kyocera | 16MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16000H0GFFZ1 | kyocera | 16MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16000H0GLJZ1 | kyocera | 16MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16384D0FFFZ1 | kyocera | 16.384MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16384D0FLJZ1 | kyocera | 16.384MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16384D0GFFZ1 | kyocera | 16.384MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16384D0GLJZ1 | kyocera | 16.384MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16384F0FFFZ1 | kyocera | 16.384MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16384F0FLJZ1 | kyocera | 16.384MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16384F0GFFZ1 | kyocera | 16.384MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16384F0GLJZ1 | kyocera | 16.384MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16384H0FFFZ1 | kyocera | 16.384MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16384H0FLJZ1 | kyocera | 16.384MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB16384H0GFFZ1 | kyocera | 16.384MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB16384H0GLJZ1 | kyocera | 16.384MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB19200D0FFFZ1 | kyocera | 19.2MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB19200D0FLJZ1 | kyocera | 19.2MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB19200D0GFFZ1 | kyocera | 19.2MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB19200D0GLJZ1 | kyocera | 19.2MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB19200F0FFFZ1 | kyocera | 19.2MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB19200F0FLJZ1 | kyocera | 19.2MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB19200F0GFFZ1 | kyocera | 19.2MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB19200F0GLJZ1 | kyocera | 19.2MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB19200H0FFFZ1 | kyocera | 19.2MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB19200H0FLJZ1 | kyocera | 19.2MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB19200H0GFFZ1 | kyocera | 19.2MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB19200H0GLJZ1 | kyocera | 19.2MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB20000D0FFFZ1 | kyocera | 20MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB20000D0FLJZ1 | kyocera | 20MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB20000D0GFFZ1 | kyocera | 20MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB20000D0GLJZ1 | kyocera | 20MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB20000F0FFFZ1 | kyocera | 20MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB20000F0FLJZ1 | kyocera | 20MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB20000F0GFFZ1 | kyocera | 20MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB20000F0GLJZ1 | kyocera | 20MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB20000H0FFFZ1 | kyocera | 20MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB20000H0FLJZ1 | kyocera | 20MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB20000H0GFFZ1 | kyocera | 20MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB20000H0GLJZ1 | kyocera | 20MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB24000D0FFFZ1 | kyocera | 24MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB24000D0FLJZ1 | kyocera | 24MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB24000D0GFFZ1 | kyocera | 24MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB24000D0GLJZ1 | kyocera | 24MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB24000F0FFFZ1 | kyocera | 24MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB24000F0FLJZ1 | kyocera | 24MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB24000F0GFFZ1 | kyocera | 24MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB24000F0GLJZ1 | kyocera | 24MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB24000H0FFFZ1 | kyocera | 24MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB24000H0FLJZ1 | kyocera | 24MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB24000H0GFFZ1 | kyocera | 24MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB24000H0GLJZ1 | kyocera | 24MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB25000D0FFFZ1 | kyocera | 25MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB25000D0FLJZ1 | kyocera | 25MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB25000D0GFFZ1 | kyocera | 25MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB25000D0GLJZ1 | kyocera | 25MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB25000F0FFFZ1 | kyocera | 25MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB25000F0FLJZ1 | kyocera | 25MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB25000F0GFFZ1 | kyocera | 25MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB25000F0GLJZ1 | kyocera | 25MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB25000H0FFFZ1 | kyocera | 25MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB25000H0FLJZ1 | kyocera | 25MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB25000H0GFFZ1 | kyocera | 25MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB25000H0GLJZ1 | kyocera | 25MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB26000D0FFFZ1 | kyocera | 26MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB26000D0FLJZ1 | kyocera | 26MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB26000D0GFFZ1 | kyocera | 26MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB26000D0GLJZ1 | kyocera | 26MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB26000F0FFFZ1 | kyocera | 26MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB26000F0FLJZ1 | kyocera | 26MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB26000F0GFFZ1 | kyocera | 26MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB26000F0GLJZ1 | kyocera | 26MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB26000H0FFFZ1 | kyocera | 26MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB26000H0FLJZ1 | kyocera | 26MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB26000H0GFFZ1 | kyocera | 26MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB26000H0GLJZ1 | kyocera | 26MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27000D0FFFZ1 | kyocera | 27MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27000D0FLJZ1 | kyocera | 27MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27000D0GFFZ1 | kyocera | 27MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27000D0GLJZ1 | kyocera | 27MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27000F0FFFZ1 | kyocera | 27MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27000F0FLJZ1 | kyocera | 27MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27000F0GFFZ1 | kyocera | 27MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27000F0GLJZ1 | kyocera | 27MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27000H0FFFZ1 | kyocera | 27MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27000H0FLJZ1 | kyocera | 27MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27000H0GFFZ1 | kyocera | 27MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27000H0GLJZ1 | kyocera | 27MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27120D0FFFZ1 | kyocera | 27.12MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27120D0FLJZ1 | kyocera | 27.12MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27120D0GFFZ1 | kyocera | 27.12MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27120D0GLJZ1 | kyocera | 27.12MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27120F0FFFZ1 | kyocera | 27.12MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27120F0FLJZ1 | kyocera | 27.12MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27120F0GFFZ1 | kyocera | 27.12MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27120F0GLJZ1 | kyocera | 27.12MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27120H0FFFZ1 | kyocera | 27.12MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27120H0FLJZ1 | kyocera | 27.12MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB27120H0GFFZ1 | kyocera | 27.12MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB27120H0GLJZ1 | kyocera | 27.12MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB30000D0FFFZ1 | kyocera | 30MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB30000D0FLJZ1 | kyocera | 30MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB30000D0GFFZ1 | kyocera | 30MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB30000D0GLJZ1 | kyocera | 30MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB30000F0FFFZ1 | kyocera | 30MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB30000F0FLJZ1 | kyocera | 30MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB30000F0GFFZ1 | kyocera | 30MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB30000F0GLJZ1 | kyocera | 30MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB30000H0FFFZ1 | kyocera | 30MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB30000H0FLJZ1 | kyocera | 30MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB30000H0GFFZ1 | kyocera | 30MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB30000H0GLJZ1 | kyocera | 30MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB32000D0FFFZ1 | kyocera | 32MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB32000D0FLJZ1 | kyocera | 32MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB32000D0GFFZ1 | kyocera | 32MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB32000D0GLJZ1 | kyocera | 32MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB32000F0FFFZ1 | kyocera | 32MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB32000F0FLJZ1 | kyocera | 32MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB32000F0GFFZ1 | kyocera | 32MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB32000F0GLJZ1 | kyocera | 32MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB32000H0FFFZ1 | kyocera | 32MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB32000H0FLJZ1 | kyocera | 32MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB32000H0GFFZ1 | kyocera | 32MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB32000H0GLJZ1 | kyocera | 32MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB40000D0FFFZ1 | kyocera | 40MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB40000D0FLJZ1 | kyocera | 40MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB40000D0GFFZ1 | kyocera | 40MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB40000D0GLJZ1 | kyocera | 40MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB40000F0FFFZ1 | kyocera | 40MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB40000F0FLJZ1 | kyocera | 40MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB40000F0GFFZ1 | kyocera | 40MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB40000F0GLJZ1 | kyocera | 40MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB40000H0FFFZ1 | kyocera | 40MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB40000H0FLJZ1 | kyocera | 40MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB40000H0GFFZ1 | kyocera | 40MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB40000H0GLJZ1 | kyocera | 48MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB48000D0FFFZ1 | kyocera | 48MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB48000D0FLJZ1 | kyocera | 48MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB48000D0GFFZ1 | kyocera | 48MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB48000D0GLJZ1 | kyocera | 48MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB48000F0FFFZ1 | kyocera | 48MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB48000F0FLJZ1 | kyocera | 48MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB48000F0GFFZ1 | kyocera | 48MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB48000F0GLJZ1 | kyocera | 48MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB48000H0FFFZ1 | kyocera | 48MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB48000H0FLJZ1 | kyocera | 48MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB000H0GFFZ1 | kyocera | 48MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB48000H0GLJZ1 | kyocera | 48MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB50000D0FFFZ1 | kyocera | 50MHz | 8PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB50000D0FLJZ1 | kyocera | 50MHz | 8PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB50000D0GFFZ1 | kyocera | 50MHz | 8PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB50000D0GLJZ1 | kyocera | 50MHz | 8PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB50000F0FFFZ1 | kyocera | 50MHz | 10PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB50000F0FLJZ1 | kyocera | 50MHz | 10PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB50000F0GFFZ1 | kyocera | 50MHz | 10PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB50000F0GLJZ1 | kyocera | 50MHz | 10PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB50000H0FFFZ1 | kyocera | 50MHz | 12PF | 10PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB50000H0FLJZ1 | kyocera | 50MHz | 12PF | 10PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |
| CX5032SB50000H0GFFZ1 | kyocera | 50MHz | 12PF | 15PPM | -20°C ~ 70°C | 5.0x3.2x0.8mm |
| CX5032SB50000H0GLJZ1 | kyocera | 50MHz | 12PF | 15PPM | -30°C ~ 85°C | 5.0x3.2x0.8mm |

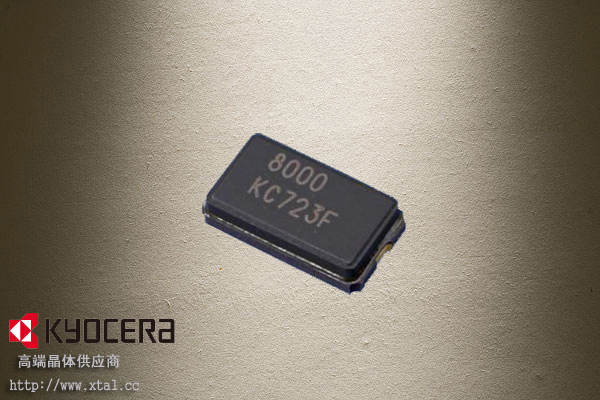

CX8045GA晶振
| 原厂代码 | 品牌 | 频率 | 负载电容PF | 精度PPM | 工作温度 | 封装 |
| CX8045GA04000H0PEQZ1 | kyocera | 4MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA08000H0PEQZ1 | kyocera | 8MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA10000H0PEQZ1 | kyocera | 10MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA12000H0PEQZ1 | kyocera | 12MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA16000H0PEQZ1 | kyocera | 16MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA20000H0PEQZ1 | kyocera | 20MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA24000H0PEQZ1 | kyocera | 24MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA25000H0PEQZ1 | kyocera | 25MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA27000H0PEQZ1 | kyocera | 27MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA30000H0PEQZ1 | kyocera | 30MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA32000H0PEQZ1 | kyocera | 32MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
| CX8045GA40000H0PEQZ1 | kyocera | 40MHz | 12PF | 50PPM | -10°C ~ 70°C | 8.0x4.5x2.0mm |
百度统计 CNZZ
