在元器件行业晶振主要应用于各类小型化智能电子产品需求,包括如智能型手机,智能型手表等电子产品上,随着电子产品对晶振体积要求越来越严格,晶振特性随即无法满足终端产品应用需求,TXC晶振公司推出8Y系列小型2016贴片晶振,可满足各类电子产品不断小型化之需求,同时俱备节能,省电,高效能的特性,2016贴片进口晶振封装系列常规频率有：16MHz,24MHz,26MHz,27MHz,27.12MHz,32MHz,38.4MHz,40MHz,48MHz等,范围为16MHz~54MHz,尺寸2.0x1.6x0.5mm。
| 料号 | 供应商 | 频率稳定性 | 负载电容 | 频率 | 工作温度 |
| 8Y-16.000MAAI-T | 加科电子 | ±30ppm | 16pF | 16 MHz | -20°C ~ 70°C |
| 8Y-16.000MAAV-T | 加科电子 | ±30ppm | 8pF | 16 MHz | -20°C ~ 70°C |
| 8Y-16.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 16 MHz | -40°C ~ 85°C |
| 8Y-16.000MDIE-T | 加科电子 | ±20ppm | 12pF | 16 MHz | -40°C ~ 85°C |
| 8Y-16.000MEEC-T | 加科电子 | ±10ppm | 9pF | 16 MHz | -20°C ~ 70°C |
| 8Y-16.000MEIV-T | 加科电子 | ±20ppm | 8pF | 16 MHz | -40°C ~ 85°C |
| 8Y-19.200MAAE-T | 加科电子 | ±30ppm | 12pF | 19.2 MHz | -20°C ~ 70°C |
| 8Y-19.200MAAI-T | 加科电子 | ±30ppm | 16pF | 19.2 MHz | -20°C ~ 70°C |
| 8Y-19.200MAAJ-T | 加科电子 | ±30ppm | 18pF | 19.2 MHz | -20°C ~ 70°C |
| 8Y-19.200MAAV-T | 加科电子 | ±30ppm | 8pF | 19.2 MHz | -20°C ~ 70°C |
| 8Y-19.200MEEQ-T | 加科电子 | ±10ppm | 10pF | 19.2 MHz | -20°C ~ 70°C |
| 8Y-20.000MAAE-T | 加科电子 | ±30ppm | 12pF | 20 MHz | -20°C ~ 70°C |
| 8Y-20.000MAAI-T | 加科电子 | ±30ppm | 16pF | 20 MHz | -20°C ~ 70°C |
| 8Y-20.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 20 MHz | -20°C ~ 70°C |
| 8Y-20.000MAAV-T | 加科电子 | ±30ppm | 8pF | 20 MHz | -20°C ~ 70°C |
| 8Y-20.000MAHE-T | 加科电子 | ±30ppm | 12pF | 20 MHz | -40°C ~ 85°C |
| 8Y-24.000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MAAE-T | 加科电子 | ±30ppm | 12pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MAAI-T | 加科电子 | ±30ppm | 16pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MAAV-T | 加科电子 | ±30ppm | 8pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MAHE-T | 加科电子 | ±30ppm | 12pF | 24 MHz | -40°C ~ 85°C |
| 8Y-24.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 24 MHz | -40°C ~ 85°C |
| 8Y-24.000MAHV-T | 加科电子 | ±30ppm | 8pF | 24 MHz | -40°C ~ 85°C |
| 8Y-24.000MBGE-T | 加科电子 | ±50ppm | 12pF | 24 MHz | -40°C ~ 85°C |
| 8Y-24.000MEEE-T | 加科电子 | ±10ppm | 12pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 24 MHz | -20°C ~ 70°C |
| 8Y-24.000MFEV-T | 加科电子 | ±10ppm | 8pF | 24 MHz | -20°C ~ 70°C |
| 8Y-25.000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 25 MHz | -20°C ~ 70°C |
| 8Y-25.000MAAE-T | 加科电子 | ±30ppm | 12pF | 25 MHz | -20°C ~ 70°C |
| 8Y-25.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 25 MHz | -20°C ~ 70°C |
| 8Y-25.000MAAV-T | 加科电子 | ±30ppm | 8pF | 25 MHz | -20°C ~ 70°C |
| 8Y-25.000MAHE-T | 加科电子 | ±30ppm | 12pF | 25 MHz | -40°C ~ 85°C |
| 8Y-25.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 25 MHz | -40°C ~ 85°C |
| 8Y-25.000MAHV-T | 加科电子 | ±30ppm | 8pF | 25 MHz | -40°C ~ 85°C |
| 8Y-25.000MBGE-T | 加科电子 | ±50ppm | 12pF | 25 MHz | -40°C ~ 85°C |
| 8Y-25.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 25 MHz | -20°C ~ 70°C |
| 8Y-26.000MAAE-T | 加科电子 | ±30ppm | 12pF | 26 MHz | -20°C ~ 70°C |
| 8Y-26.000MAAI-T | 加科电子 | ±30ppm | 16pF | 26 MHz | -20°C ~ 70°C |

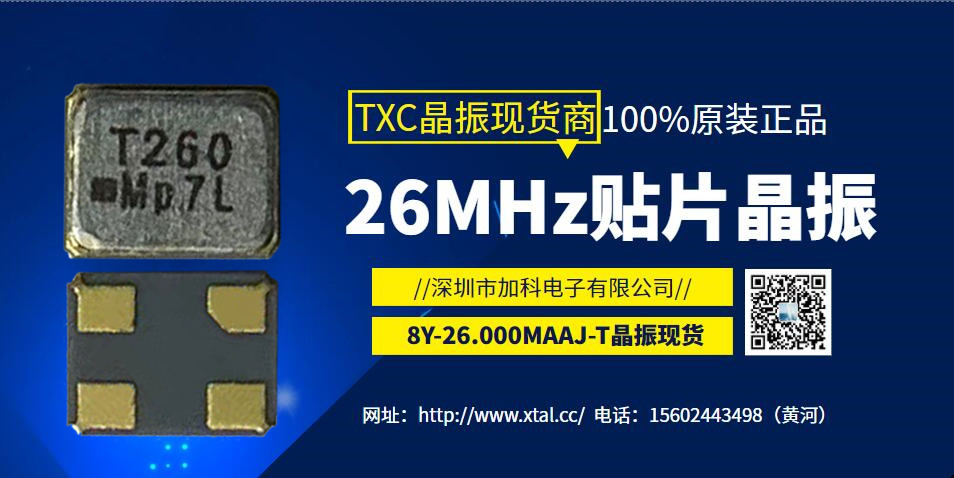

| 8Y-26.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 26 MHz | -20°C ~ 70°C |
| 8Y-26.000MAAV-T | 加科电子 | ±30ppm | 8pF | 26 MHz | -20°C ~ 70°C |
| 8Y-26.000MAHJ-T | 加科电子 | ±30ppm | 18pF | 26 MHz | -40°C ~ 85°C |
| 8Y-26.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 26 MHz | -40°C ~ 85°C |
| 8Y-26.000MAHV-T | 加科电子 | ±30ppm | 8pF | 26 MHz | -40°C ~ 85°C |
| 8Y-26.000MEEC-T | 加科电子 | ±10ppm | 9pF | 26 MHz | -20°C ~ 70°C |
| 8Y-26.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 26 MHz | -20°C ~ 70°C |
| 8Y-27.000MAAE-T | 加科电子 | ±30ppm | 12pF | 27 MHz | -20°C ~ 70°C |
| 8Y-27.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 27 MHz | -20°C ~ 70°C |
| 8Y-27.000MAAV-T | 加科电子 | ±30ppm | 8pF | 27 MHz | -20°C ~ 70°C |
| 8Y-27.000MAGQ-T | 加科电子 | ±50ppm | 10pF | 27 MHz | -40°C ~ 85°C |
| 8Y-27.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 27 MHz | -20°C ~ 70°C |
| 8Y-27.120MAAB-T | 加科电子 | ±30ppm | 8.5pF | 27.12 MHz | -20°C ~ 70°C |
| 8Y-27.120MAAE-T | 加科电子 | ±30ppm | 12pF | 27.12 MHz | -20°C ~ 70°C |
| 8Y-27.120MAAV-T | 加科电子 | ±30ppm | 8pF | 27.12 MHz | -20°C ~ 70°C |
| 8Y-27.120MAGV-T | 加科电子 | ±50ppm | 8pF | 27.12 MHz | -40°C ~ 85°C |
| 8Y-27.120MAHE-T | 加科电子 | ±30ppm | 12pF | 27.12 MHz | -40°C ~ 85°C |
| 8Y-27.120MAHQ-T | 加科电子 | ±30ppm | 10pF | 27.12 MHz | -40°C ~ 85°C |
| 8Y-27.120MEEQ-T | 加科电子 | ±10ppm | 10pF | 27.12 MHz | -20°C ~ 70°C |
| 8Y-30.000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 30 MHz | -20°C ~ 70°C |
| 8Y-30.000MAAE-T | 加科电子 | ±30ppm | 12pF | 30 MHz | -20°C ~ 70°C |
| 8Y-30.000MAAI-T | 加科电子 | ±30ppm | 16pF | 30 MHz | -20°C ~ 70°C |
| 8Y-30.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 30 MHz | -20°C ~ 70°C |
| 8Y-30.000MAAV-T | 加科电子 | ±30ppm | 8pF | 30 MHz | -20°C ~ 70°C |
| 8Y-30.000MAHV-T | 加科电子 | ±30ppm | 8pF | 30 MHz | -40°C ~ 85°C |
| 8Y-30.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 30 MHz | -20°C ~ 70°C |
| 8Y-30.000MFIE-T | 加科电子 | ±20ppm | 12pF | 30 MHz | -40°C ~ 85°C |
| 8Y-32.000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 32 MHz | -20°C ~ 70°C |
| 8Y-32.000MAAE-T | 加科电子 | ±30ppm | 12pF | 32 MHz | -20°C ~ 70°C |
| 8Y-32.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 32 MHz | -20°C ~ 70°C |
| 8Y-32.000MAAV-T | 加科电子 | ±30ppm | 8pF | 32 MHz | -20°C ~ 70°C |
| 8Y-32.000MAHE-T | 加科电子 | ±30ppm | 12pF | 32 MHz | -40°C ~ 85°C |
| 8Y-32.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 32 MHz | -40°C ~ 85°C |
| 8Y-32.000MAHV-T | 加科电子 | ±30ppm | 8pF | 32 MHz | -40°C ~ 85°C |
| 8Y-32.000MDAQ-T | 加科电子 | ±30ppm | 10pF | 32 MHz | -20°C ~ 70°C |
| 8Y-32.000MDHQ-T | 加科电子 | ±30ppm | 10pF | 32 MHz | -40°C ~ 85°C |
| 8Y-32.000MDIV-T | 加科电子 | ±20ppm | 8pF | 32 MHz | -40°C ~ 85°C |
| 8Y-32.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 32 MHz | -20°C ~ 70°C |
| 8Y-32.000MEEV-T | 加科电子 | ±10ppm | 8pF | 32 MHz | -20°C ~ 70°C |
| 8Y-35.328MAAJ-T | 加科电子 | ±30ppm | 18pF | 35.328 MHz | -20°C ~ 70°C |
| 8Y-37.400MAAE-T | 加科电子 | ±30ppm | 12pF | 37.4 MHz | -20°C ~ 70°C |
| 8Y-37.400MAAI-T | 加科电子 | ±30ppm | 16pF | 37.4 MHz | -20°C ~ 70°C |
| 8Y-37.400MAAJ-T | 加科电子 | ±30ppm | 18pF | 37.4 MHz | -20°C ~ 70°C |
| 8Y-37.400MAAV-T | 加科电子 | ±30ppm | 8pF | 37.4 MHz | -20°C ~ 70°C |
| 8Y-37.400MAHQ-T | 加科电子 | ±30ppm | 10pF | 37.4 MHz | -40°C ~ 85°C |
| 8Y-37.400MEEE-T | 加科电子 | ±10ppm | 12pF | 37.4 MHz | -20°C ~ 70°C |
| 8Y-37.400MEEQ-T | 加科电子 | ±10ppm | 10pF | 37.4 MHz | -20°C ~ 70°C |
| 8Y-38.4000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 38.4 MHz | -20°C ~ 70°C |
| 8Y-38.4000MAHQ-T | 加科电子 | ±30ppm | 10pF | 38.4 MHz | -40°C ~ 85°C |
| 8Y-38.400MAAB-T | 加科电子 | ±30ppm | 6pF | 38.4 MHz | -20°C ~ 70°C |
| 8Y-38.400MAAE-T | 加科电子 | ±30ppm | 12pF | 38.4 MHz | -20°C ~ 70°C |
| 8Y-38.400MAAJ-T | 加科电子 | ±30ppm | 18pF | 38.4 MHz | -20°C ~ 70°C |
| 8Y-38.400MAAV-T | 加科电子 | ±30ppm | 8pF | 38.4 MHz | -20°C ~ 70°C |
| 8Y-38.400MAHQ-T | 加科电子 | ±30ppm | 10pF | 38.4 MHz | -40°C ~ 85°C |
| 8Y-38.400MAHV-T | 加科电子 | ±30ppm | 8pF | 38.4 MHz | -40°C ~ 85°C |
| 8Y-38.400MEEQ-T | 加科电子 | ±10ppm | 10pF | 38.4 MHz | -20°C ~ 70°C |
| 8Y-40.000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 40 MHz | -20°C ~ 70°C |
| 8Y-40.000MAAE-T | 加科电子 | ±30ppm | 12pF | 40 MHz | -20°C ~ 70°C |
| 8Y-40.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 40 MHz | -20°C ~ 70°C |
| 8Y-40.000MAAV-T | 加科电子 | ±30ppm | 8pF | 40 MHz | -20°C ~ 70°C |
| 8Y-40.000MAHE-T | 加科电子 | ±30ppm | 12pF | 40 MHz | -40°C ~ 85°C |
| 8Y-40.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 40 MHz | -40°C ~ 85°C |
| 8Y-40.000MAHV-T | 加科电子 | ±30ppm | 8pF | 40 MHz | -40°C ~ 85°C |
| 8Y-40.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 40 MHz | -20°C ~ 70°C |
| 8Y-44.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 44 MHz | -20°C ~ 70°C |
| 8Y-48.000MAAB-T | 加科电子 | ±30ppm | 8.5pF | 48 MHz | -20°C ~ 70°C |
| 8Y-48.000MAAE-T | 加科电子 | ±30ppm | 12pF | 48 MHz | -20°C ~ 70°C |
| 8Y-48.000MAAJ-T | 加科电子 | ±30ppm | 18pF | 48 MHz | -20°C ~ 70°C |
| 8Y-48.000MAAV-T | 加科电子 | ±30ppm | 8pF | 48 MHz | -20°C ~ 70°C |
| 8Y-48.000MAHQ-T | 加科电子 | ±30ppm | 10pF | 48 MHz | -40°C ~ 85°C |
| 8Y-48.000MEEQ-T | 加科电子 | ±10ppm | 10pF | 48 MHz | -20°C ~ 70°C |
| 8Y-50.000MAHV-T | 加科电子 | ±30ppm | 8pF | 50 MHz | -40°C ~ 85°C |
此款2016贴片晶振具有高精度和高频率稳定性,优异的耐热性和环境特性,8Y是TXC晶振公司的一款无源晶振产品,采用2016小尺寸封装,可以大幅度节省PCB板空间,最大等效串联电阻（ESR）60Ω容易起振,同时较小的ESR值在震荡期间降低功耗,有利于产品小型化设计,8Y晶振目前已经在各种动电话,蓝牙,无线-局域网,ISM频段电台广播,MPU时钟,射频模块设备等场景有着广泛的应用。
