在智能电子产品产业链中,晶振可以被视为绝对独特的地位,几乎所有的智能电子产品制造业都需要用到晶振来稳定信号频率,与无源晶振不同,有源晶振是一个完整的振荡器,可以在没有外部电路的情况下自行启动,因此广泛应用于工业控制,网络通信,医疗电子等领域,有源晶振有多种输出模式类型,如普通有源晶振（SPXO）,温度补偿晶振（TCXO）,压控晶振（VCXO）和差分晶振（LVDS,LV-PECL）恒温晶振（OCXO）,那么硬件工程师如何选择适合自己产品的有源晶振呢？
接下来加科电子将介绍一些TXC晶振有源料号参数,希望帮助您快速开发产品并将其推向市场。在智能电子产品产业链中，晶振可以被视为绝对独特的地位。几乎所有的智能电子产品制造业都需要用到晶振来稳定信号频率。与无源晶振不同,有源晶振是一个完整的振荡器，可以在没有外部电路的情况下自行启动，因此广泛应用于工业控制、网络通信、医疗电子等领域。

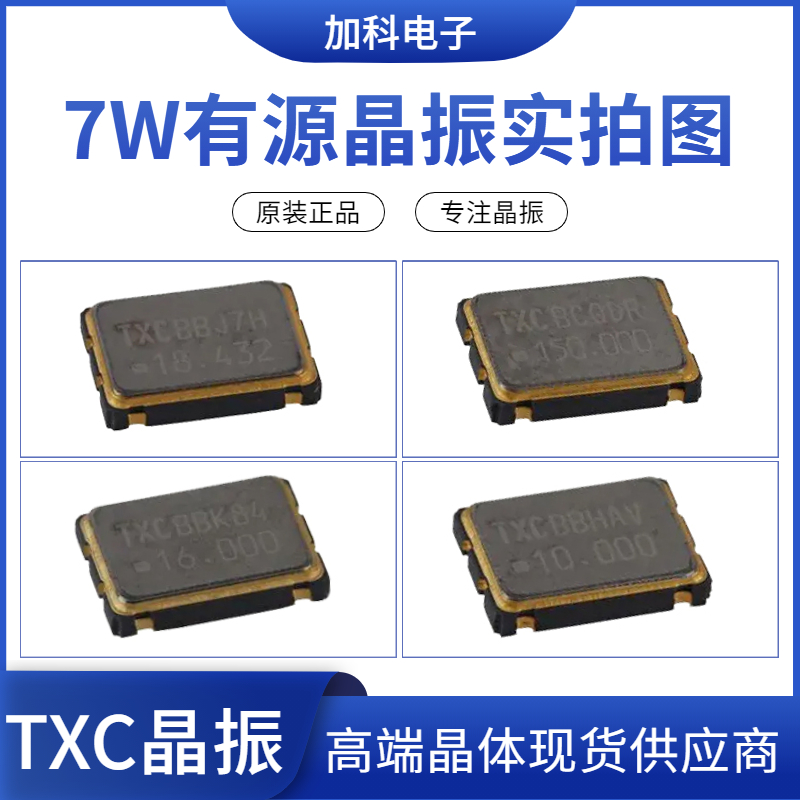

7W有源晶振系列料号
| 料号 | 频率 | 输出模式 | 电压 | 精度 | 工作温度 |
| 7W27070003 | 27 MHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 7W50002033 | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W16370002 | 16.384 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7W25000041 | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7W66600017 | 66.666 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7WA0070010 | 100 MHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 7W16077001 | 16 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W24077001 | 24 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W40000027 | 40 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 7W10000031 | 10 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W18400024 | 18.432 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W24073001 | 24 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W33000039 | 33 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W20400043 | 20.48 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7W27000032 | 27 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W32000026 | 32 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W90077001 | 90 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W27000014 | 27 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W33000011 | 33 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7WA2502008 | 125 MHz | CMOS | 3.3V | ±50ppm | 0°C ~ 70°C |
| 7W48000032 | 48 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W25000027 | 25 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7WA0000008 | 100 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7WA2500007 | 125 MHz | CMOS | 2.5V | ±50ppm | -20°C ~ 70°C |
| 7W25000249 | 25 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W20000025 | 20 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W25000034 | 25 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W24070010 | 24 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7WA3300099 | 133.33 MHz | CMOS | 3.3V | ±100ppm | -40°C ~ 70°C |
| 7W24000049 | 24 MHz | CMOS | 5V | ±50ppm | -10°C ~ 70°C |
| 7W07600001 | 7.68 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W50000015 | 50 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W18300001 | 18.306 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7WA0070011 | 100 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 7W16000001 | 16 MHz | CMOS | 5V | ±50ppm | -40°C ~ 85°C |
| 7W24700035 | 24.704 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W33302002 | 33.333 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7WZ3270002 | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7WA1200001 | 112 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W50000034 | 50 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W60077001 | 60 MHz | CMOS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 7W25003003 | 25 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7WA2500013 | 125 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W25070010 | 25 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W20477001 | 20.48 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7W50000020 | 50 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7WA0000010 | 100 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W27000032 | 27 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W32000026 | 32 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W90077001 | 90 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W25070018 | 25 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W36000013 | 36 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W16000001 | 16 MHz | CMOS | 5V | ±50ppm | -40°C ~ 85°C |
| 7W10000013 | 10 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W25000105 | 25 MHz | CMOS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 7W03670004 | 3.6864 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7WA2570002 | 125 MHz | CMOS | 3.3V | ±50ppm | 0°C ~ 70°C |
| 7W24700035 | 24.704 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W33302002 | 33.333 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7WZ3270002 | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7WA1200001 | 112 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W16300014 | 16.384 MHz | CMOS | 5V | ±50ppm | -40°C ~ 85°C |
| 7W18500001 | 18.56 MHz | CMOS | 5V | ±25ppm | -40°C ~ 85°C |
| 7W24000030 | 24 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W32700030 | 32.768 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W12000011 | 12 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W22500046 | 22.5792 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W33300016 | 33.333 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W33300043 | 33.33 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W75070005 | 75 MHz | CMOS | 1.8V | ±50ppm | -10°C ~ 80°C |
| 7W99000001 | 99 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7WA0070002 | 100 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7W33300034 | 33.333 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W50000033 | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W50070010 | 50 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W80000032 | 80 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W14300002 | 14.31818 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W66000021 | 66 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
| 7W48070010 | 48 MHz | CMOS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 7W01800032 | 1.8432 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W33300003 | 33.333 MHz | CMOS | 3.3V | ±30ppm | -20°C ~ 85°C |
| 7W44980001 | 44.9454 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W12270003 | 12 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 7W24000012 | 24 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
| 7WZ3200002 | 32.768 kHz | CMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 7WA2570007 | 125 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W25000016 | 25 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 85°C |
| 7W11000035 | 11.0592 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W20000034 | 20 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 7W50002013 | 50 MHz | CMOS | 3.3V | ±20ppm | -10°C ~ 70°C |
| 7W33300026 | 33.333 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 7W40000021 | 40 MHz | CMOS | 3.3V | - | -40°C ~ 85°C |
就穿戴设备,智能家居,智能电网,物联网,无线WIFI,智慧安防,工控主板,控制板,通讯模块,无线模块,汽车电子,工业自动化这些产品对有源晶振体积要求越来越严格,对晶振稳定性有要求,TXC有源晶振有多种封装尺寸,最小体积可做到1612,在多样化的工业类产品上,能够满足不同开发板的空间需求,性能特点高精度,在工温范围内,总频差达到±20PPM,启动时间低至3ms,可兼容多个电压(1.8-3.3V)抗冲击振动,可靠性高。
