「7A08000015,7B08000001」晶振赋能高端电子产品,走入千行百业

文章出处：http://www.xtal.cc/责任编辑：加科电子人气：-发表时间：2022-11-07 10:46【大 中 小】

全球高端晶体呈现出高频化,小型化,高精度和高可靠性的趋势,随着智能电子设备,移动终端等产品向便利化方向发展,5G时代对通信质量的要求越来越高,对晶振尺寸和参数要求越来越高,晶振行业正逐步向高频,小型化,高精度和高可靠性发展,一般来说晶振尺寸越小,频率就越高,在晶振行业如果按频率分类,32.768K晶振通常被视为低频产品,0-50MHz晶振被视为高频产品,50MHz及以上晶振被认为是高基频产品,其中50MHz及以上的高基频产品由于其高频特性而成为高端晶振之一。

TXC晶振

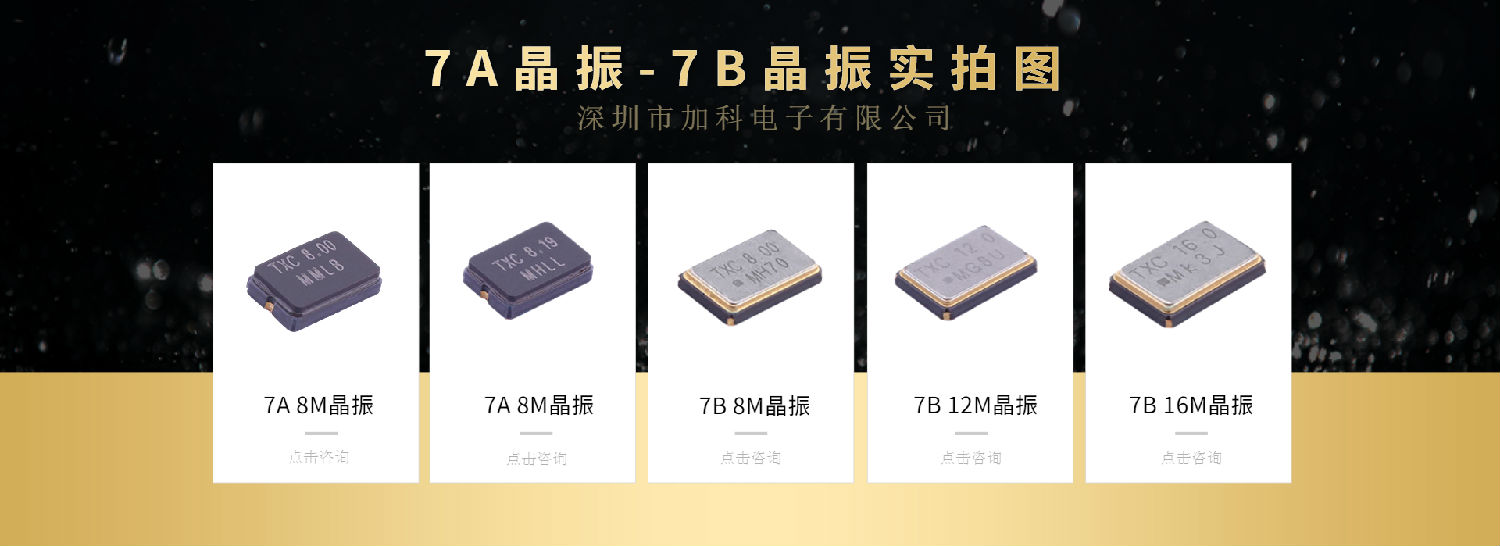

今天加科电子推荐一款台湾TXC晶振公司推出的一款小尺寸高性能5032贴片晶振7A和7B系列晶振,主要应用于消费类电子产品应用,其工作温度范围为-10°C+70°C,可以满足大多数消费类电子产品不同使用需求,本文介绍TXC晶振7A08000015和7B08000001晶振频率为8MHz,封装5032封装,负载电容8PF,精度20PPM晶振,7B08000001晶振,频率8MHz,封装5032贴片晶振封装,负载电容8PF,精度30PPM,另外两者具有出色的频率稳定性,符合通信领域对频率稳定性的精度需求。

7A系列

料号频率精度负载电容工作温度
7A2500017425 MHz±30ppm20pF-40°C ~ 85°C
7A3000000530 MHz±30ppm18pF-20°C ~ 70°C
7A080000158 MHz±20ppm8pF-30°C ~ 85°C
7A1200000712 MHz±20ppm8pF-10°C ~ 70°C
7A2408000324 MHz±30ppm10pF-20°C ~ 75°C
7A2450012024.576 MHz±50ppm18pF-40°C ~ 85°C
7A1430000714.31818 MHz±30ppm20pF-40°C ~ 85°C
7A2502000325 MHz±30ppm20pF-20°C ~ 70°C
7A5407000254 MHz±10ppm12pF-10°C ~ 70°C
7A080700088 MHz±20ppm18pF-40°C ~ 85°C
7A2500001825 MHz±15ppm10pF-20°C ~ 85°C
7A5007000250 MHz±15ppm19pF-10°C ~ 70°C
7A1200004412 MHz±30ppm20pF-10°C ~ 70°C
7A1207000212 MHz±30ppm18pF-20°C ~ 70°C
7A2500001825 MHz±15ppm10pF-20°C ~ 85°C
7A5007000250 MHz±15ppm19pF-10°C ~ 70°C
7A1200000812 MHz±30ppm18pF-20°C ~ 70°C
7A5000000150 MHz±17ppm10pF-20°C ~ 85°C
7A080700088 MHz±20ppm18pF-40°C ~ 85°C
7A1000004610 MHz±50ppm18pF-40°C ~ 85°C
7A1200000712 MHz±20ppm8pF-10°C ~ 70°C
7A1470001014.7456 MHz±30ppm20pF-10°C ~ 70°C
7A2400007224 MHz±20ppm8pF-10°C ~ 70°C
7A2407000124 MHz±30ppm18pF-20°C ~ 70°C
7A080700068 MHz±20ppm18pF-40°C ~ 85°C
7A2407000624 MHz±20ppm10pF-10°C ~ 70°C
7A2717000227.12 MHz±30ppm12pF-20°C ~ 70°C
7A4800004748 MHz±30ppm12pF-30°C ~ 85°C
7A4800011848 MHz±15ppm8pF-10°C ~ 70°C
7A2500001225 MHz±25ppm20pF-10°C ~ 70°C
7A2507700225 MHz±20ppm8pF-40°C ~ 85°C
7A2509000225 MHz±15ppm19pF-10°C ~ 70°C
7A5407000254 MHz±10ppm12pF-10°C ~ 70°C
7A2507001125 MHz±20ppm10pF-10°C ~ 70°C
7A2867000128.63636 MHz±30ppm18pF-20°C ~ 70°C
7A2500005825 MHz±30ppm20pF-10°C ~ 70°C
7A3338000233.33 MHz±30ppm10pF-10°C ~ 70°C
7A4807000448 MHz±15ppm10pF-30°C ~ 85°C
7A4807000648 MHz±30ppm18pF-20°C ~ 70°C
7A2000000420 MHz±30ppm8pF-40°C ~ 90°C
7A2702000127 MHz±30ppm10pF-10°C ~ 70°C
7A2507001725 MHz±10ppm9pF-40°C ~ 85°C
7A1847000118.432 MHz±30ppm18pF-20°C ~ 70°C
7A2500017425 MHz±30ppm20pF-40°C ~ 85°C
7A2500017425 MHz±30ppm20pF-40°C ~ 85°C
7A2000000420 MHz±30ppm8pF-40°C ~ 90°C
7A2702000127 MHz±30ppm10pF-10°C ~ 70°C
7A2500005825 MHz±30ppm20pF-10°C ~ 70°C
7A3338000233.33 MHz±30ppm10pF-10°C ~ 70°C
7A4807000448 MHz±15ppm10pF-30°C ~ 85°C
7A4807000648 MHz±30ppm18pF-20°C ~ 70°C
7A1200006212 MHz±20ppm18pF-10°C ~ 70°C
7A1600004016 MHz±30ppm18pF-20°C ~ 70°C
7A2507000225 MHz±10ppm12pF-10°C ~ 70°C
7A1200002612 MHz±30ppm16pF-10°C ~ 70°C
7A1202000112 MHz±30ppm18pF-40°C ~ 85°C
7A2507002325 MHz±15ppm10pF-40°C ~ 85°C
7A5002000150 MHz±15ppm16pF-10°C ~ 70°C
7A2507001725 MHz±10ppm9pF-40°C ~ 85°C
7A2000001220 MHz±30ppm20pF-20°C ~ 70°C
7A2500006725 MHz±20ppm20pF-20°C ~ 70°C
7A3208000232 MHz±50ppm8pF-10°C ~ 85°C
7A1100001311.0592 MHz±30ppm20pF-10°C ~ 70°C
7A1200000112 MHz±20ppm16pF-30°C ~ 85°C
7A2500016525 MHz±30ppm20pF0°C ~ 70°C
7A080000018 MHz±20ppm20pF-10°C ~ 70°C
7A080000058 MHz±30ppm12pF-10°C ~ 70°C
7A2707000227 MHz±30ppm18pF-20°C ~ 70°C
7A080000158 MHz±20ppm8pF-30°C ~ 85°C
7A2450012024.576 MHz±50ppm18pF-40°C ~ 85°C
7A2507000525 MHz±30ppm12pF-30°C ~ 85°C
7A5407000354 MHz-19pF-

AA车载系列

料号频率精度负载电容工业温度
AA080000028 MHz±30ppm8pF-40°C ~ 125°C
AA080000048 MHz±30ppm16pF-40°C ~ 85°C
AA080000068 MHz±30ppm10pF-40°C ~ 85°C
AA080700048 MHz±30ppm12pF-40°C ~ 125°C
AA081700018.192 MHz±30ppm12pF-40°C ~ 85°C
AA090700019 MHz±30ppm8pF-40°C ~ 85°C
AA1607000416 MHz±20ppm8pF-40°C ~ 125°C
AA2402000124 MHz±30ppm18pF-40°C ~ 85°C
AA2860000128.63636 MHz±20ppm20pF-40°C ~ 85°C


7B系列

料号频率精度负载电容工作温度
7B080000018 MHz±30ppm8pF-40°C ~ 85°C
7B080200018 MHz±30ppm18pF-40°C ~ 85°C
7B080700018 MHz±20ppm18pF-20°C ~ 75°C
7B1000000210 MHz±30ppm18pF-40°C ~ 70°C
7B1100002411.0592 MHz±20ppm18pF-10°C ~ 70°C
7B1200001312 MHz±10ppm16pF-20°C ~ 70°C
7B1200004612 MHz±30ppm18pF-20°C ~ 70°C
7B1200011712 MHz±20ppm20pF-10°C ~ 85°C
7B1200016212 MHz±30ppm16pF-40°C ~ 85°C
7B1200019912 MHz±30ppm18pF-40°C ~ 85°C
7B1200027912 MHz±10ppm10pF-20°C ~ 70°C
7B1207000312 MHz±30ppm18pF-20°C ~ 70°C
7B1300011113 MHz±10ppm10pF-25°C ~ 70°C
7B1340000113.4 MHz±10ppm8pF-20°C ~ 70°C
7B1350000613.5672 MHz±10ppm7.5pF-20°C ~ 70°C
7B1350003613.56 MHz±10ppm12pF-20°C ~ 85°C
7B1350004513.56 MHz±20ppm20pF-20°C ~ 70°C
7B1357000113.56 MHz±30ppm12pF0°C ~ 70°C
7B1430004914.31818 MHz±25ppm20pF-20°C ~ 70°C
7B1430010114.31818 MHz±30ppm12pF-20°C ~ 70°C
7B1430011014.31818 MHz±20ppm20pF-10°C ~ 60°C
7B1430014714.31818 MHz±30ppm32pF-20°C ~ 85°C
7B1470010114.7456 MHz±10ppm16pF-20°C ~ 70°C
7B1477000114.7456 MHz±30ppm18pF-20°C ~ 70°C
7B1600000116 MHz±50ppm16pF-40°C ~ 85°C
7B1600002016 MHz±30ppm18pF-30°C ~ 85°C
7B1600011316 MHz±10ppm9pF-20°C ~ 75°C
7B1600014016 MHz±20ppm12pF-40°C ~ 85°C
7B1600015916 MHz±30ppm10pF-30°C ~ 85°C
7B1600020216 MHz±10ppm16pF-20°C ~ 70°C
7B1840000318.432 MHz±20ppm20pF-40°C ~ 85°C
7B2000000120 MHz±10ppm18pF-20°C ~ 75°C
7B2000000720 MHz±10ppm18pF-40°C ~ 85°C
7B2000001420 MHz±10ppm16pF-20°C ~ 70°C
7B2000005020 MHz±20ppm20pF-20°C ~ 70°C
7B2400000824 MHz±30ppm20pF-20°C ~ 85°C
7B2400003824 MHz±30ppm20pF-20°C ~ 85°C
7B2400006524 MHz±20ppm18pF-40°C ~ 85°C
7B2450000224.576 MHz±20ppm8pF-10°C ~ 70°C
7B2450000624.576 MHz±30ppm10pF-40°C ~ 85°C
7B2450004224.576 MHz±20ppm12pF-10°C ~ 70°C
7B2500000125 MHz±20ppm20pF-40°C ~ 85°C
7B2500001225 MHz±25ppm20pF-10°C ~ 70°C
7B2500001925 MHz±25ppm20pF-20°C ~ 70°C
7B2500002125 MHz±20ppm8pF-20°C ~ 70°C
7B2500002325 MHz±30ppm18pF-20°C ~ 70°C
7B2500004125 MHz±25ppm20pF-20°C ~ 70°C
7B2500008725 MHz±30ppm12pF-30°C ~ 85°C
7B2500009625 MHz±30ppm13pF-20°C ~ 70°C
7B2500010325 MHz±20ppm20pF-10°C ~ 70°C
7B2500016725 MHz±30ppm20pF-40°C ~ 85°C
7B2500018525 MHz±10ppm20pF-10°C ~ 70°C
7B2502000325 MHz±30ppm20pF0°C ~ 70°C
7B2507000325 MHz±30ppm18pF-20°C ~ 70°C
7B2600000526 MHz±30ppm18pF-40°C ~ 85°C
7B2600013426 MHz±10ppm16pF-20°C ~ 70°C
7B2600024126 MHz±10ppm10pF-20°C ~ 75°C
7B2607000127 MHz±30ppm18pF-20°C ~ 70°C
7B2700000327 MHz±30ppm13pF-20°C ~ 70°C
7B2700003027 MHz±10ppm18pF0°C ~ 70°C
7B2700004927 MHz±10ppm12pF-30°C ~ 85°C
7B2717000227.12 MHz±10ppm10pF-20°C ~ 70°C
7B2867000128.63636 MHz±30ppm18pF-20°C ~ 70°C
7B2880000128.8125 MHz±10ppm16pF-10°C ~ 60°C
7B3207000232 MHz±10ppm10pF-20°C ~ 70°C
7B3270003832 MHz-10pF-
7B3750001037.5 MHz±10ppm12pF-20°C ~ 70°C
7B4800003048 MHz±30ppm18pF-20°C ~ 70°C
7B4807000148 MHz±30ppm18pF-20°C ~ 70°C
7B5000000350 MHz±30ppm16pF-40°C ~ 85°C
7BA1200001112 MHz±10ppm系列0°C ~ 80°C


AB车载系列

料号频率精度负载电容工业温度
AB080000068 MHz±30ppm8pF-40°C ~ 125°C
AB080700018 MHz±30ppm8pF-40°C ~ 125°C
AB1607000116 MHz±30ppm18pF-40°C ~ 105°C
AB2000000120 MHz±30ppm12pF-40°C ~ 125°C
AB3757000237.5 MHz±10ppm11pF-40°C ~ 85°C

7A晶振和7B晶振两者的驱动功耗典型值均为10µW,最大不超过100µW,具有易于驱动的优势,可用于低功耗应用场合,便携式电信设备首选,同时7A晶振和7B晶振工作温度范围相同均为-10~70℃,能够满足移动通信设备应用温度范围,具有较高的输出频率,7A晶振输出频率范围8MHz~54MHz,7B晶振输出频率范围8MHz~125MHz可满足更高频段的应用需求,如PCB主板,各种通讯设备等领域。

此文关键字：TXC晶振 32.768K晶振 5032晶振 7B08000001 7A08000015
